Bag Break Systems

IMCS Bag Break Systems are designed in the modular concept using standard components. This gives you more options when designing systems to fit your needs. Standard units include a bag station hopper, grate with cutter blade, bag shelf, and dust collecting systems. Discharging accessories include gravity, auger, or air options. The IMCS Bag Compactor will aid in disposing of your empty bags.

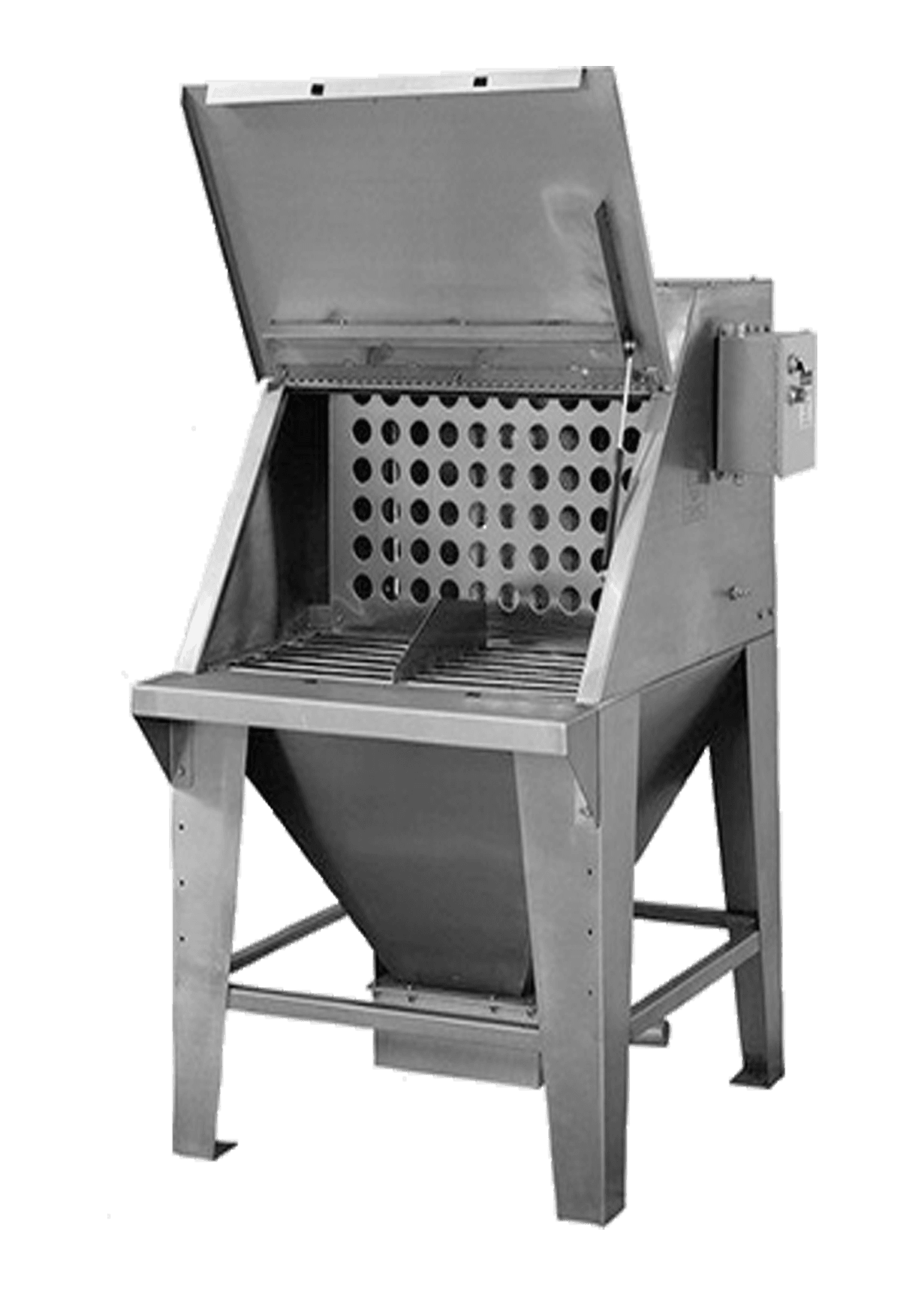

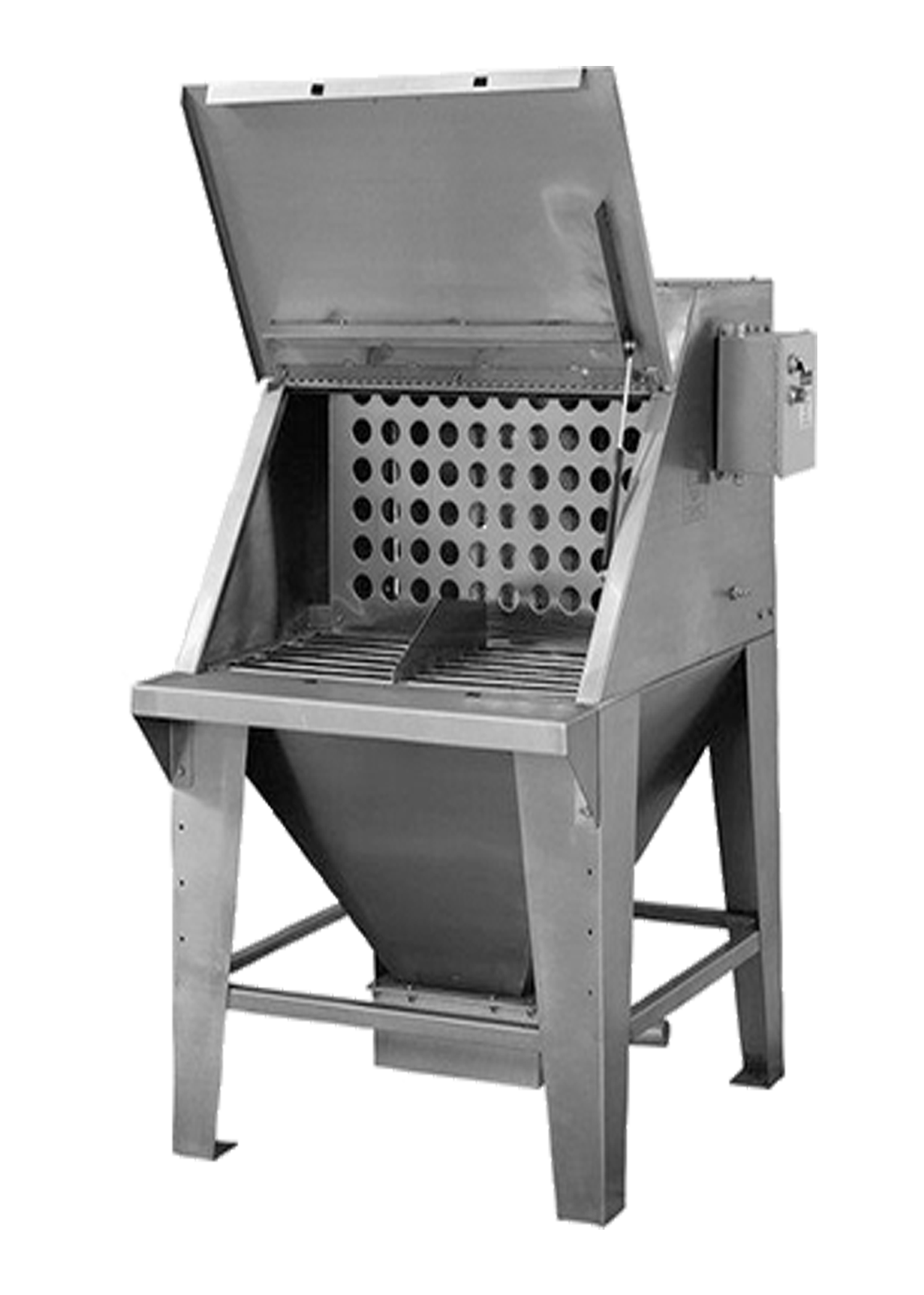

32-6000-000 Bag Break Station Assembly.......................................................................$10,748.00

  • Bag Station Hopper 40" x 40" x 39", 10 CF Capacity
  • 12" Square Discharge Opening with 16" Square Flange
  • Bag Rest Shelf
  • A grating with Bag Cutter
  • Dust Hood with Integral Dust Collector
  • Dust Collector: 318 Square Feet, 2 Replaceable Cartridge Filters, 532 CFM Blower (1-1/2 HP, 3 PH, 3450 RPM), Steel Blower Housing and Cast Aluminum Wheel, Horizontal Mount and Discharge, Air Pulse Cartridge Cleaning with Timer, and NEMA 12 Controls
  • Carbon Steel Construction
  • Painted IMCS Dark Gray (RAL 7016)

33-5000-000 Bag Compactor.........................................................................................$11,760.00

  • Self Contained Hydraulic Systems
  • 25 Bag Maximum Capacity
  • Automatic Reversing
  • 2 HP, 480 V, 3 PH, Hydraulic Pump
  • 3" Hydraulic Cylinder, 2" Rod
  • Dual Access Door
  • Push Button Control
  • Carbon Steel Construction
  • Painted IMCS Dark Gray (RAL 7016)

32-5000-000 Bag Station Hopper..................................................................................$1,420.00

32-5050-000 Bag Rest Shelf..............................................................................................$410.00

32-5002-000 Grating.........................................................................................................$860.00

32-5003-000 Back Splash.................................................................................................$340.00

32-5004-000 Dust Hood with 6" Vent............................................................................$1,150.00

Gallery

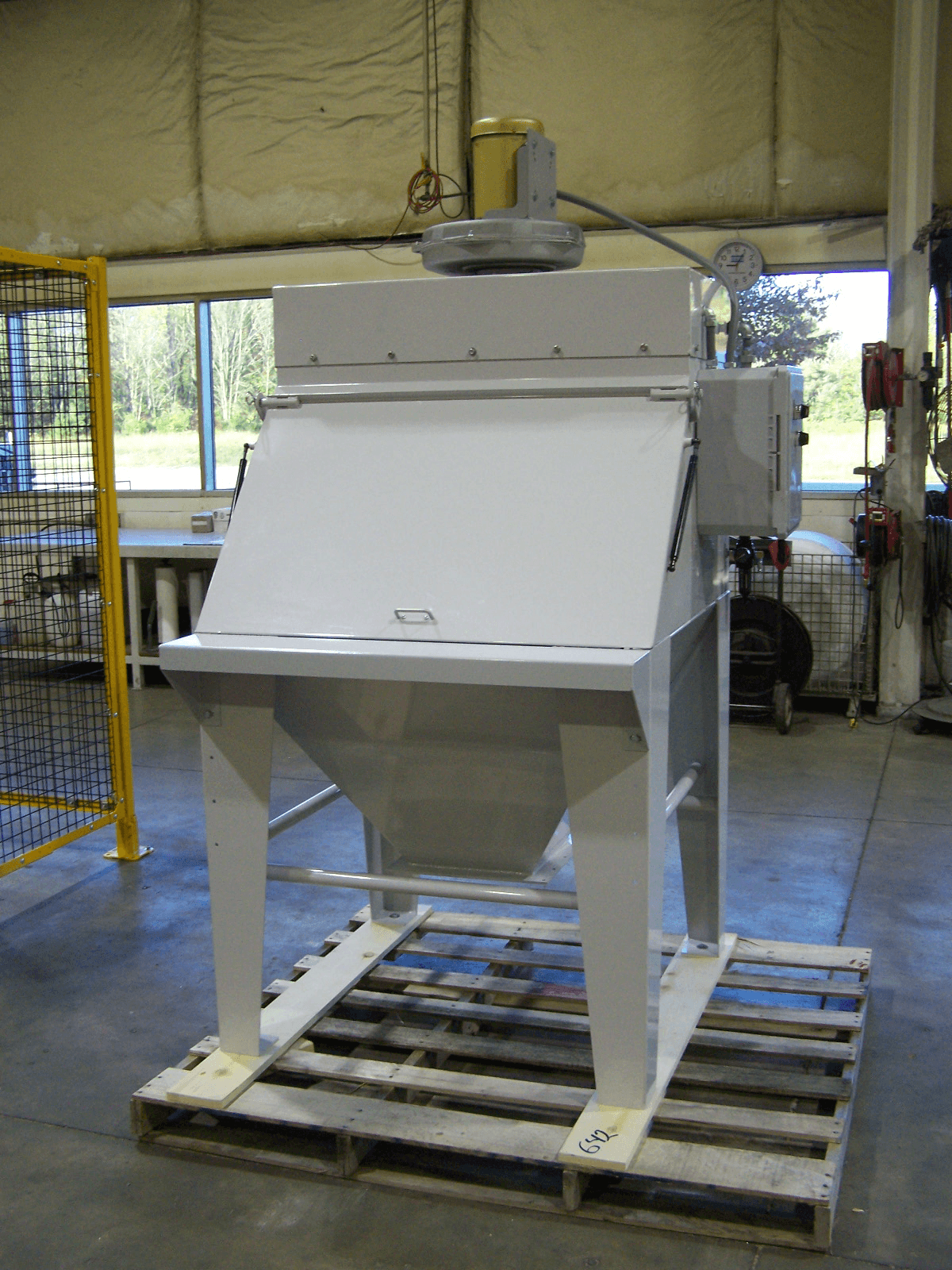

100 2721Bbs
100 2722
100 2723
100 2724

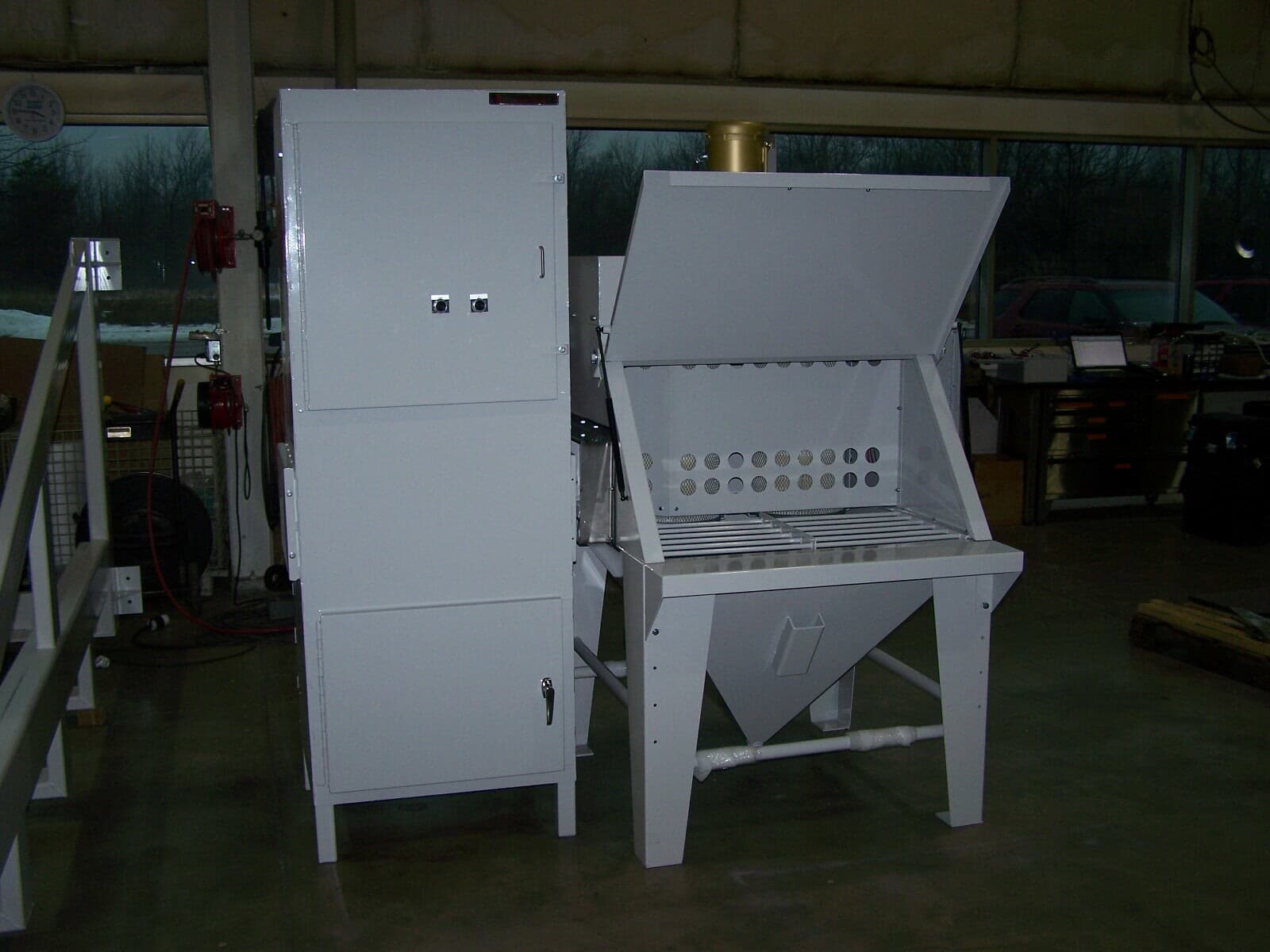

100_2989-copy

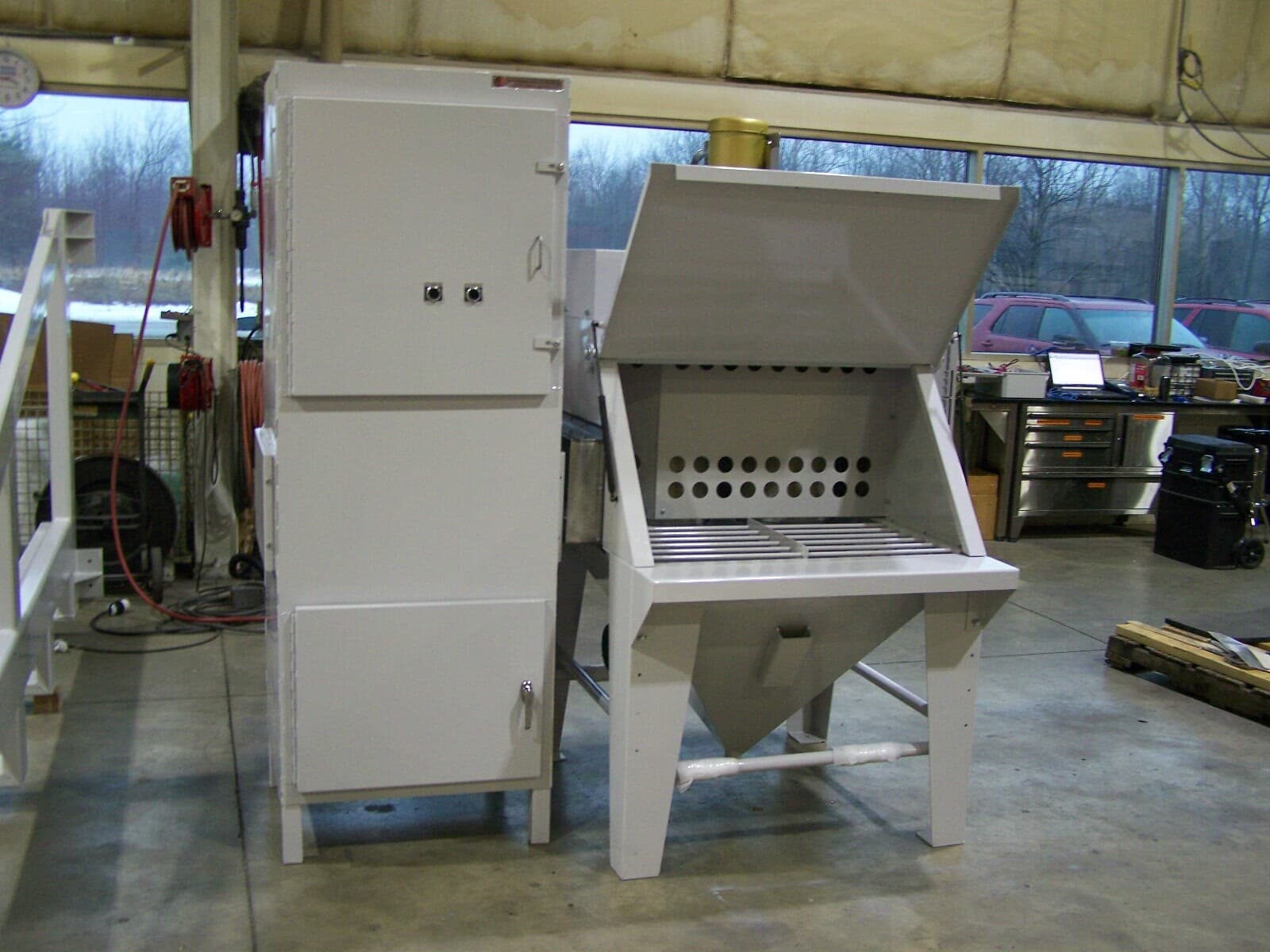

100_2990-copy

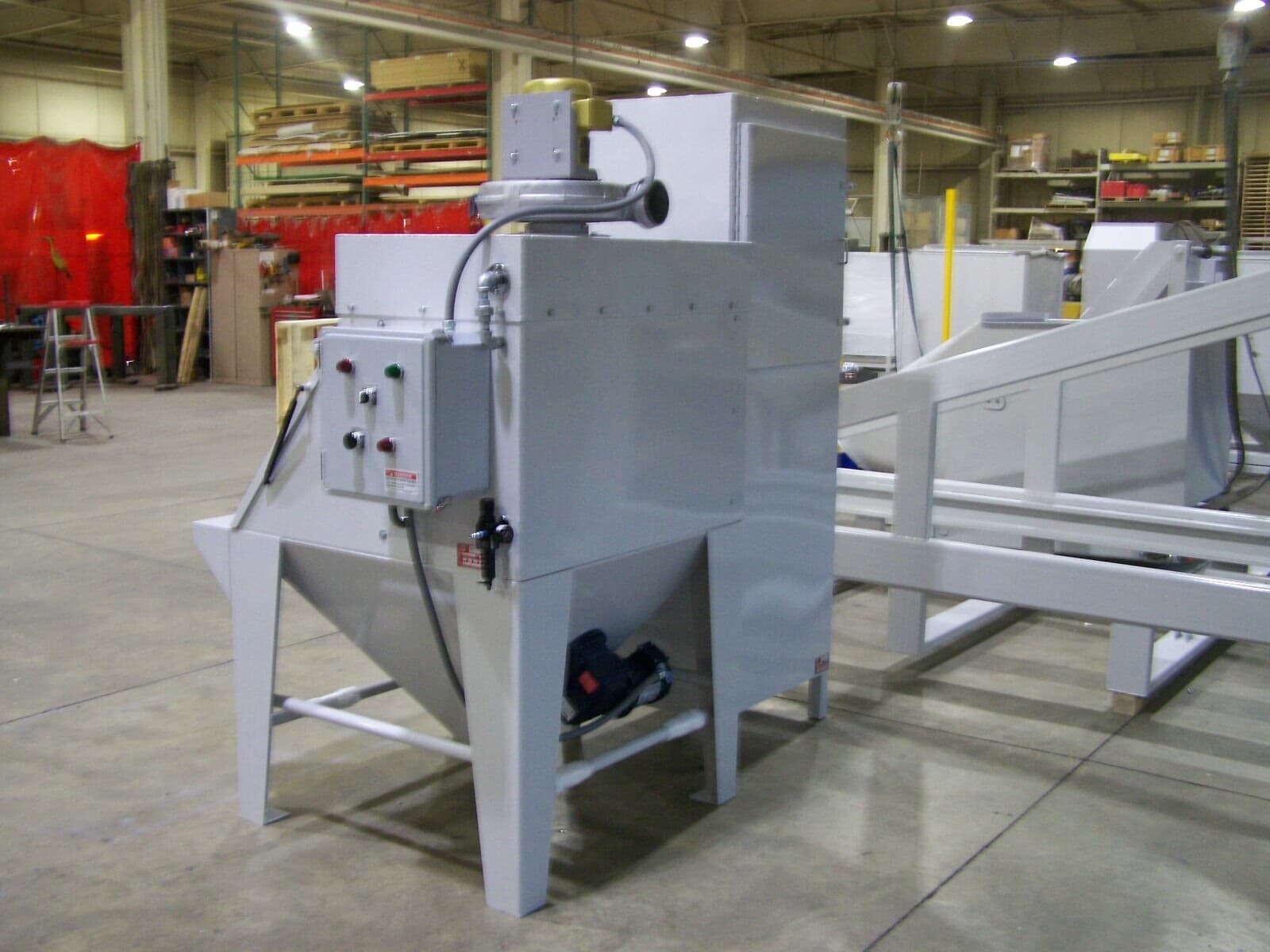

100_3001-copy

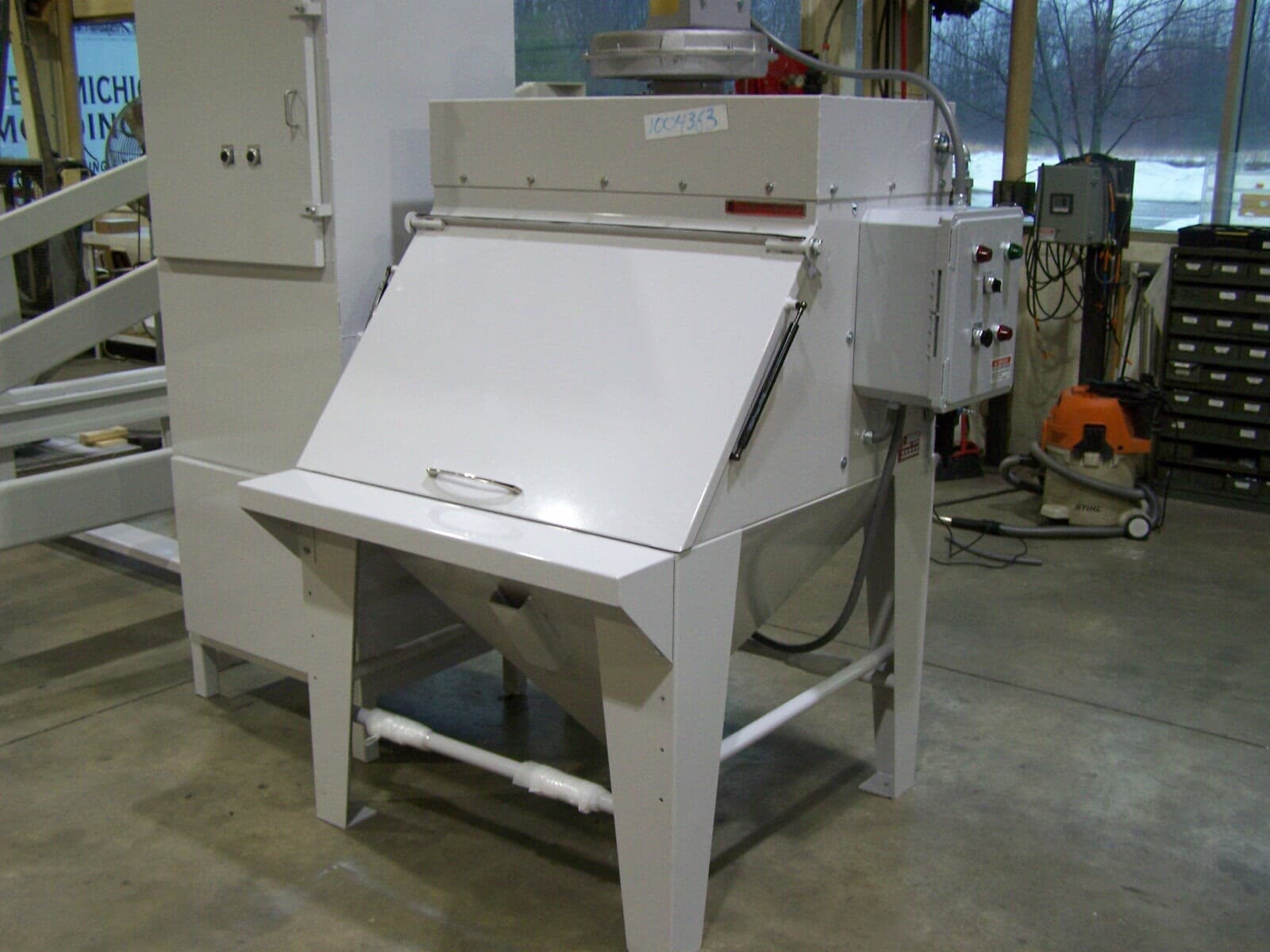

100_2993-copy

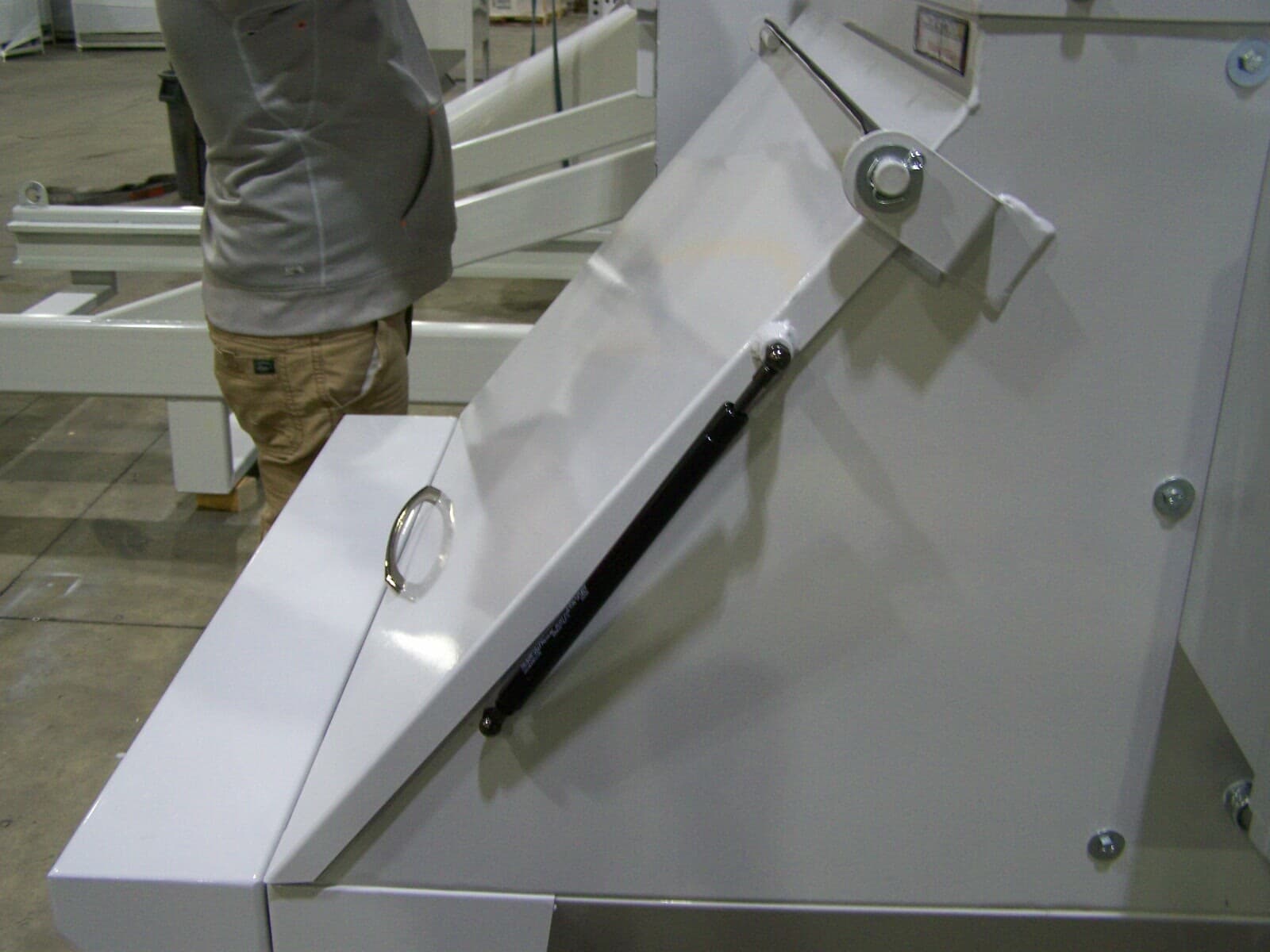

100_3002-copy

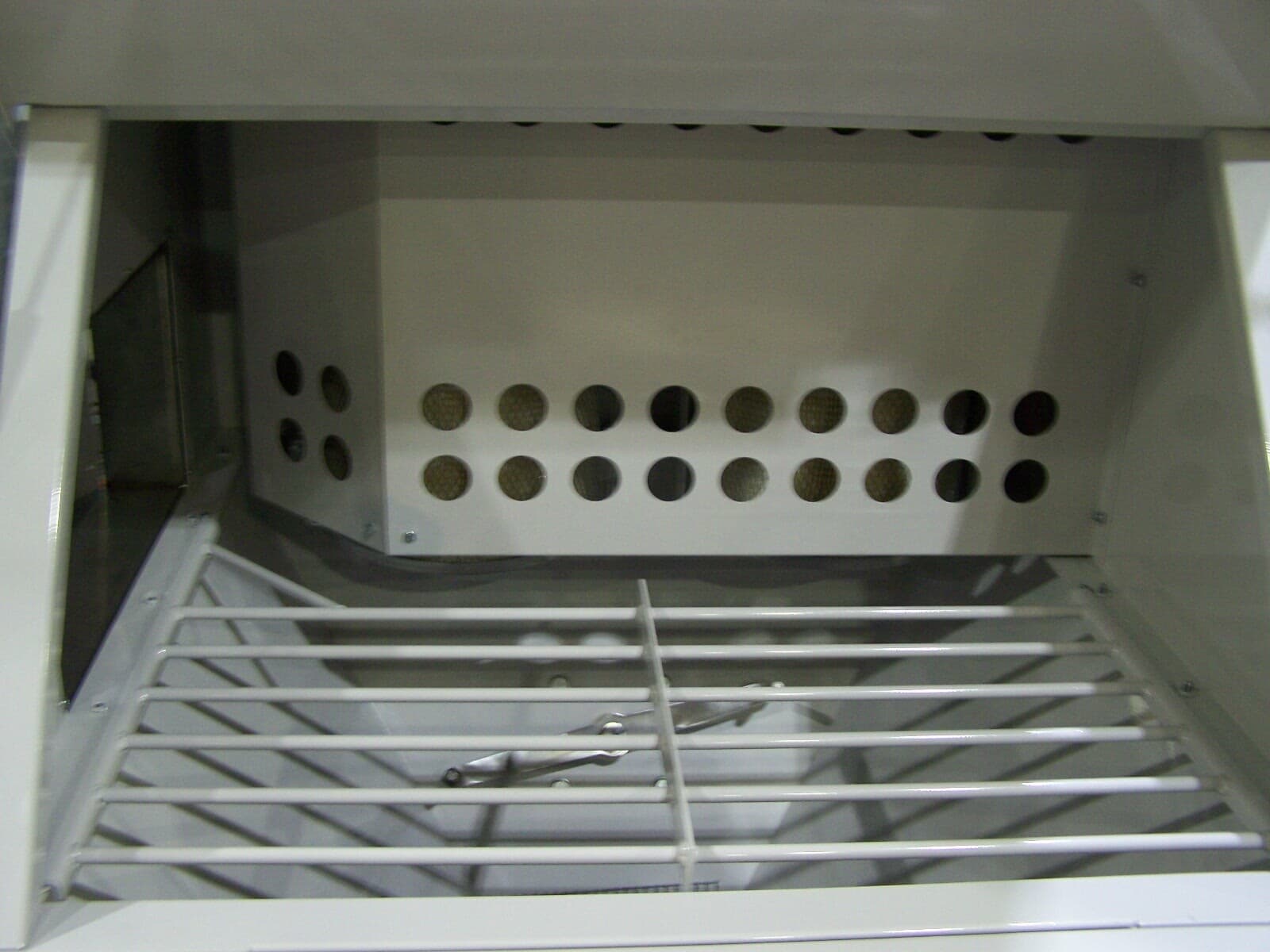

100_2991-copy
