Bulk Bag Loaders

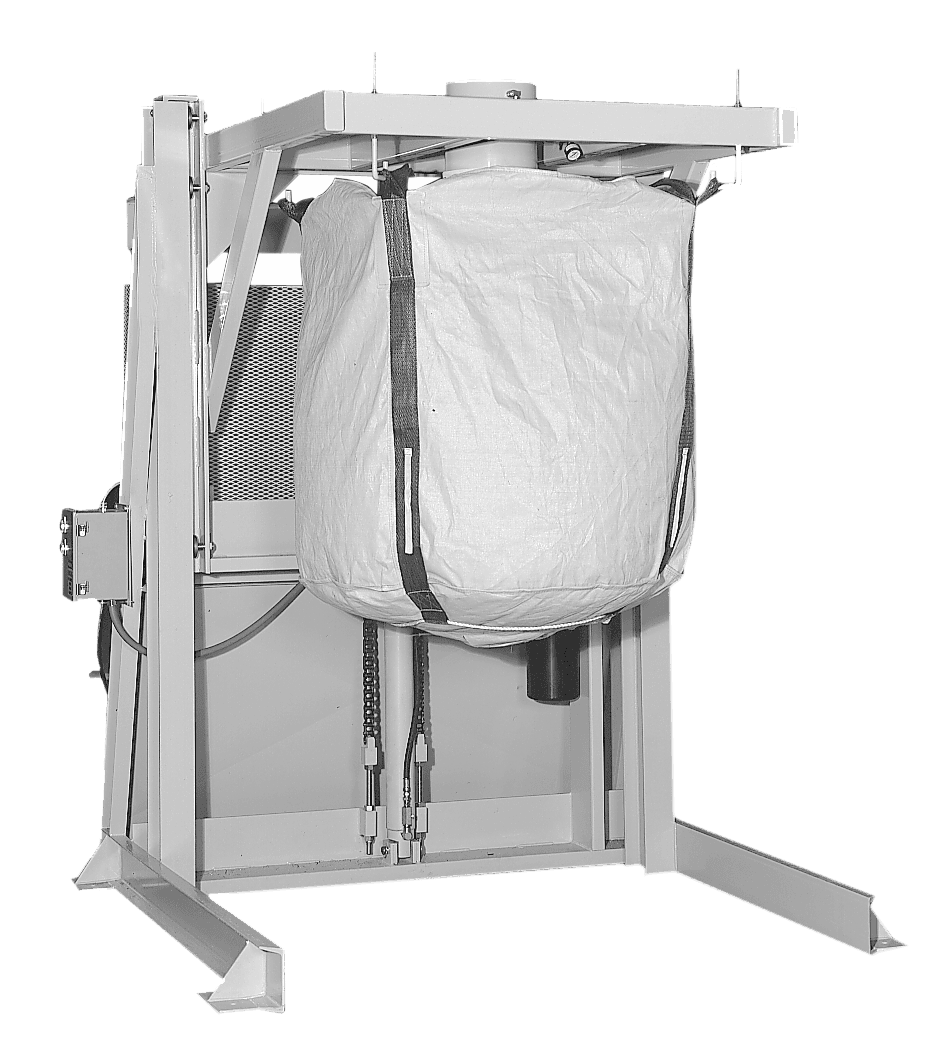

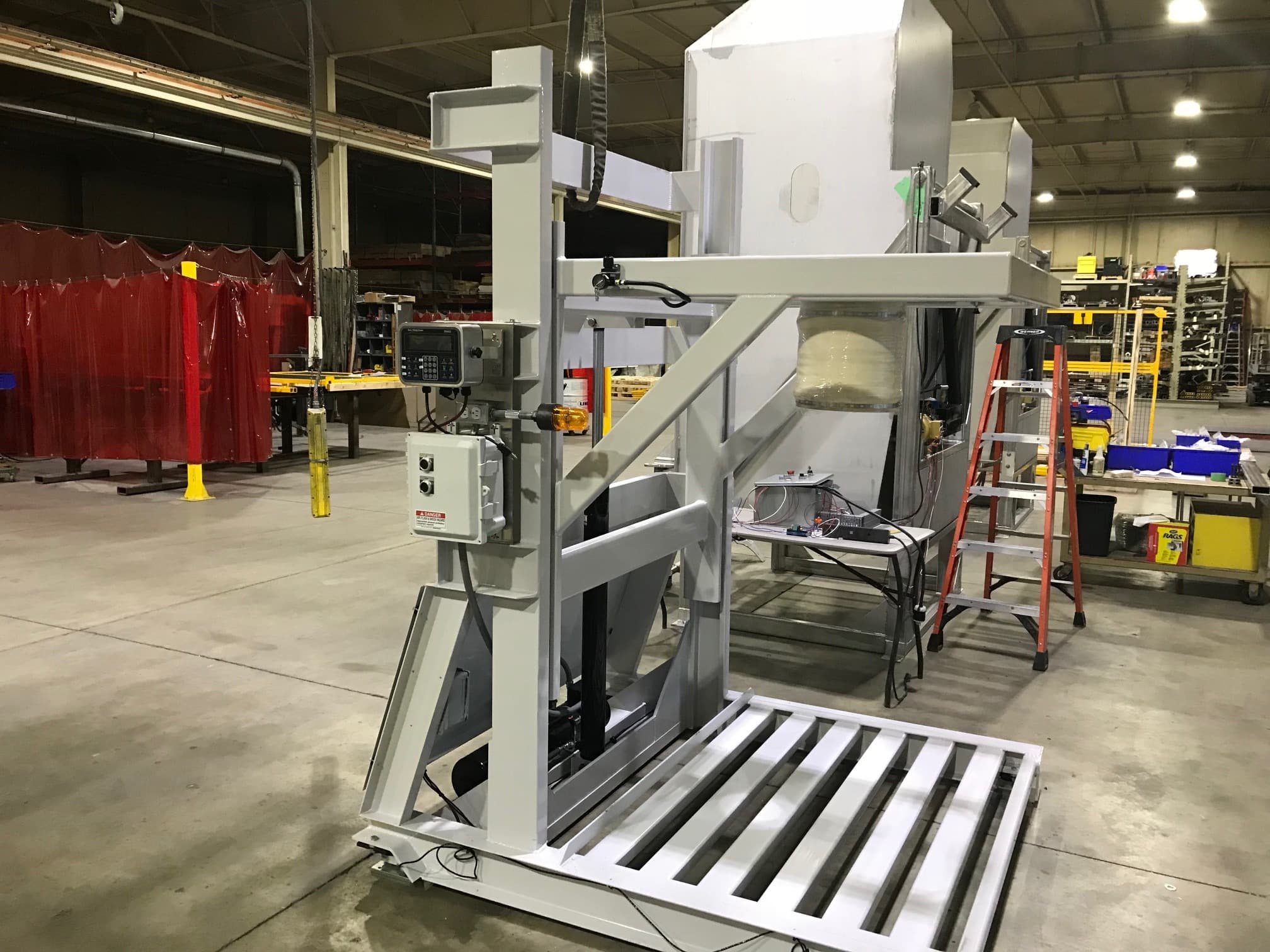

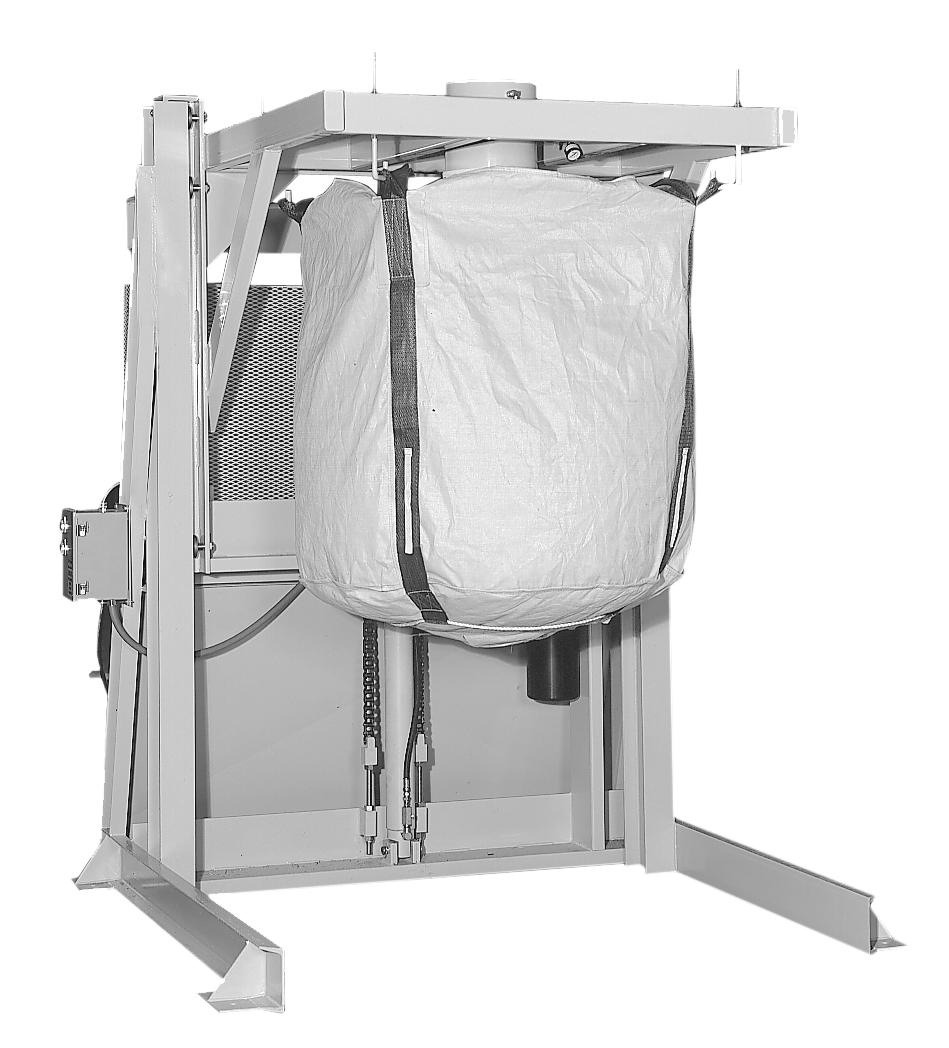

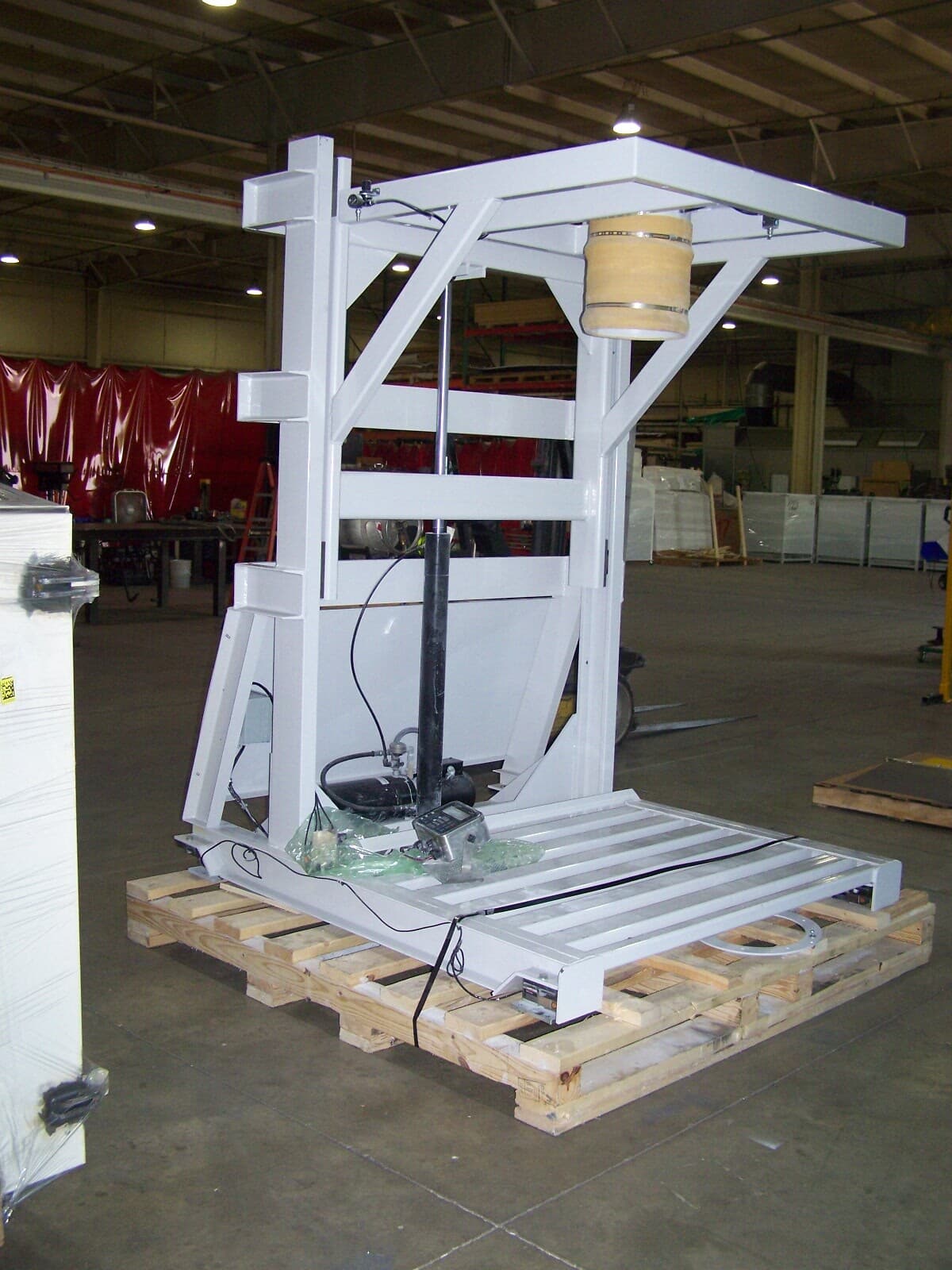

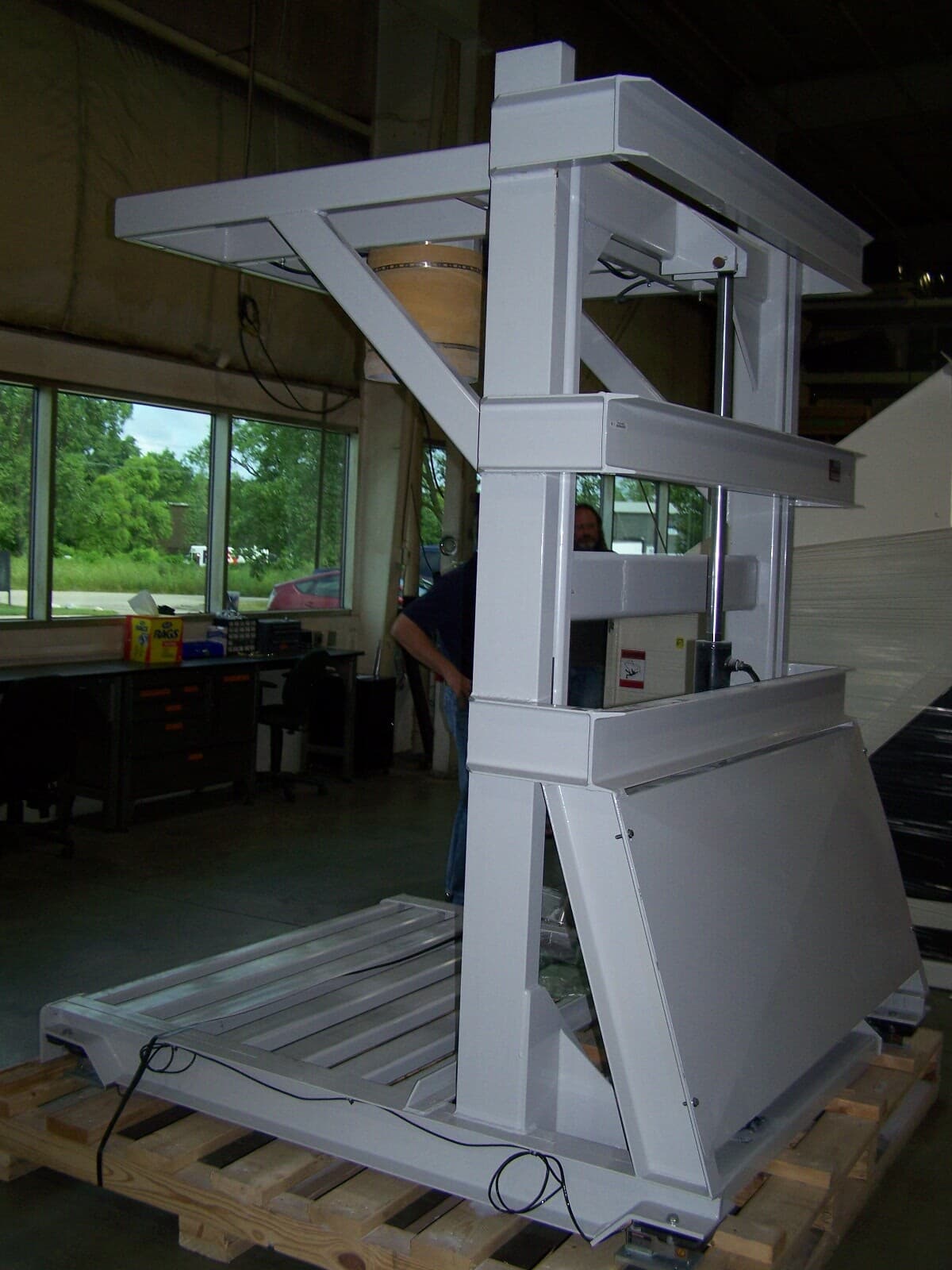

IMCS Bulk Bag Loaders are designed for basic non-mechanical bag filling as well as fully automated fillers. Lifting, weighing and bag filling units incorporate hydraulic lift, flow control valves, load cells and various methods of conveying material into bulk bags. Bulk bag loaders can be constructed from aluminum, stainless steel, carbon steel or galvanized steel.

https://s3.amazonaws.com/images.imcs.solutions/products/bulk-bag-loaders.png

Standard Features

Self Contained 2 HP Electric Over Hydraulic Power Unit 480 Volt 3PH, 3" x 36" Heavy Duty Lifting Hydraulic Cylinder with Chain and Sprocket Drive, 3" x 3" x 1/4" Rectangular Tube / Welded Construction, Safety Flow Check Valve, Heavy Duty "I" Beam and Rectangular Tube Frame Construction, Proximity Limit Switch Controls, Safety Enclosure Panels, 120 Volt Control Panel / NEMA 12 Enclosure / Stop Action Push Button Up-Down Controls, Heavy Duty Roller Bearing Carriage Guides, 10" or 12" Inflatable Bag / Seal Chute with Pneumatic Controls / 304 Stainless Steel on Contact, Accommodates Bags up to 40" x 40" x 70" High, 5" x 5" x 1/4" Foot Pads, Adjustable Bag Support "J" Hooks, Carbon Steel Construction, Painted IMCS Dark Gray (RAL 7016)

Safety Enclosures are available for all IMCS Equipment

Product Specifications

Detailed product information provides an accurate description of requirements, measurements, and functionality.

Model No.DimensionsFootprintDead Lift Weight (lbs)Power RequirementList Price
34-1000-00060" x 60" x 100"72" x 72"4000480V / 3 PHCall for Pricing
34-1000-00160" x 60" x 100"72" x 72"4000240V / 3 PHCall for Pricing
34-1001-00040" x 40" x 70"60" x 60"4000ManualCall for Pricing
