Drum Dumpers

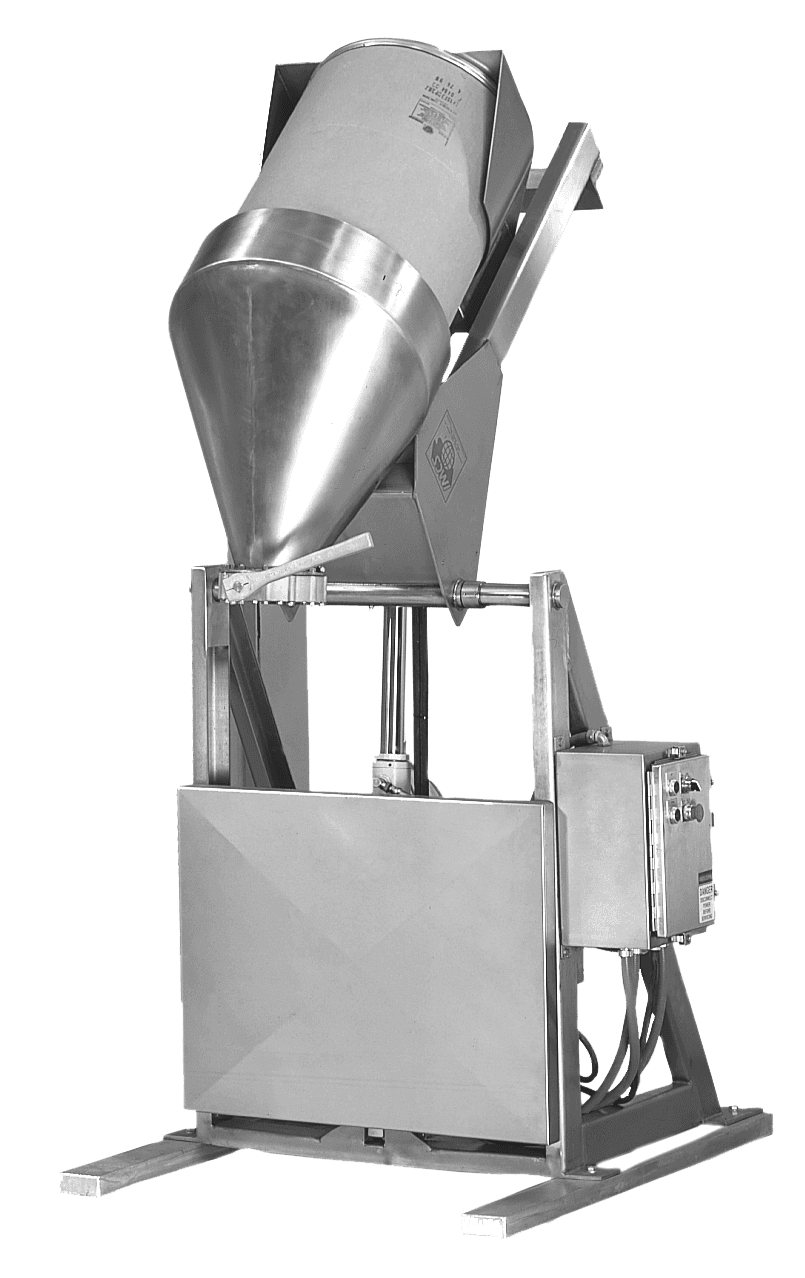

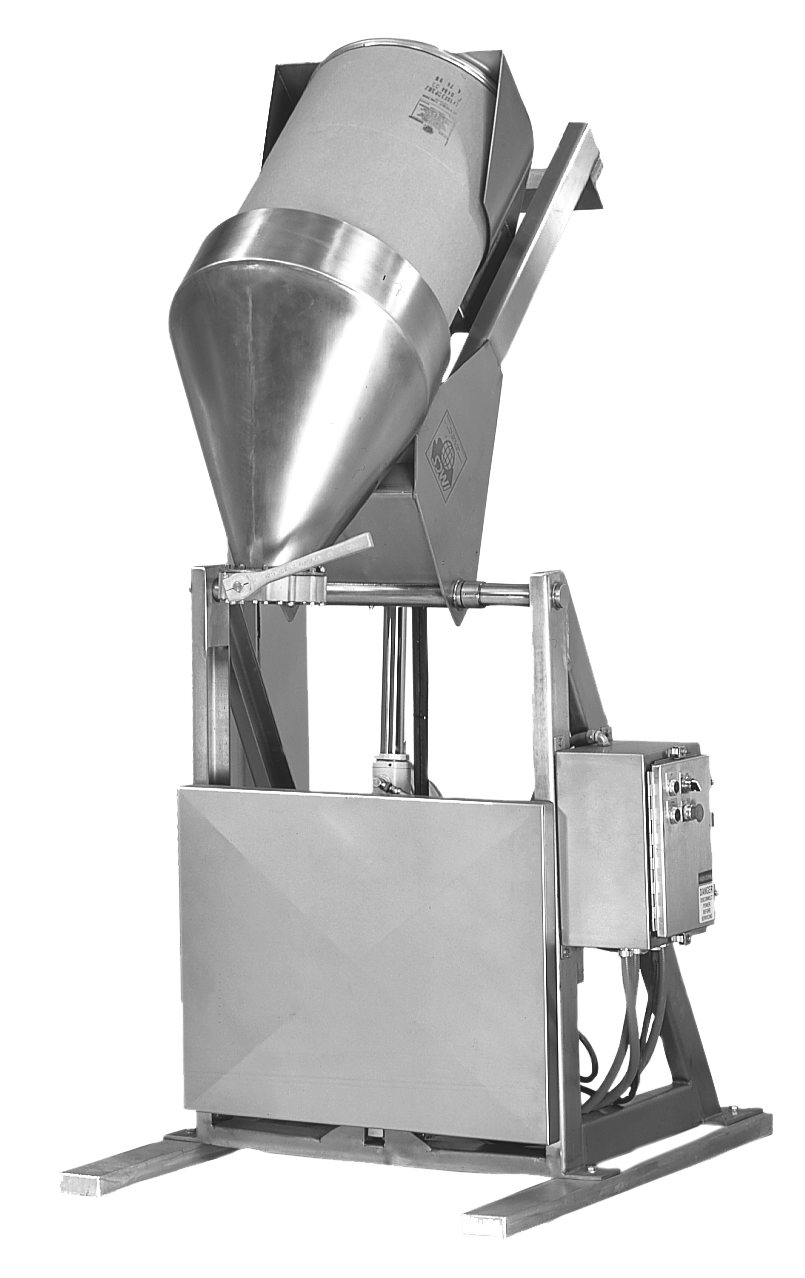

IMCS Drum Dumpers remove material from drums and place it into your material handling system quickly and affordably. The line includes open chute drum dumpers, dust containment units and vertical lift and dump units for extended dump heights. All equipment comes in various capacities and your choice of galvanized steel, carbon steel, stainless steel or aluminum material for construction.

Standard Features

Lift and Rotation Capacity- 1200 lbs., Dump Rotation - 135° to a 45° Discharge, Self Contained Hydraulic Power Unit- 2HP, Cone Discharge with 6" Butterfly Valve (Dust Containment Units Only), Dump Height 48", NEMA 12 Controls, Adjustable Retainer Bar- 34" to 44" (Open Chute Only), Floor Level Loading, Drum Top with FDA Approved Neoprene Drum Seal for Drums with 19" to 24" Diameter (Dust Containment Units Only), Heavy Duty Construction, Painted IMCS Dark Gray (RAL 7016)

Safety Enclosures are available for all IMCS Equipment

Gallery

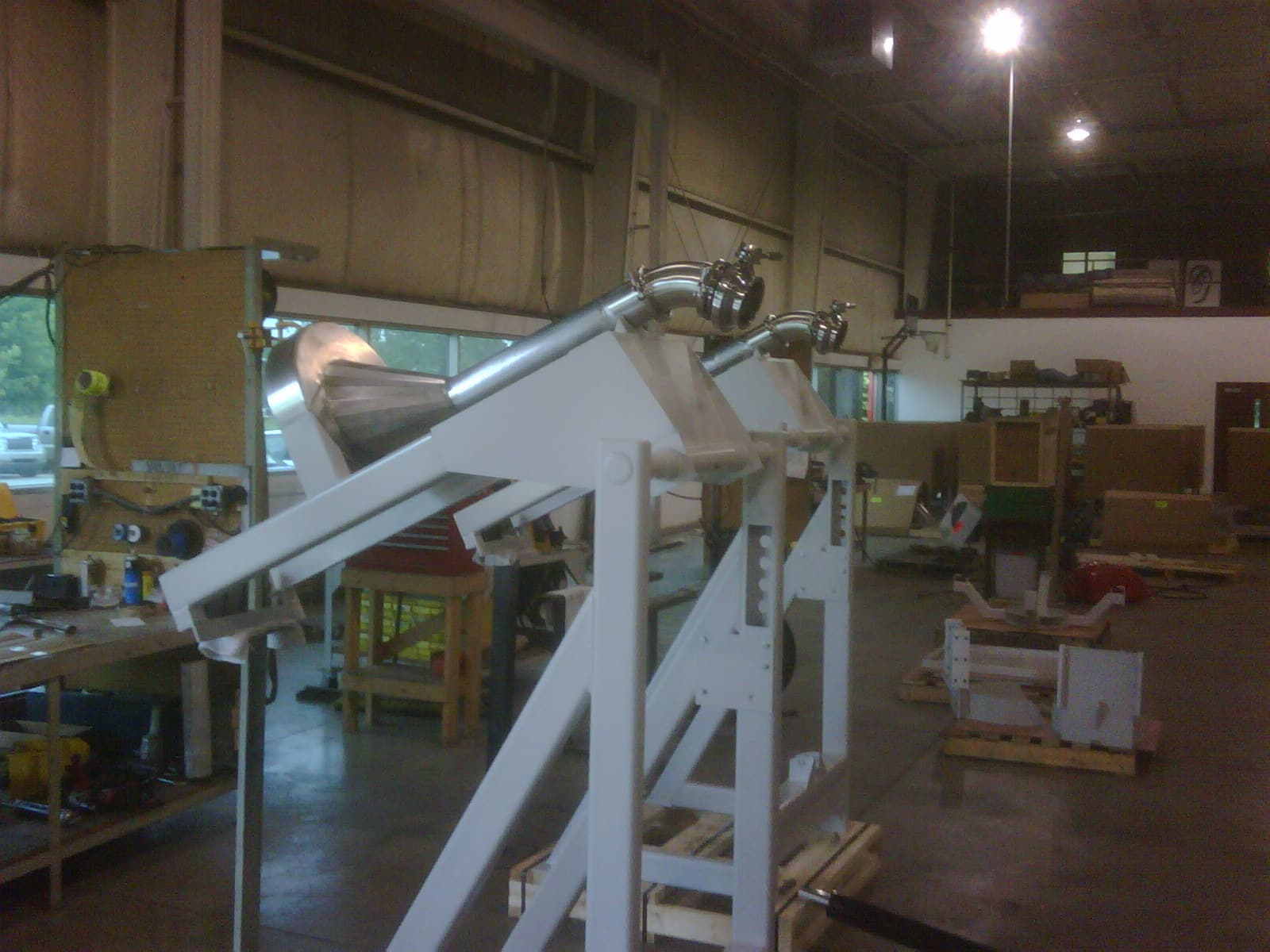

Img00632 20110615 0953

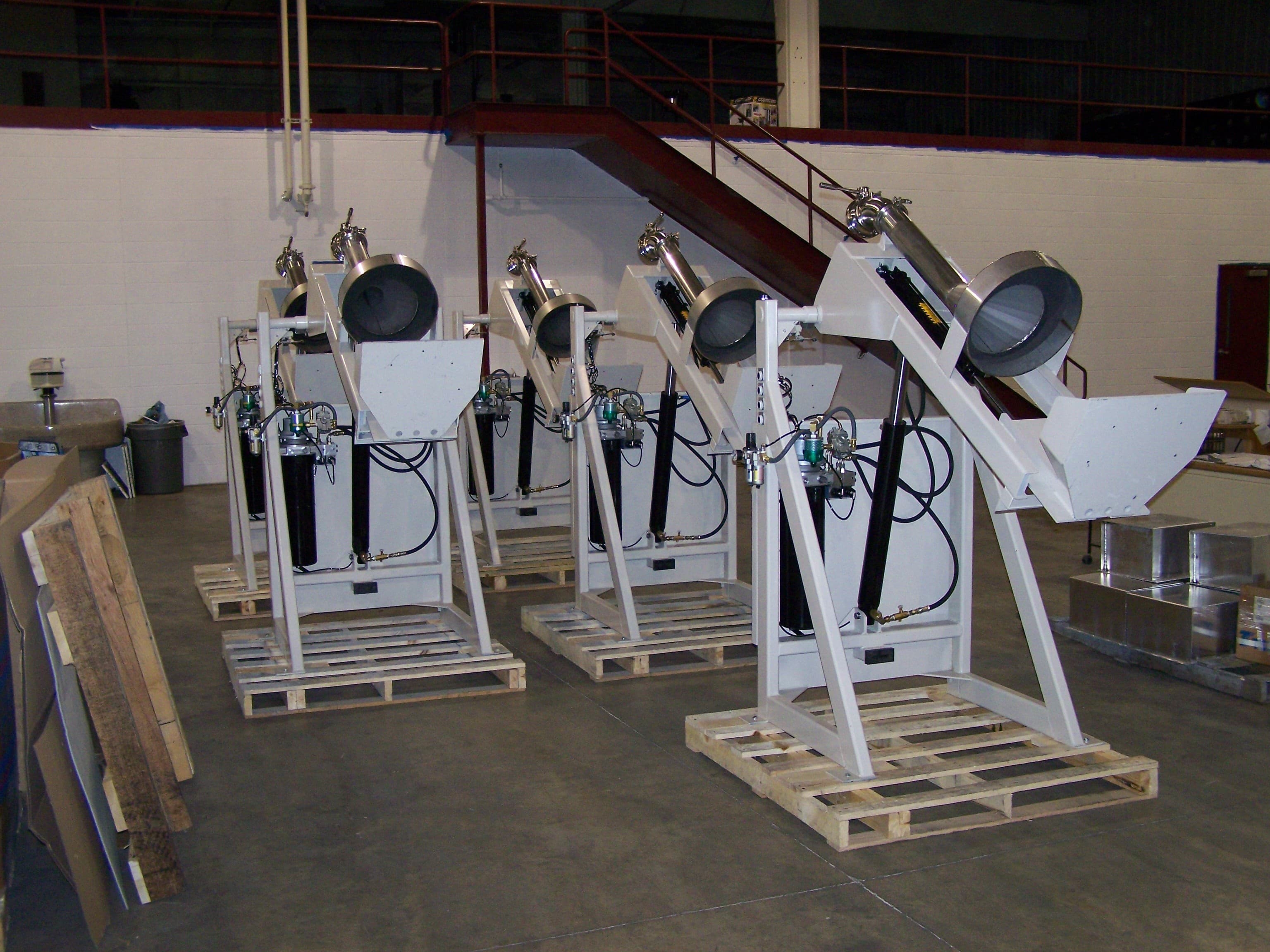

100 0249

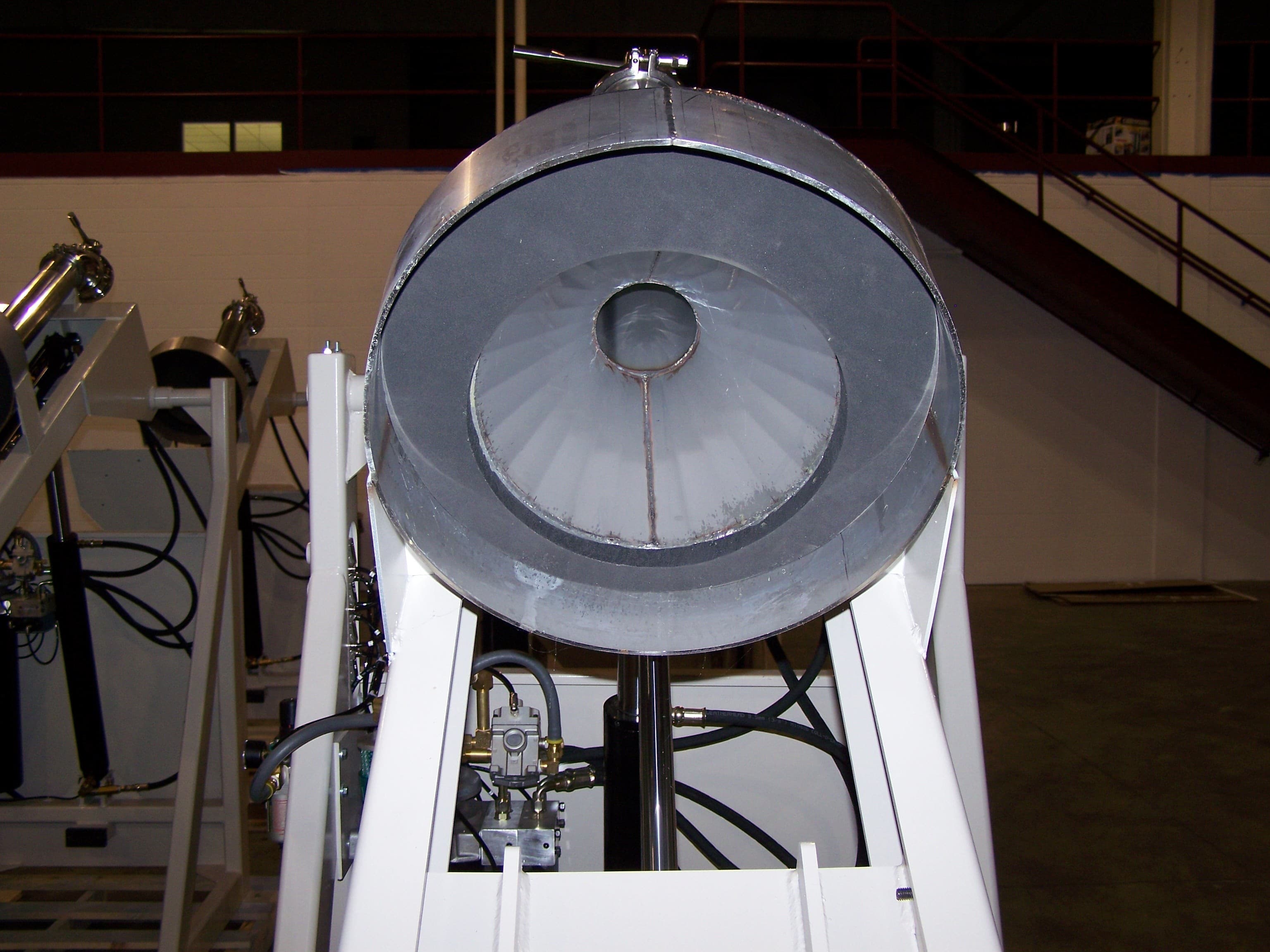

100 0250

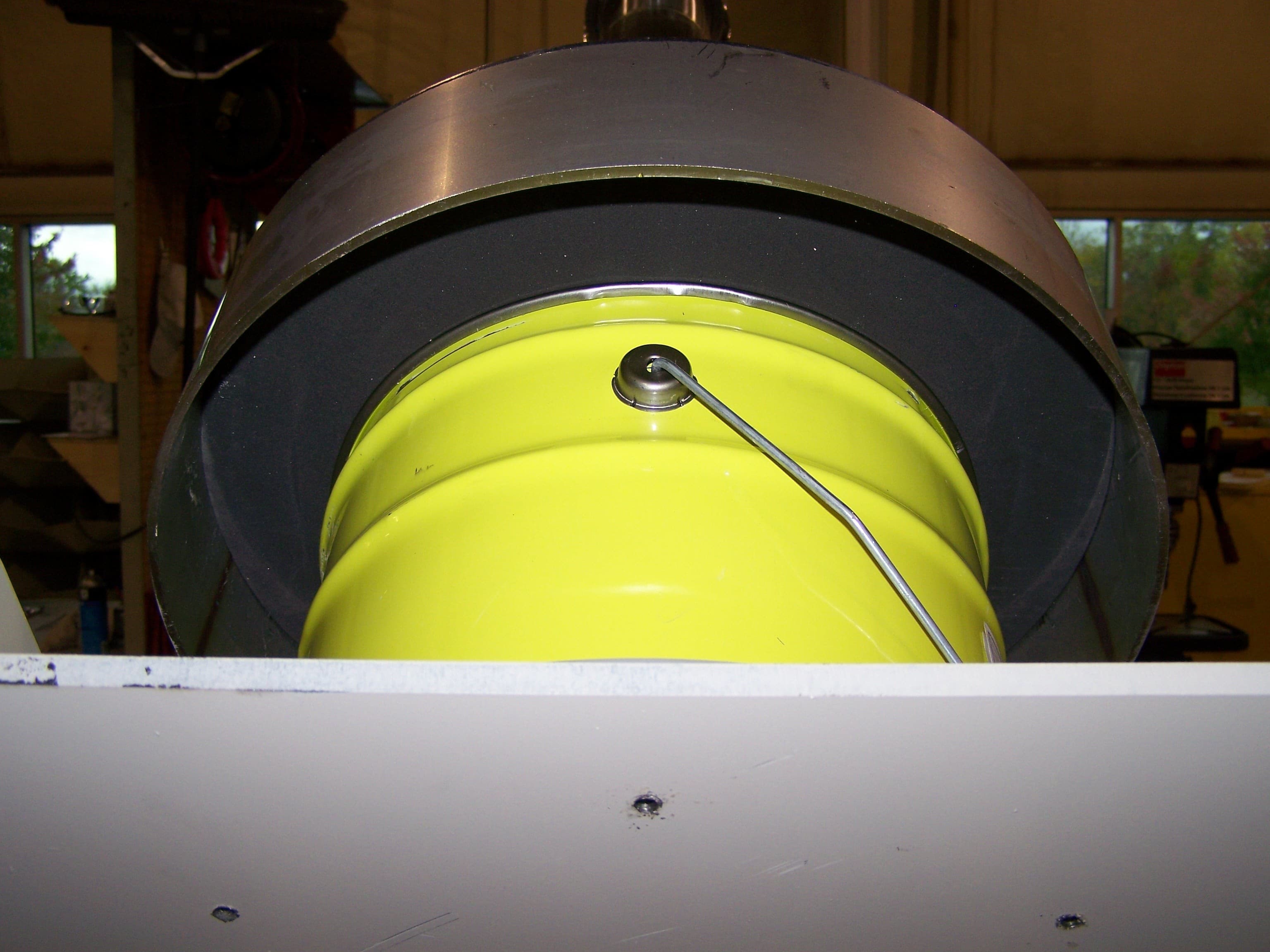

100 0262

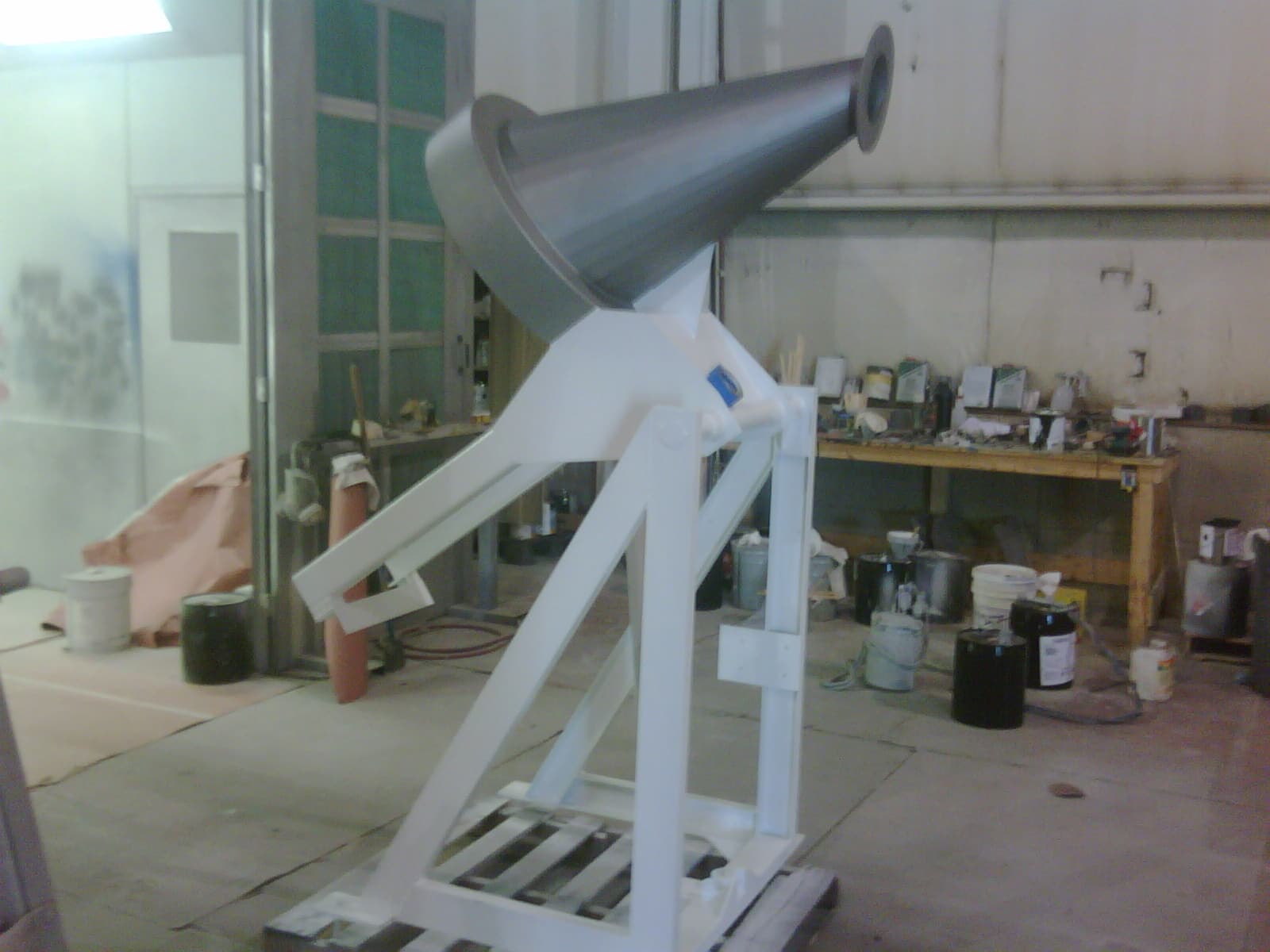

Img00049 20110819 1442

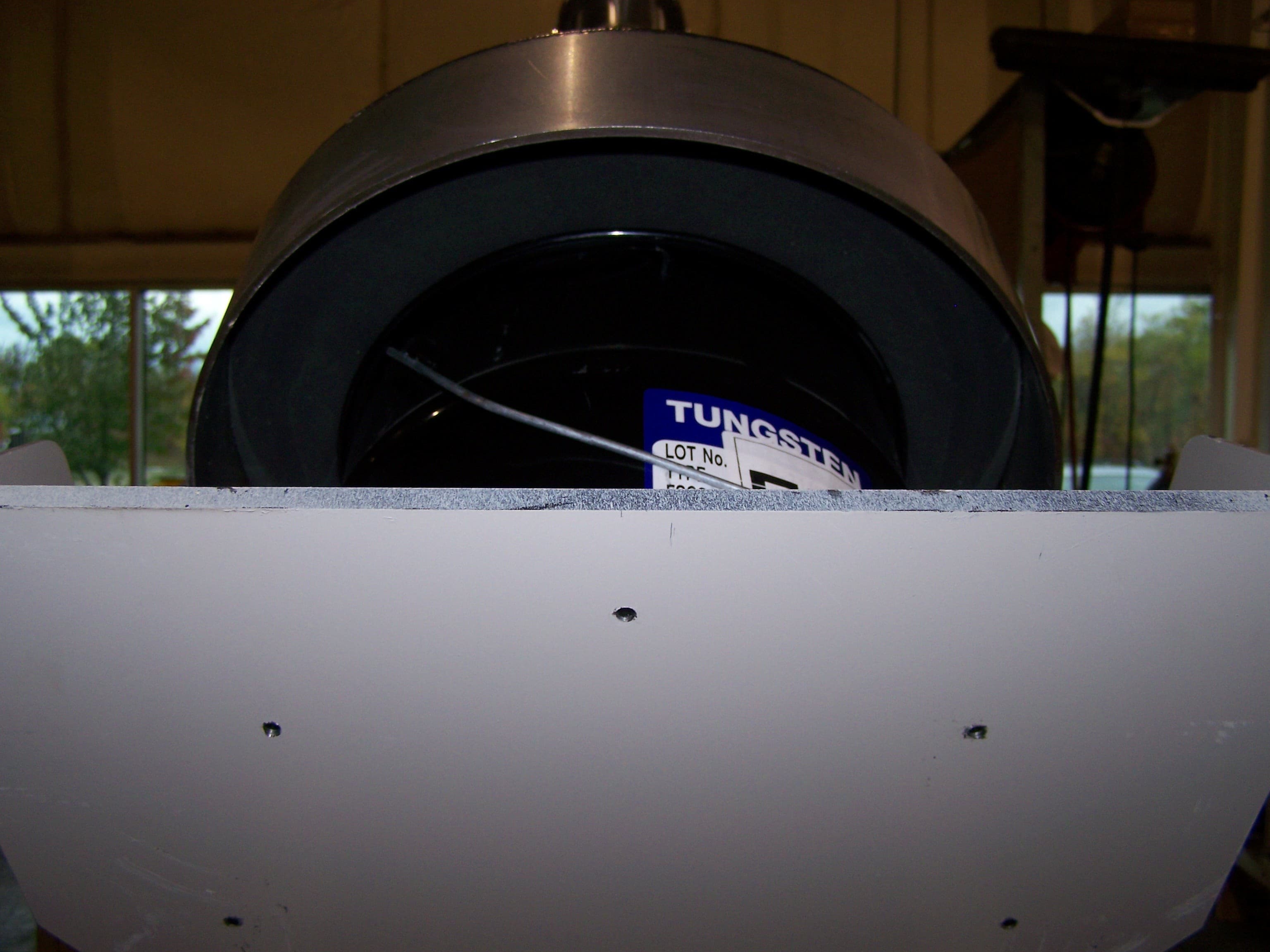

100 0266

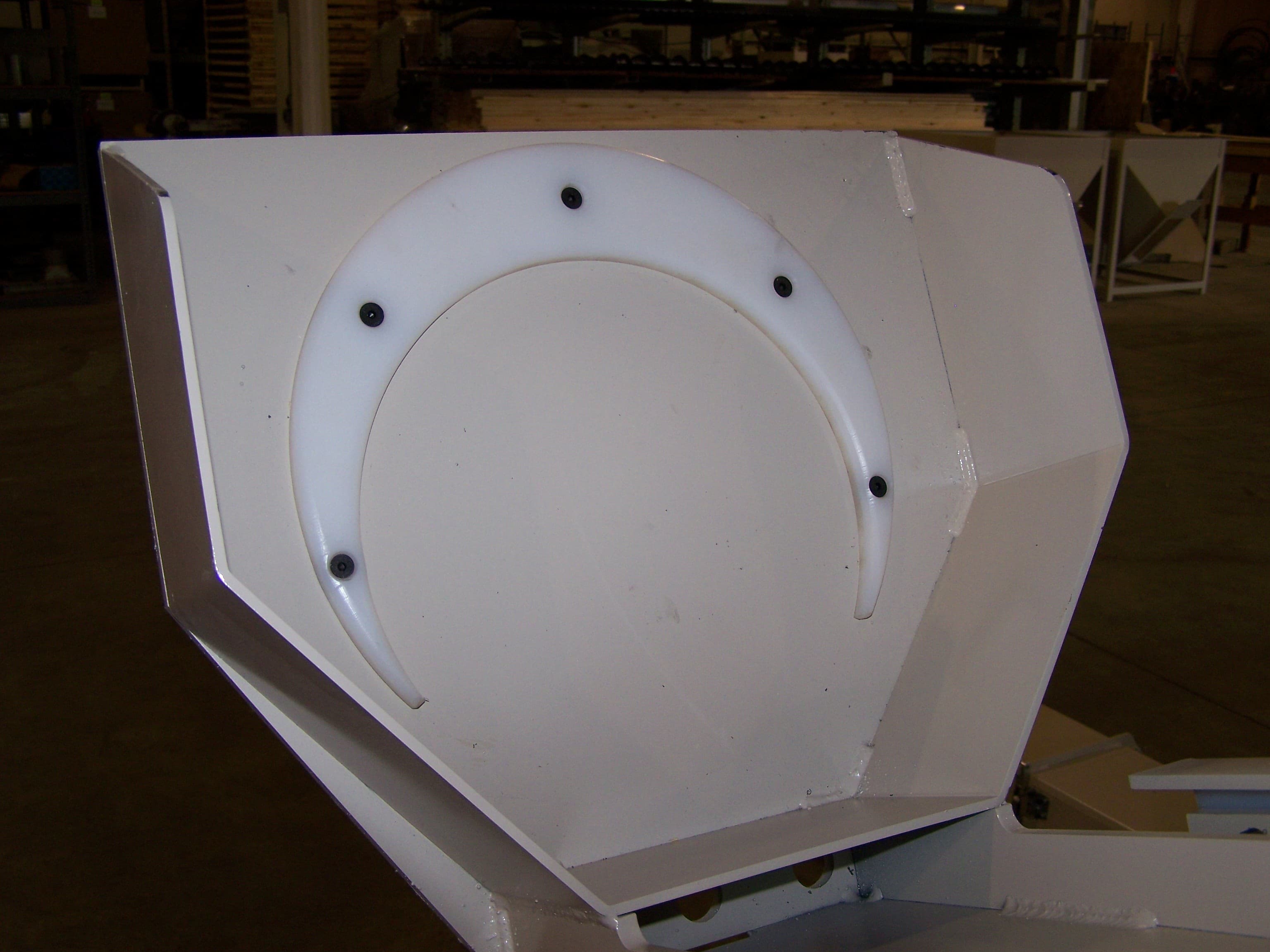

100 0267

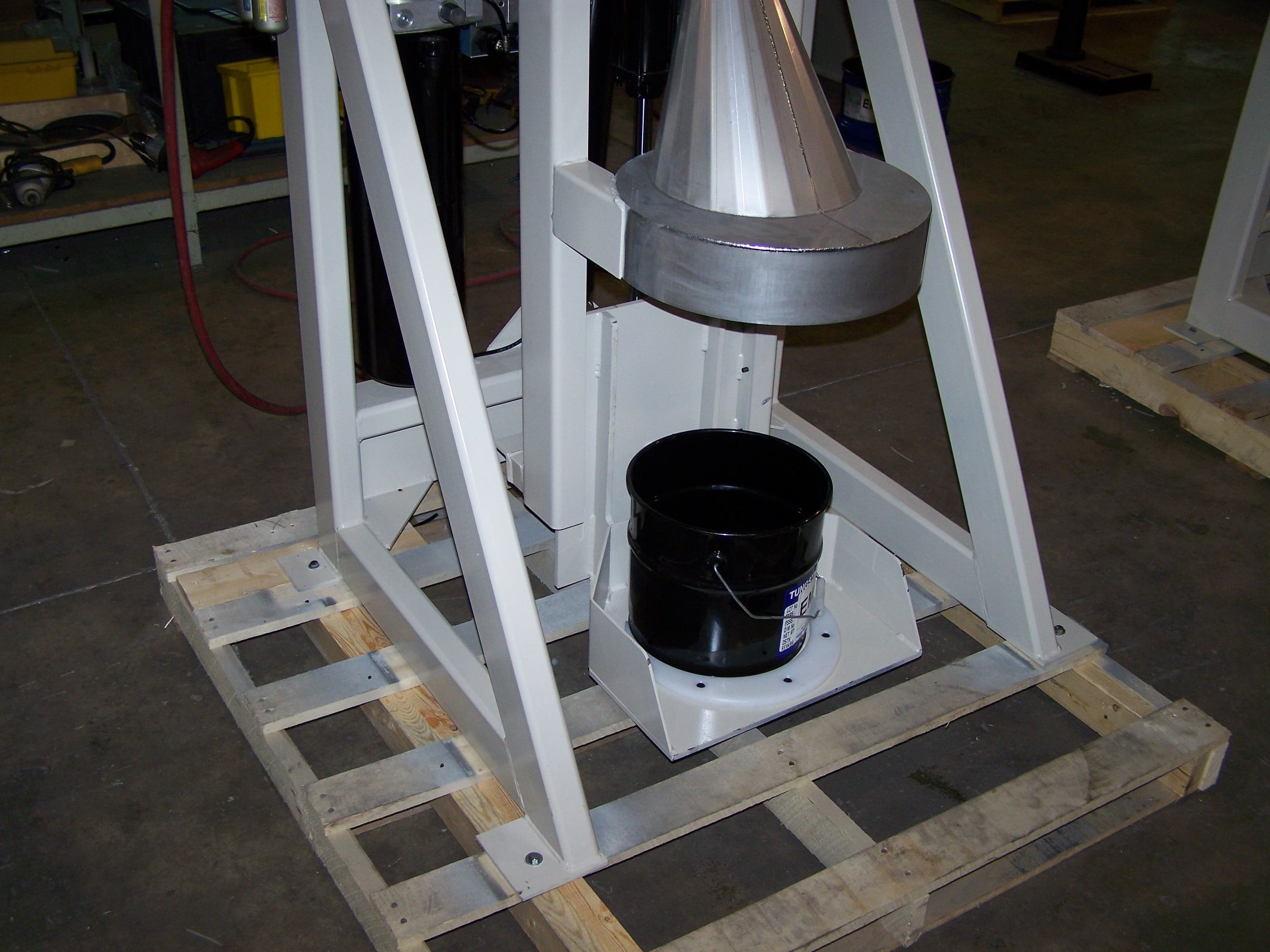

100 0269

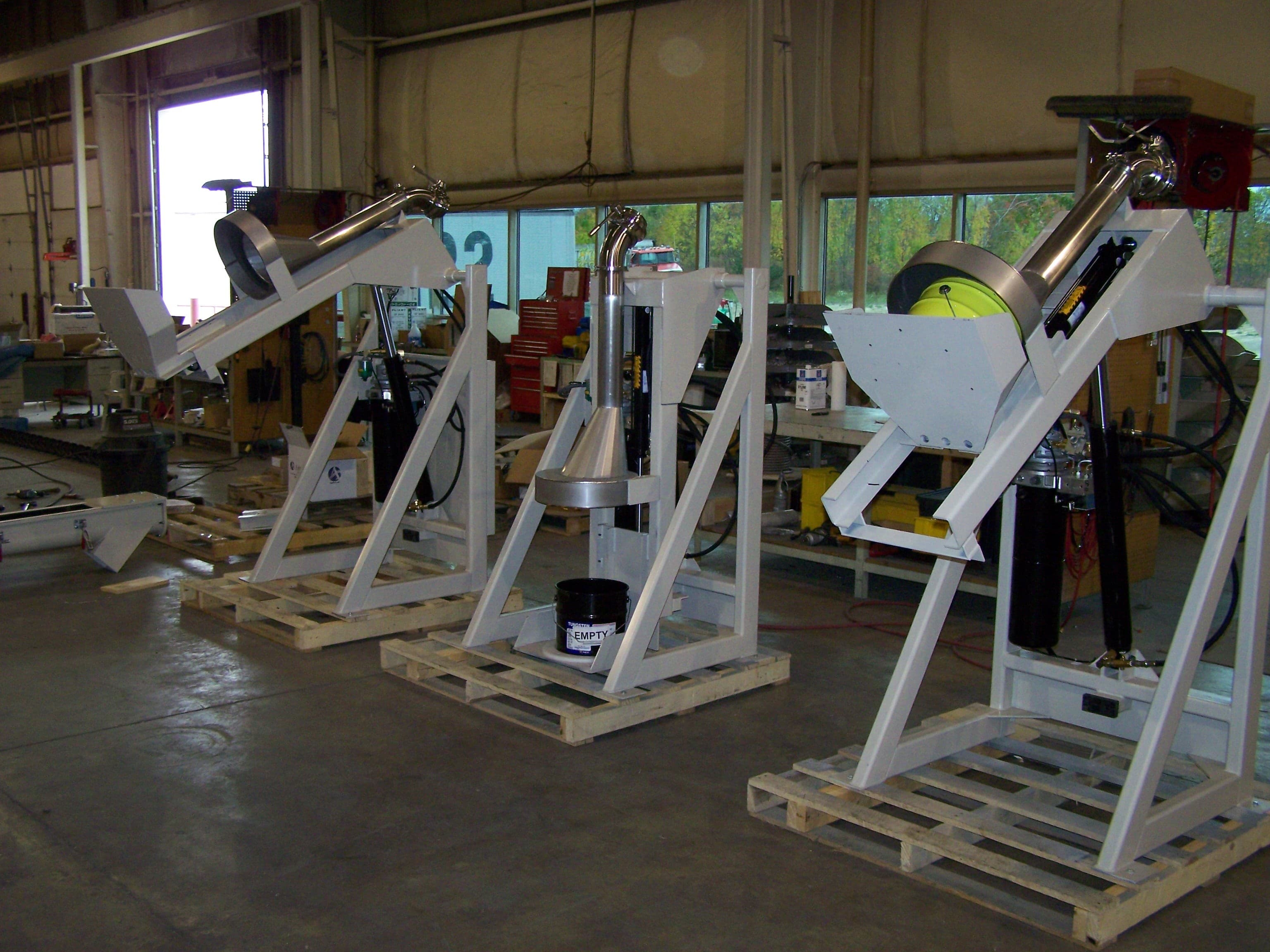

100 0271

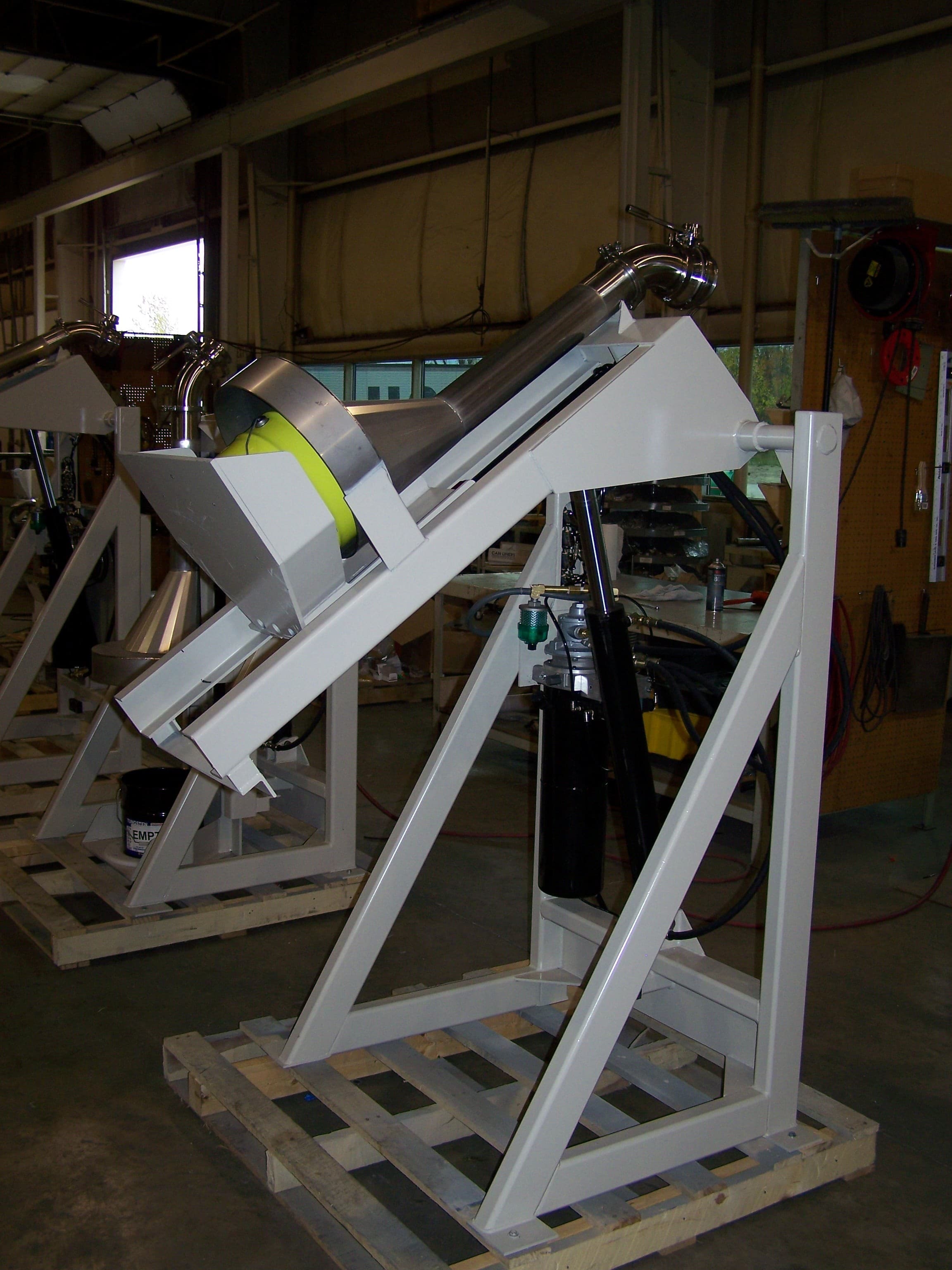

100 0272

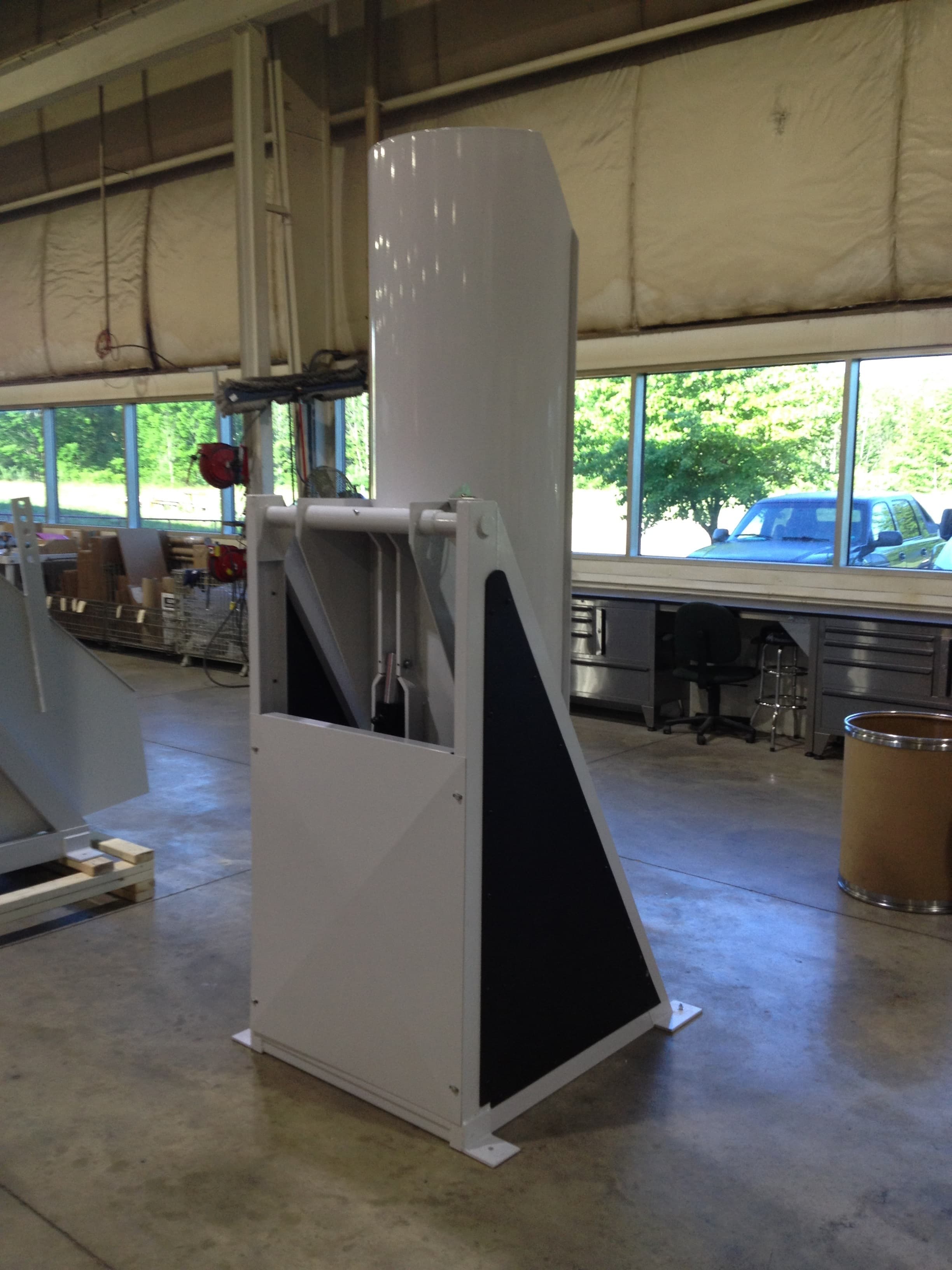

2017 06 08 08 10 49

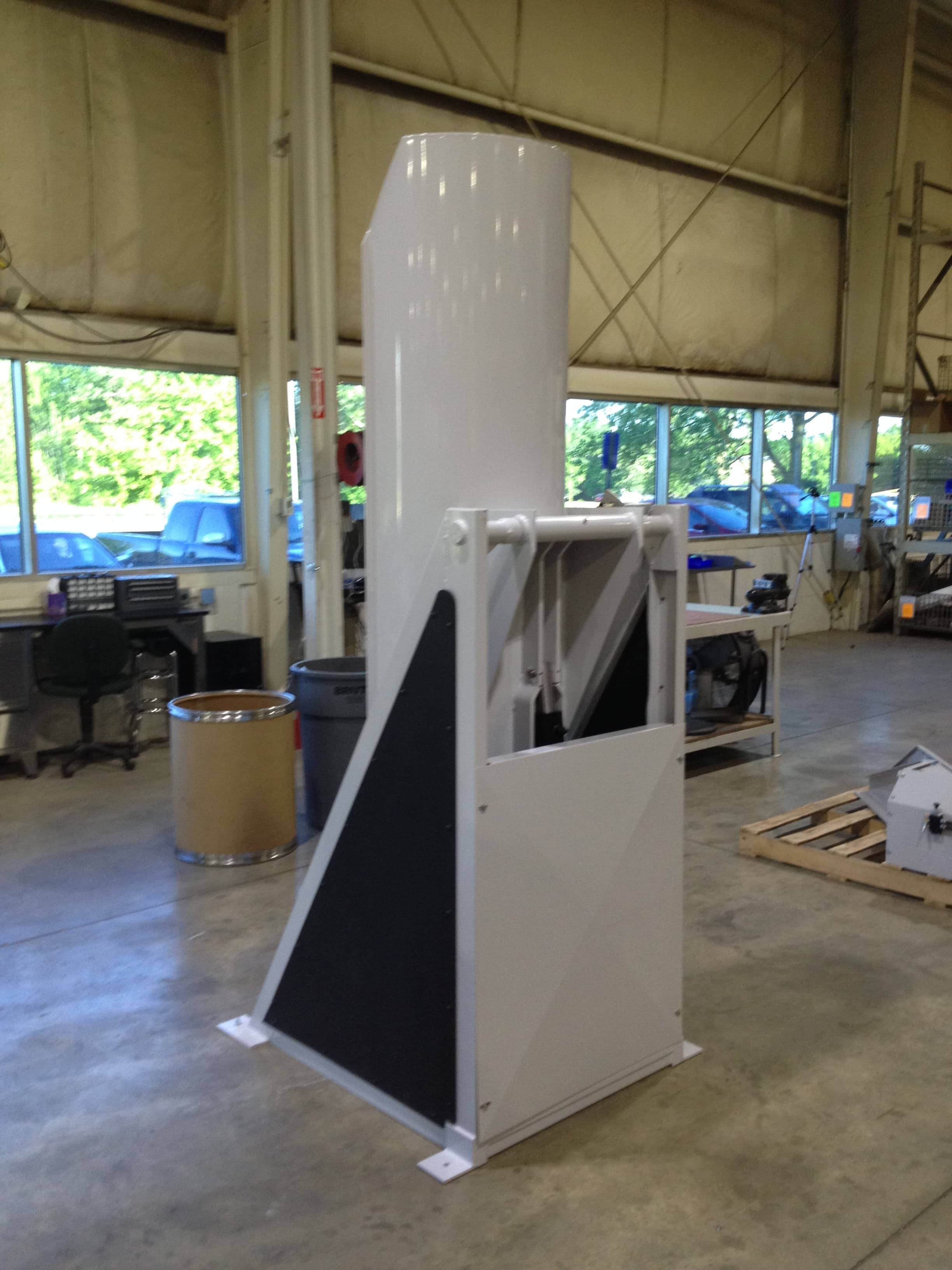

2017 06 08 08 11 01

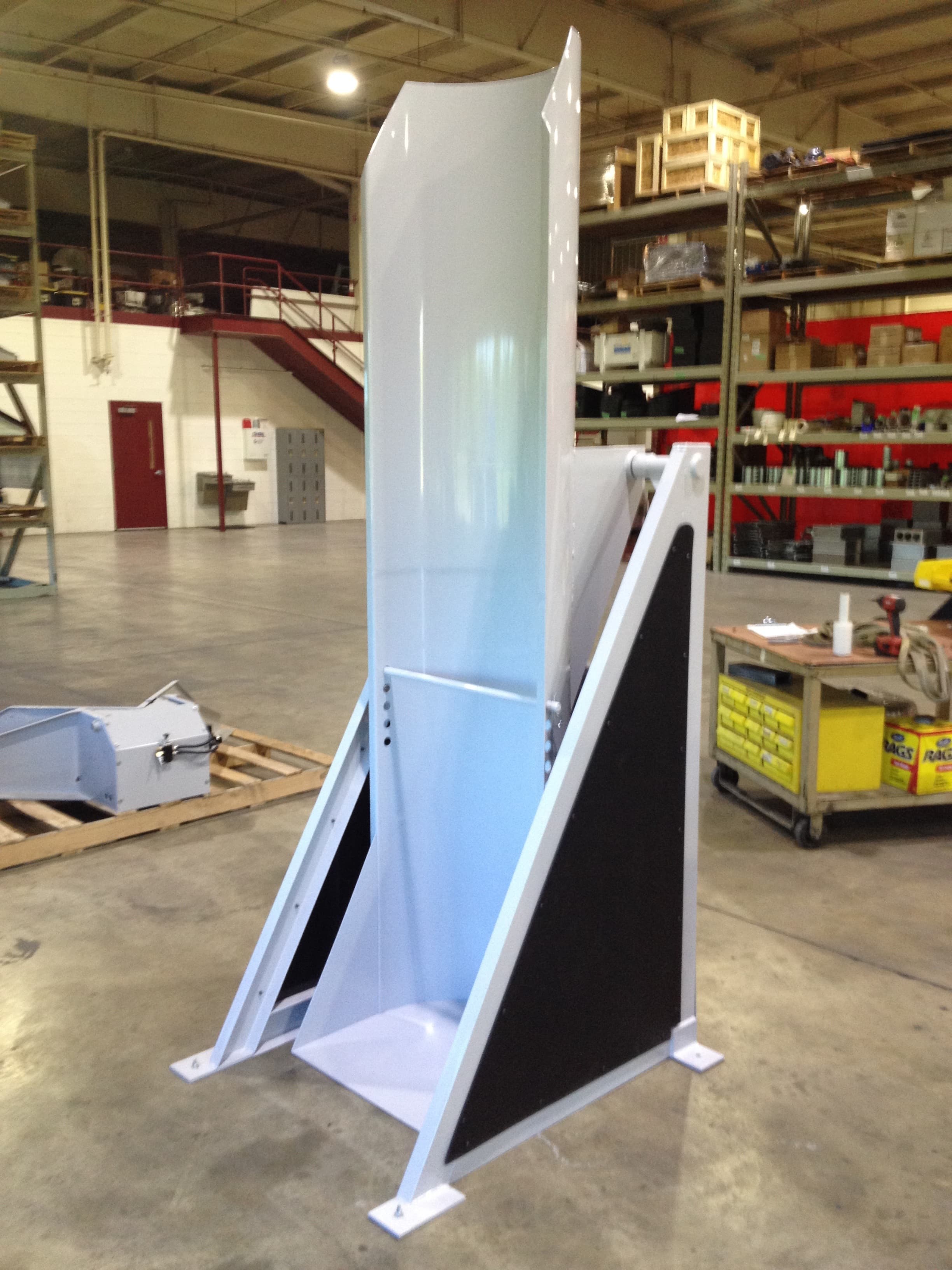

2017 06 08 08 11 13

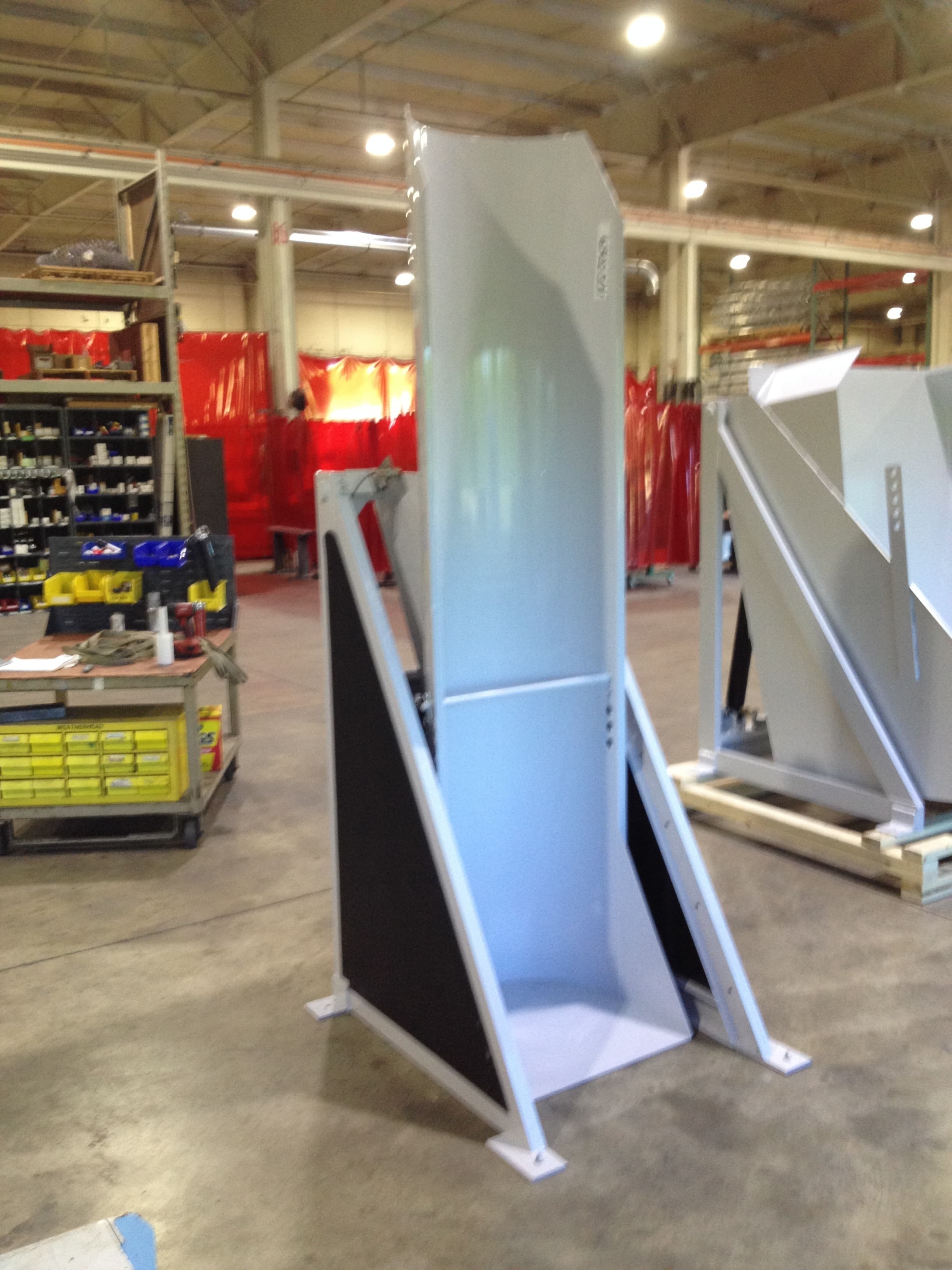

2017 06 08 08 11 26

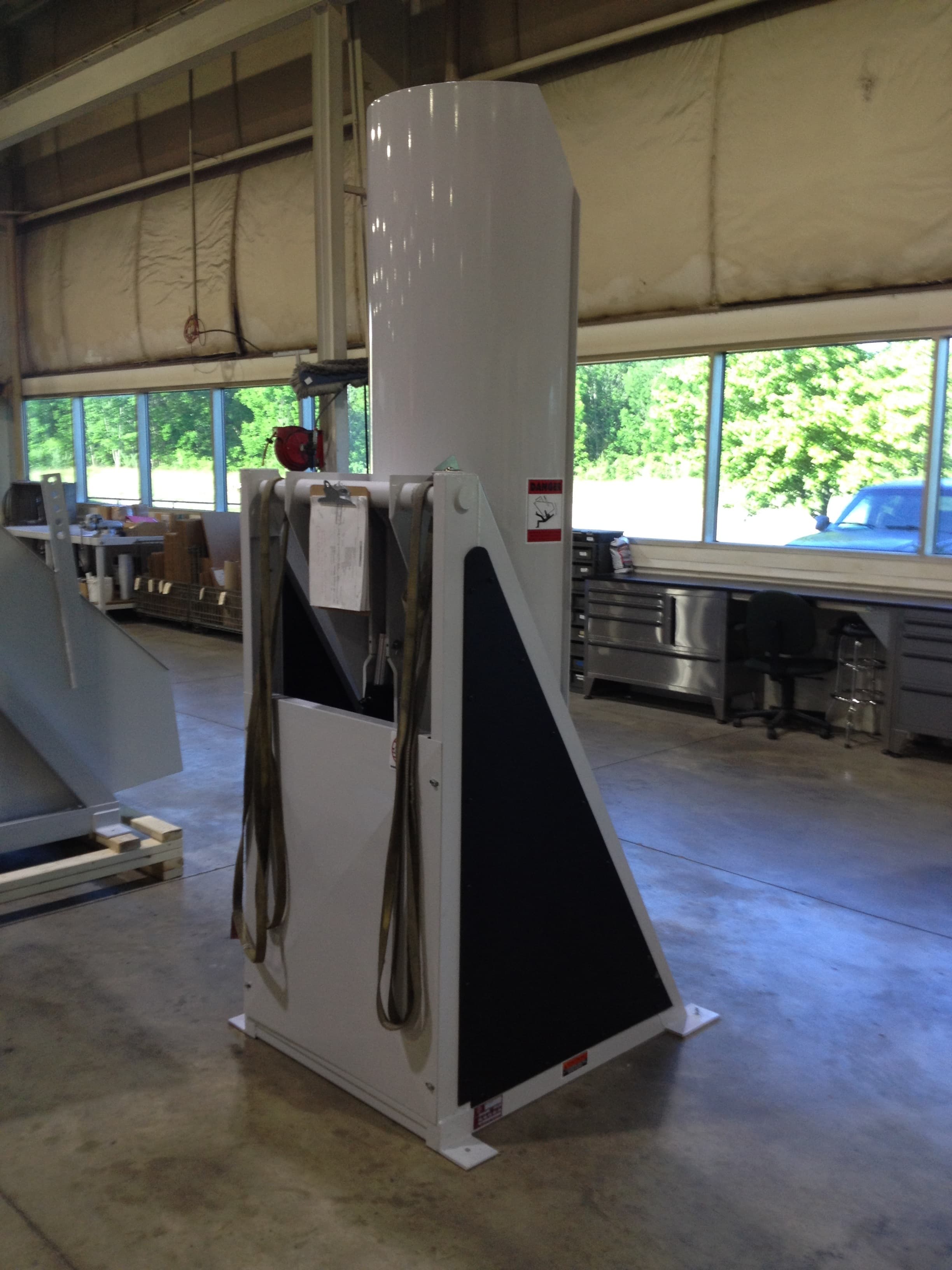

2017 06 08 08 46 01

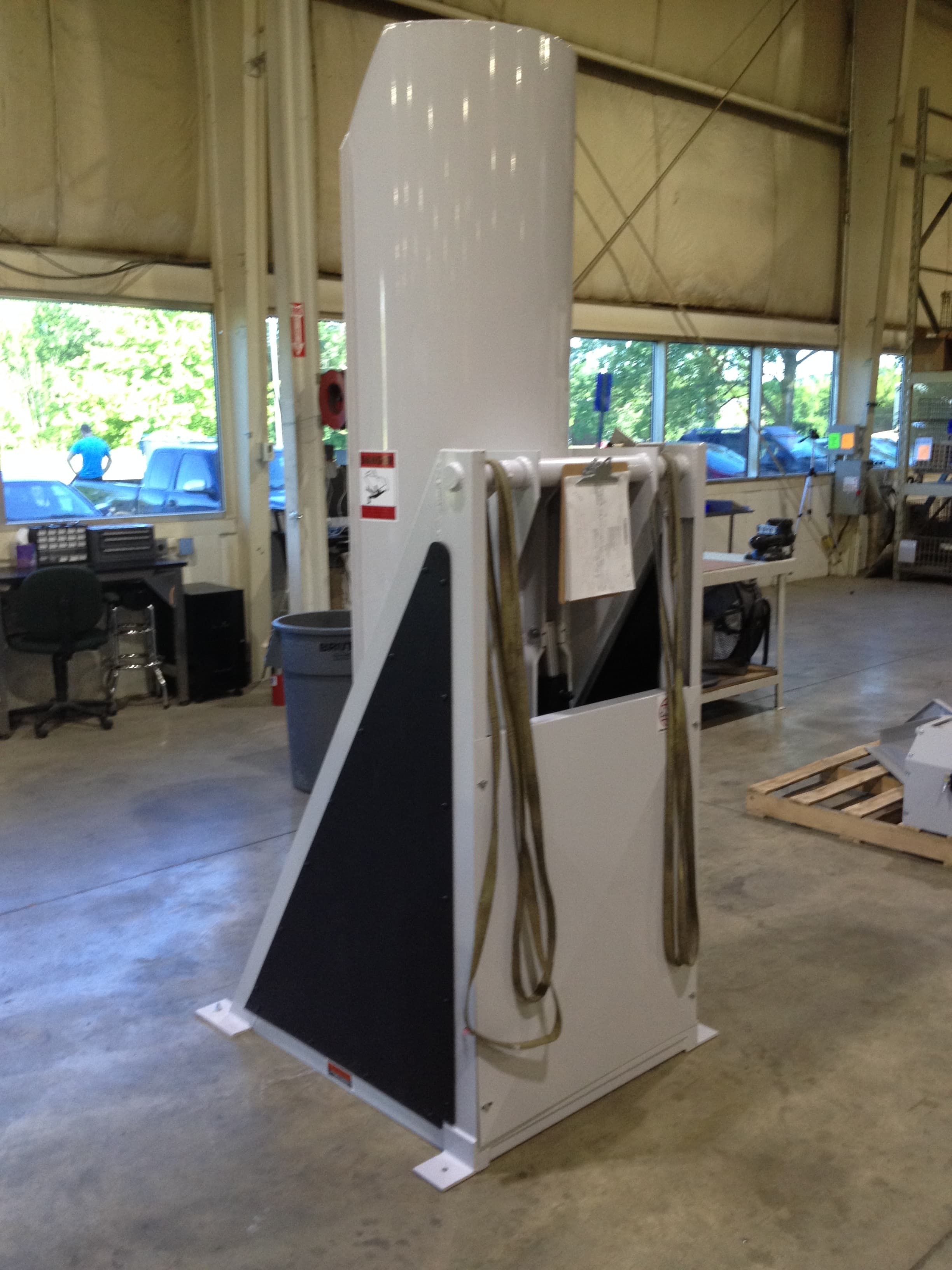

2017 06 08 08 46 16

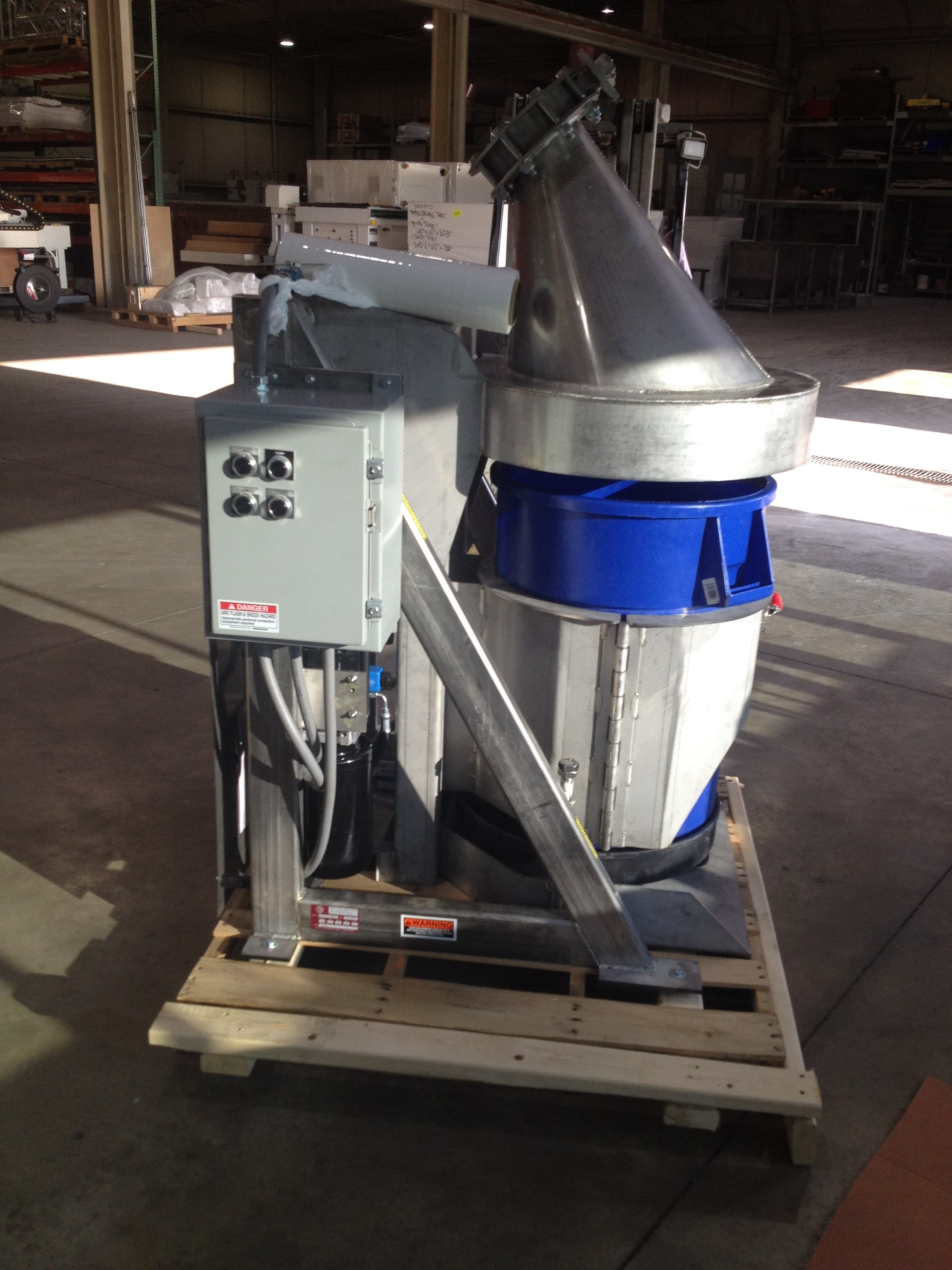

2017 08 24 18 51 31

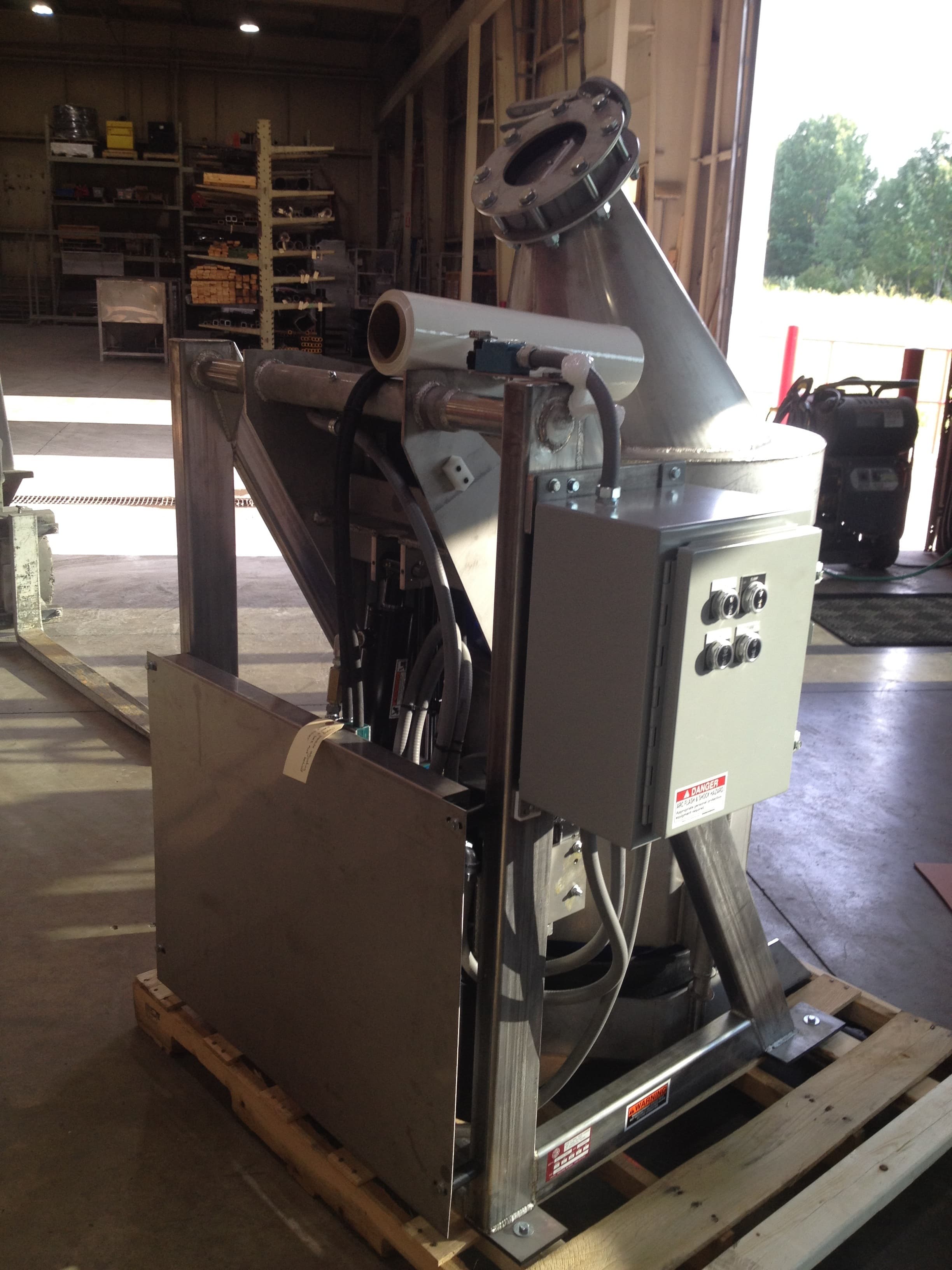

2017 08 24 18 53 06

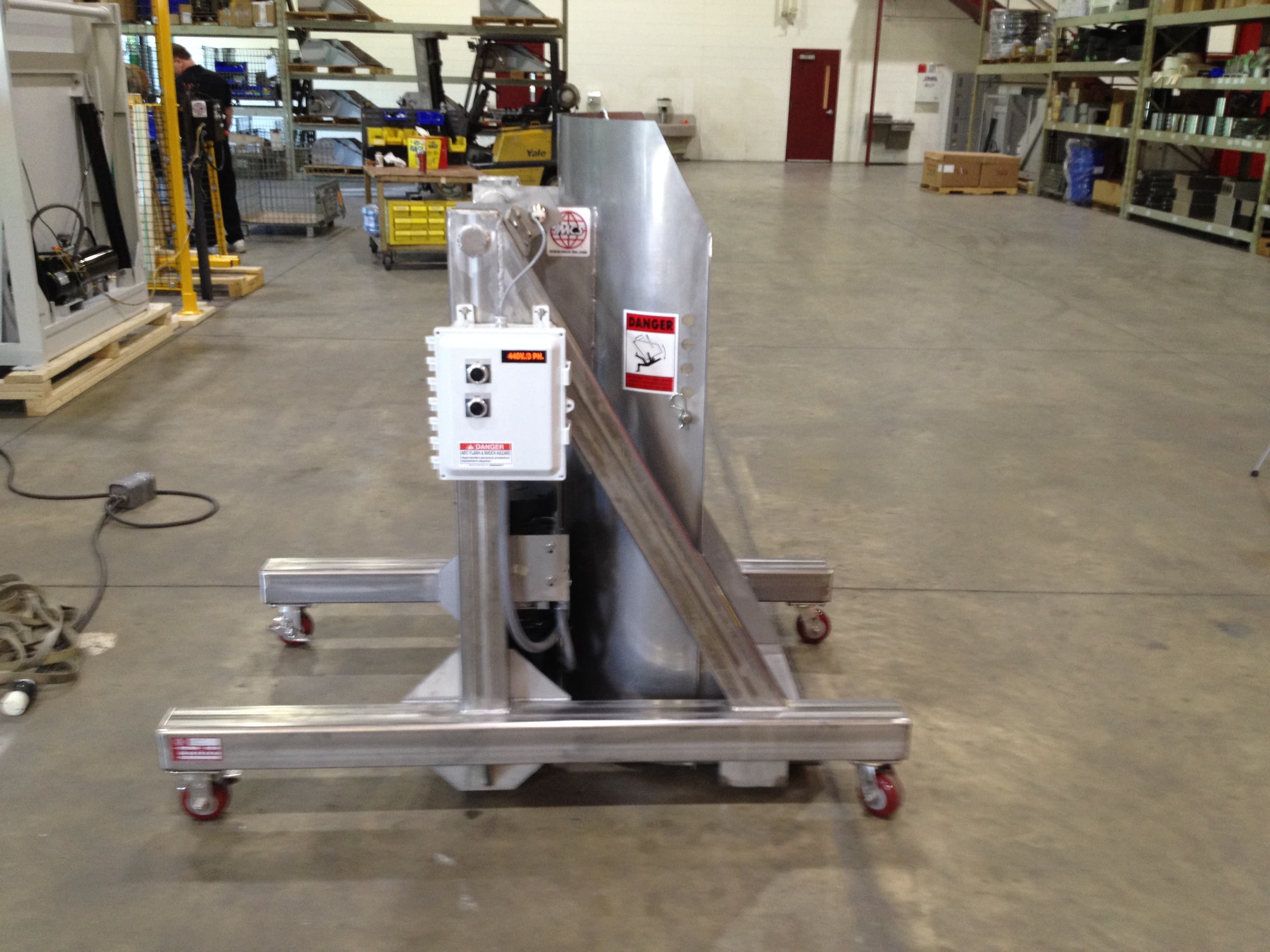

2017 06 12 13 58 30

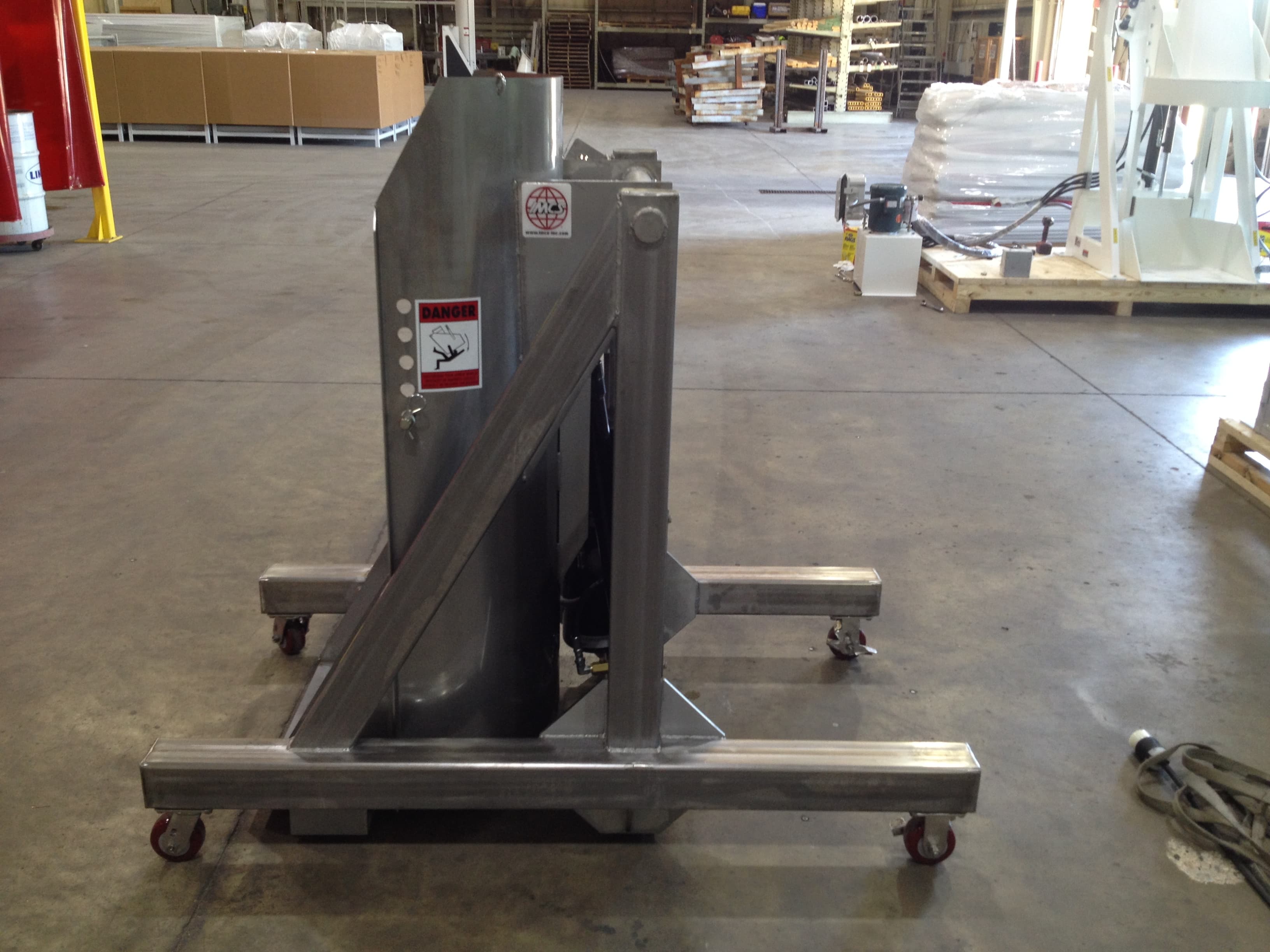

2017 06 12 13 59 02

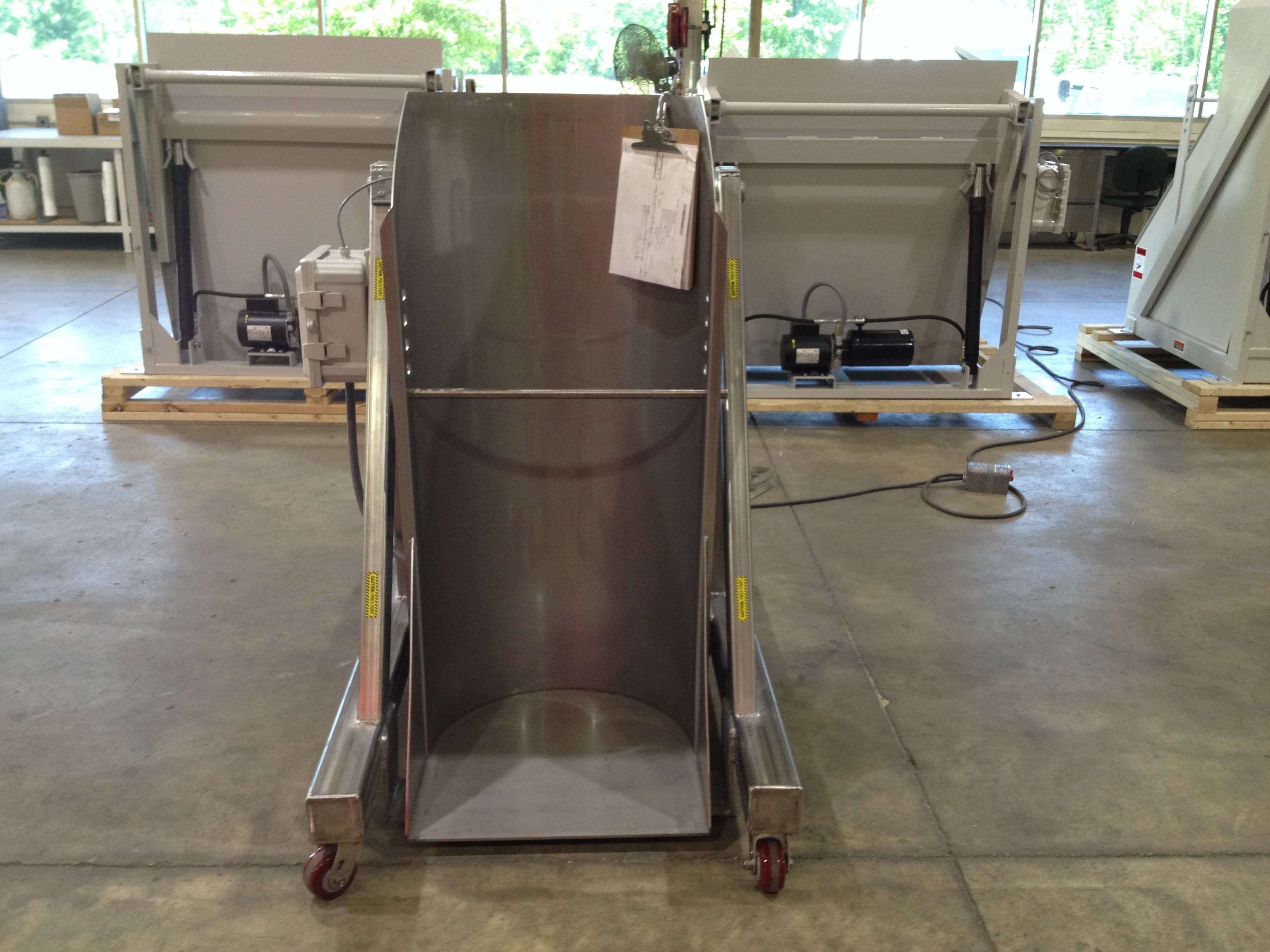

2017 06 12 13 59 15

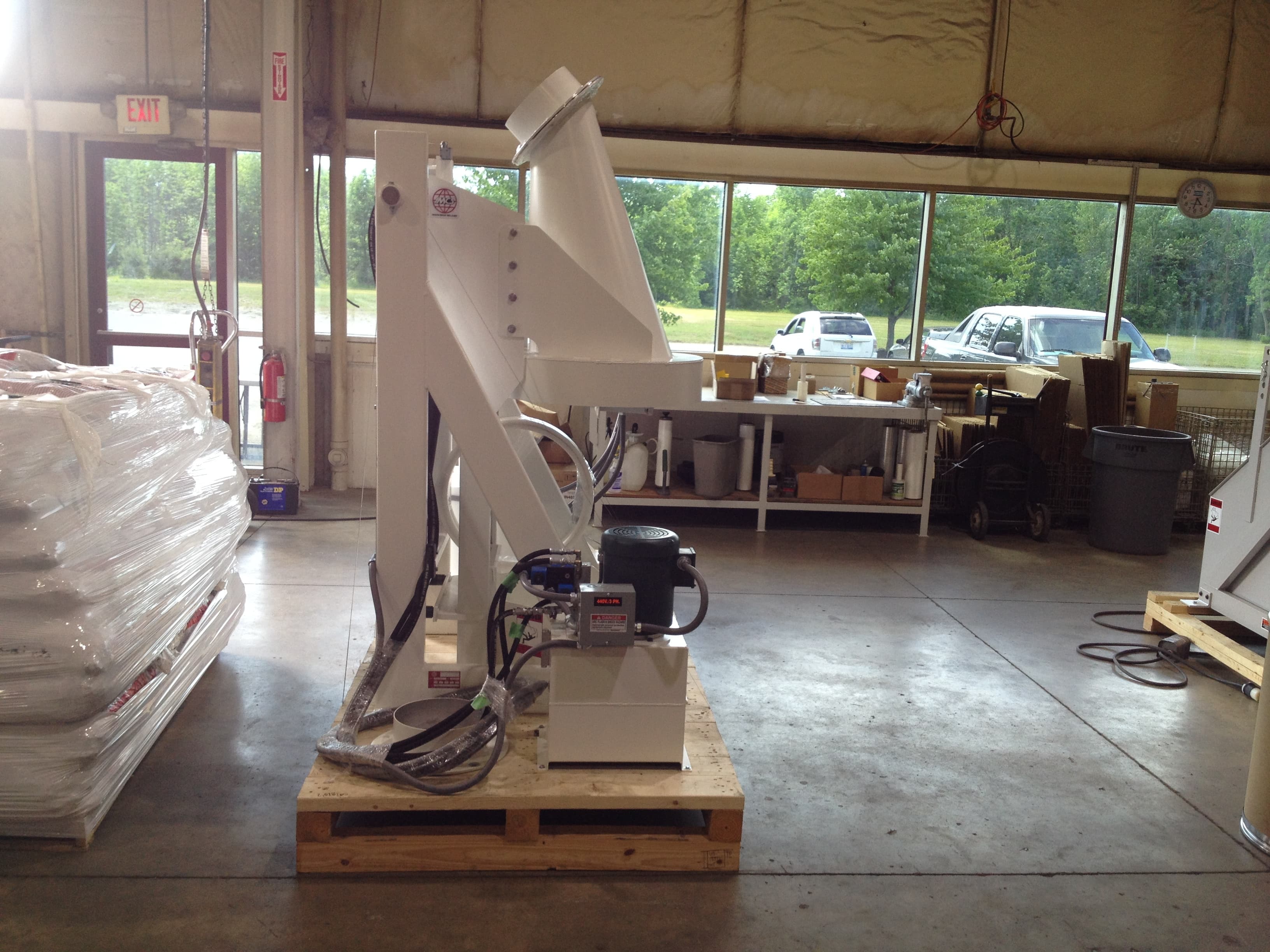

2017 06 14 16 34 06

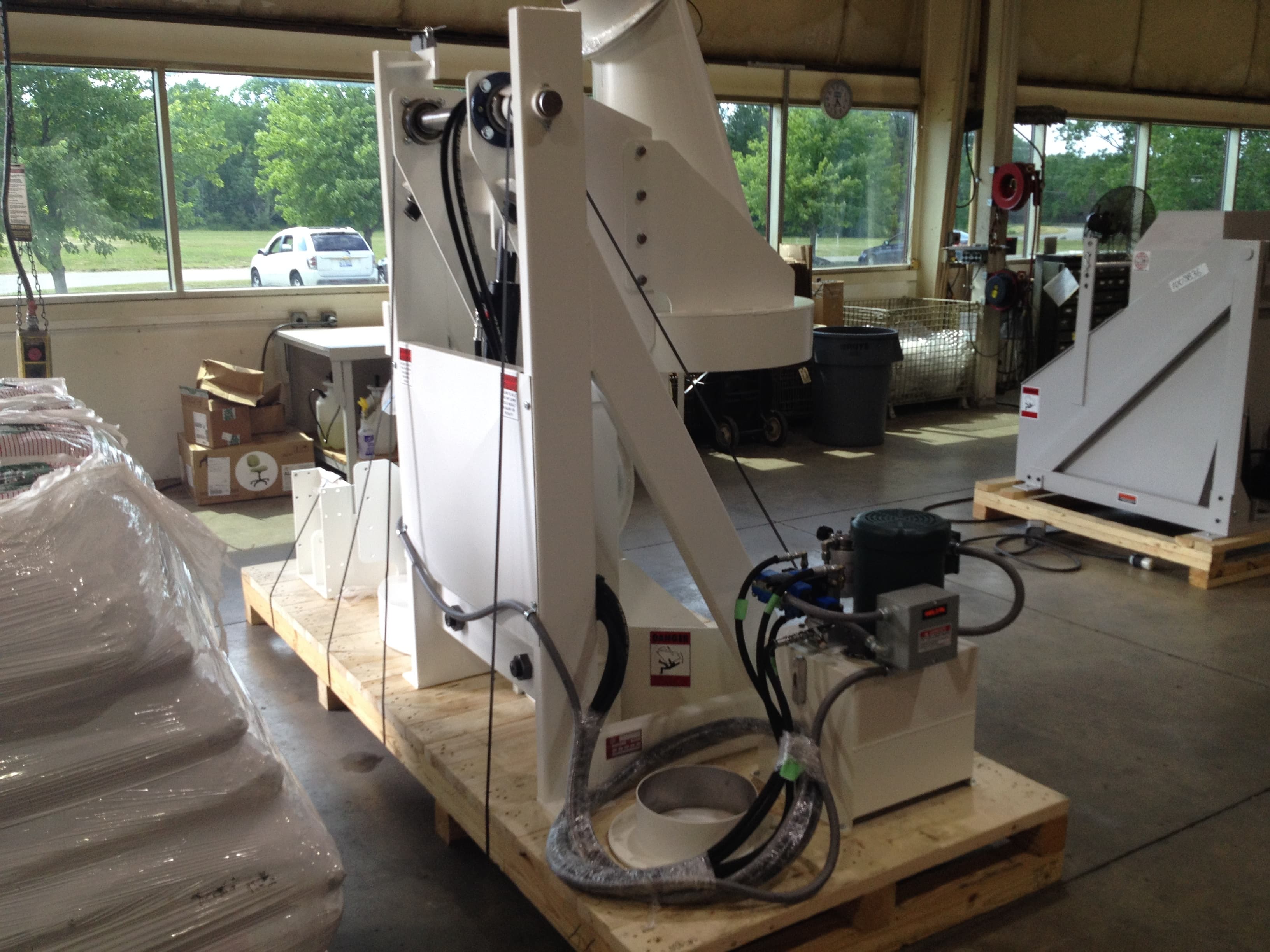

2017 06 14 16 34 22

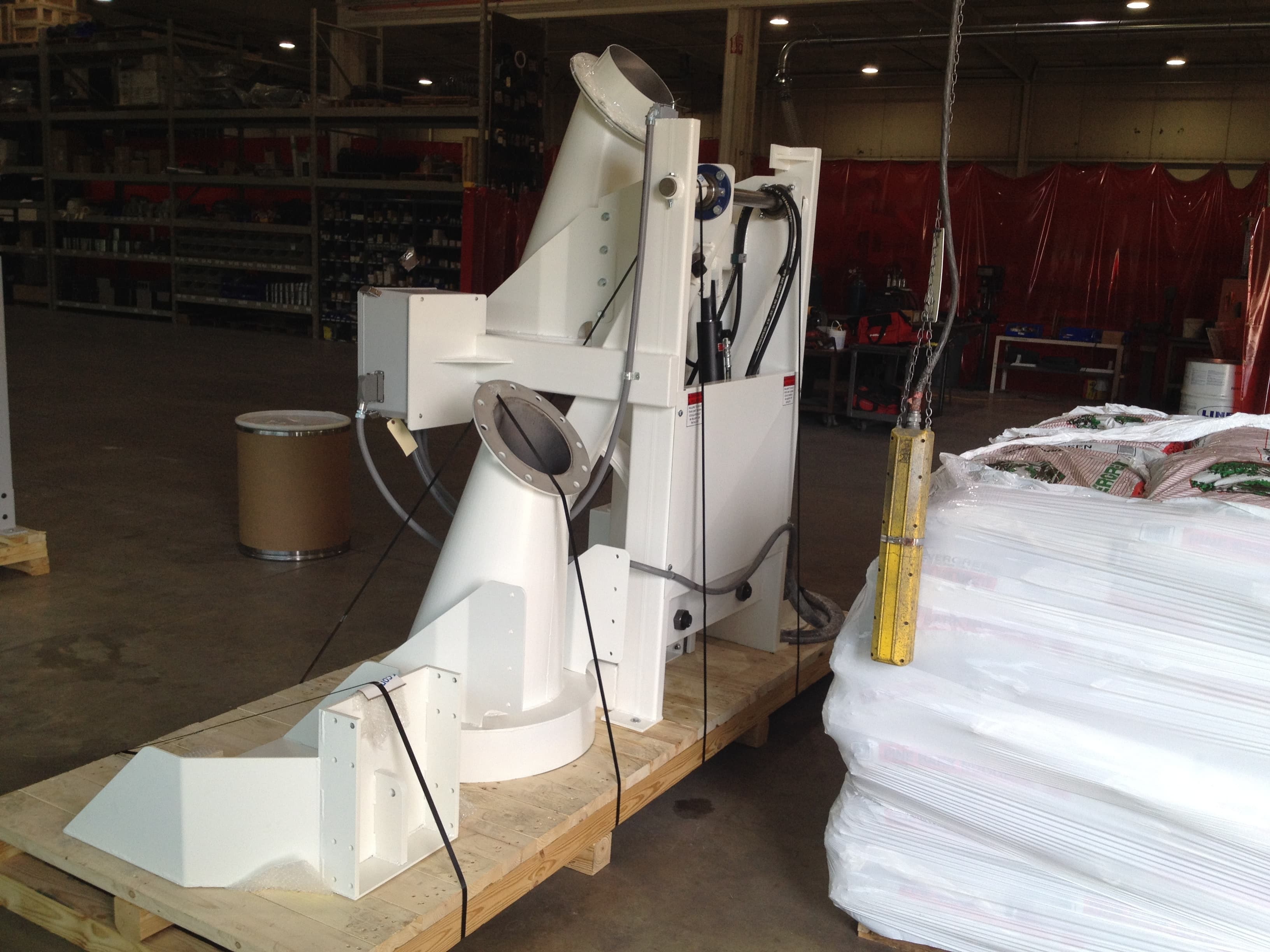

2017 06 14 16 34 38

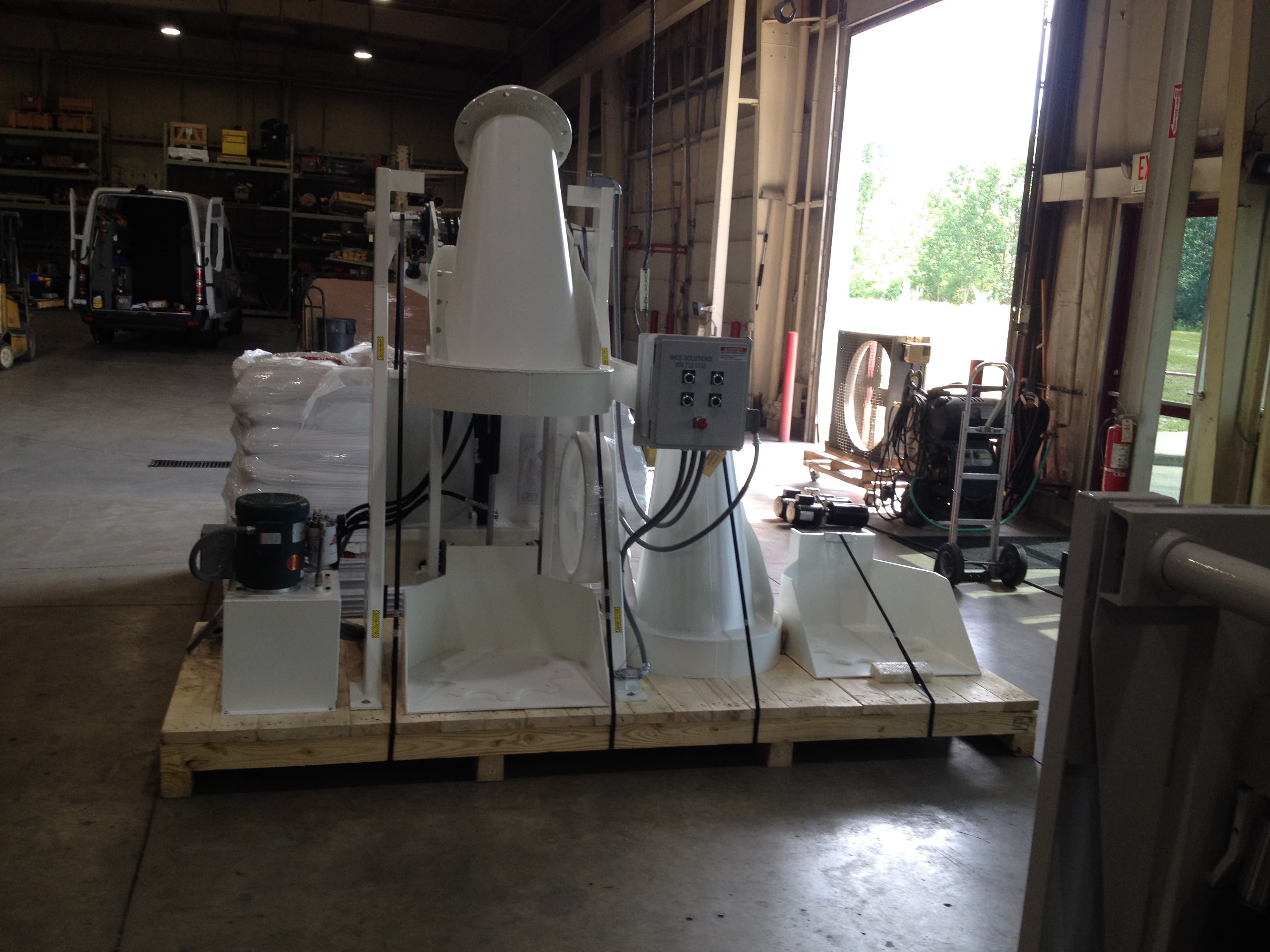

2017 06 14 16 34 58

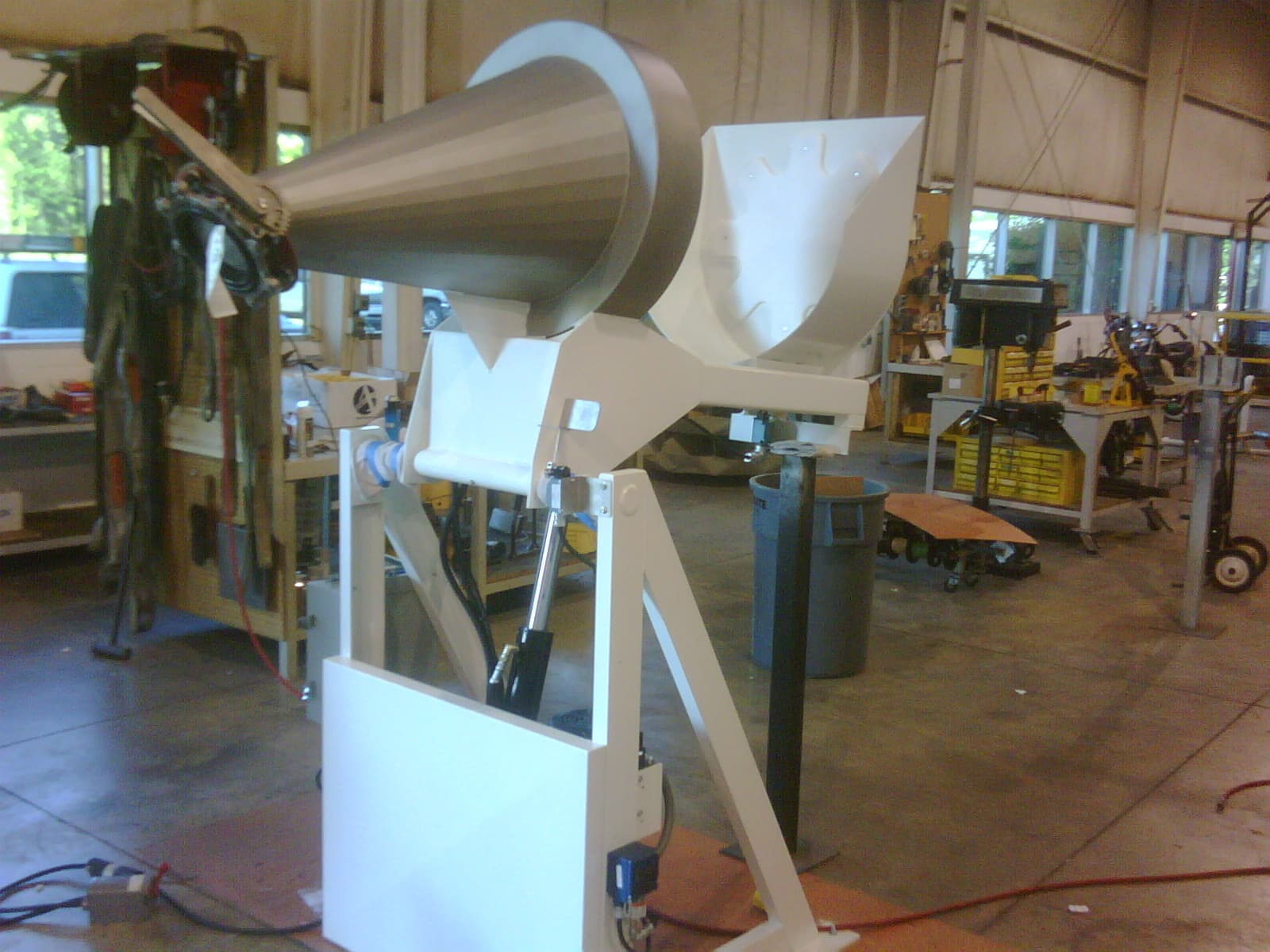

Img00073 20110826 0855

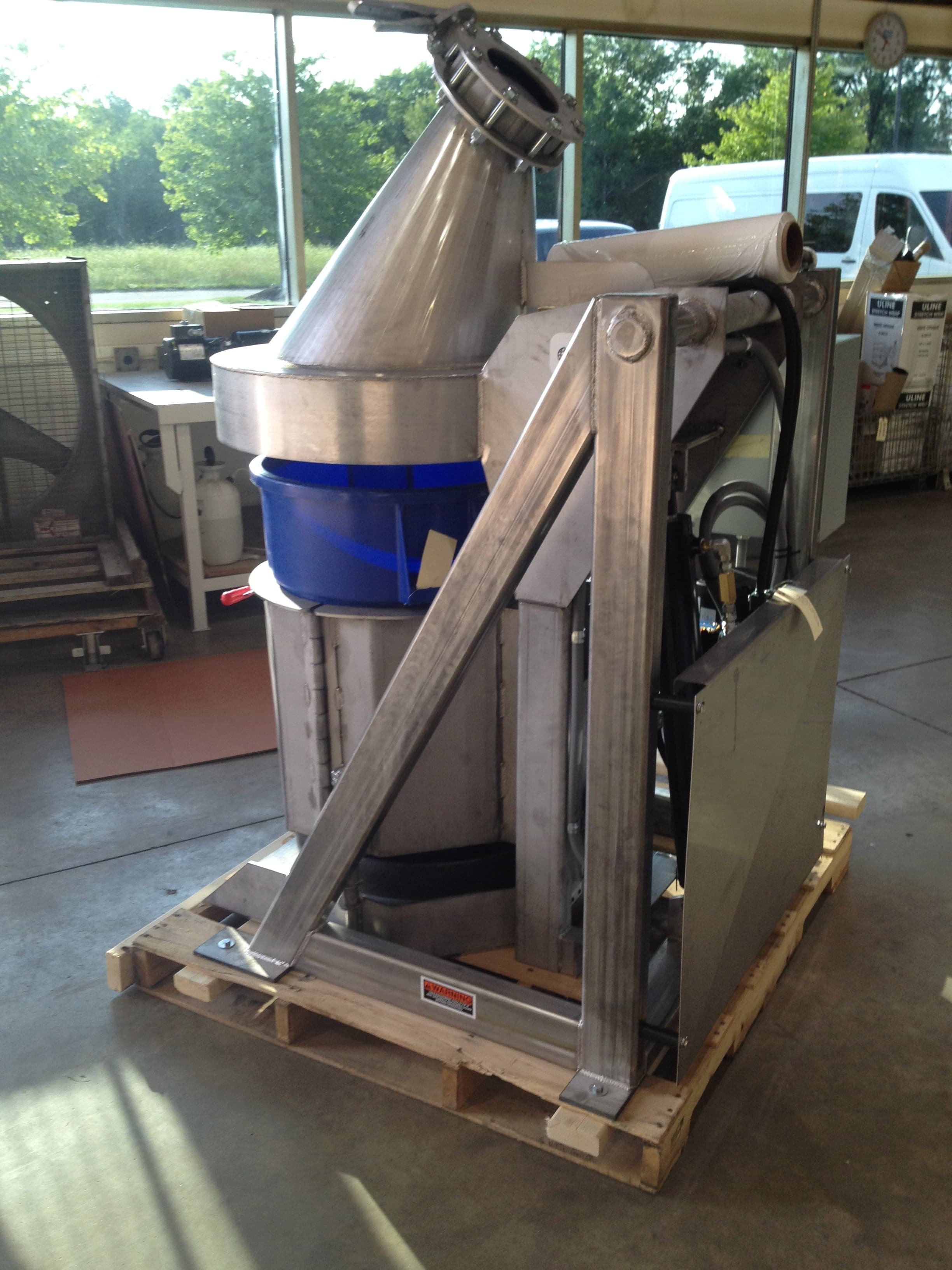

2017 08 24 18 53 38

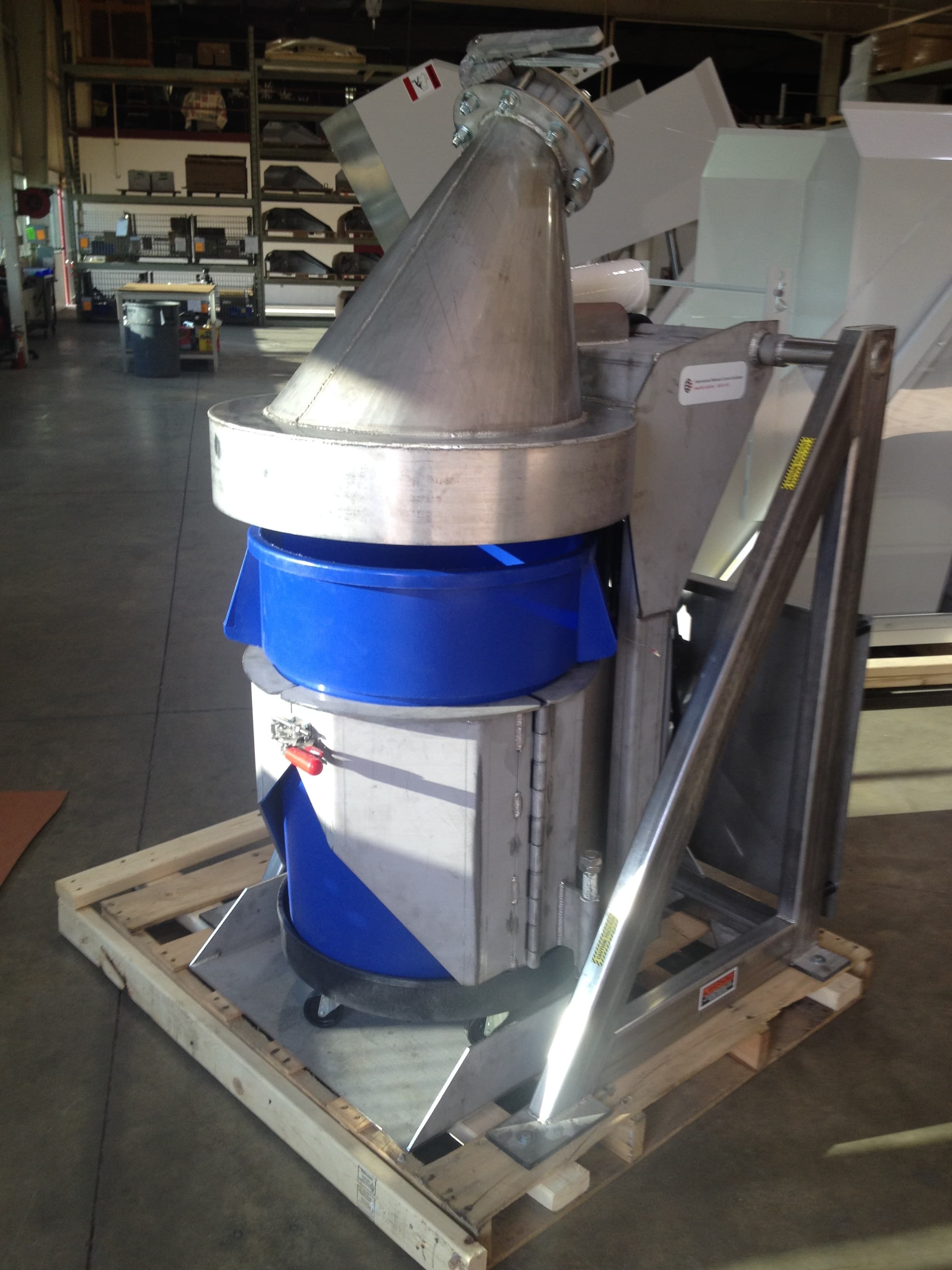

2017 08 24 18 53 54

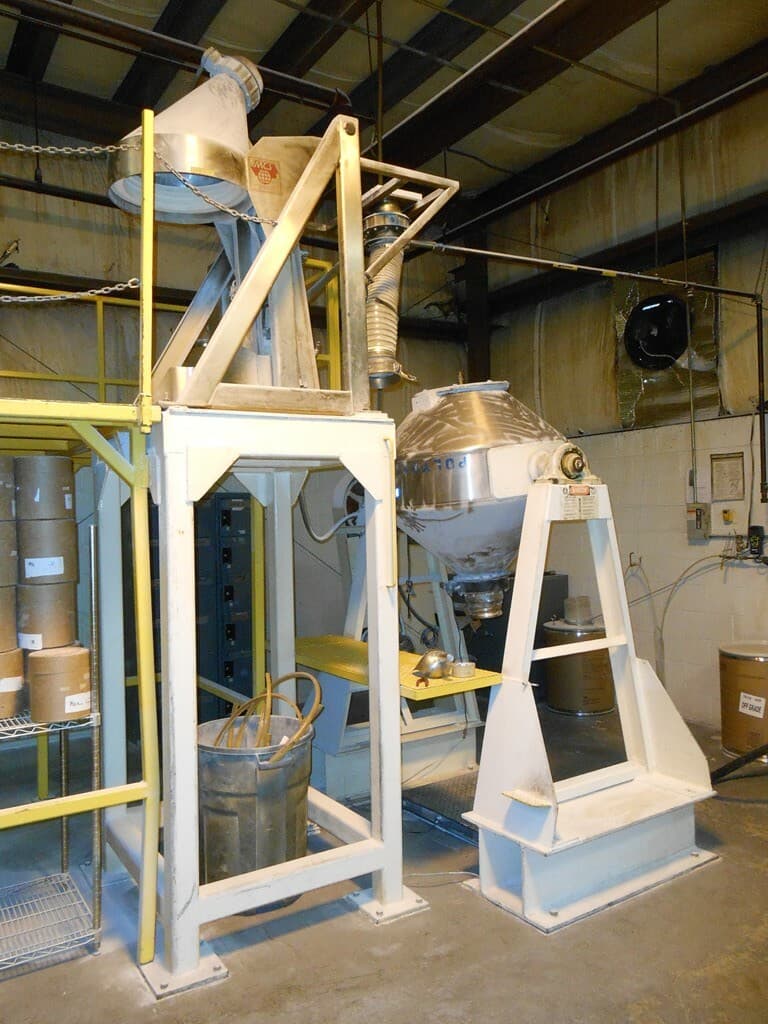

Mixer01

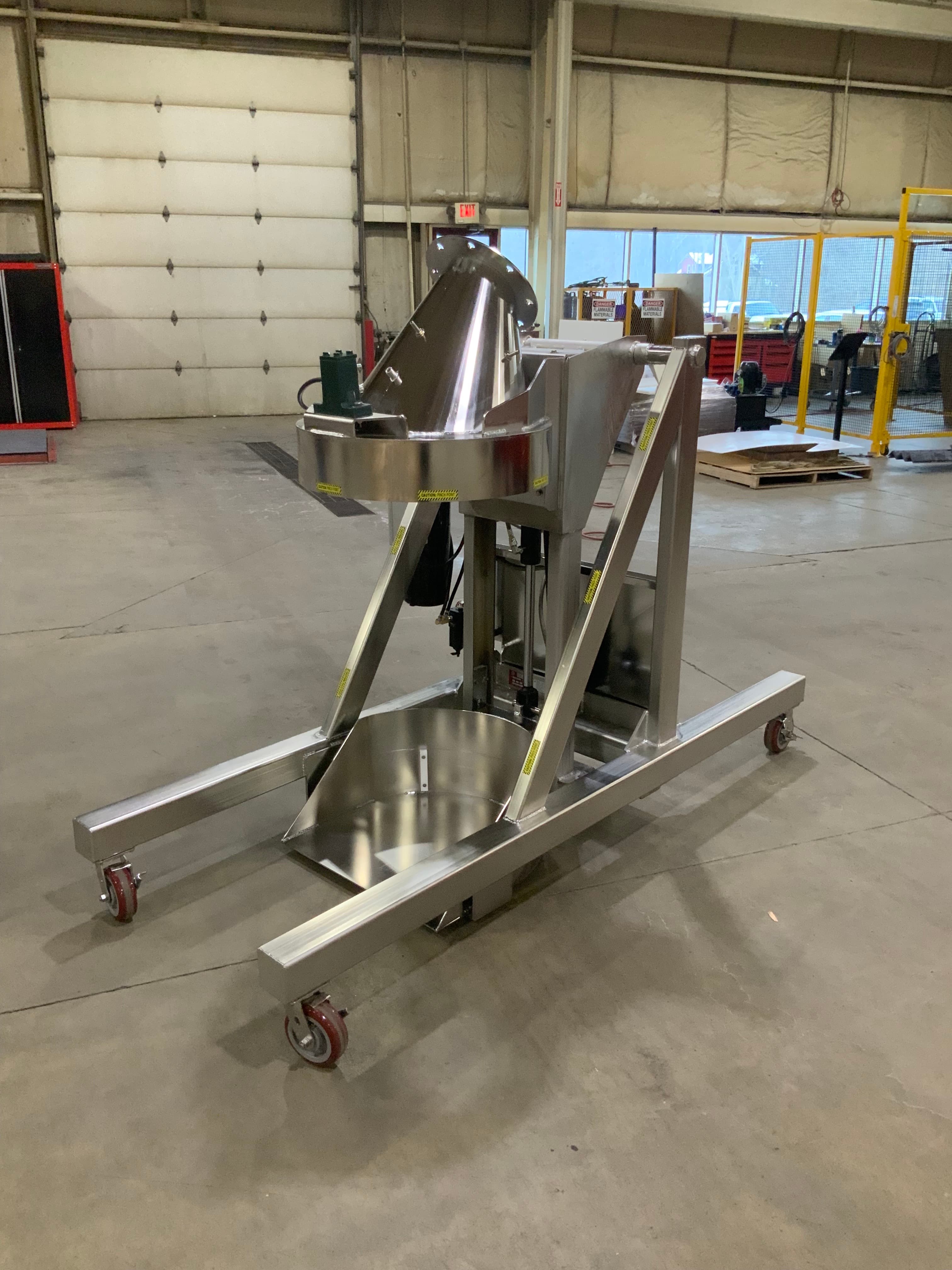

IMG_0551-copy

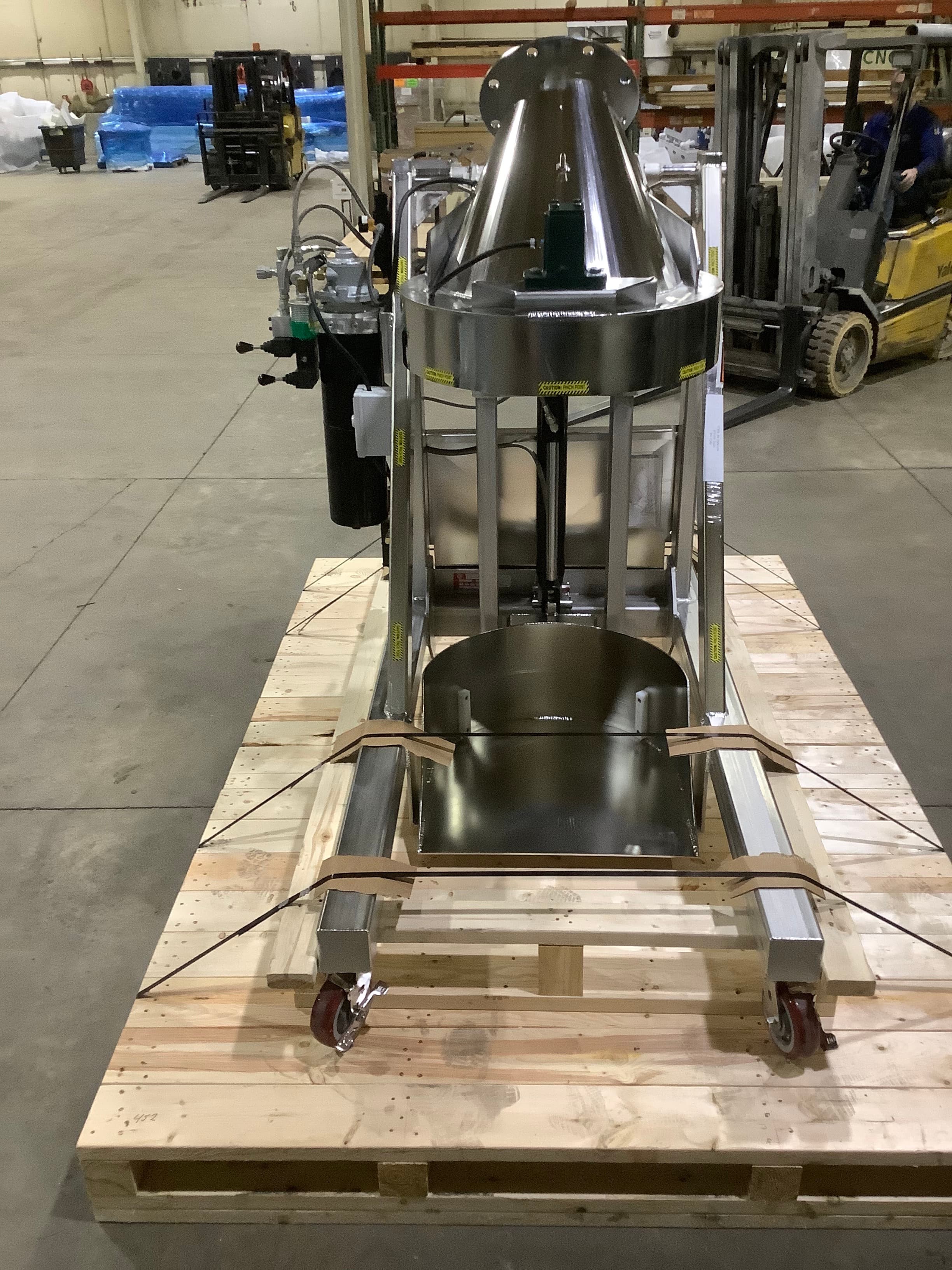

IMG_0477-copy

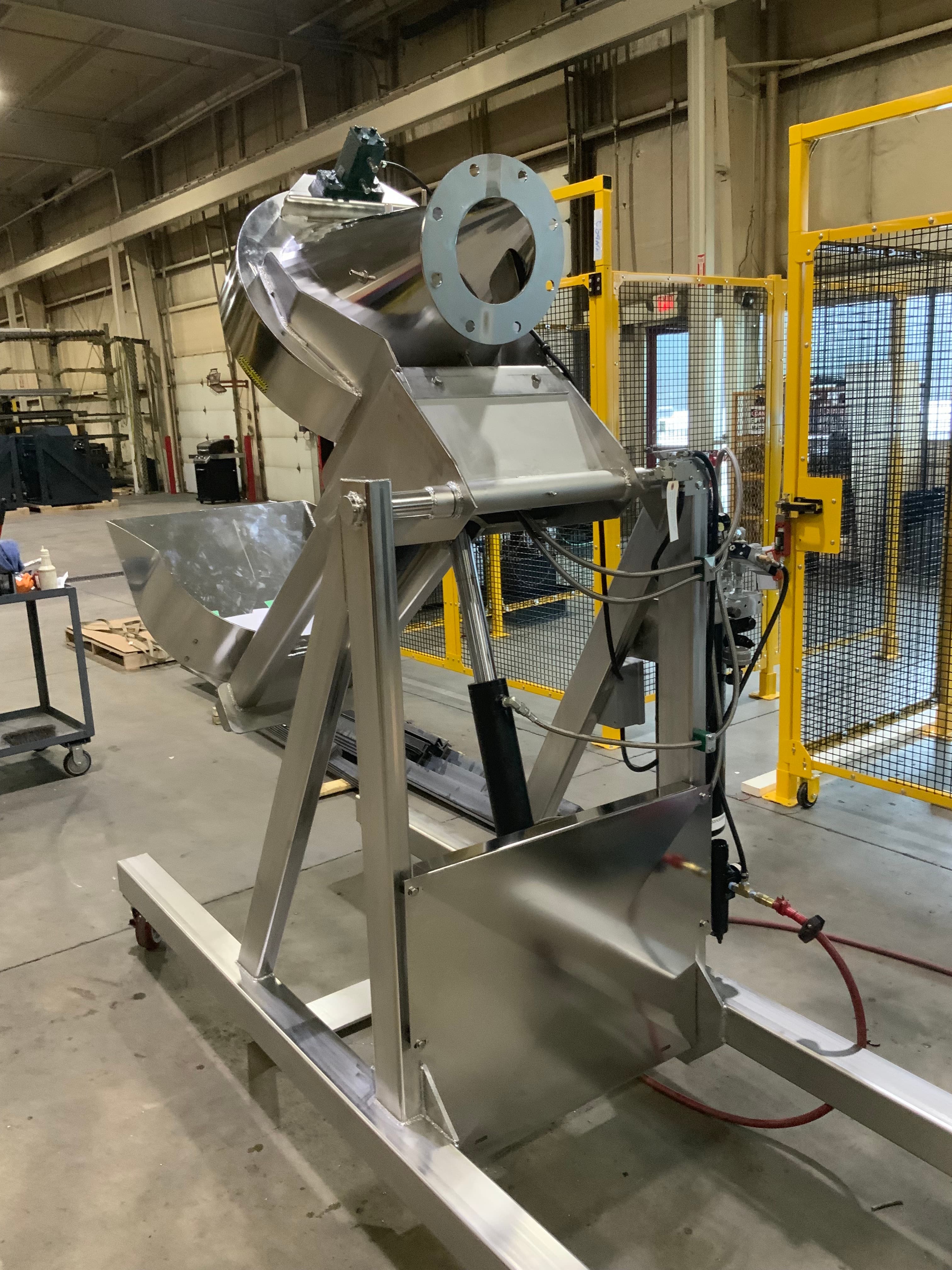

IMG_0528-copy
IMG_0551-copy

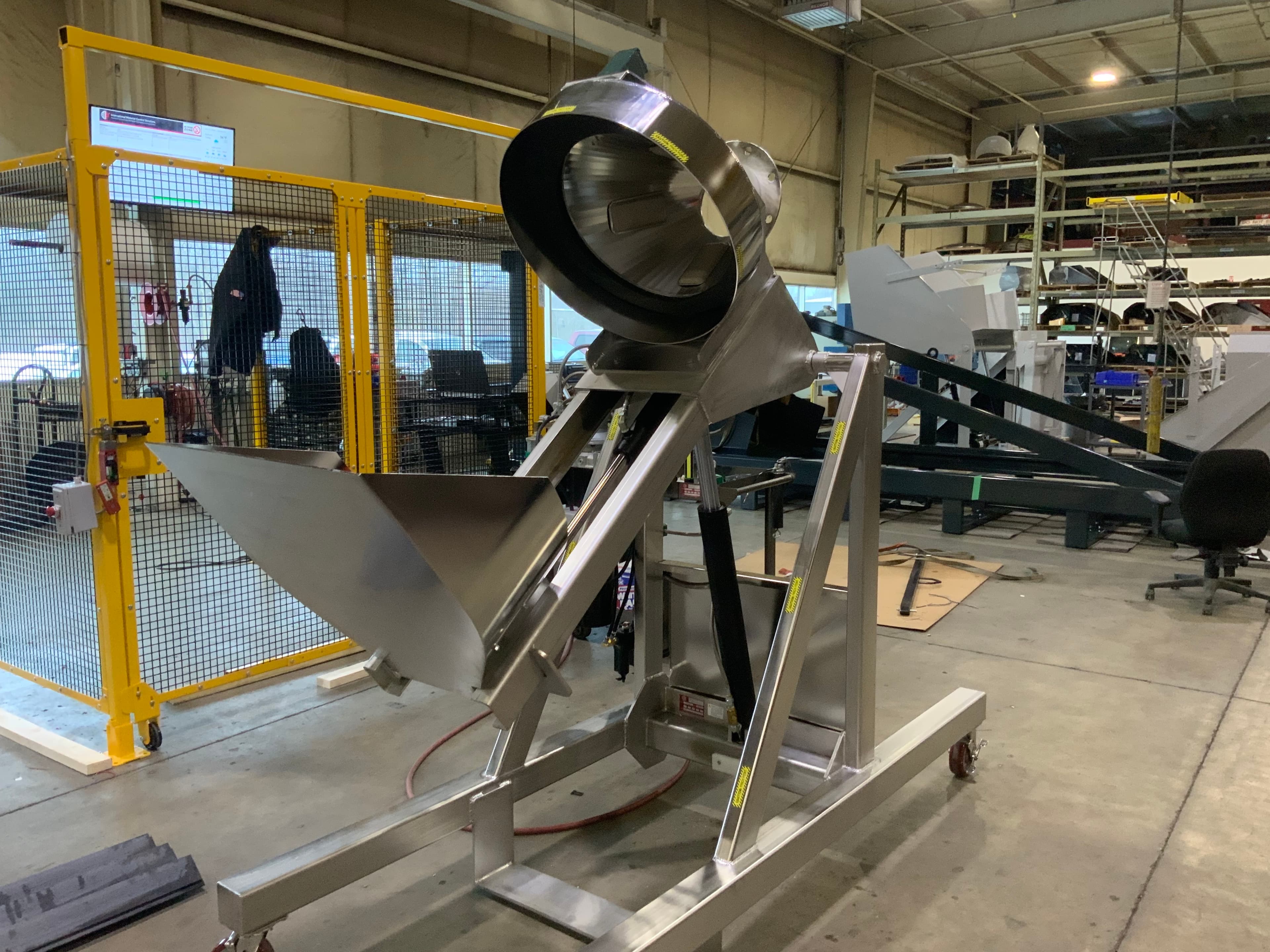

IMG_0531-copy

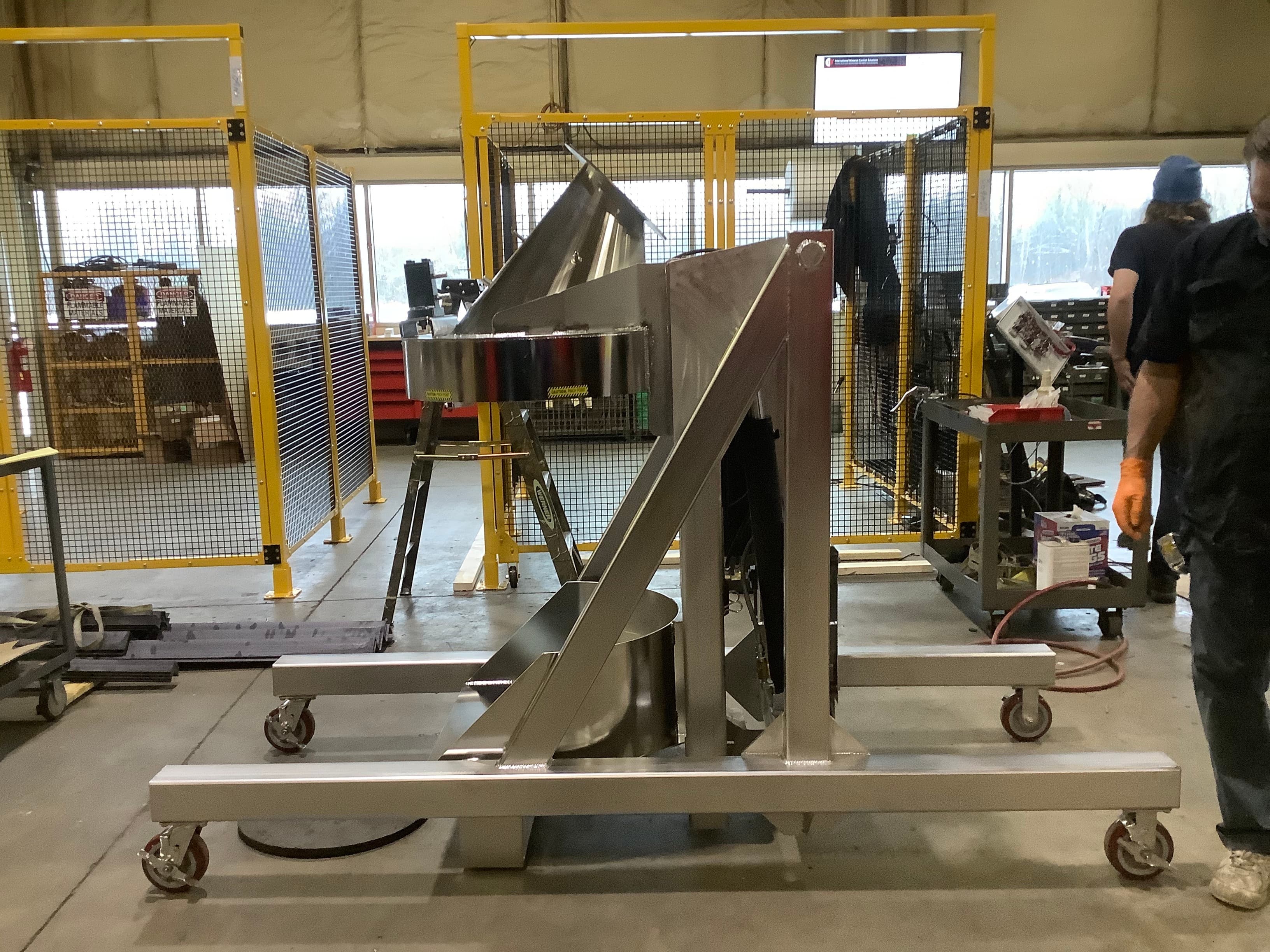

IMG_0431-copy

Product Specifications

Detailed product information provides an accurate description of requirements, measurements, and functionality.

Model No.Construction HPPower Requirements List Price
20-5601-000Carbon Steel2120V / 1 PHCall for Pricing
20-5609-000Carbon Steel2240V / 1 PH Call for Pricing
20-5610-000Carbon Steel2480V / 3 PHCall for Pricing
20-5610-001Carbon Steel2240V / 3 PHCall for Pricing
20-5700-000Stainless Steel2230/460V / 3 PHCall for Pricing
20-5701-000Stainless Steel on Contact2230/460V / 3 PHCall for Pricing
20-5702-000Carbon Steel2230/460V / 3 PHCall for Pricing
