Flexible Hose

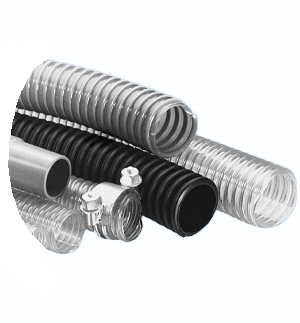

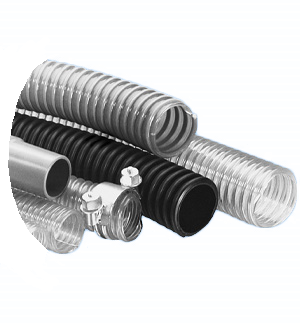

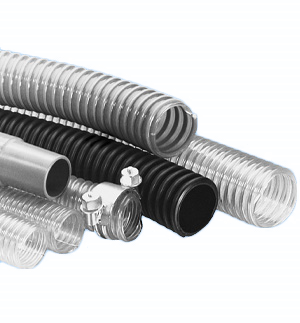

IMCS offers four types of PVC material handling hoses to meet a wide variety of bulk conveying system requirements. Suitable for both vacuum and pneumatic conveying applications. Available sizes range from 1" through 8" I.D. 1) Economical food-grade PVC hose. 2) Static - PVC hose with static-dissipating ground wire 3) Extended performance urethane material transfer hose 4) A blend of urethane, PVC and rubber for severe service applications
Product Specifications
Detailed product information provides an accurate description of requirements, measurements, and functionality.
| Model No. | I.D. (inch) | O.D. (inch) | Working Pressure | Vacuum Rating | Bend Radius | Weight (lbs./ft.) | Standard Coils | Static Wire | List Price |
|---|---|---|---|---|---|---|---|---|---|
| 04-0046-011 | 1.5 | 1.81 | 50 psi | 29 inch HG | 3.2 inch | 0.31 | 50 ft. | Yes | Call for Pricing |
| 04-0046-001 | 2 | 2.43 | 40 psi | 29 inch HG | 3.2 inch | 0.42 | 50 ft. | Yes | Call for Pricing |
| 04-0046-006 | 2.5 | 3.00 | 35 psi | 29 inch HG | 4.5 inch | 0.65 | 50 ft. | Yes | Call for Pricing |
| 04-0046-003 | 3 | 3.58 | 35 psi | 29 inch HG | 6.5 inch | 0.85 | 50 ft. | Yes | Call for Pricing |
| 04-0046-002 | 4 | 4.68 | 35 psi | 15 inch HG | 10.4 inch | 1.30 | 50 ft. | Yes | Call for Pricing |
| 04-0046-000 | 5 | 5.65 | 30 psi | 10 inch HG | 21.0 inch | 1.50 | 50 ft. | Yes | Call for Pricing |
| 04-0046-009 | 6 | 6.72 | 30 psi | 10 inch HG | 29.4 inch | 2.20 | 25 ft. | Yes | Call for Pricing |
| 04-0046-007 | 2 | 2.43 | 40 psi | 29 inch HG | 3.2 inch | 0.42 | 50 ft. | No | Call for Pricing |
| 04-0046-004 | 2.5 | 3.00 | 35 psi | 29 inch HG | 4.5 inch | 0.65 | 50 ft. | No | Call for Pricing |
| 04-0046-005 | 3 | 3.58 | 35 psi | 29 inch HG | 6.5 inch | 0.85 | 50 ft. | No | Call for Pricing |
