Floor Level Tilt Tables

IMCS Floor Level Container Tilters allow you to tilt containers to their corners or side for easy product removal. Our tilters operate by air, on as little as 60 p.s.i., and have been designed to load at floor level with a pallet jack or fork truck. Your choice of hand or foot pedal control along with an onboard regulator will allow for the controlled tilt of the table at a predetermined weight preventing material spillage. When you include our designed and patented safety locking device you will have the proper safety option to prevent the table from crashing to the ground in the event of unplanned air loss or airbag rupture. The floor level tilt table can be constructed from aluminum, stainless steel, carbon steel or galvanized steel.

Standard Features

Automatic Tilt, Hand Control Valves, Pneumatic Activation, Safety Tilt Stop, Painted IMCS Dark Gray (RAL 7016)

Safety Enclosures are available for all IMCS Equipment

25-6012-000 Optional IMCS Safety Locking Device.......................................................................$485.00 Prevents table from crashing to the ground in the event of unplanned interruption or loss of air supply. (U.S. Patent No. 5,431,112 & 5,572,933)

25-5003-001 Optional IMCS Tilt Table Vibrator Kit.........................................................................$545.00 Assists in directing hard to move material including powders to the pick-up area of the box.

Gallery

100 2247
100 2243
100 2244
100 2262
100 2260
100 2261
100 2330
100 2331
100 2338
100 2435
100 2436
100 2447
100 2450
100 2451
100 2452
100 2453
100 2477
100 2478
100 2539

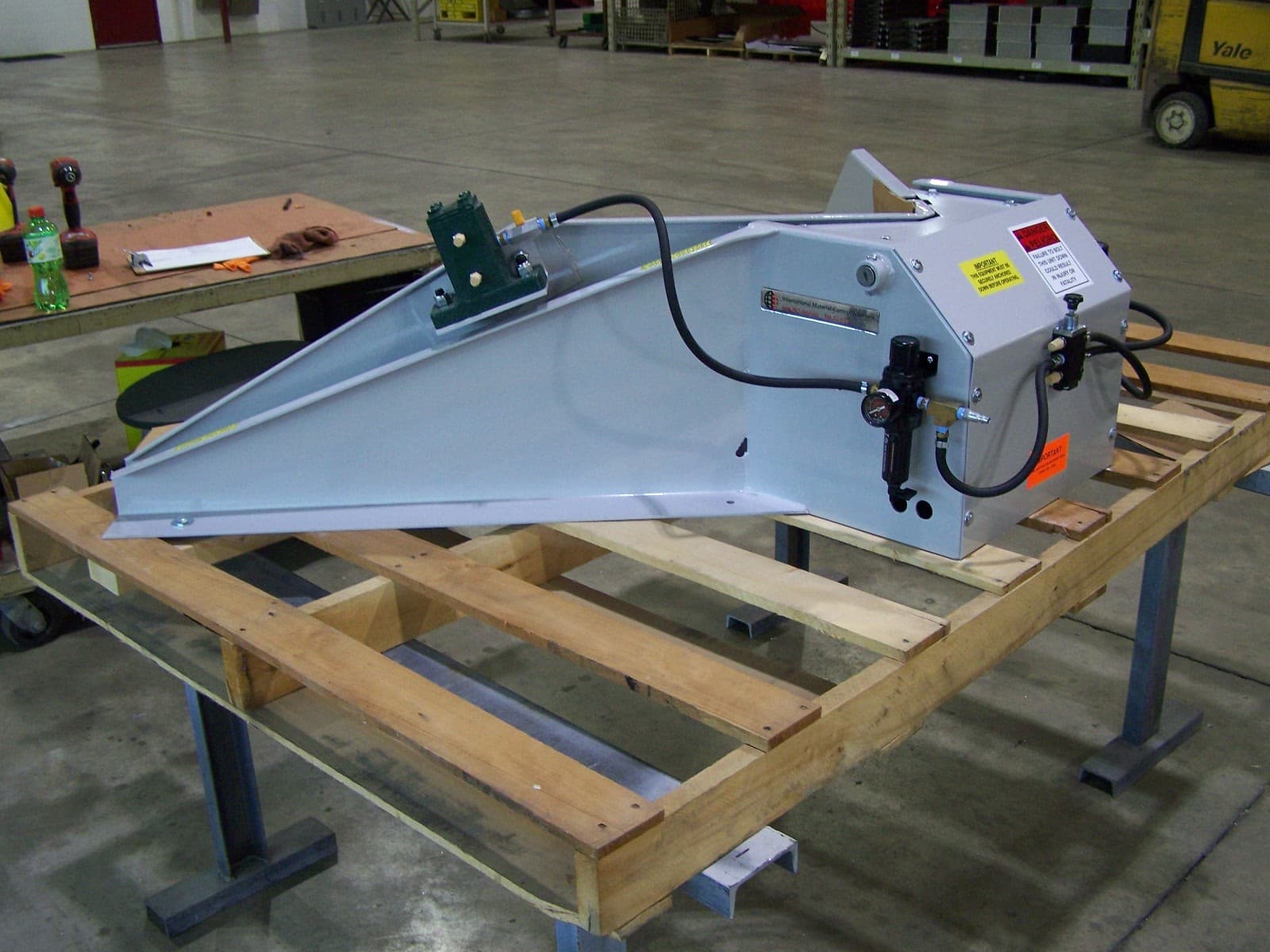

100 2540

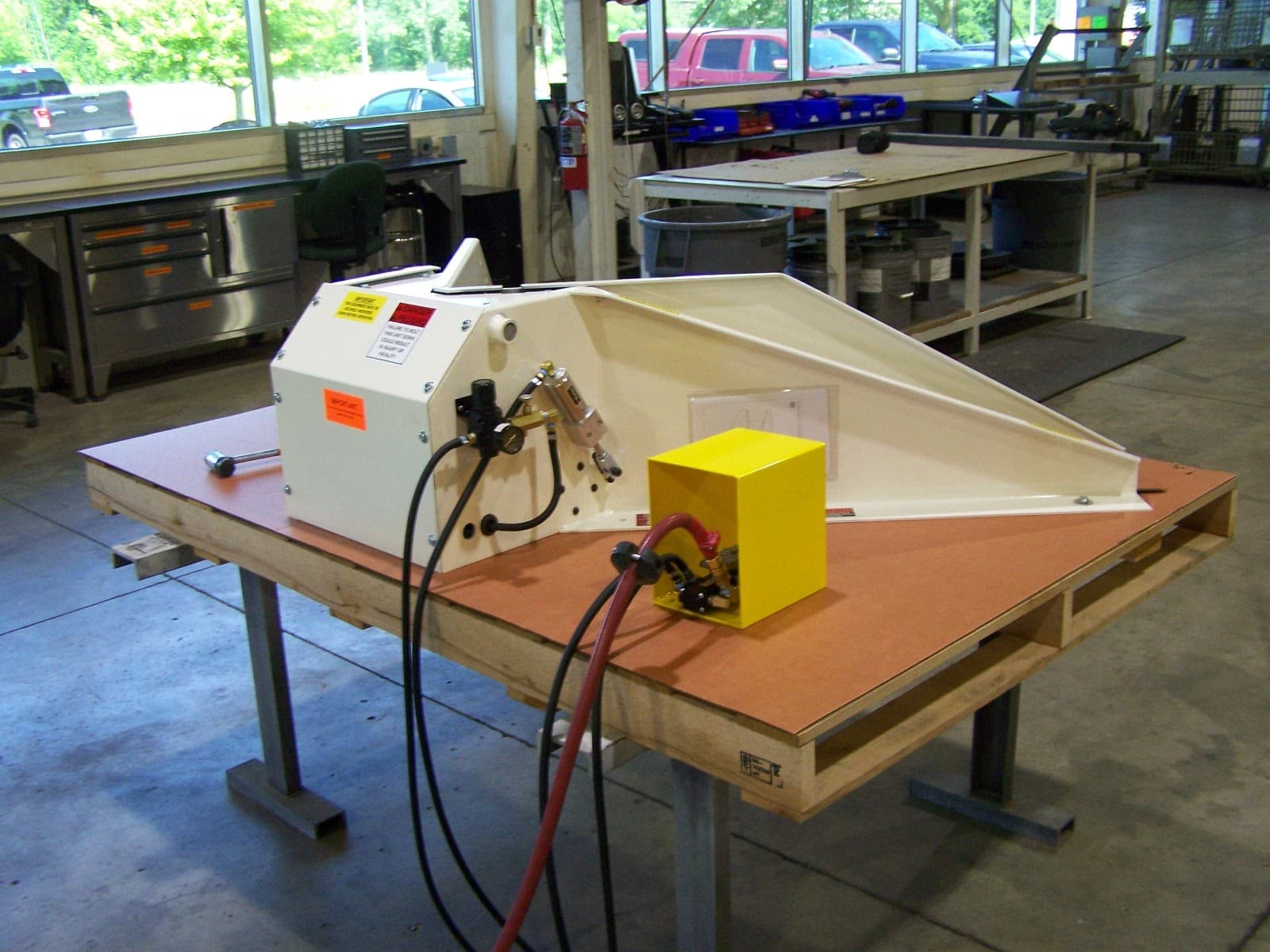

100 2578

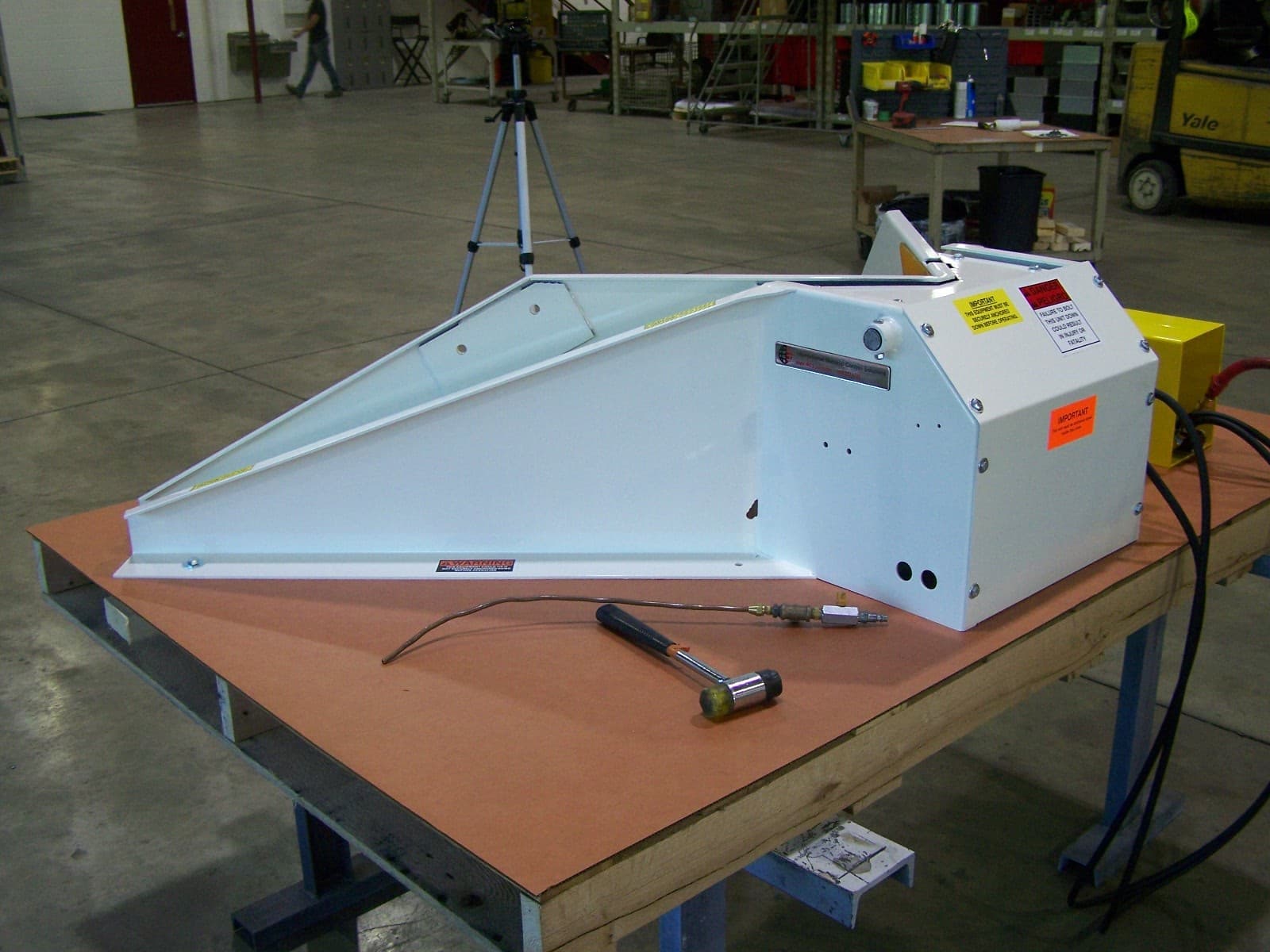

100 2580

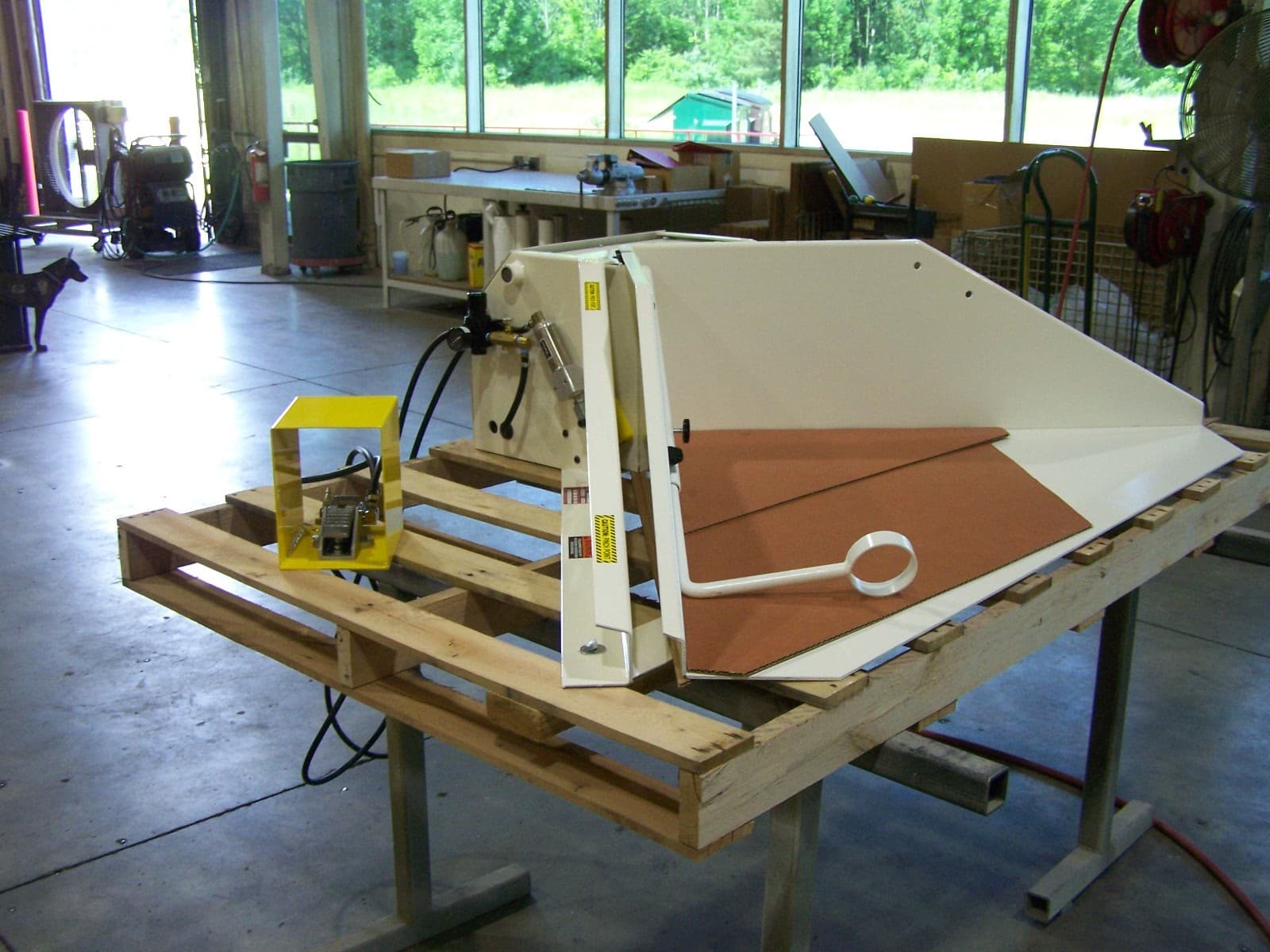

100 2583

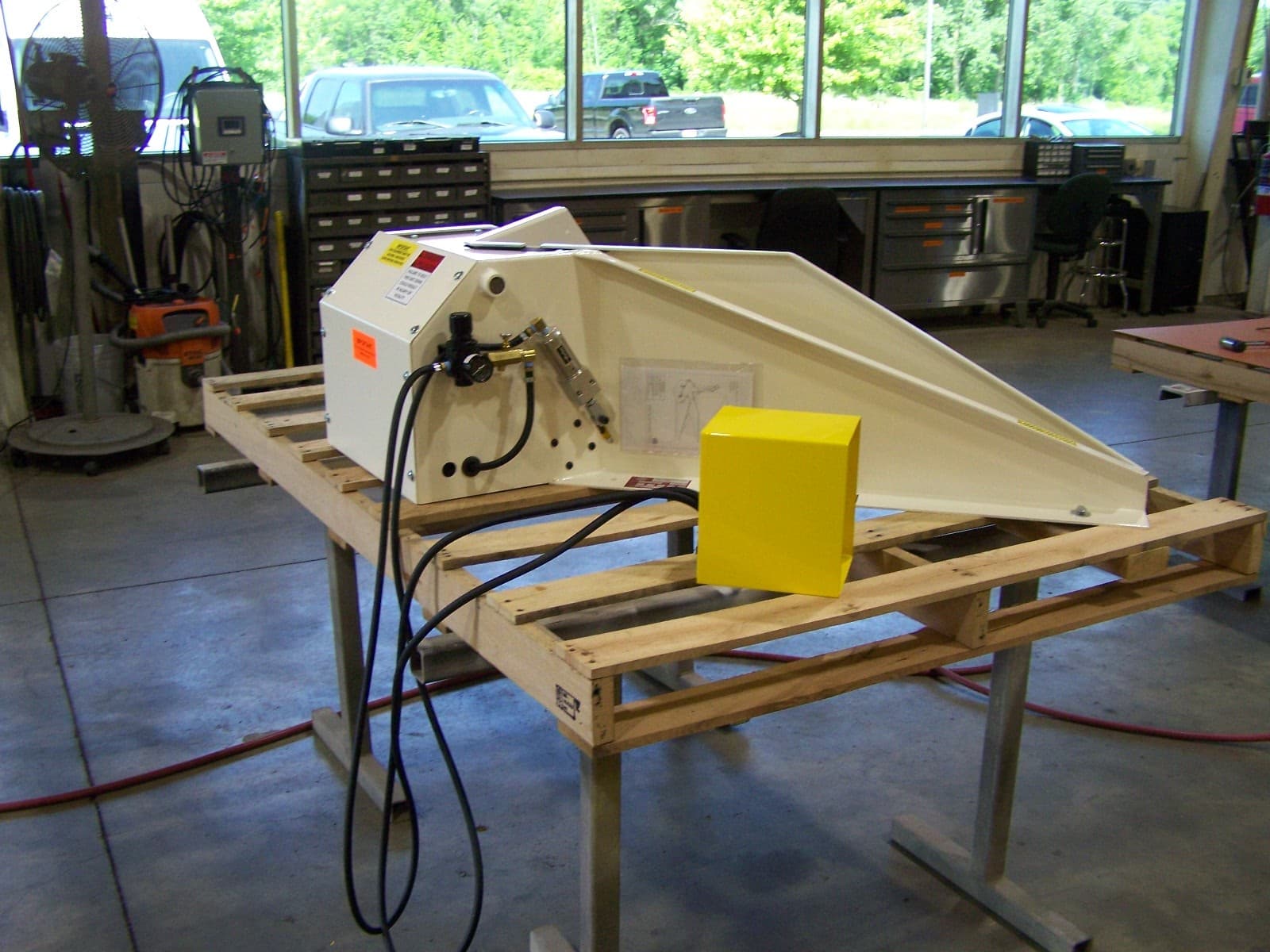

100 2584

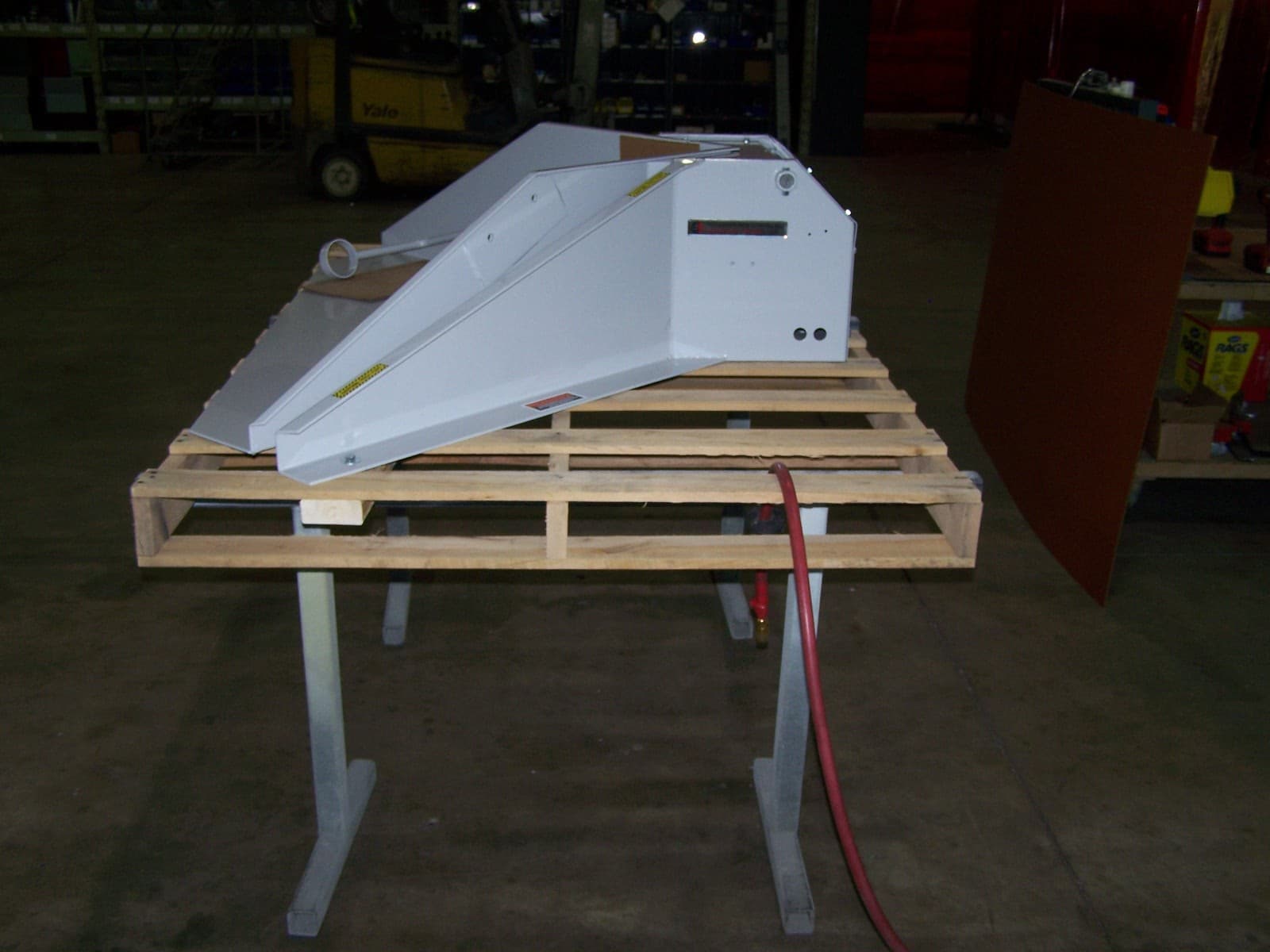

100 2594

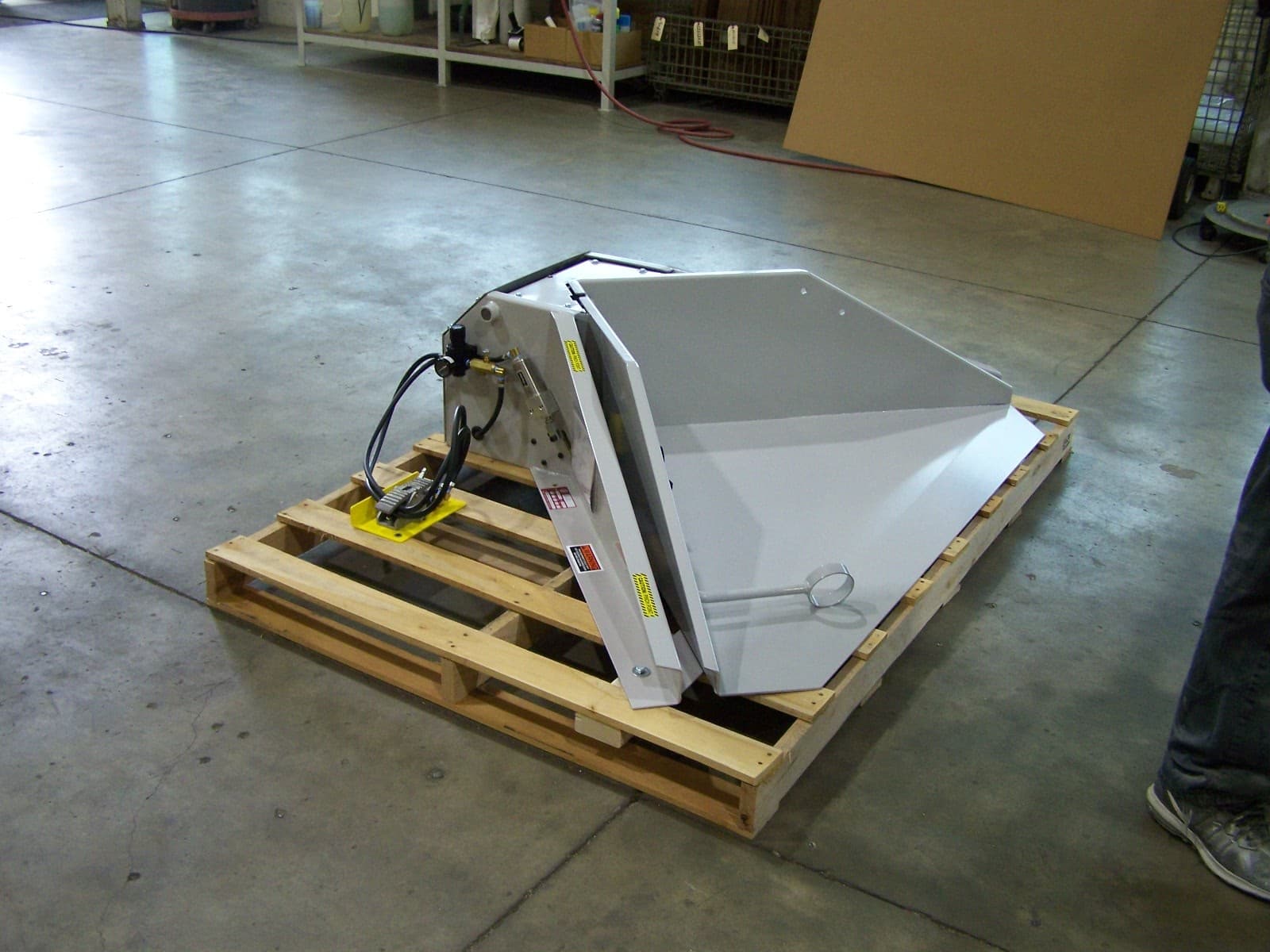

100 2601

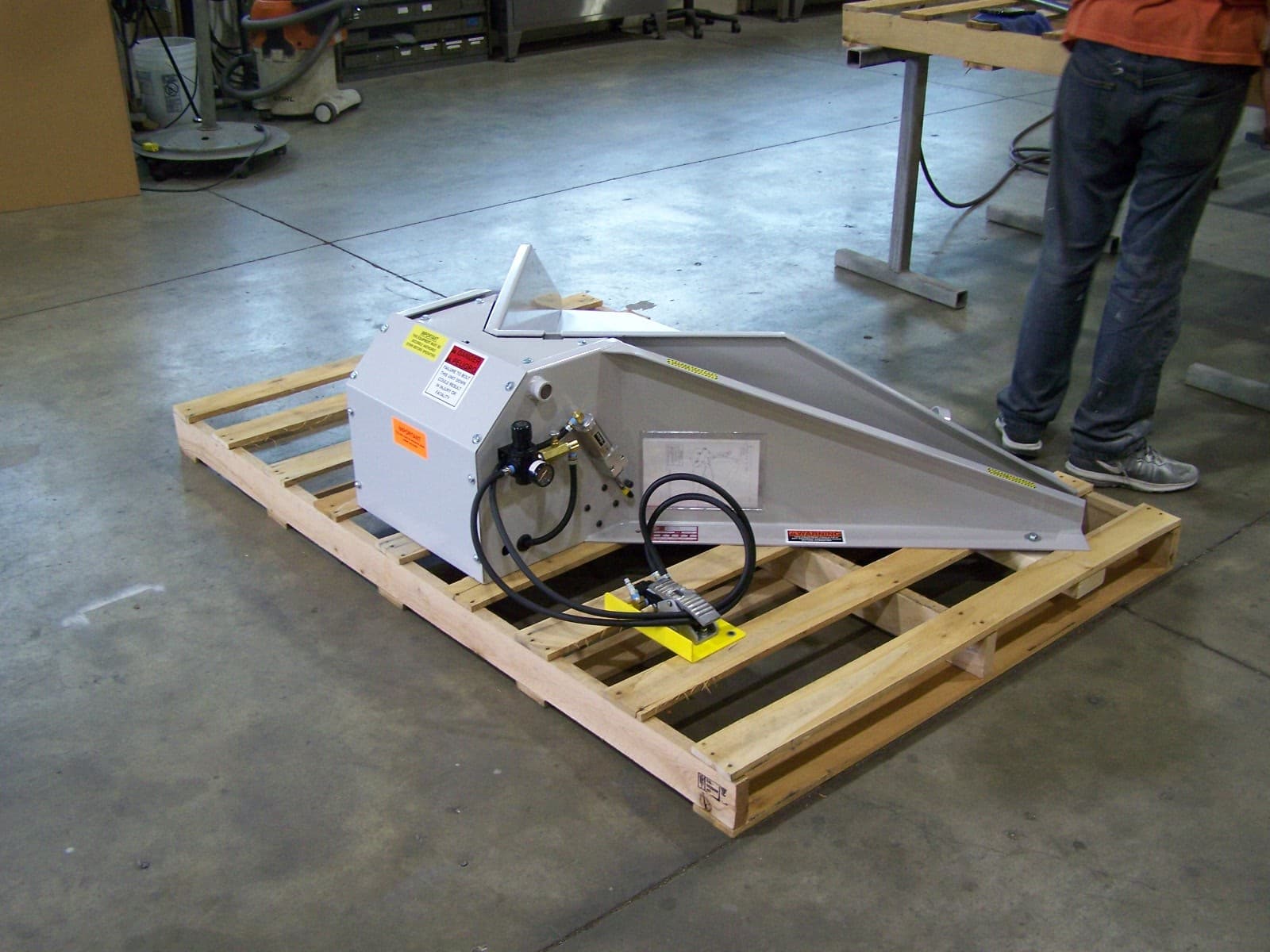

100 2602

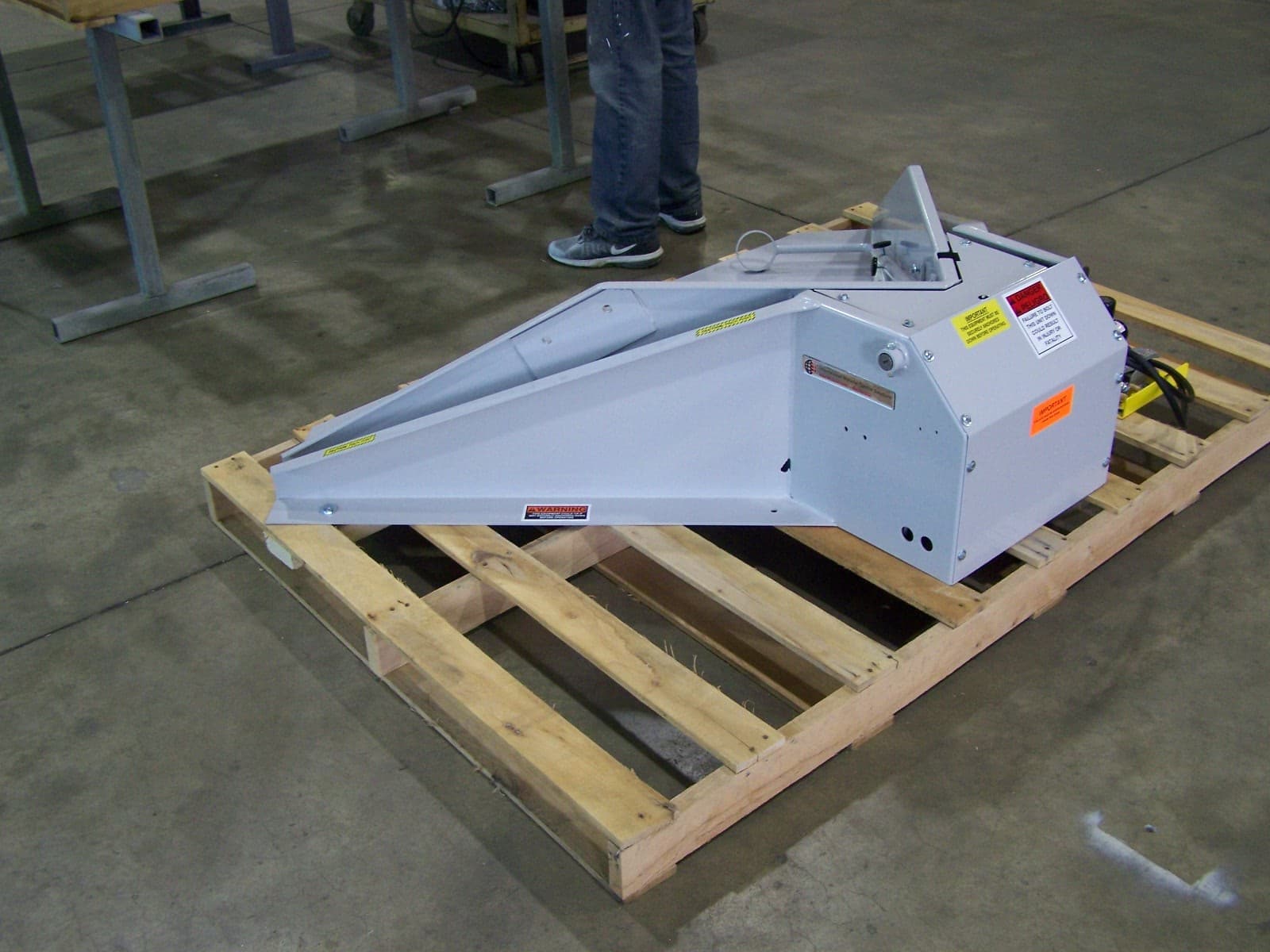

100 2603

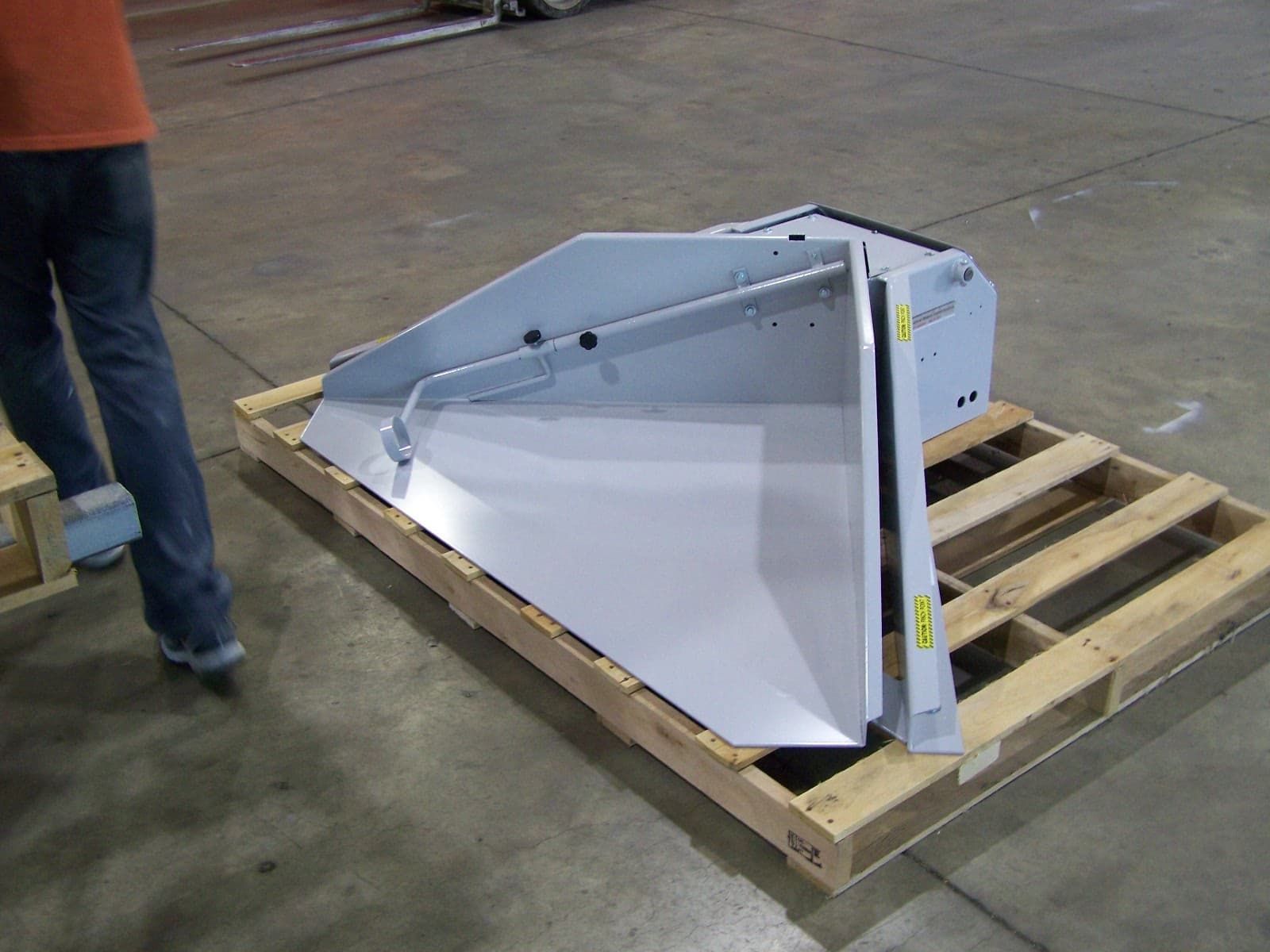

100 2604

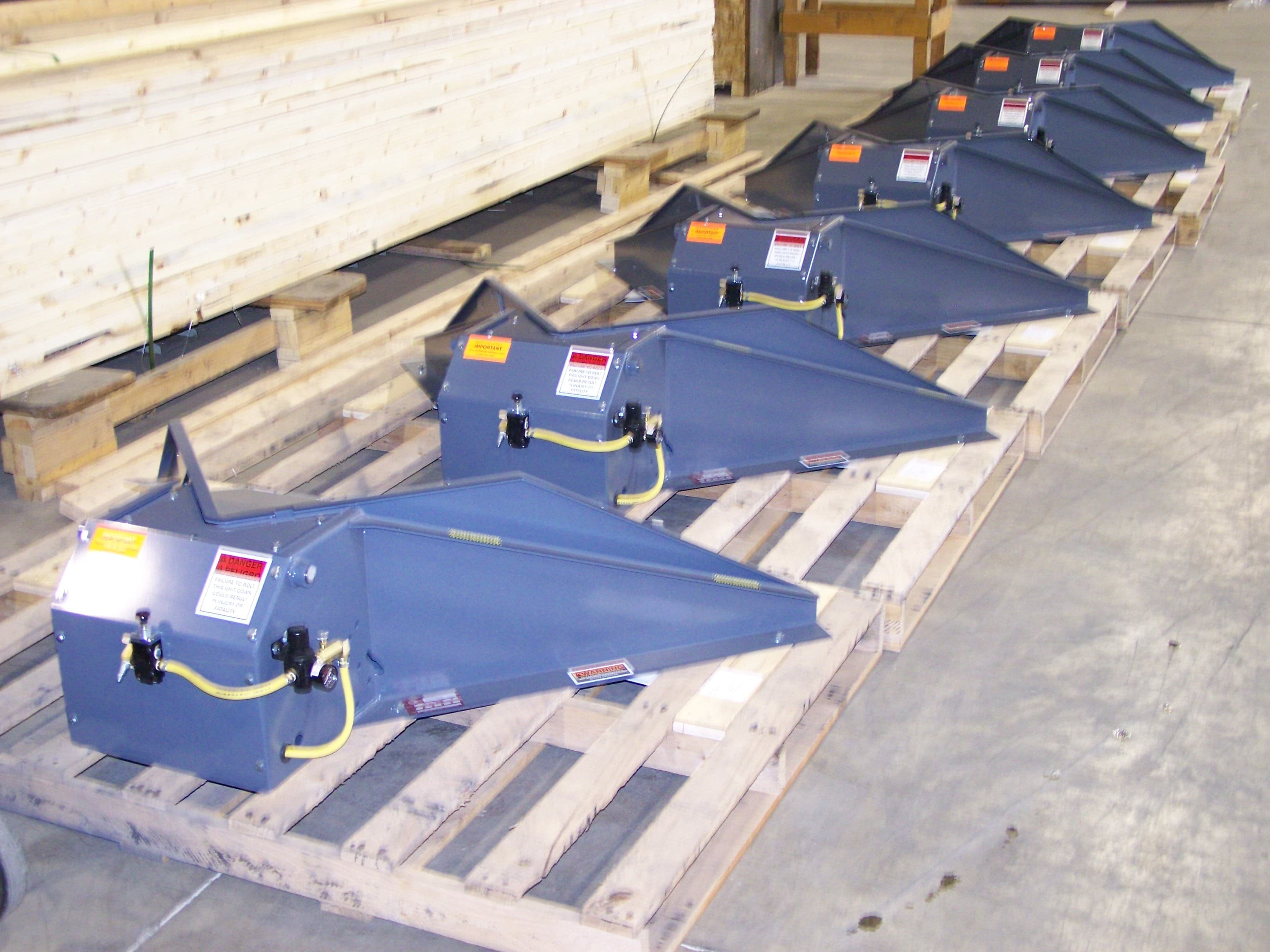

100 0096

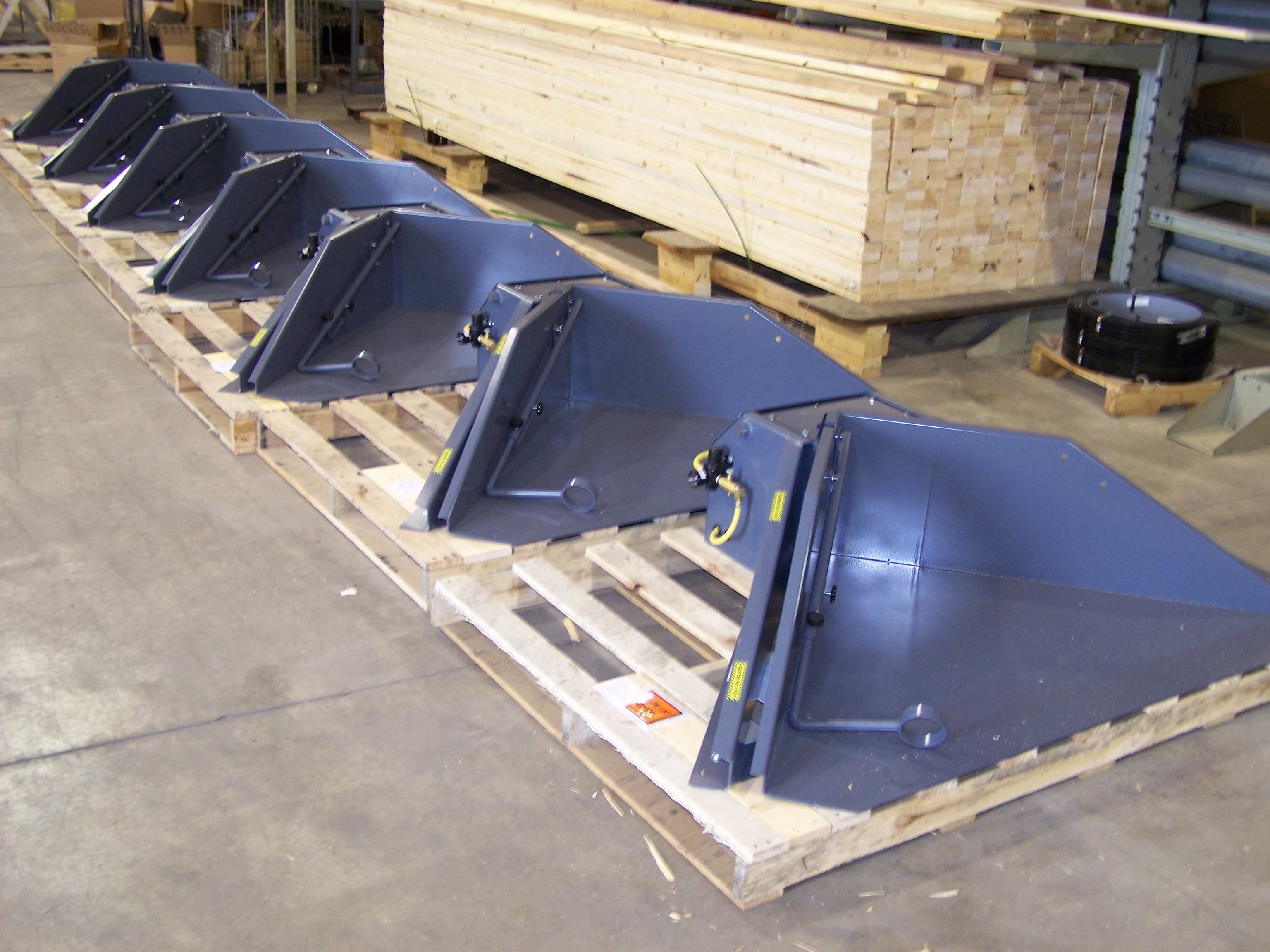

100 0097

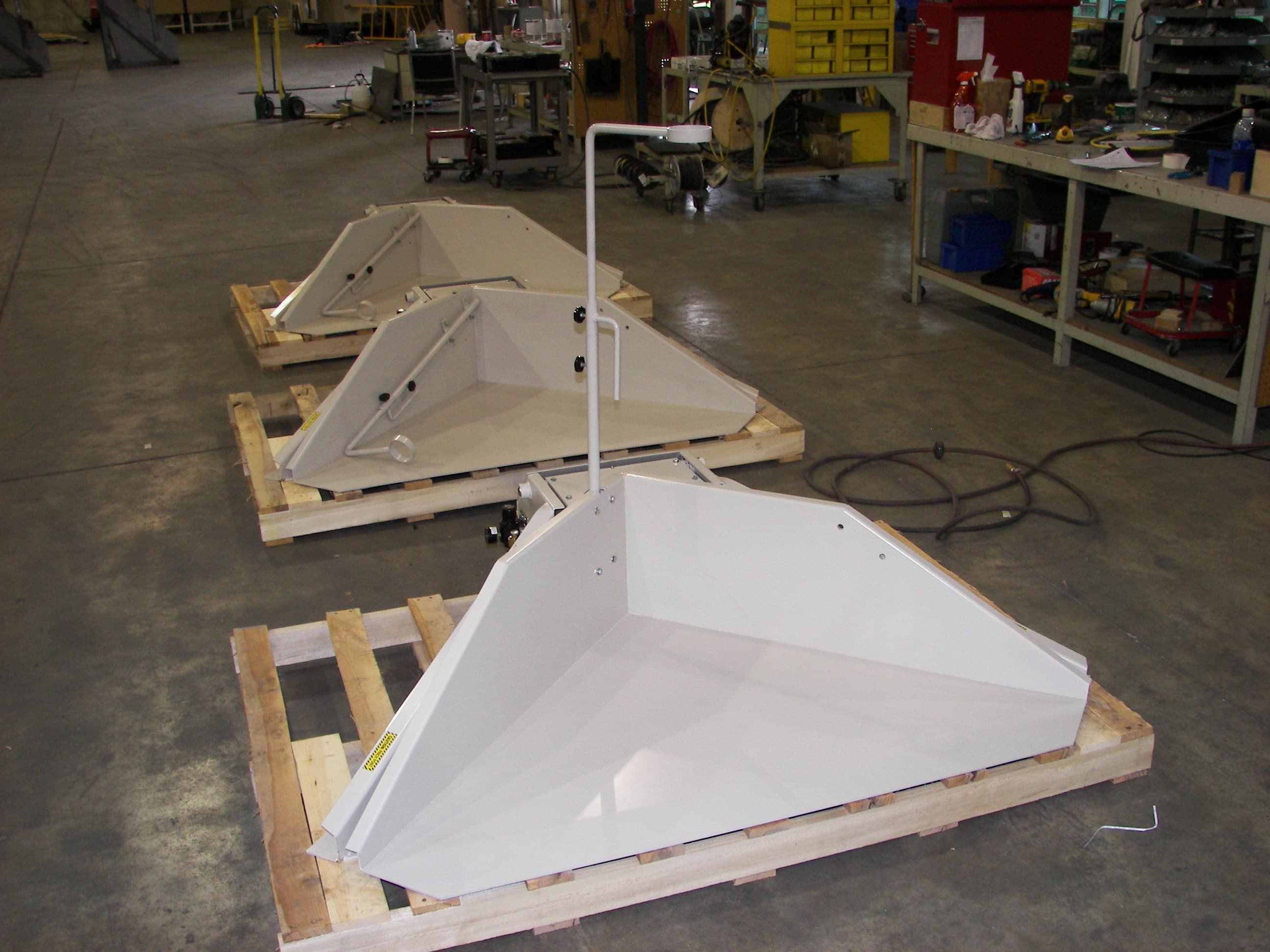

100 0221

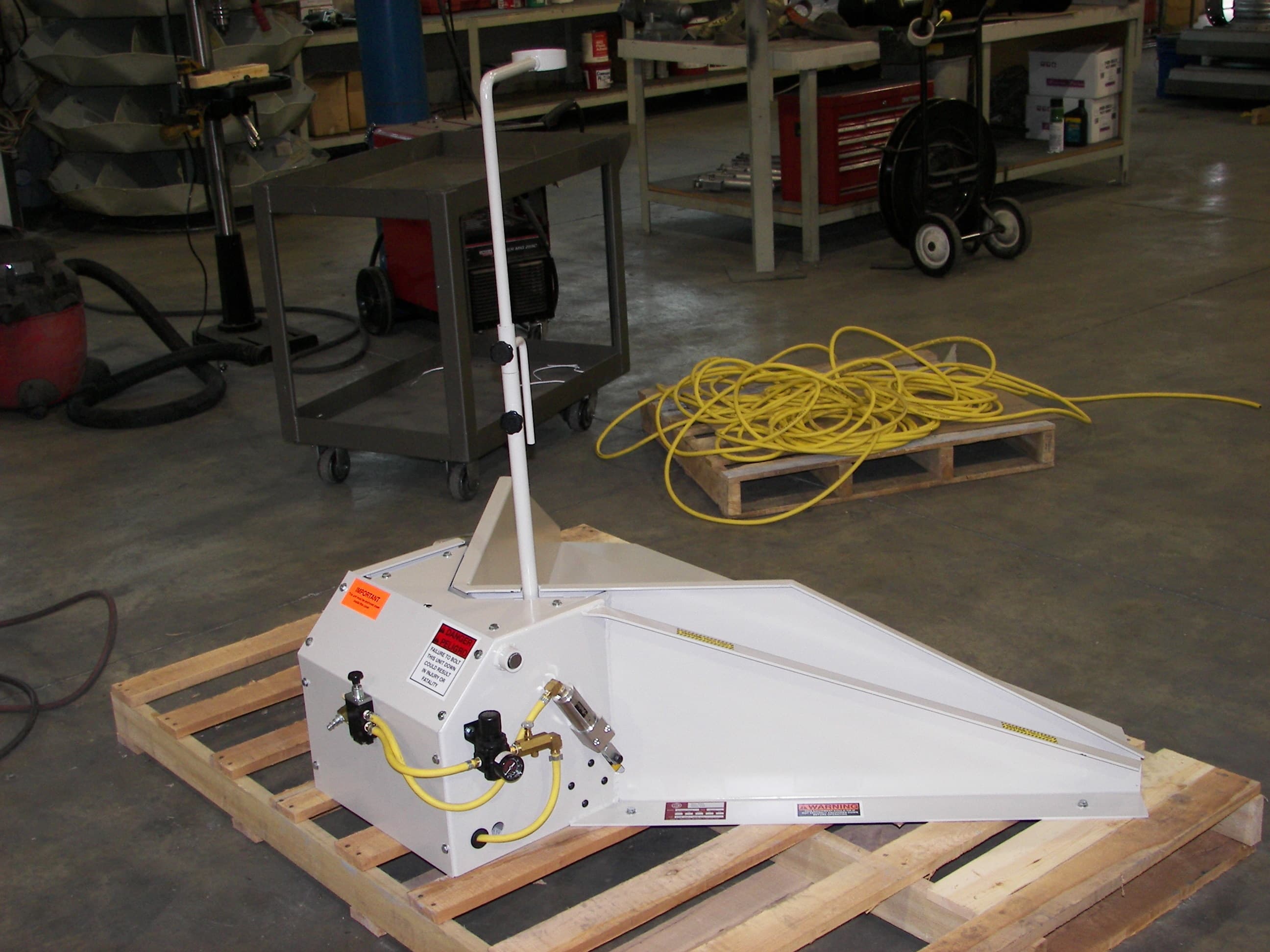

100 0222

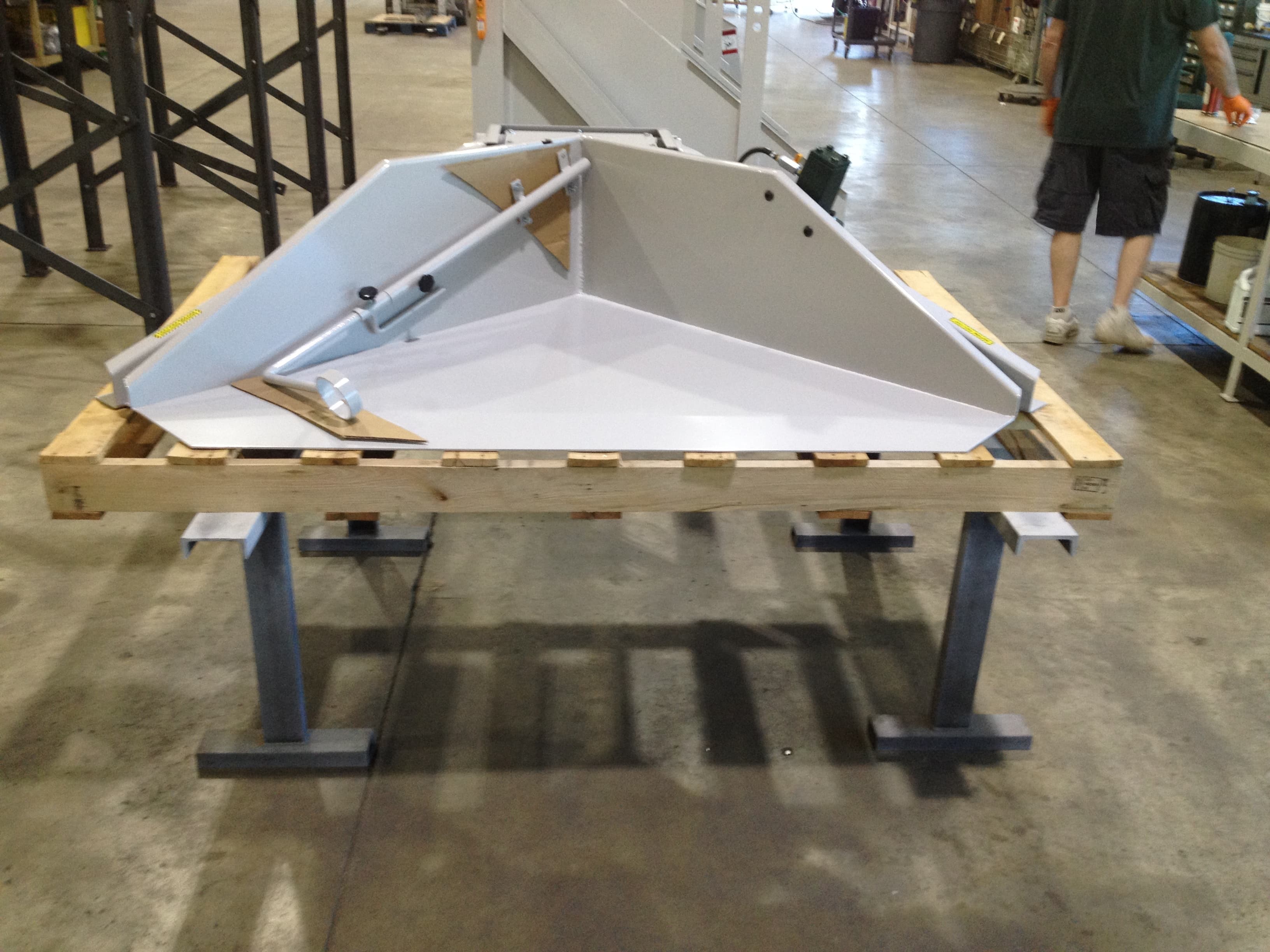

2017 07 05 08 37 56

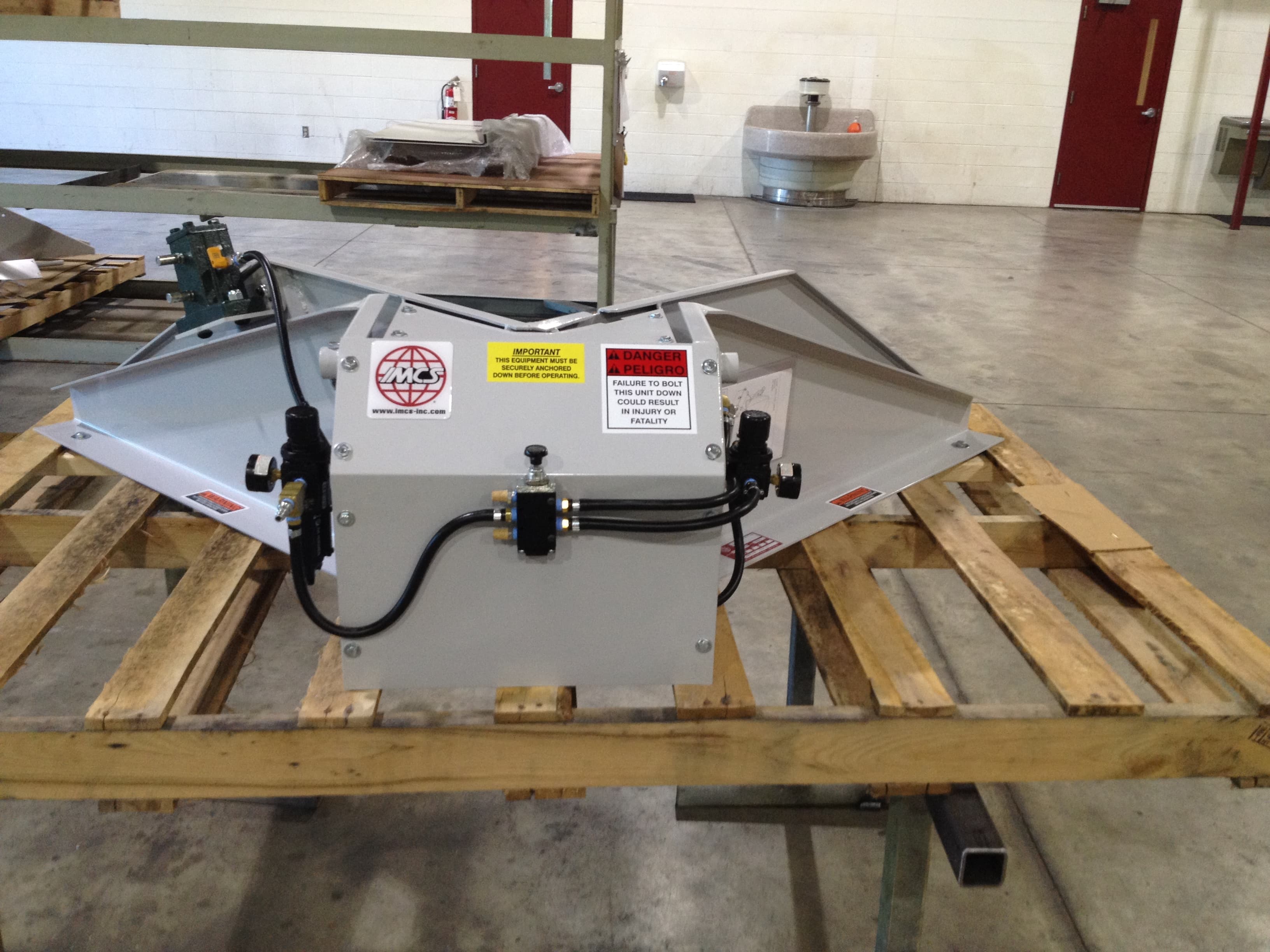

2017 07 05 08 48 56

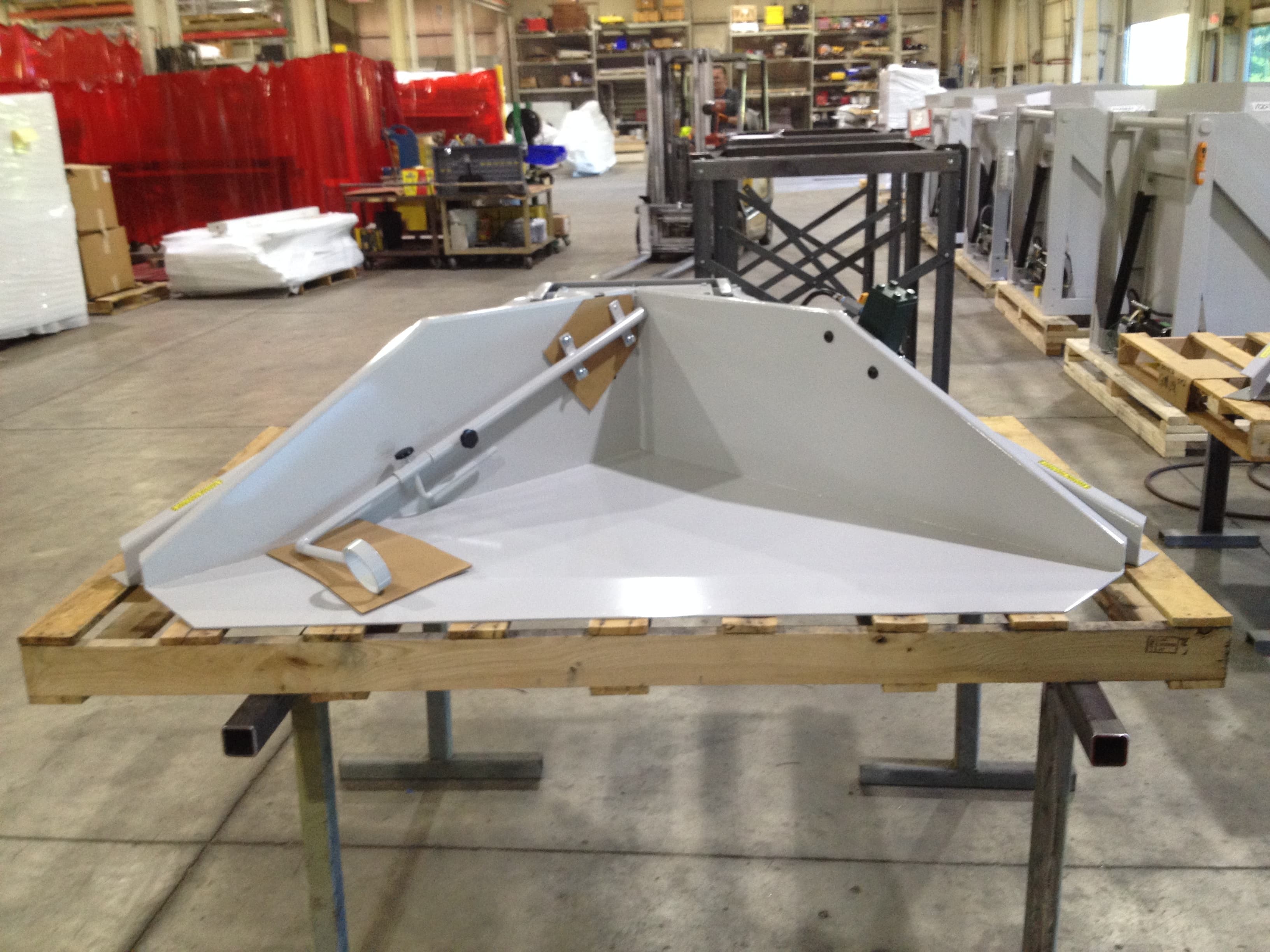

2017 07 05 08 49 14

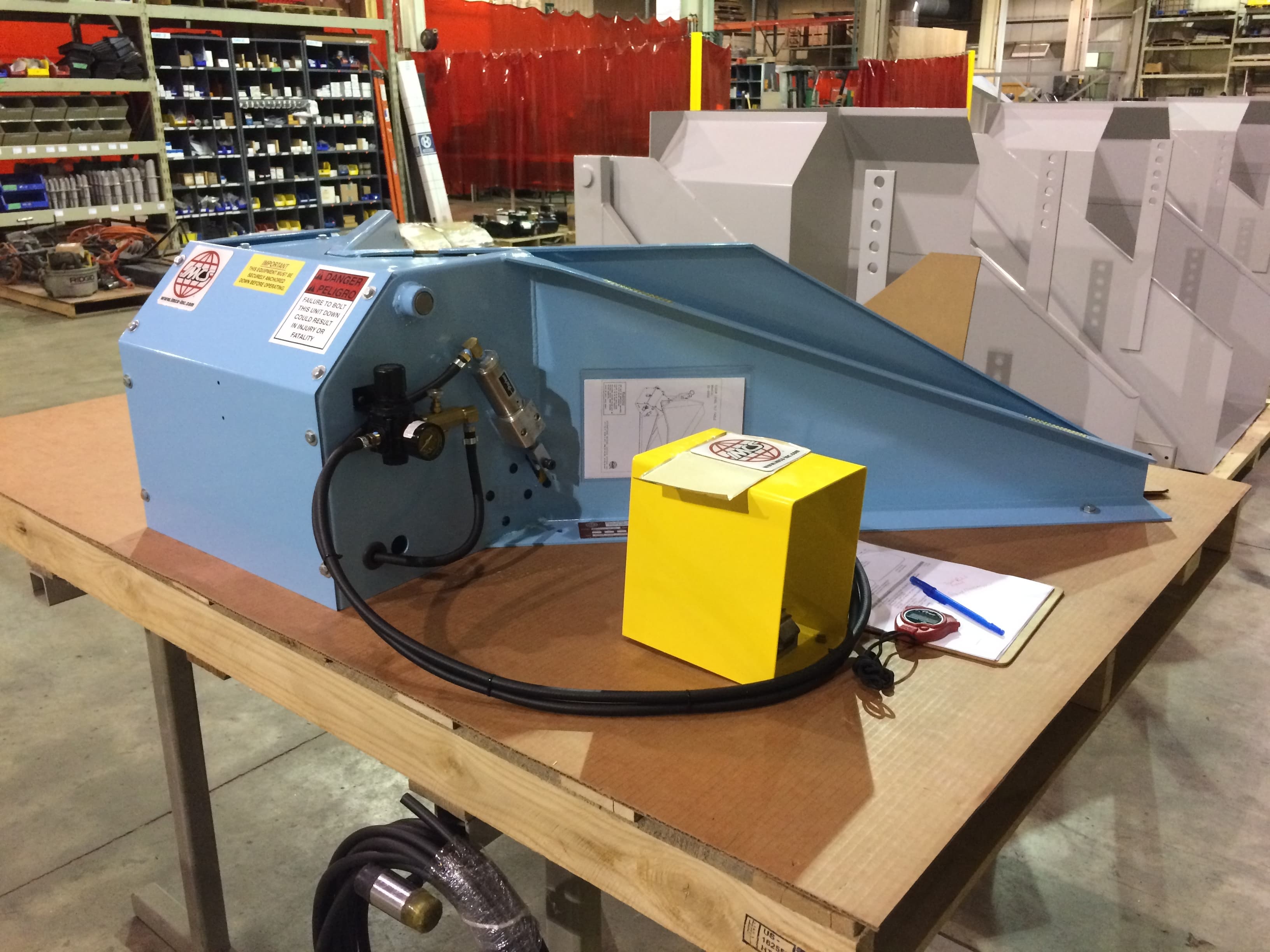

Img 5682

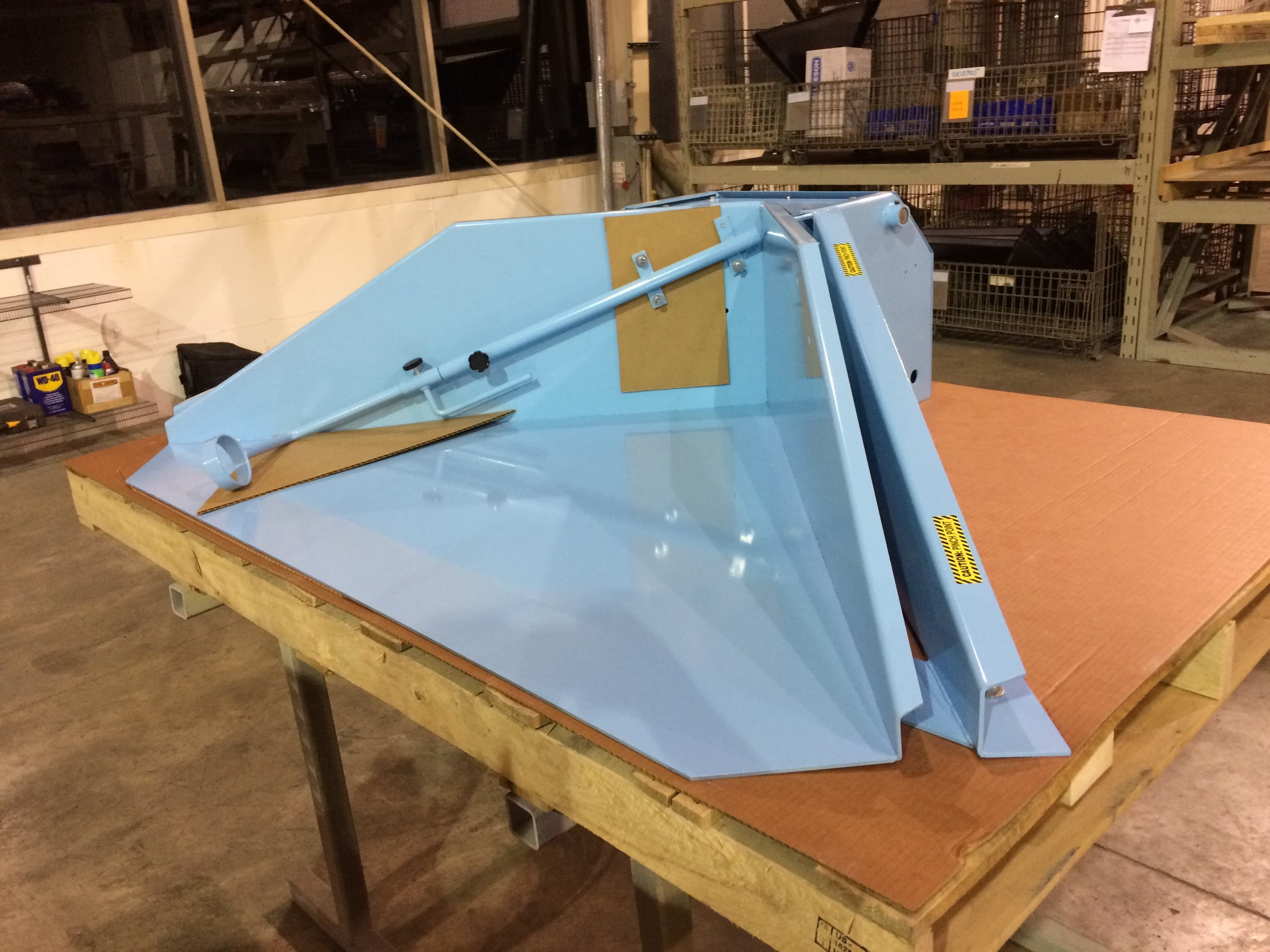

Img 5684

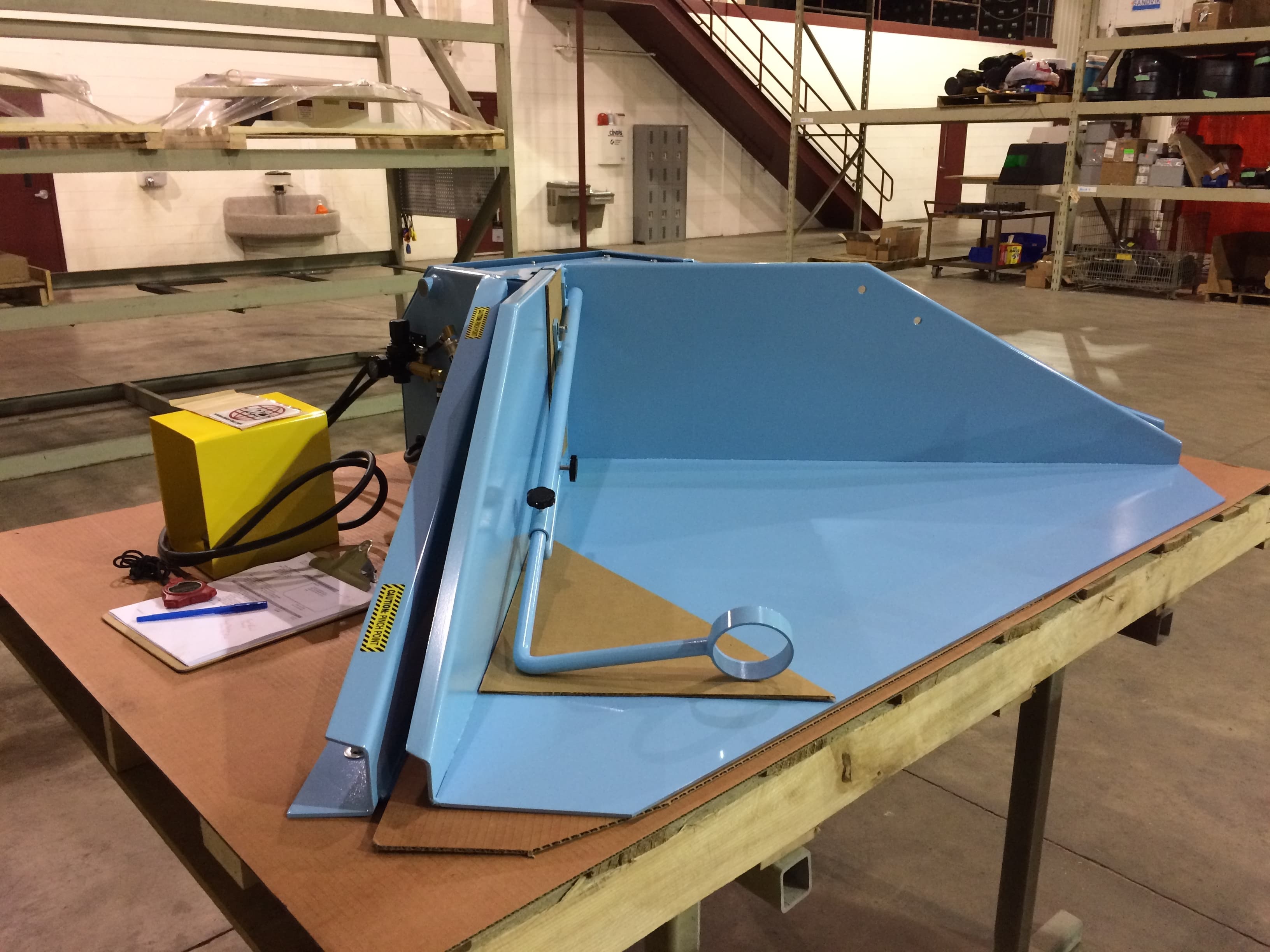

Img 5685

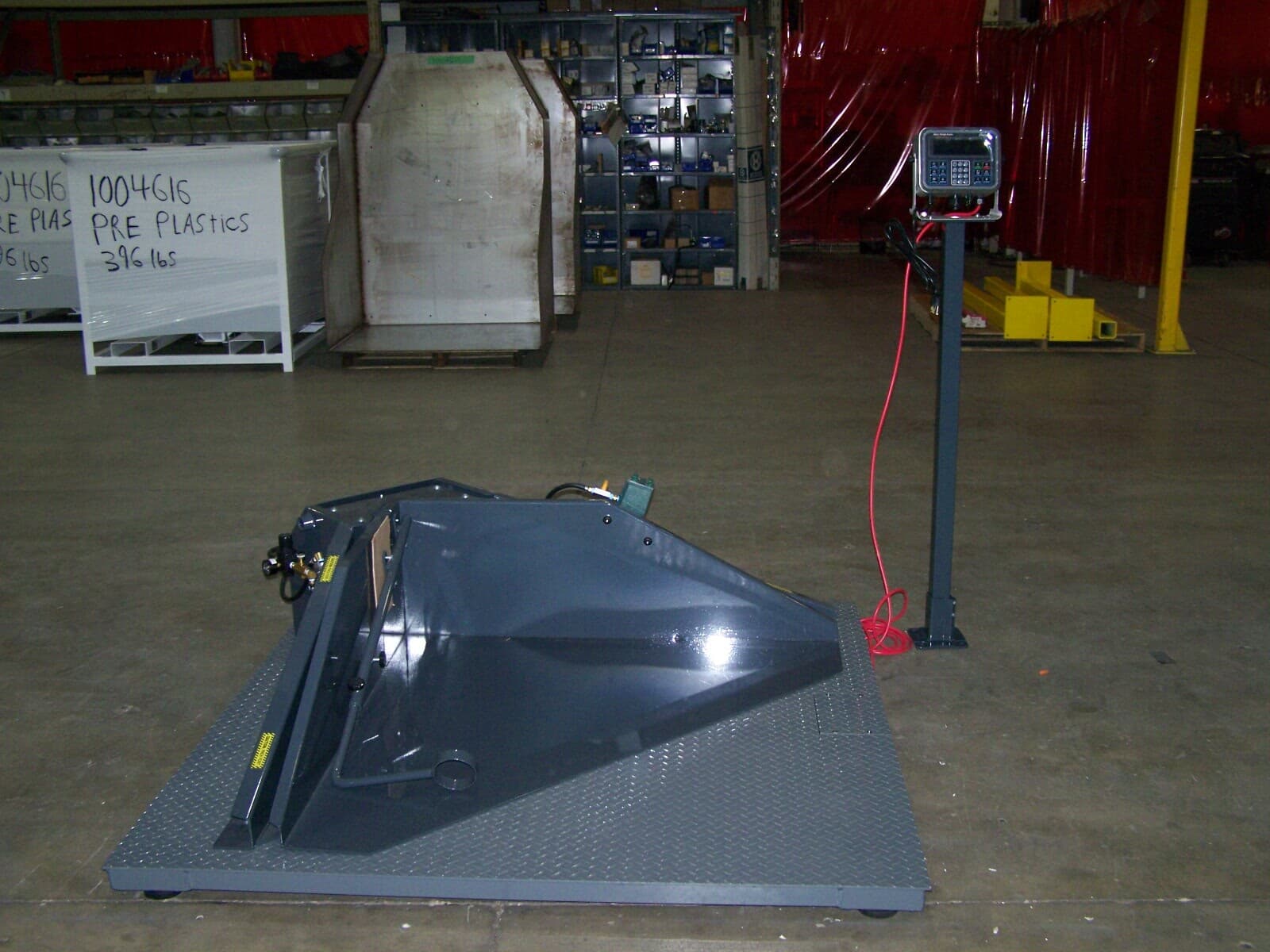

100_3818

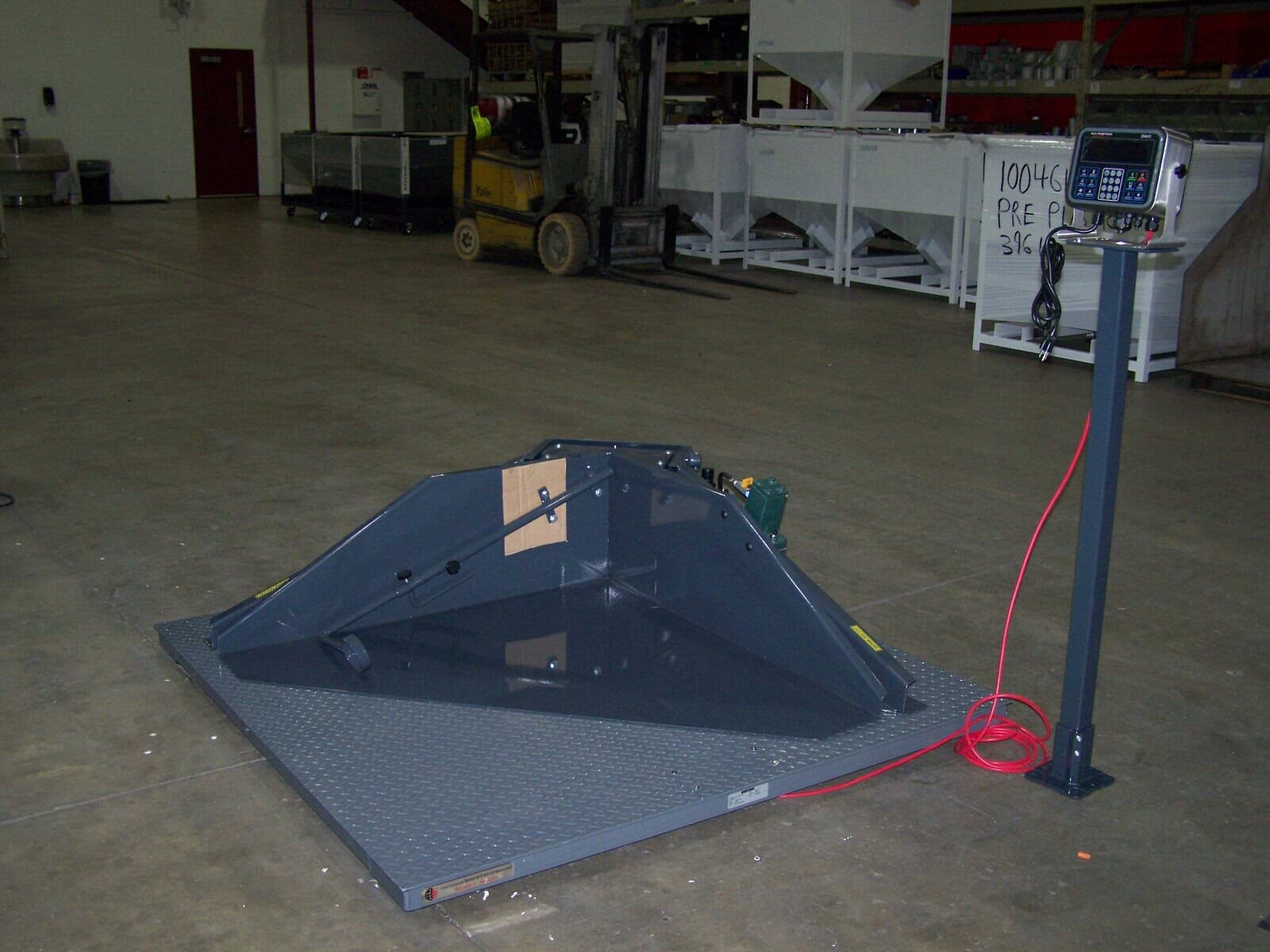

100_3820

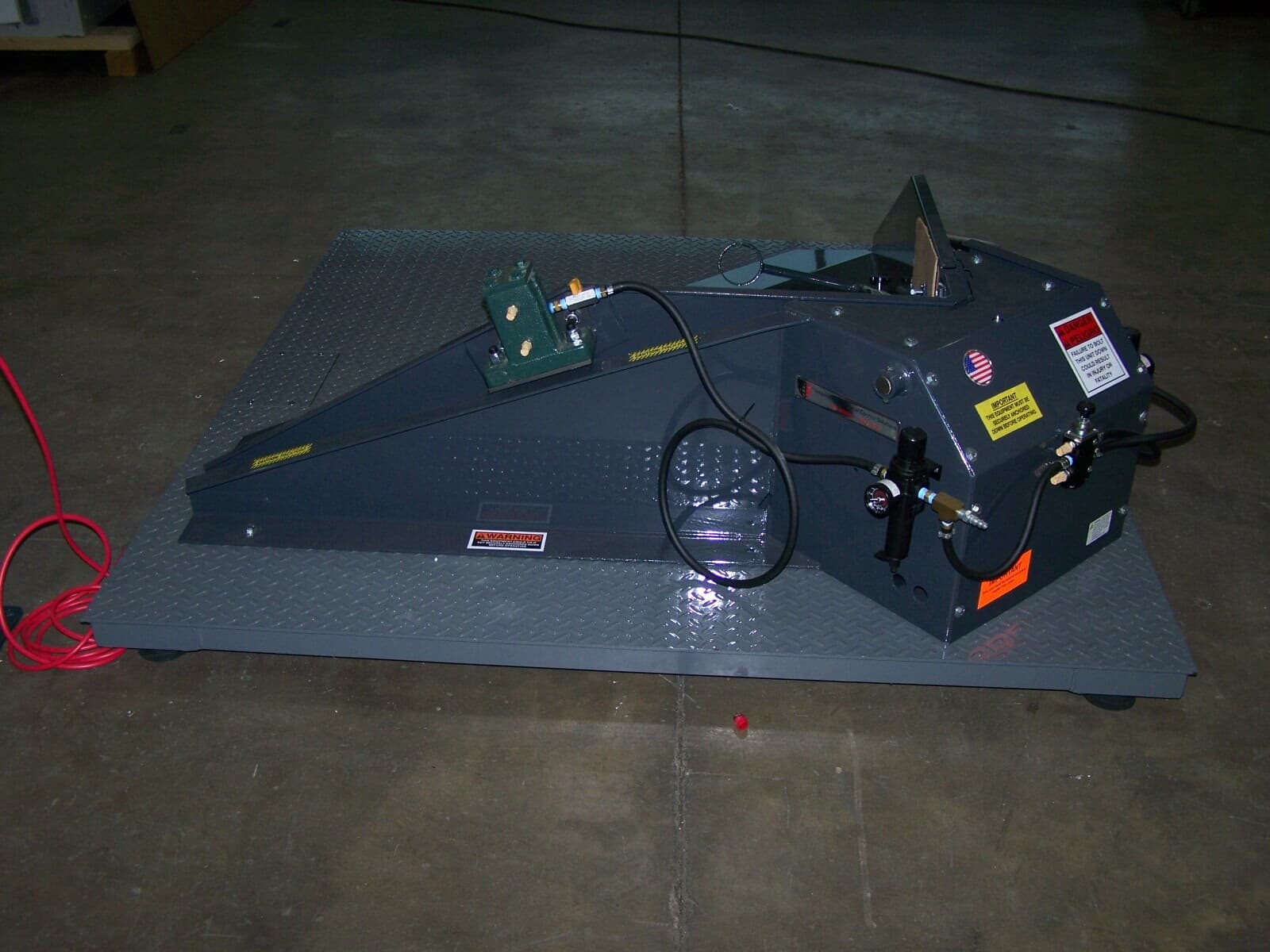

100_3823
IMG_0282-copy
IMG_0285-copy
IMG_0286-copy
IMG_0287-copy
IMG_0288-copy
IMG_0289-copy
IMG_0290-copy
IMG_0292-copy
IMG_0293-copy
IMG_0294-copy
IMG_0295-copy
IMG_0297-copy

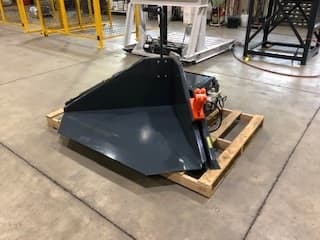

Unknown-6

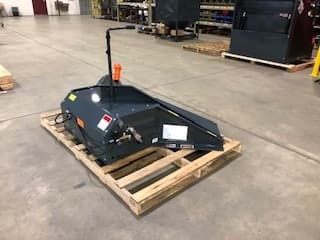

Unknown-7

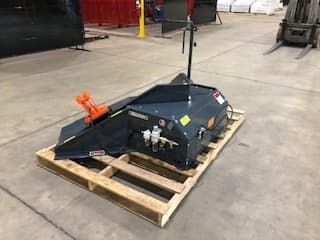

Unknown-8

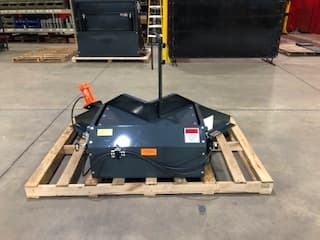

Unknown-9

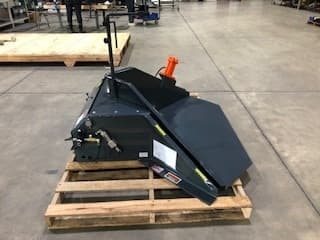

Unknown-10

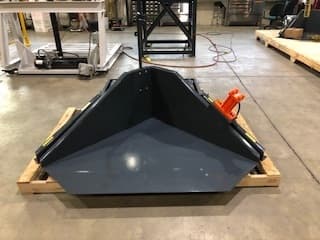

Unknown-11

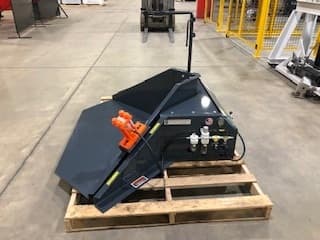

Unknown-12

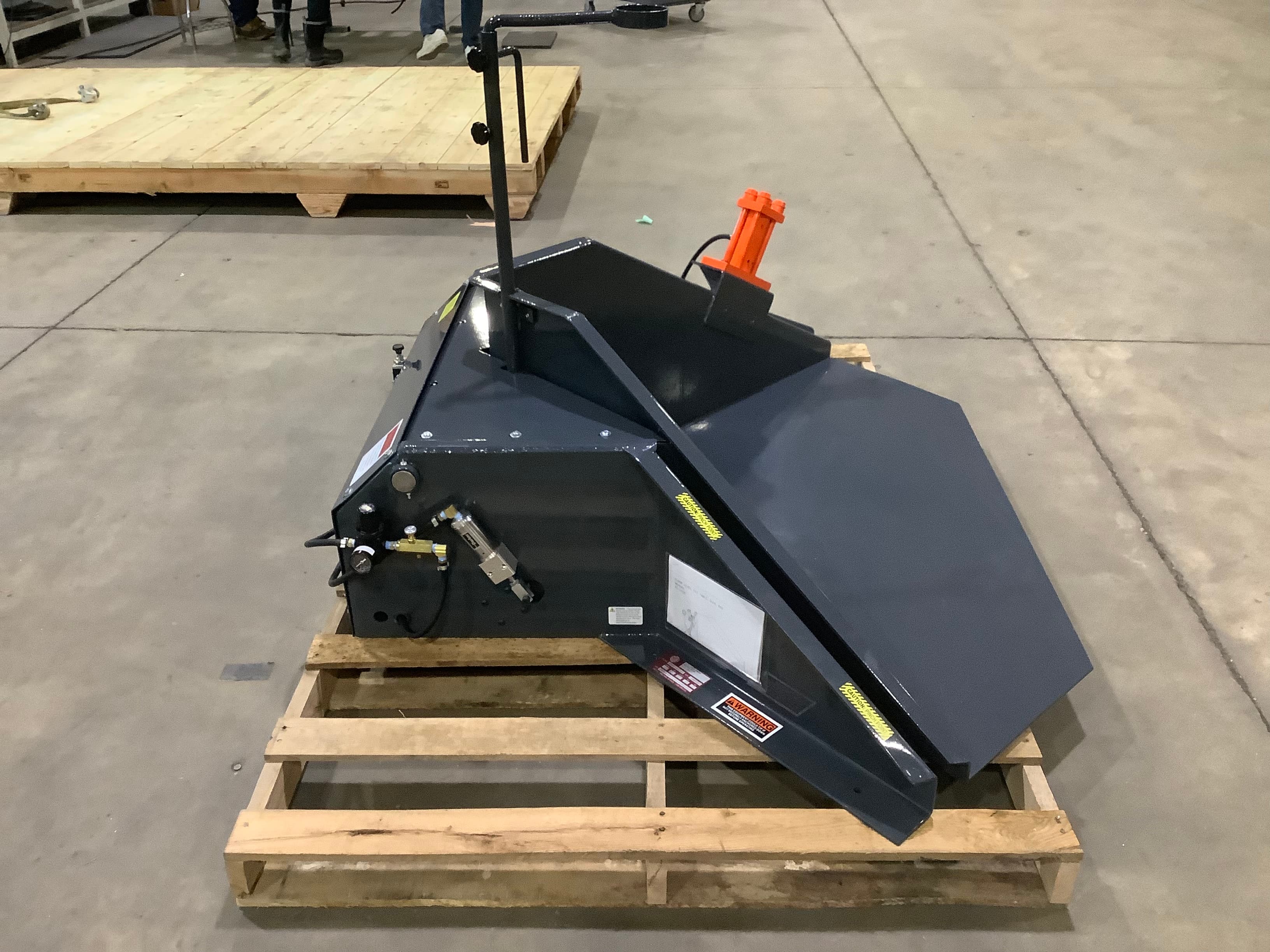

Unknown-13

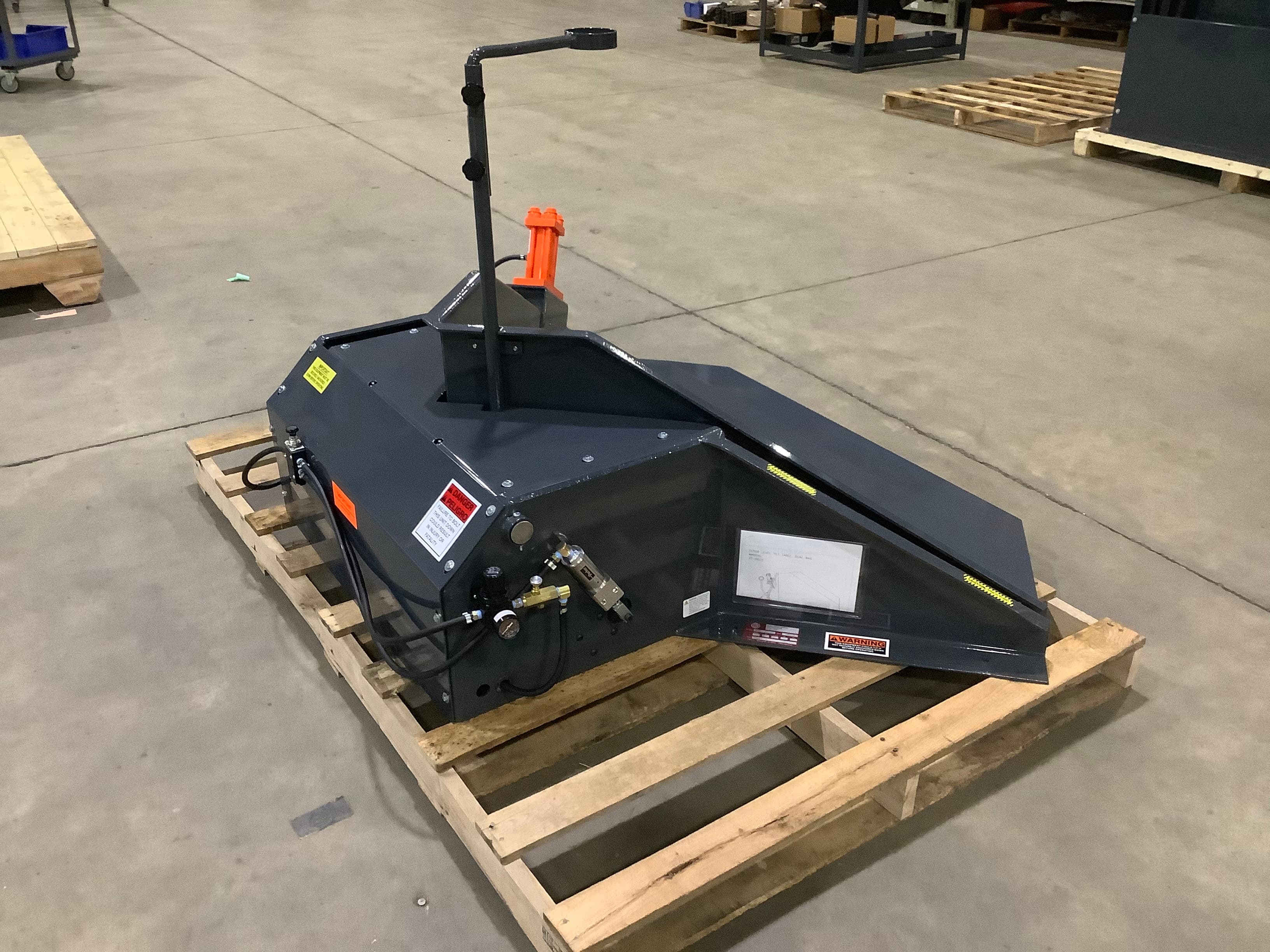

Unknown-14

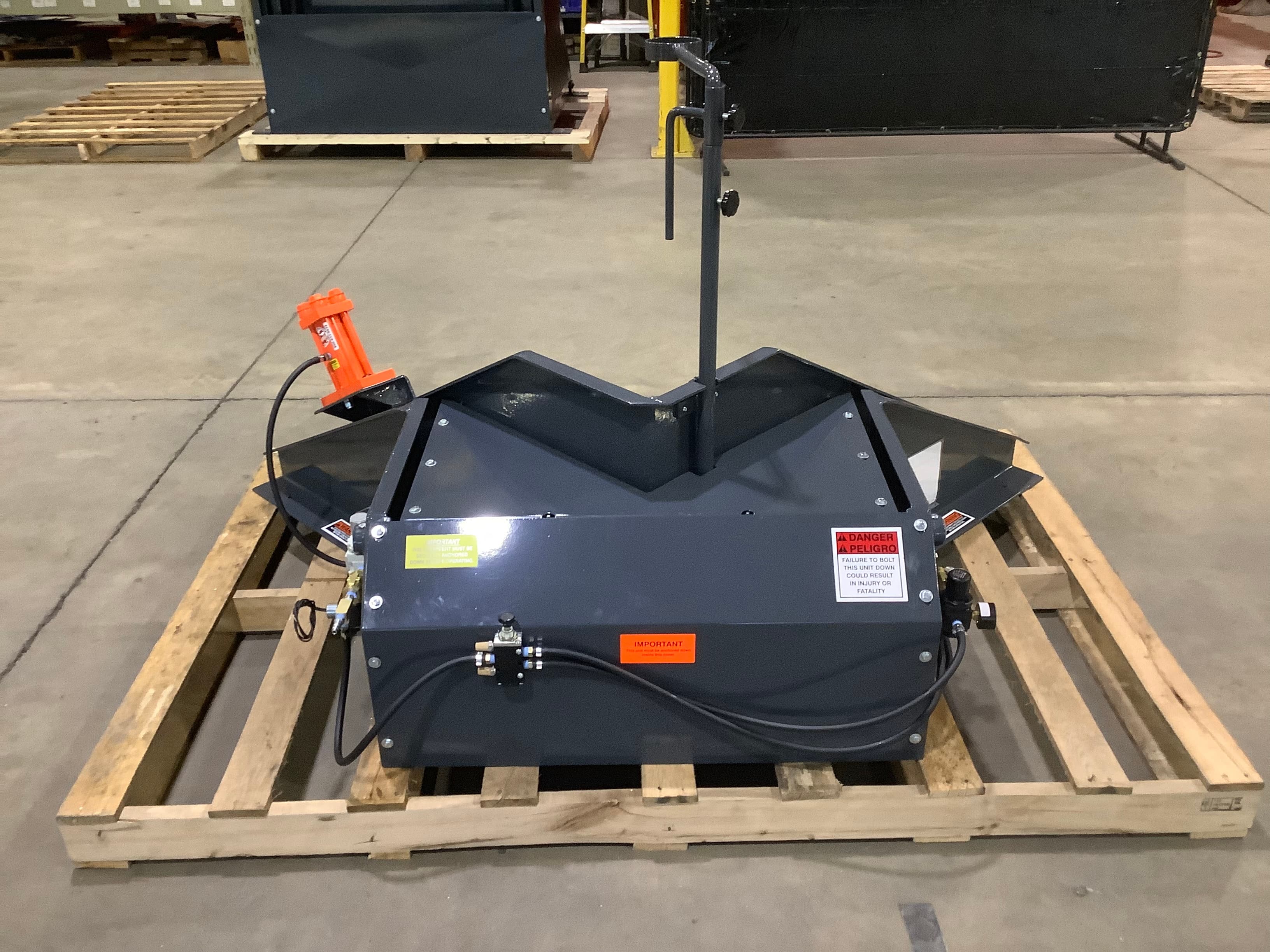

Unknown-15

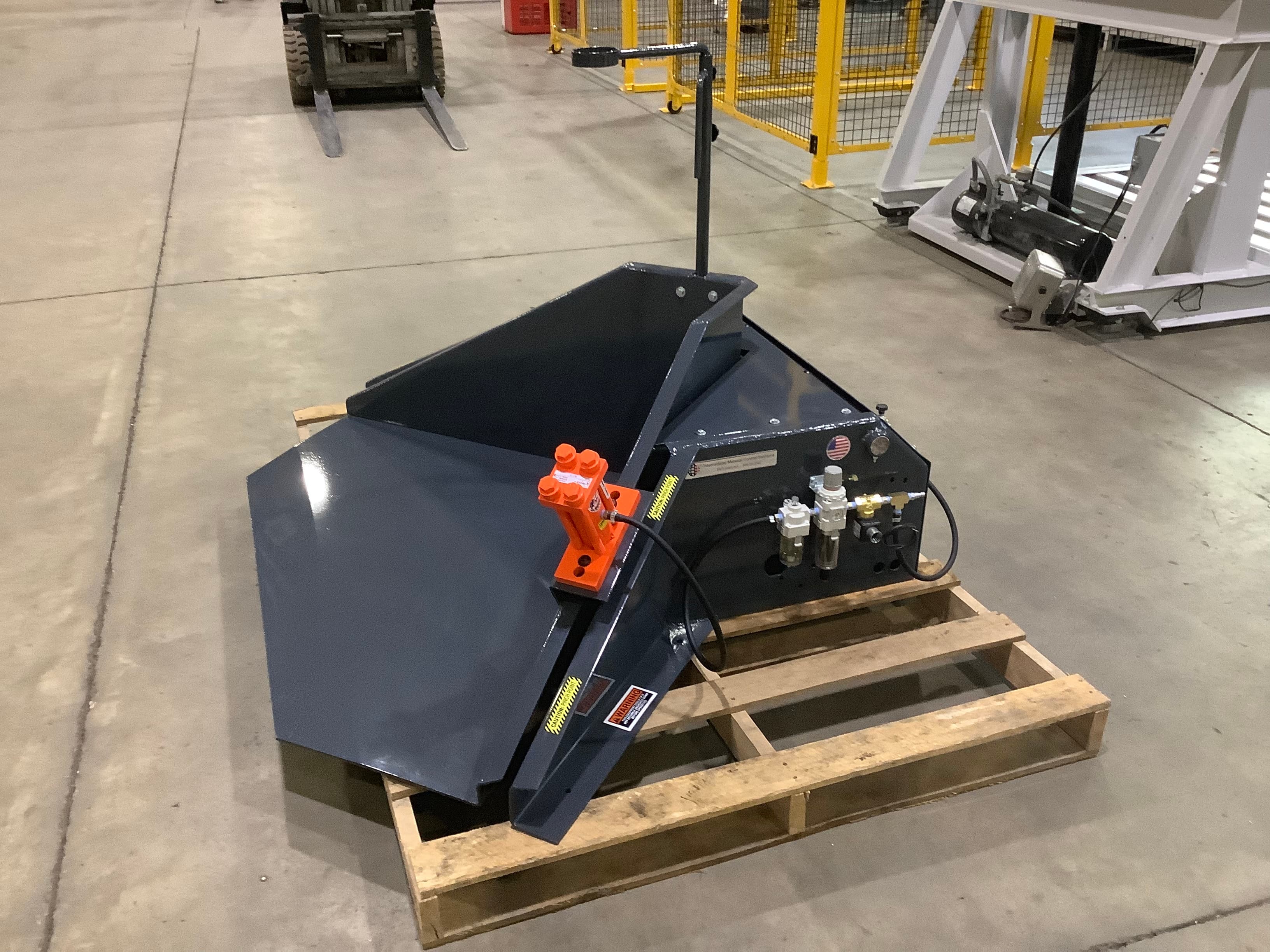

Unknown-16

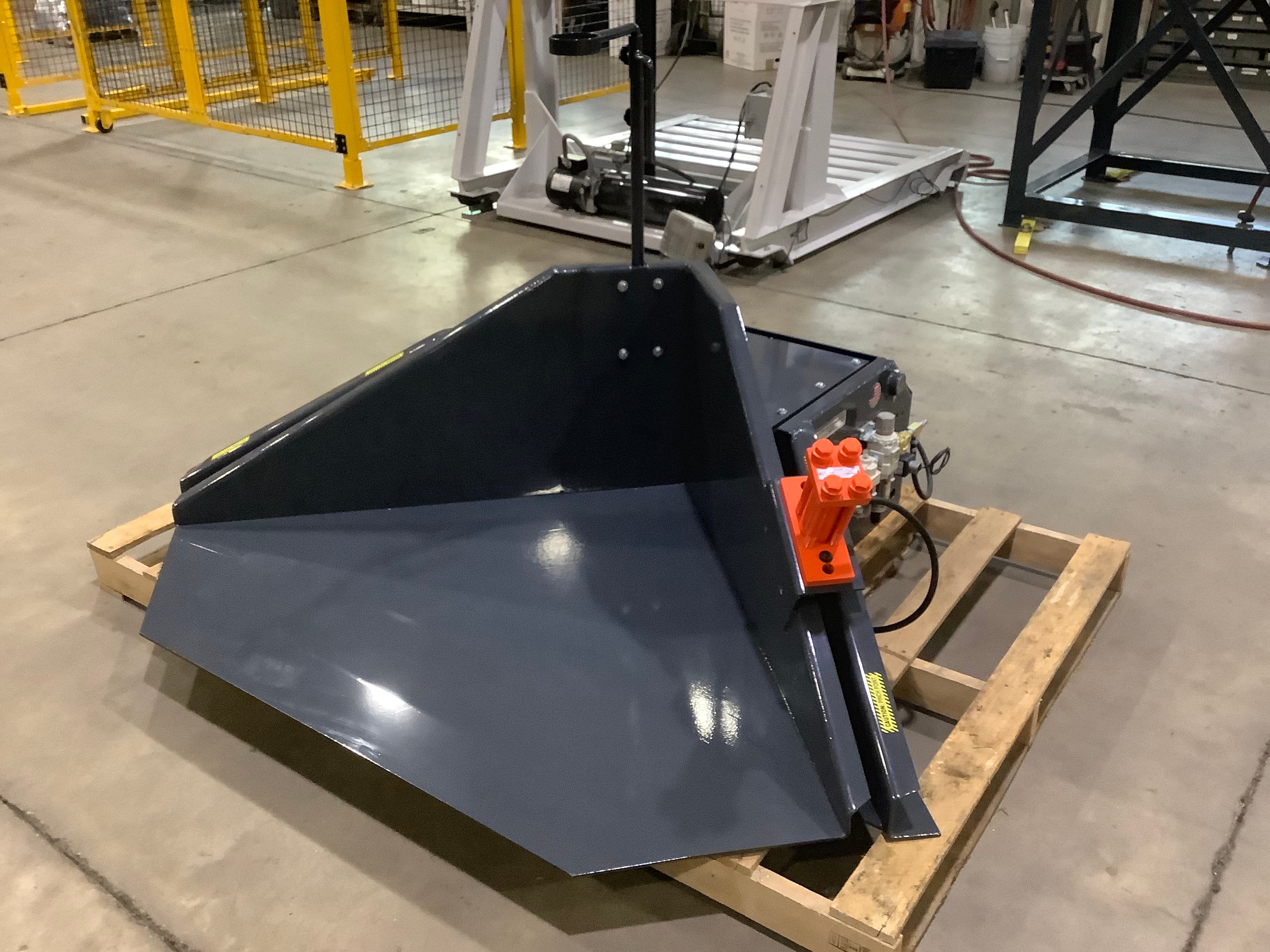

Unknown-17

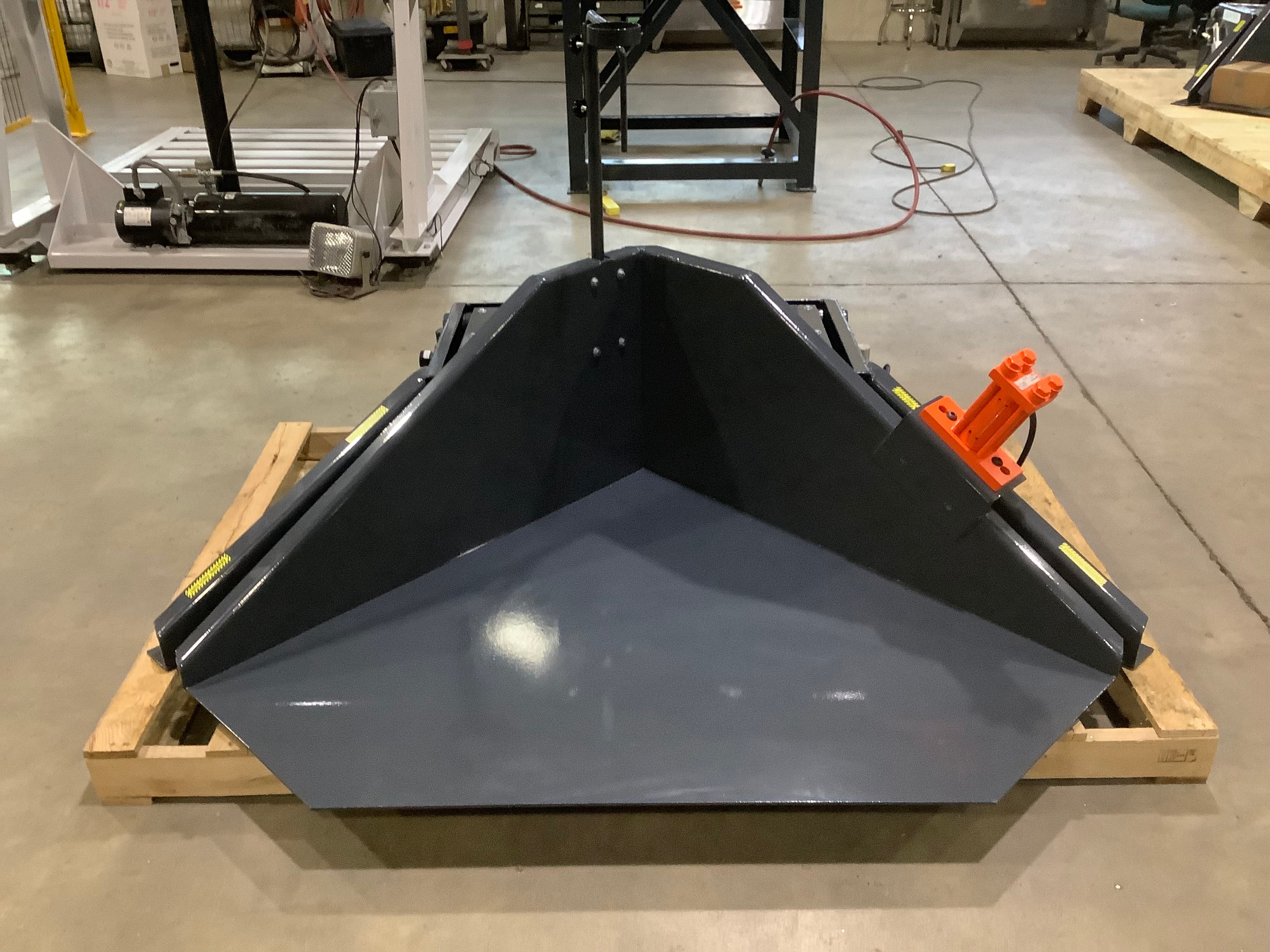

Unknown-18

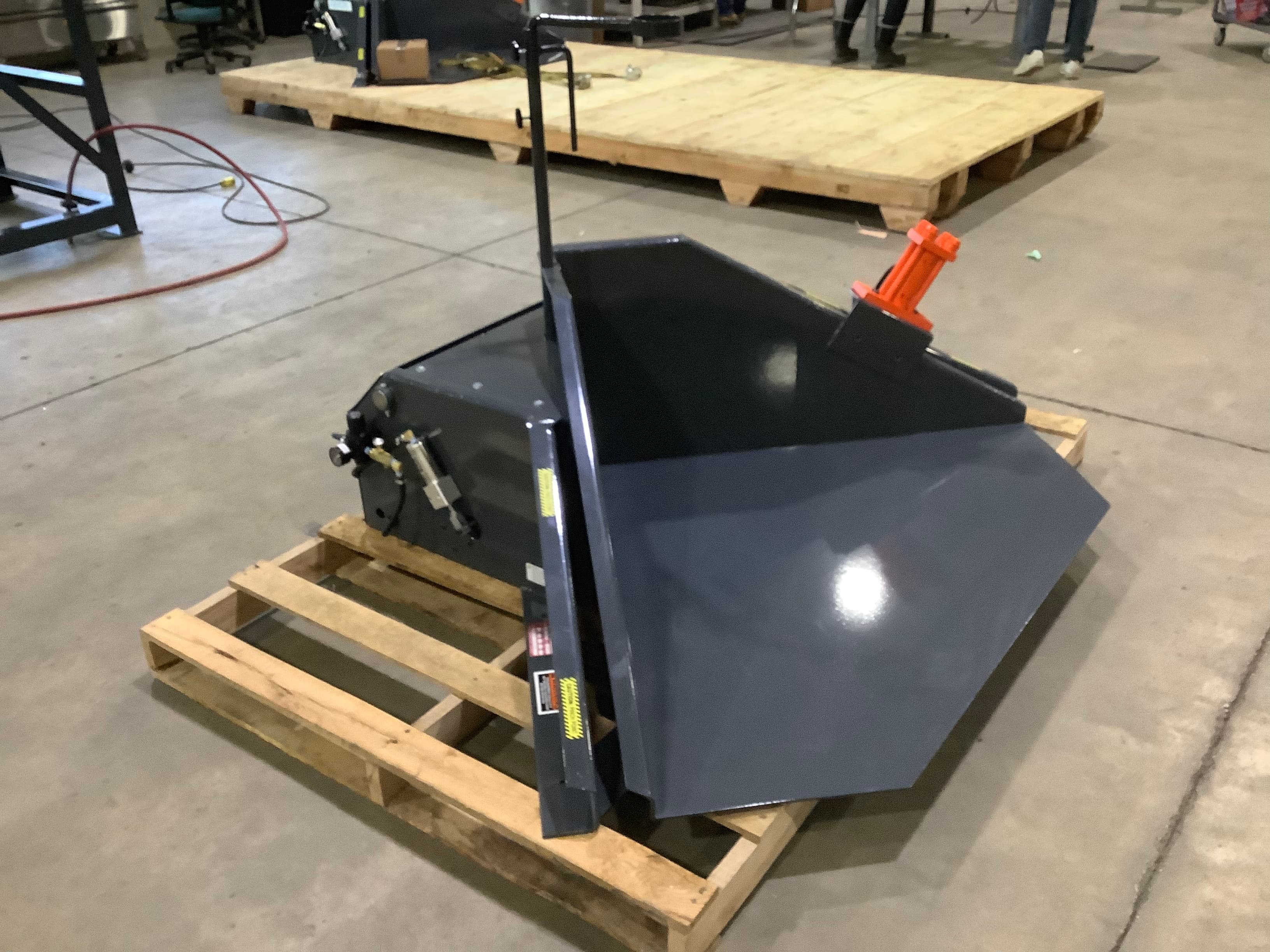

Unknown-19

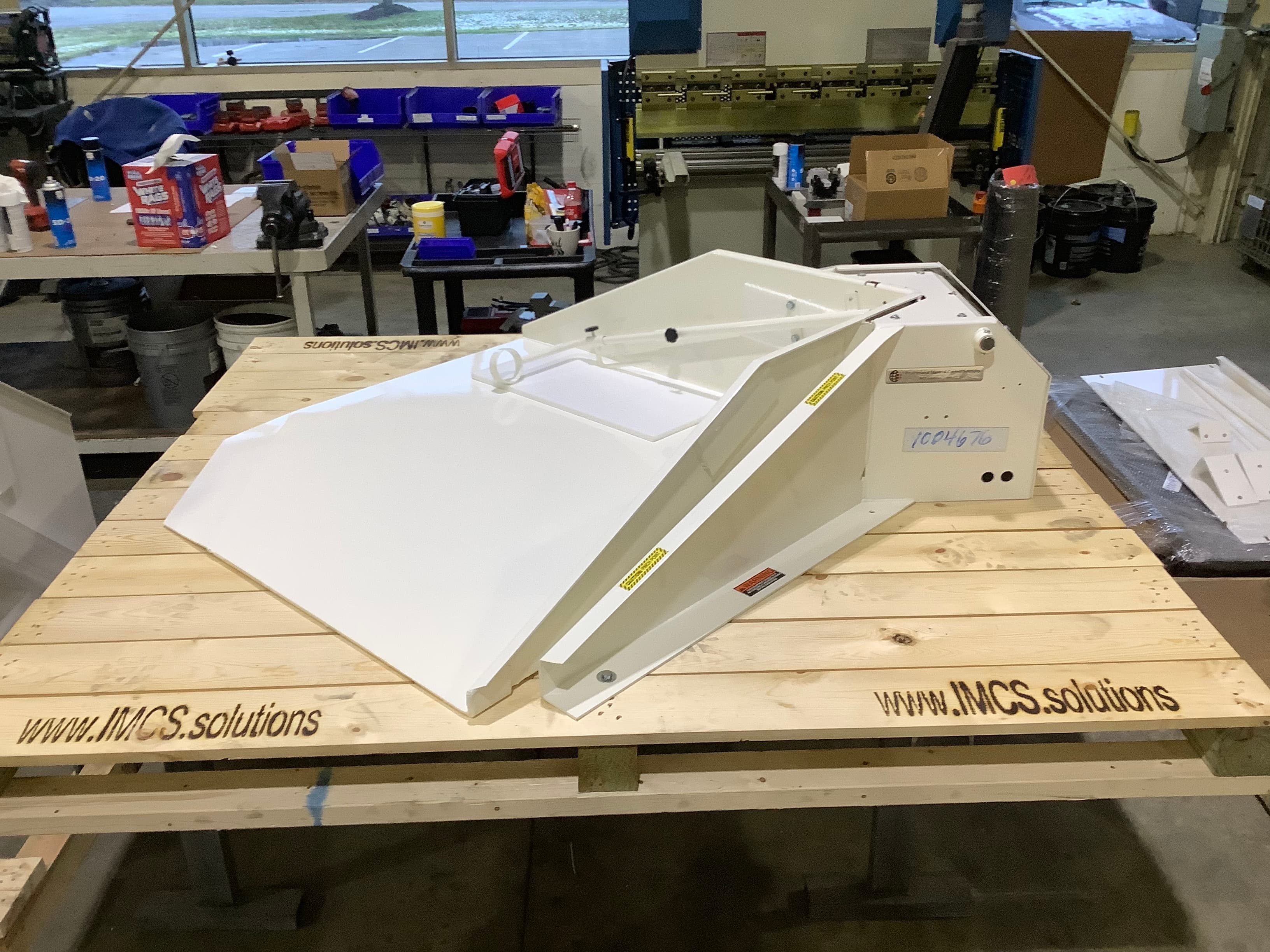

Unknown-28

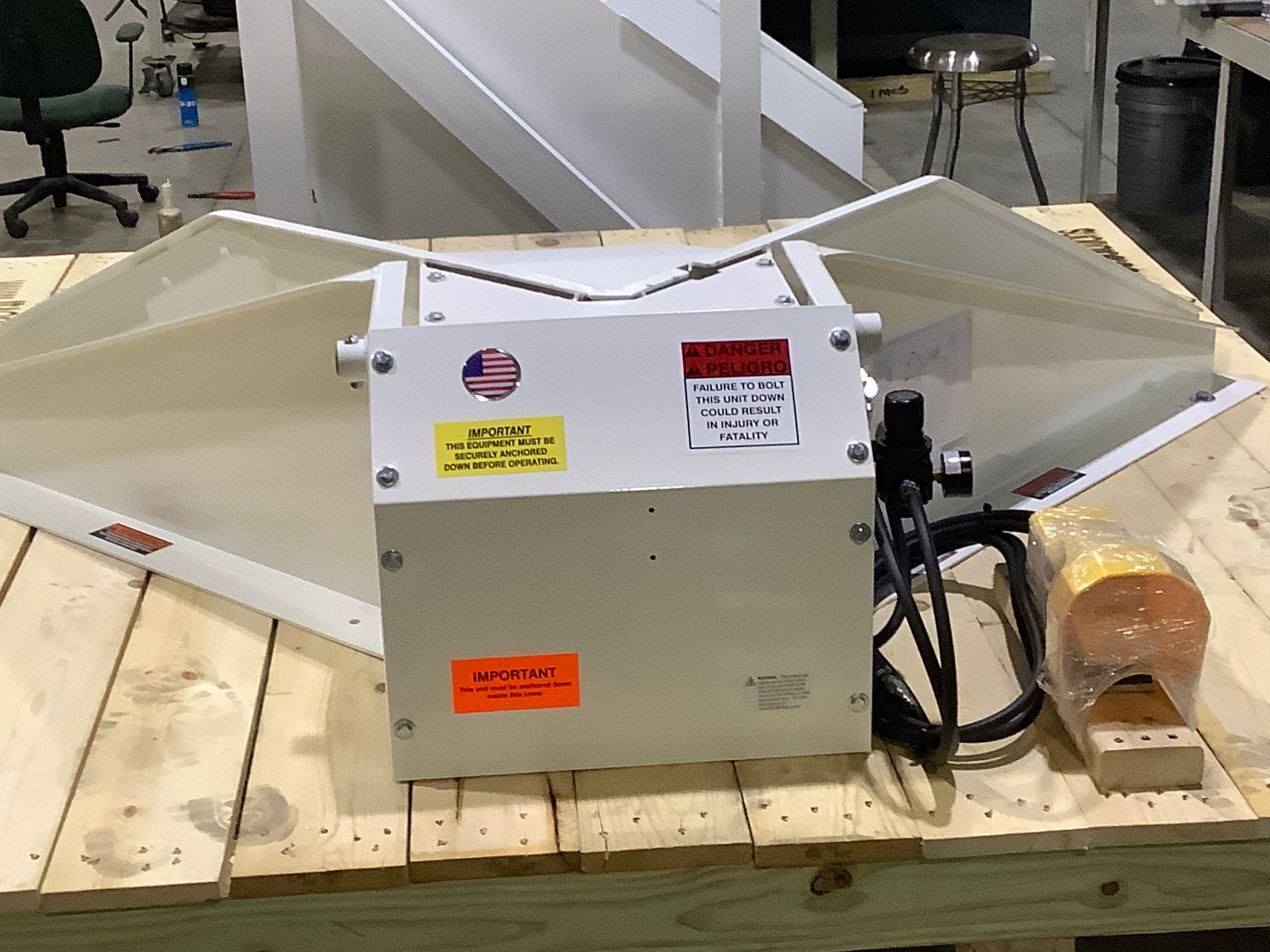

Unknown-29

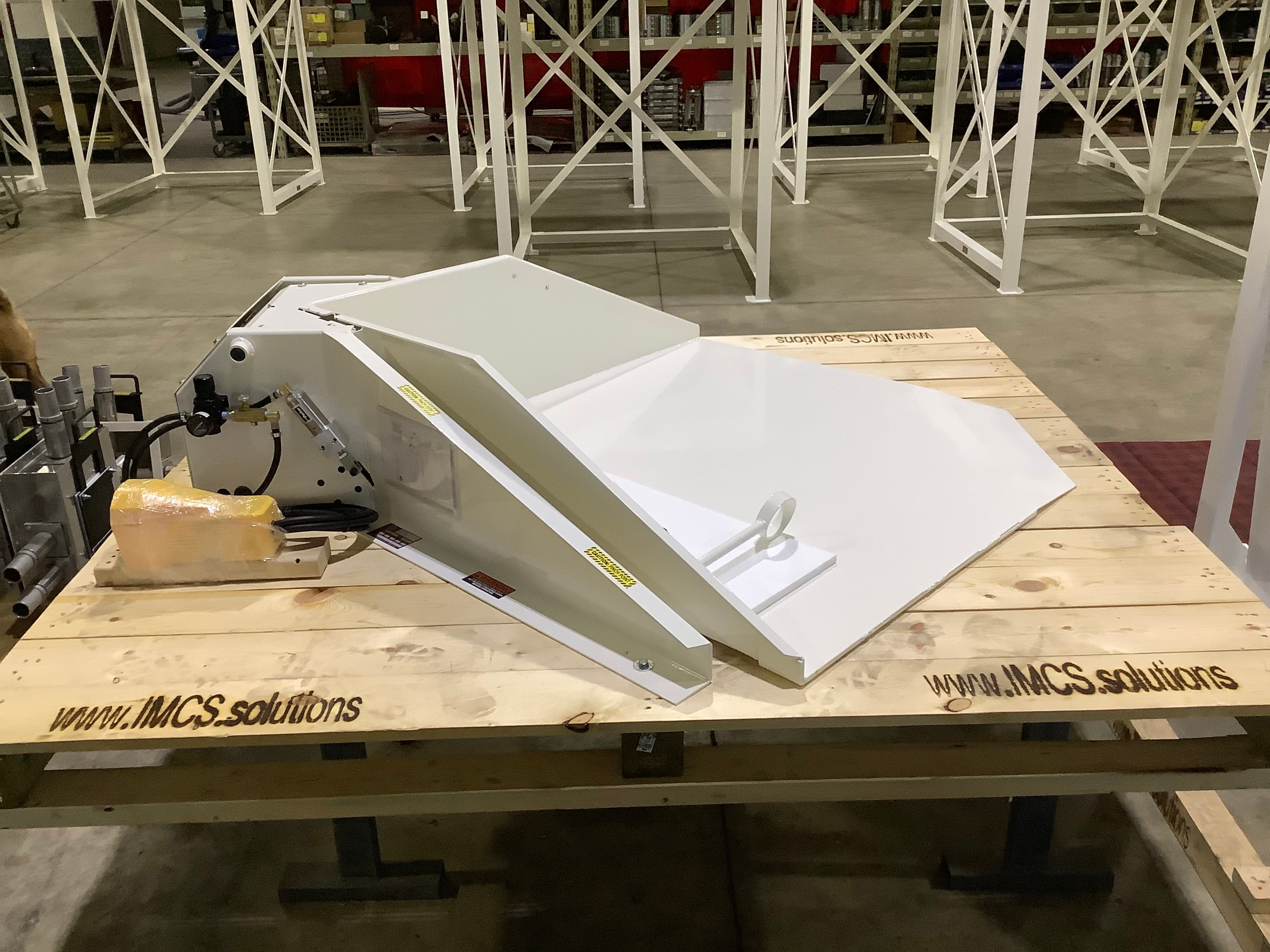

Unknown-30

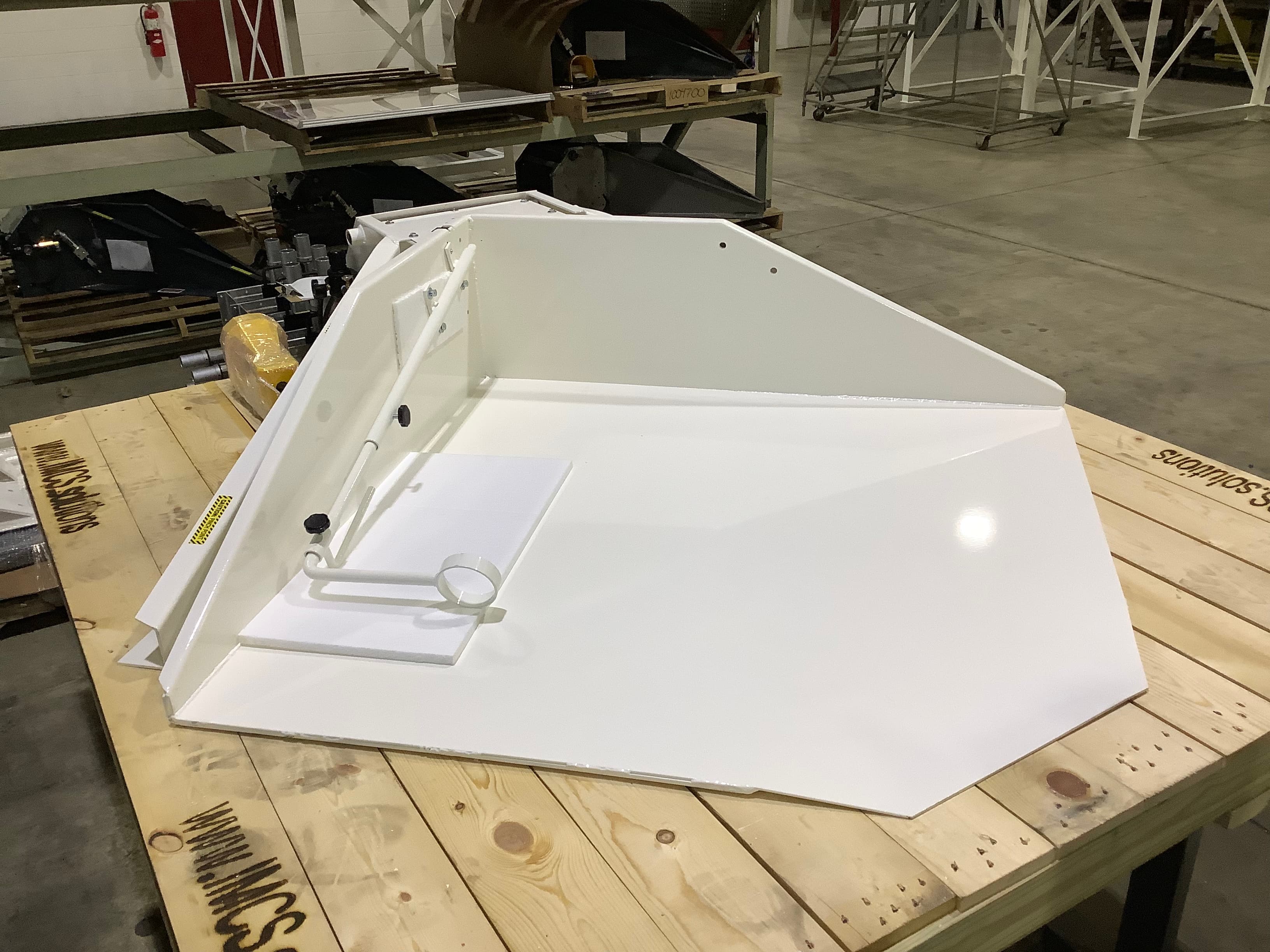

Unknown-31

Product Specifications

Detailed product information provides an accurate description of requirements, measurements, and functionality.

Model No.ControlTable SizeLoad CapacityTilt AngleFootprintLoad HeightTilt CapacityList Price
25-6000-000Hand44" x 44"2000 lbs52°70" x 64"Floor Level1250 lbsCall for Pricing
25-6000-001Foot 44" x 44"2000 lbs52°70" x 64"Floor Level1250 lbsCall for Pricing
25-6020-000Hand44" x 44"3500 lbs52°70" x 64"Floor Level2500 lbsCall for Pricing
25-6200-000HandUp to 36"2000 lbs52°N/AFloor Level1250 lbsCall for Pricing
