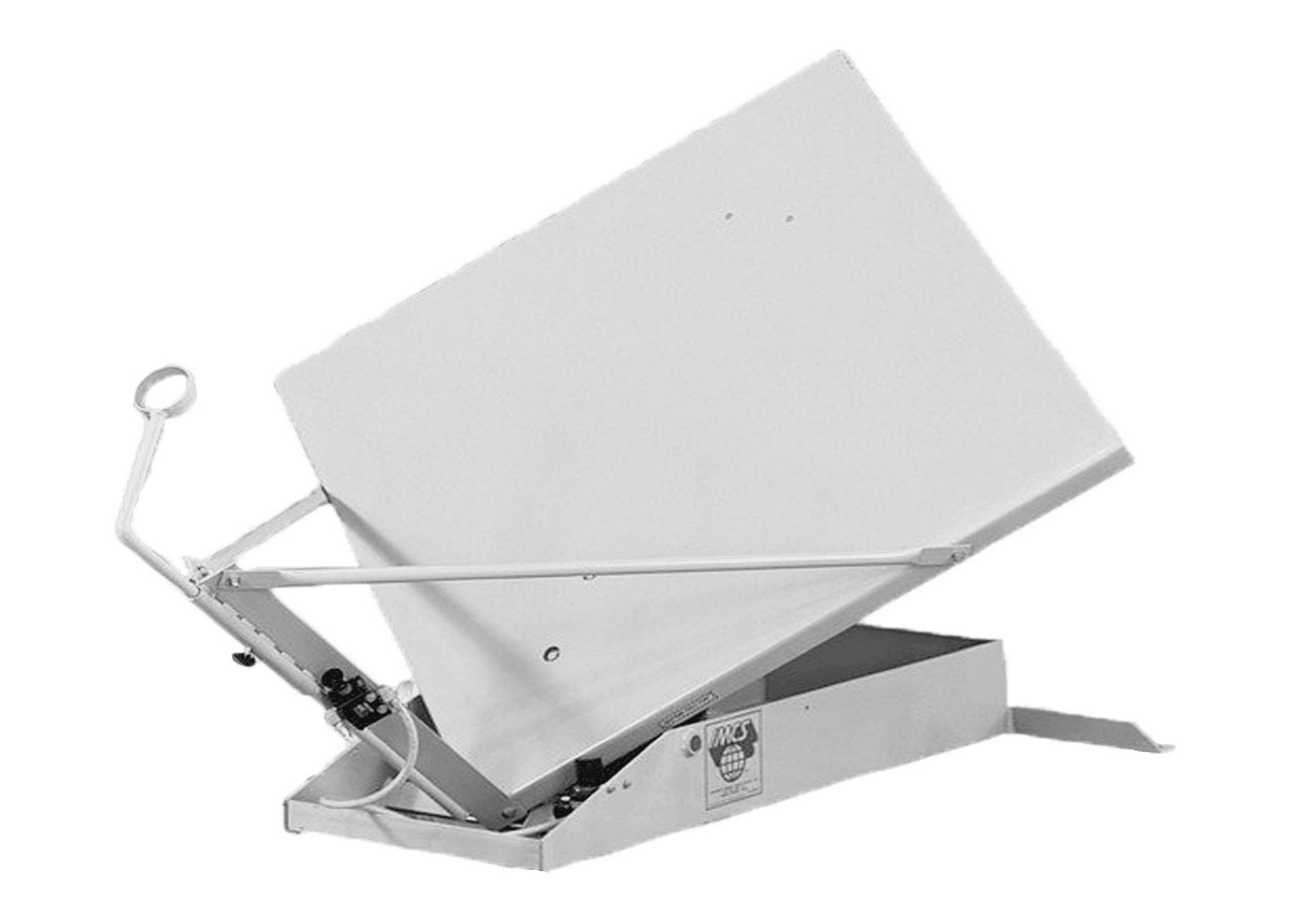

Low Profile Tilt Table

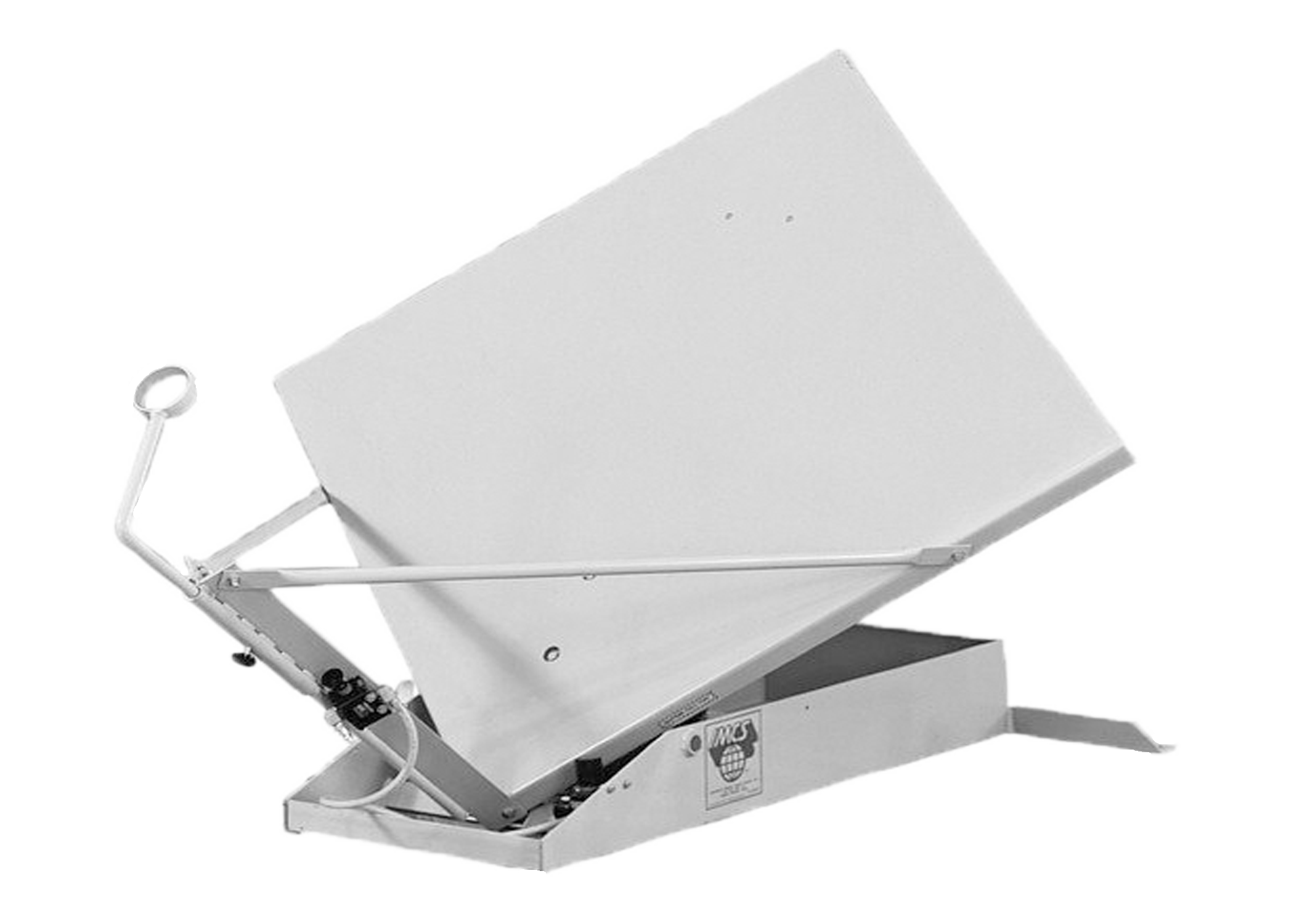

IMCS Low Profile Tilt Tables allow you to tilt containers to their corners for easy product removal. Our tilters operate by air, on as little as 60 p.s.i. Low profile tilt tables must be loaded with a fork truck. Your choice of hand or foot pedal control along with an onboard regulator will allow for the controlled tilt of the table at a predetermined weight preventing material spillage. When you include our designed and patented safety locking device you will have the proper safety option to prevent the table from crashing to the ground in the event of unplanned air loss or airbag rupture. Low profile tilt tables can be constructed from aluminum, stainless steel, carbon steel or galvanized steel.

Standard Features

Automatic Tilt, Hand Control Valves, Pneumatic Activation, Safety Tilt Stop, Painted IMCS Dark Gray (RAL 7016)

Safety Enclosures are available for all IMCS Equipment

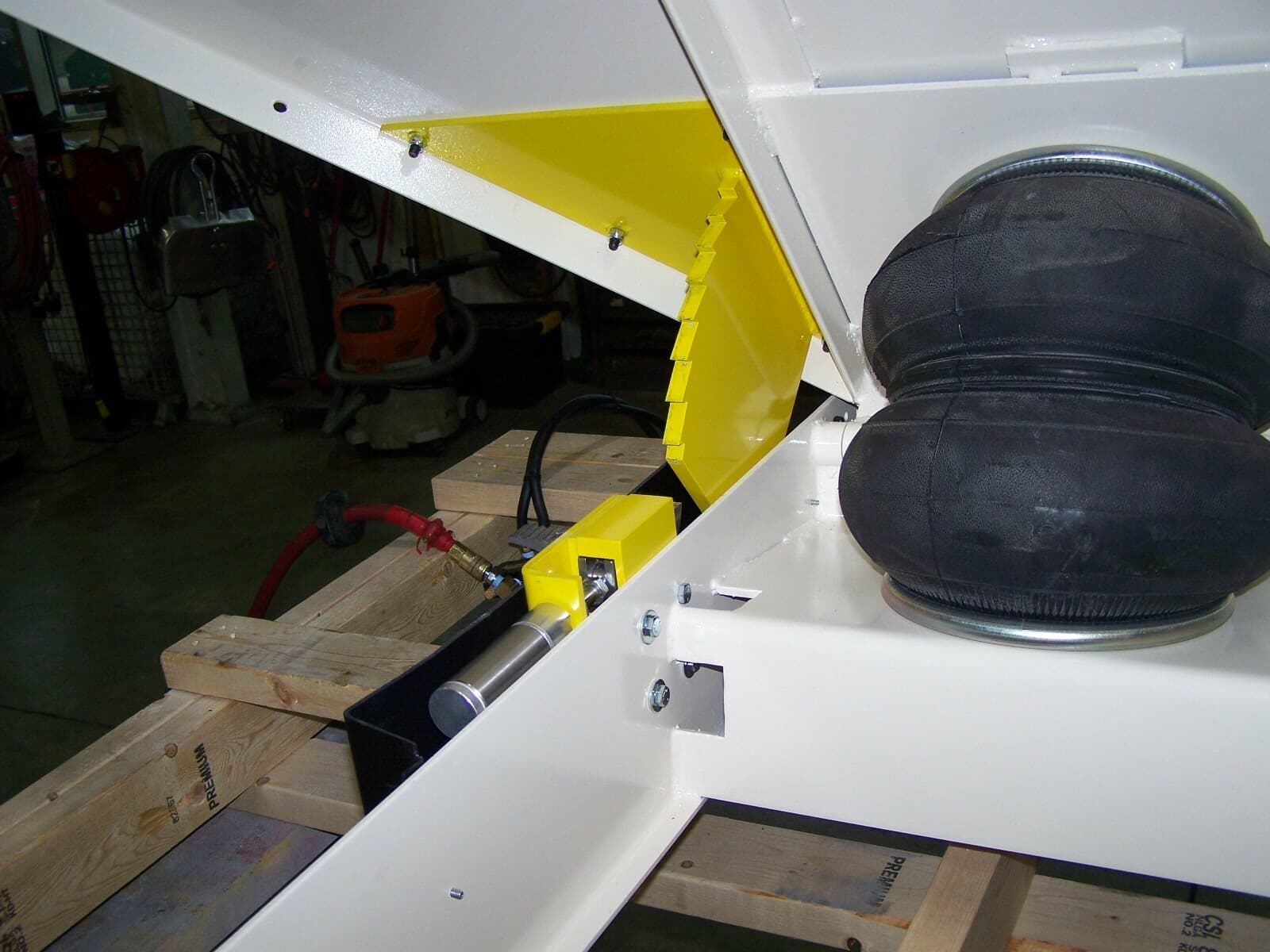

25-6011-000 Optional IMCS Safety Locking Device.........................................................$1,280.00 Prevents table from crashing to the ground in the event of unplanned interruption or loss of air supply. (U.S. Patent No. 5,431,112 & 5,572,933)

25-5003-000 Optional IMCS Tilt Table Vibrator Kit..........................................................$545.00 Assists in directing hard to move material including powders to the pick-up area of the box.

Gallery

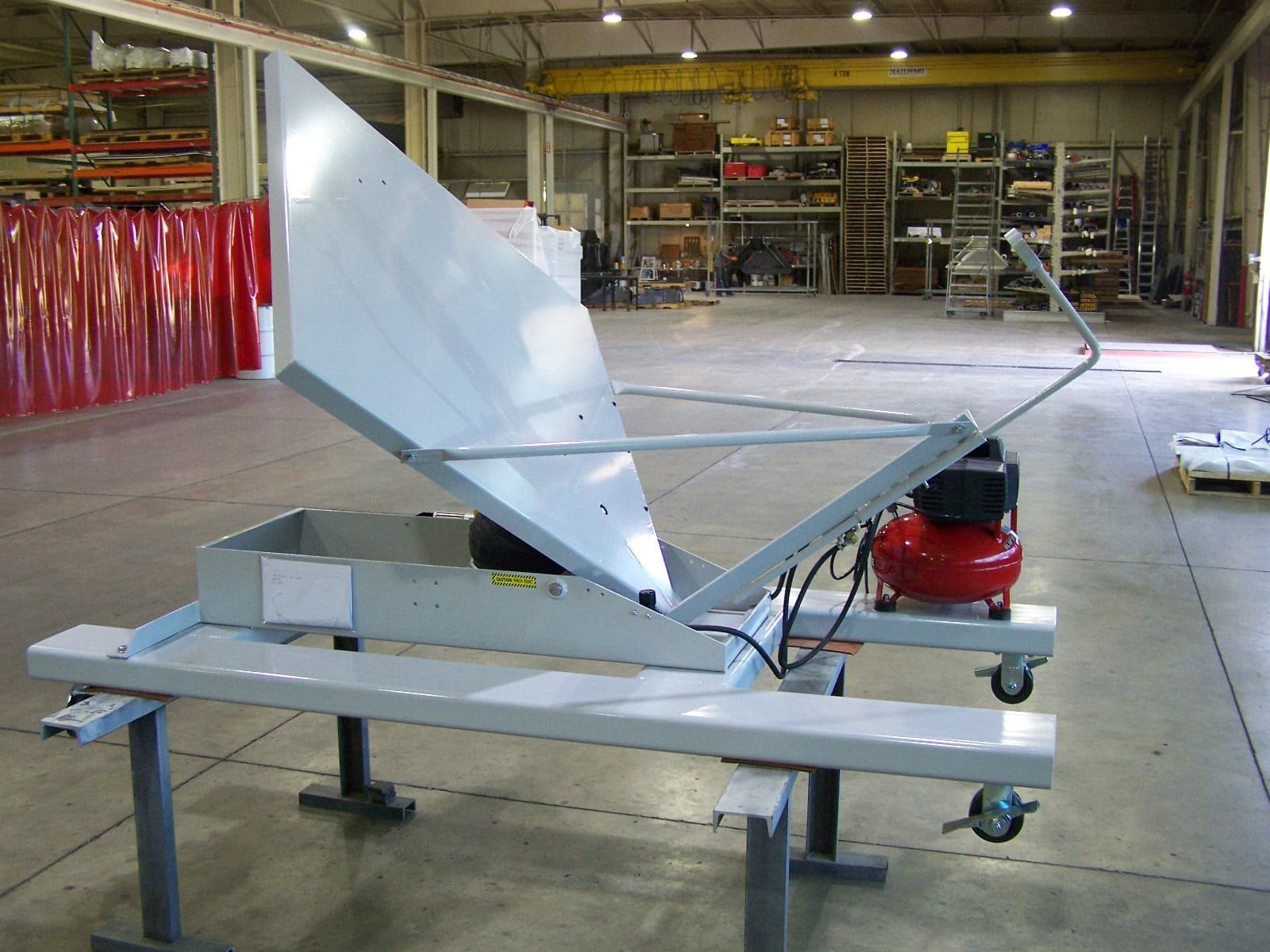

100 2547

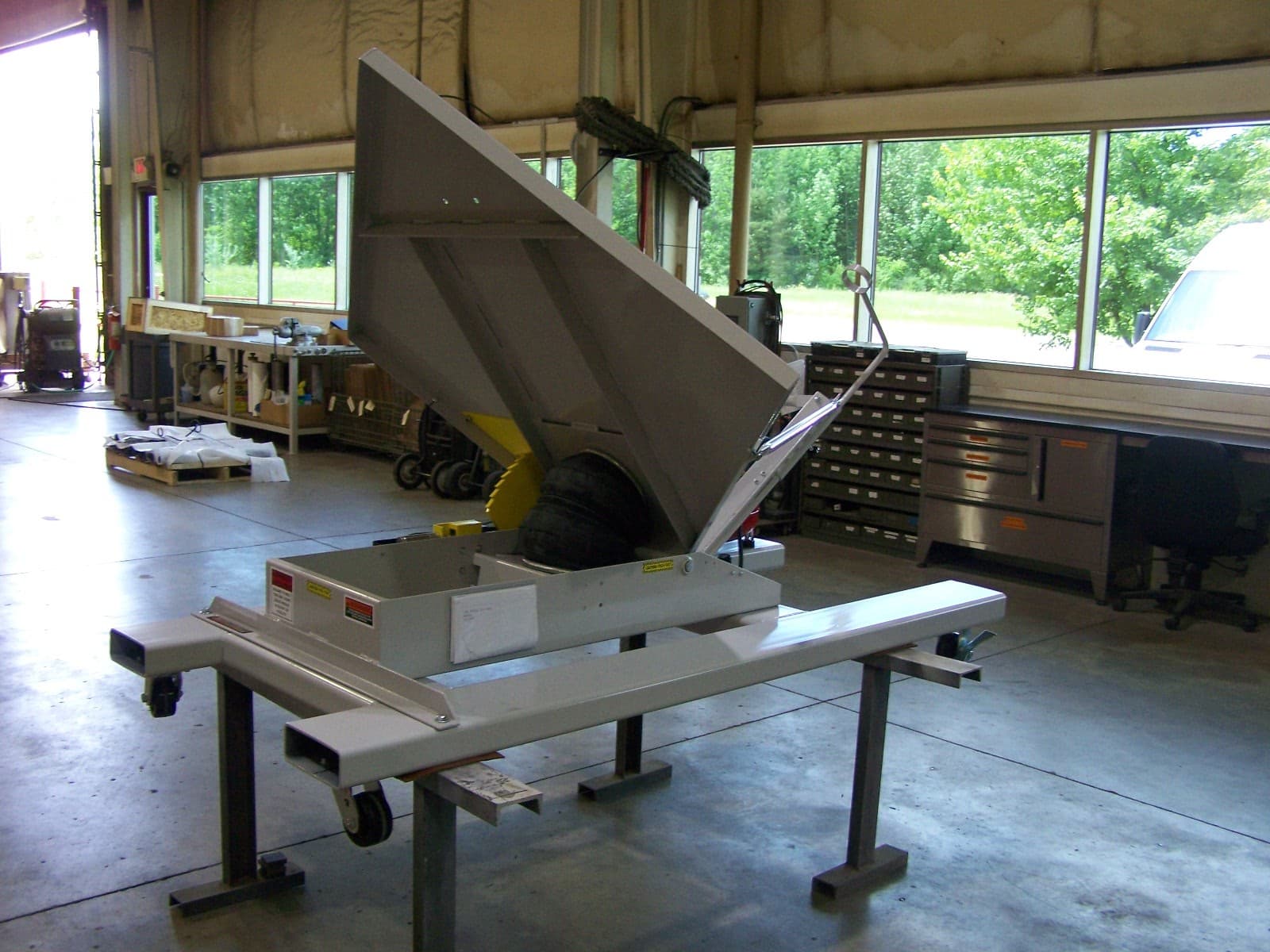

100 2548
100 2549
100 2550
100 2551

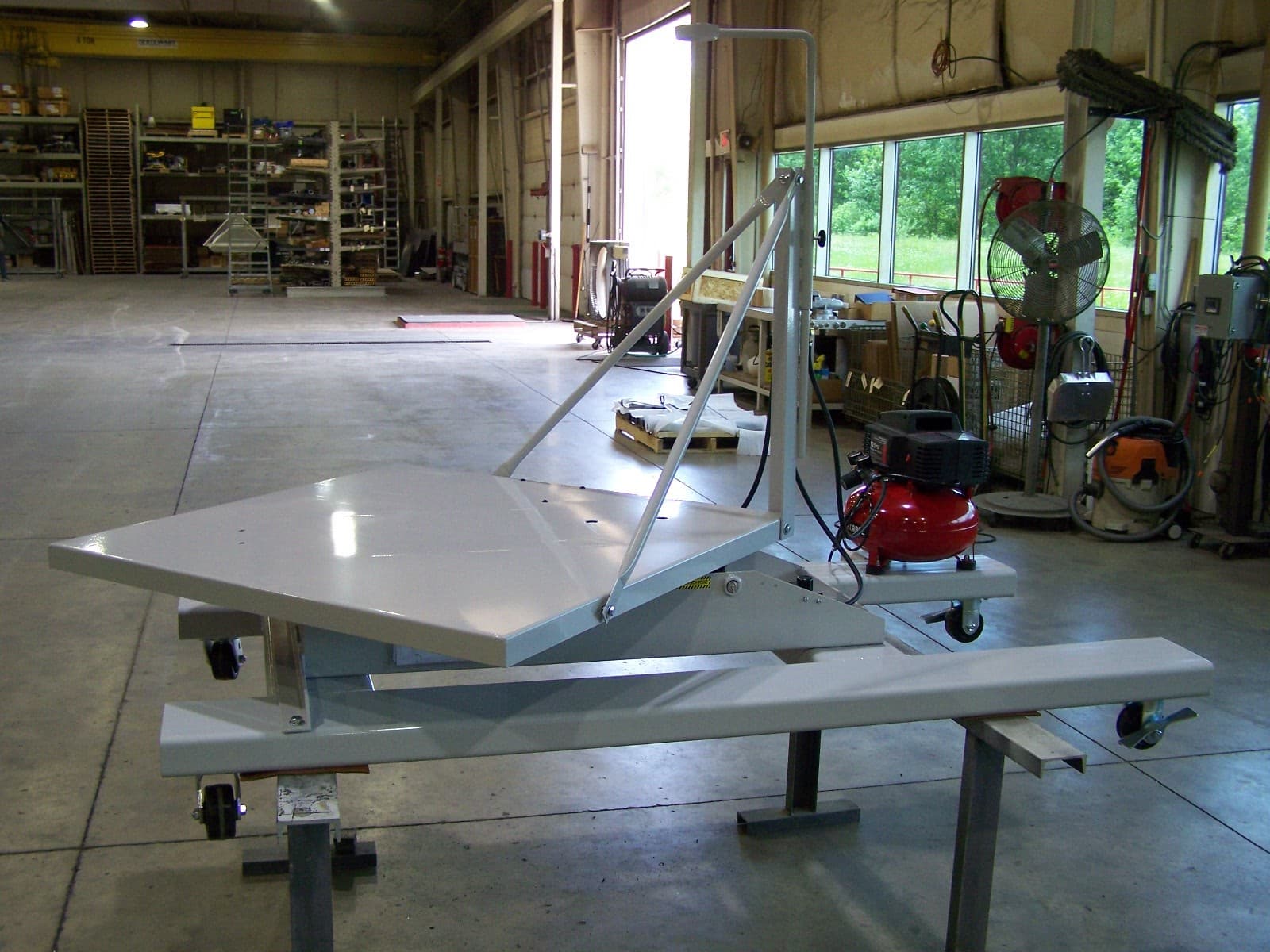

100 2552

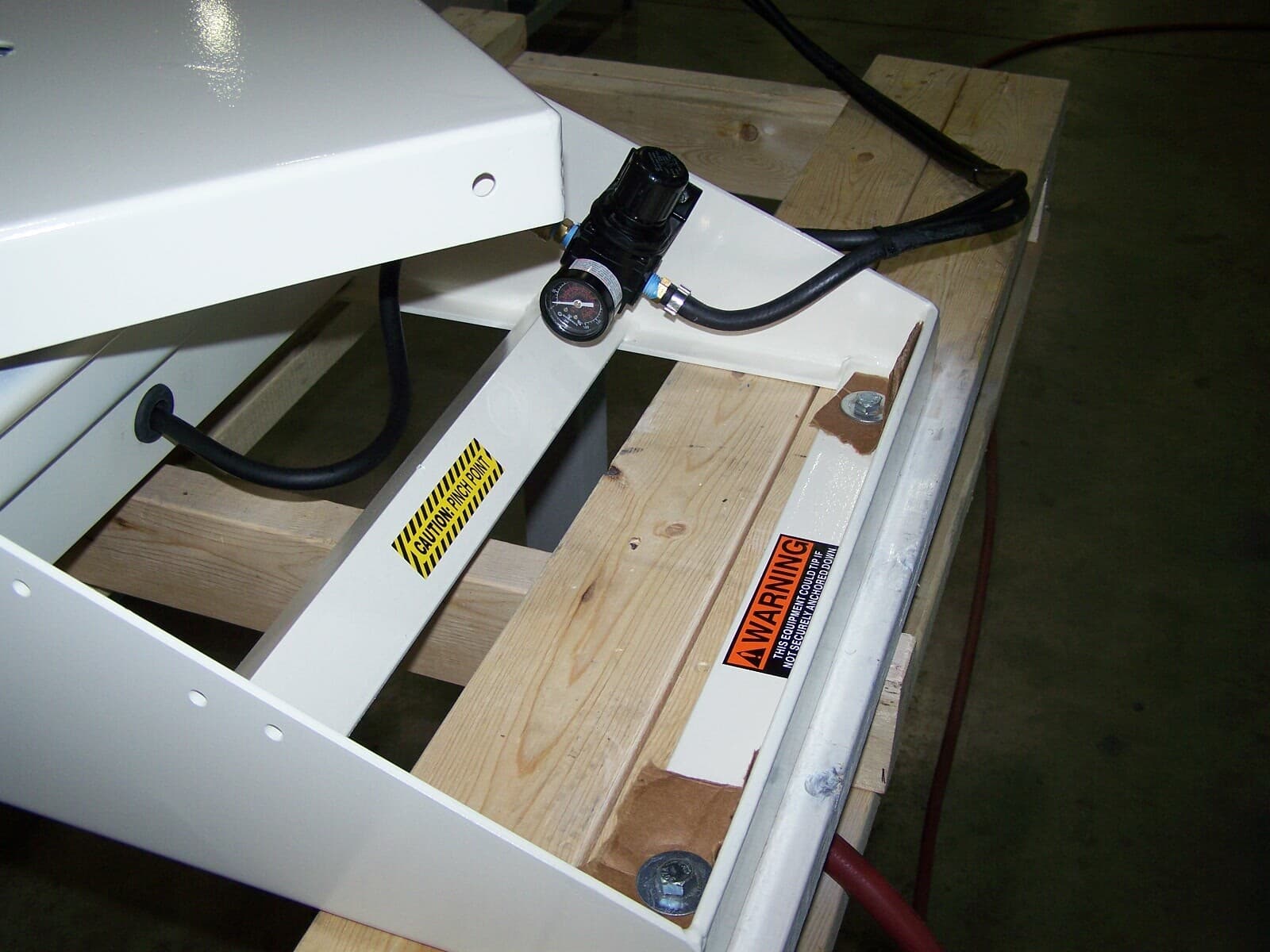

100_3376

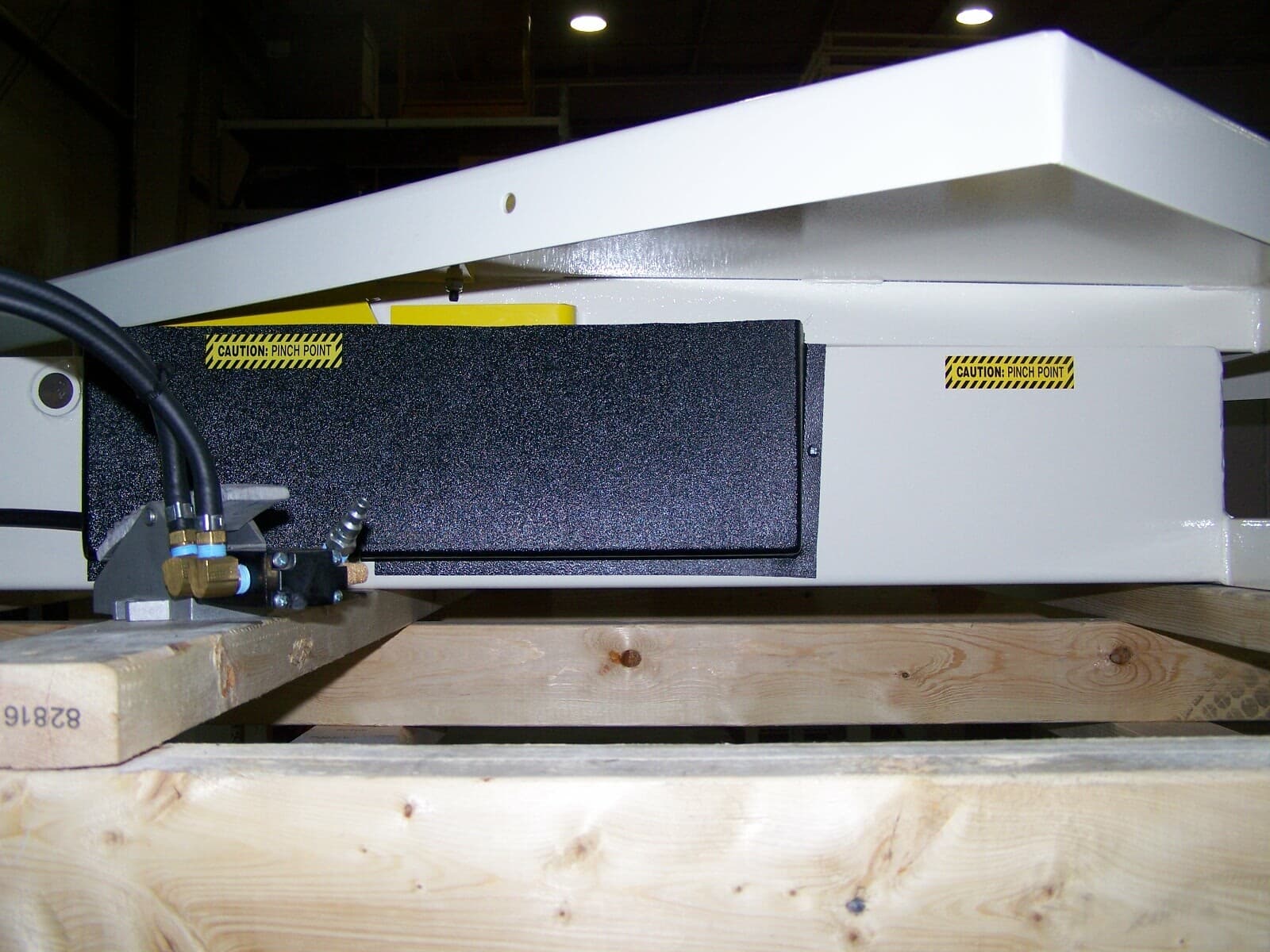

100_3377
100_3378
100_3379

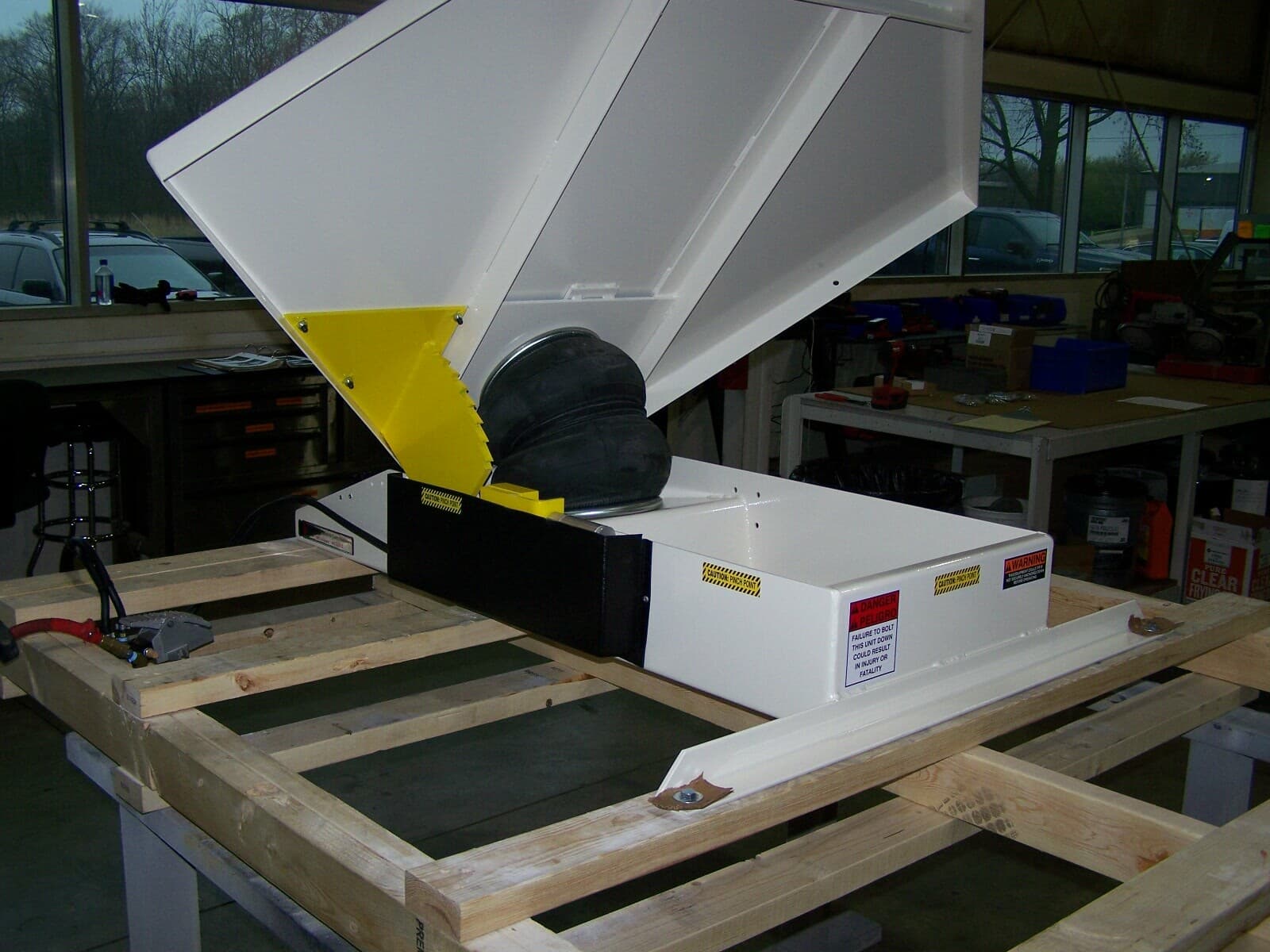

100_3380
100_3381

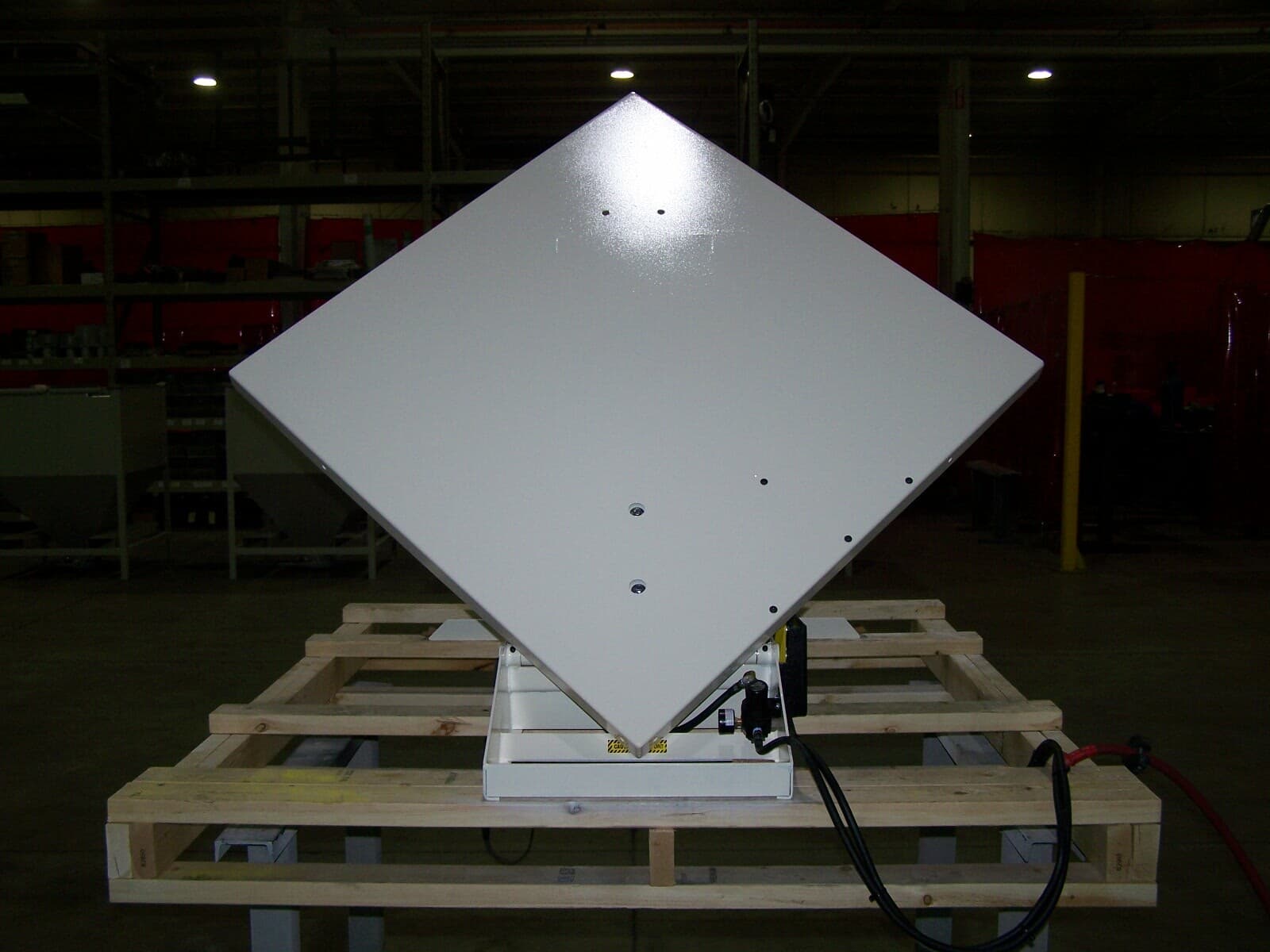

100_3382
100_3849

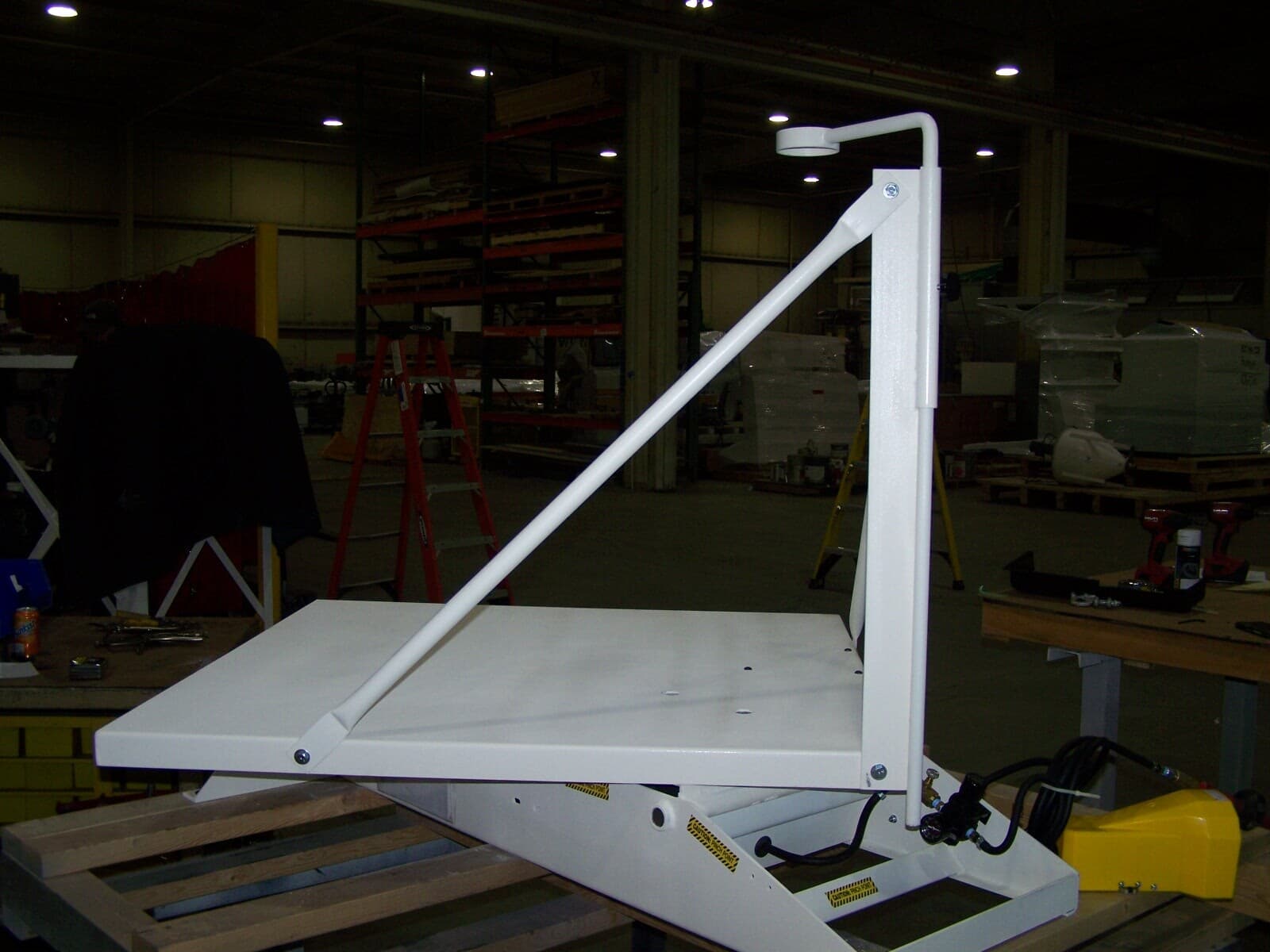

100_3846

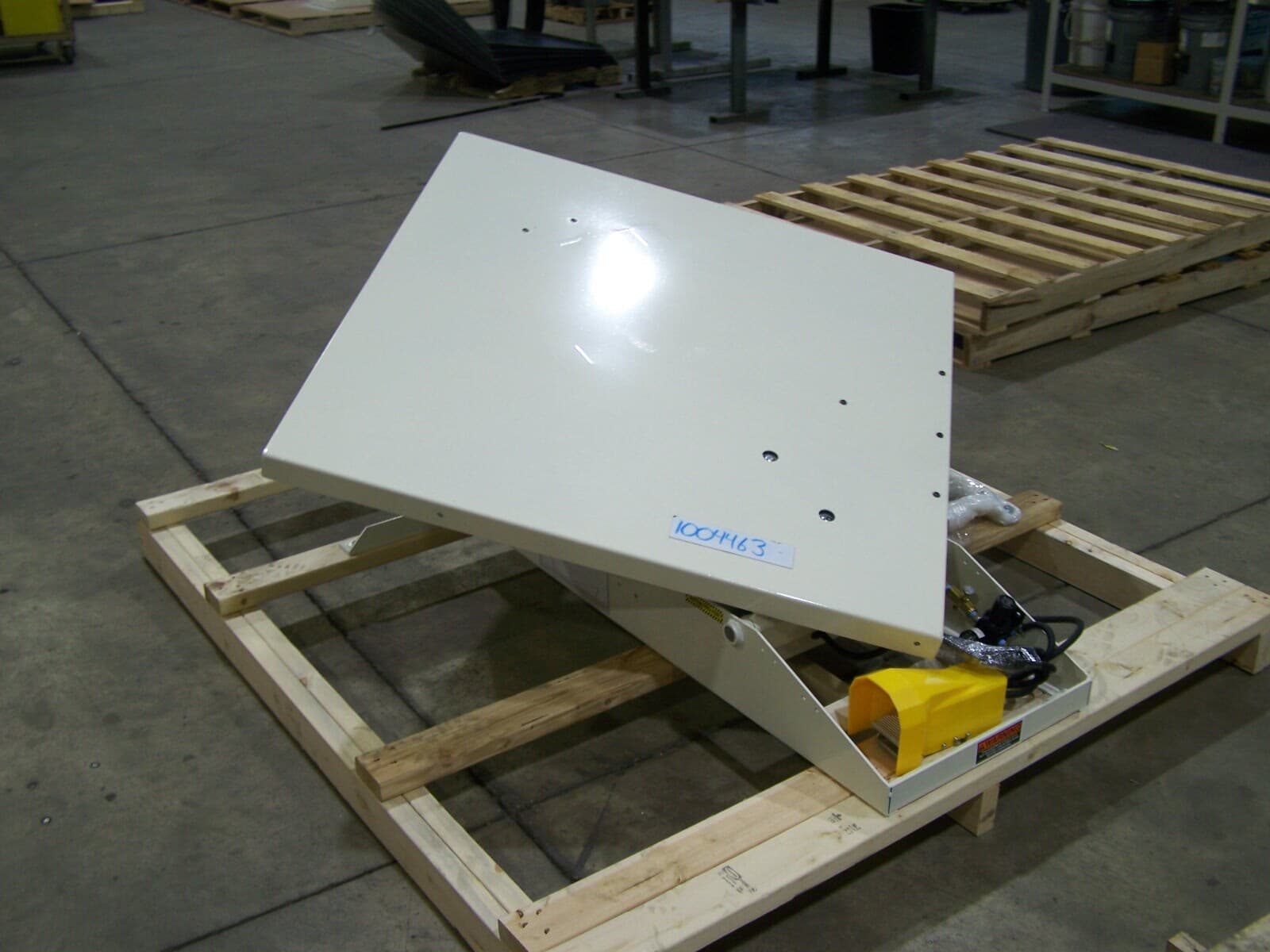

100_3162

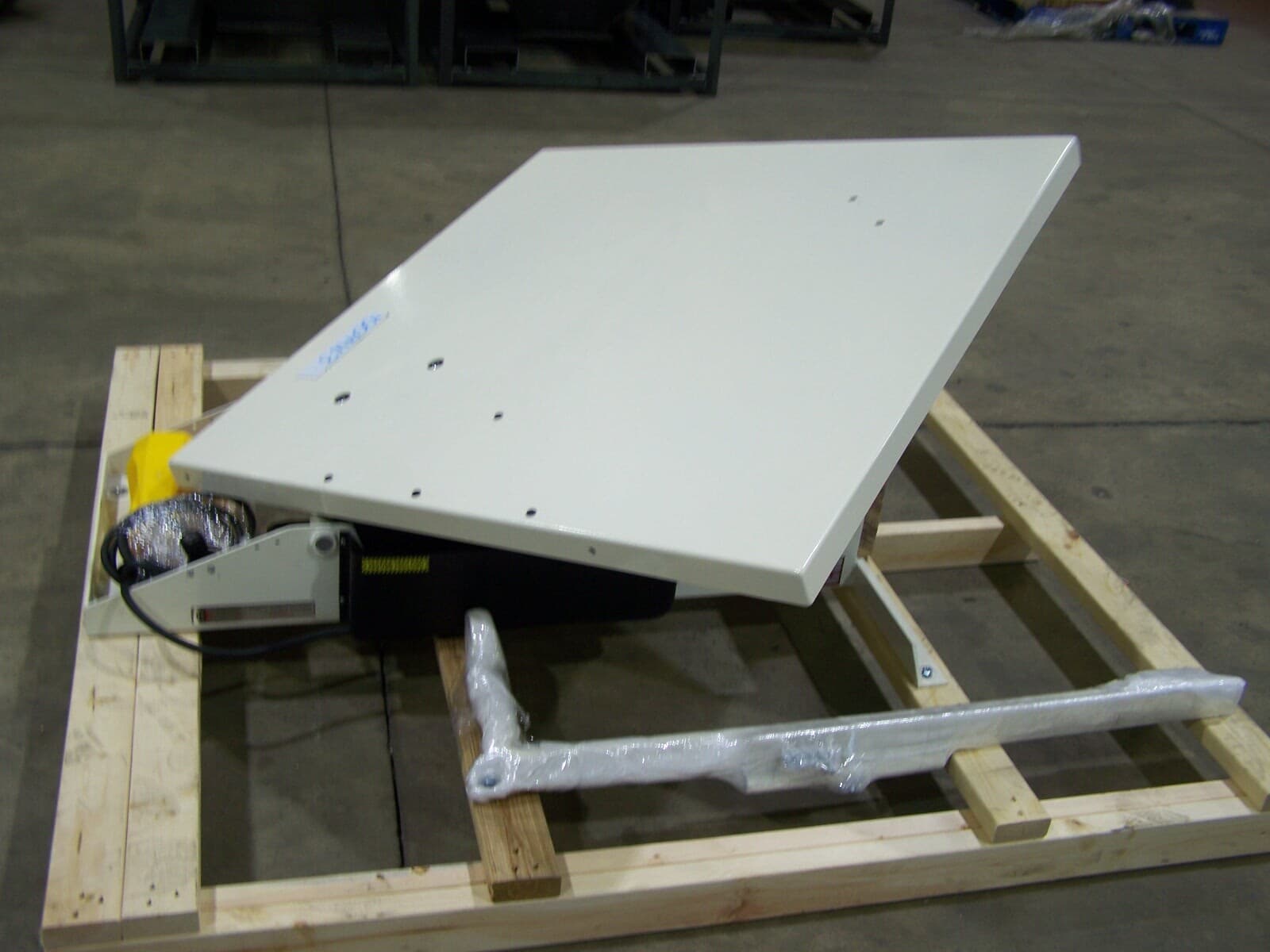

100_3165

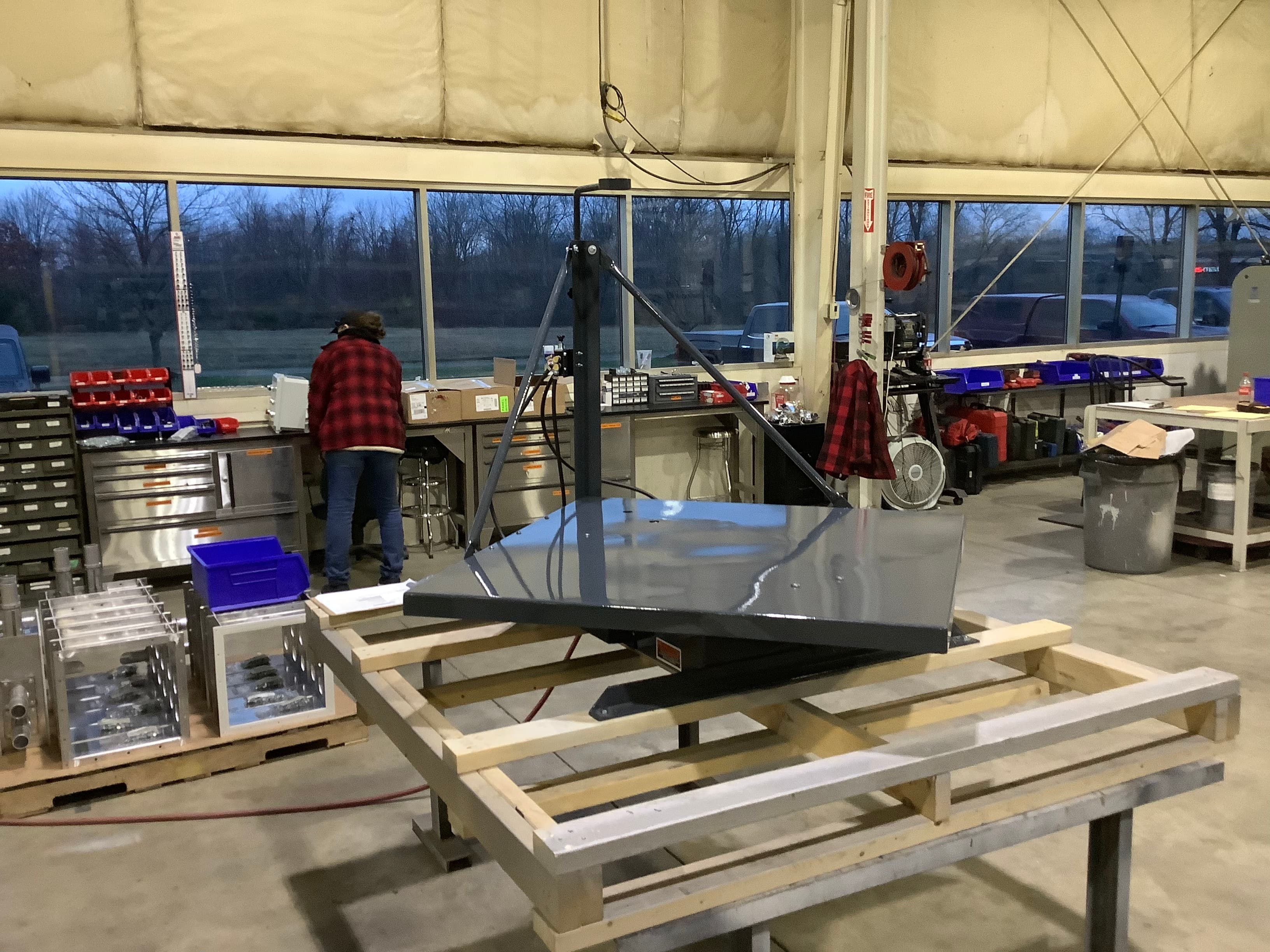

Unknown-20

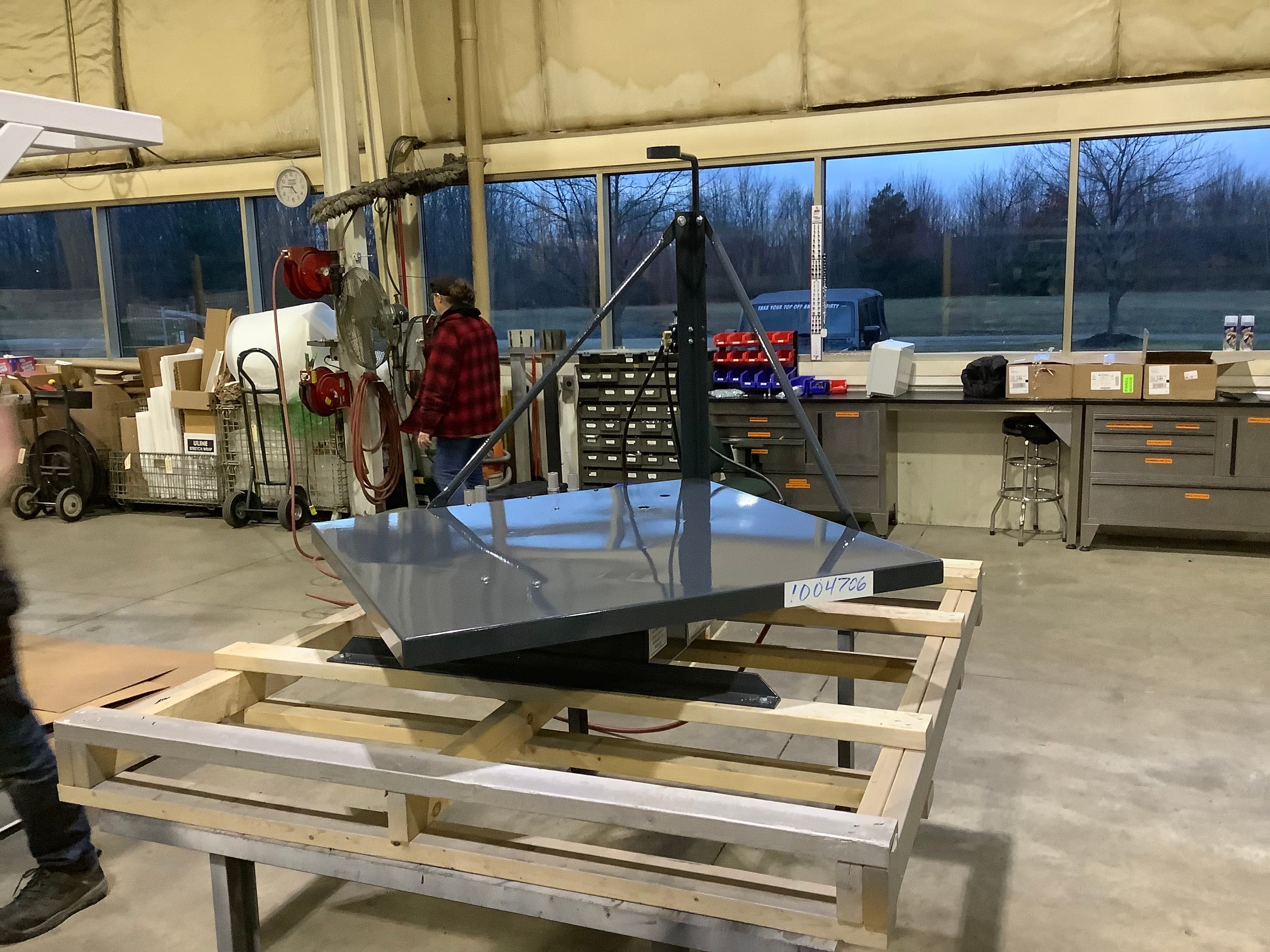

Unknown-21

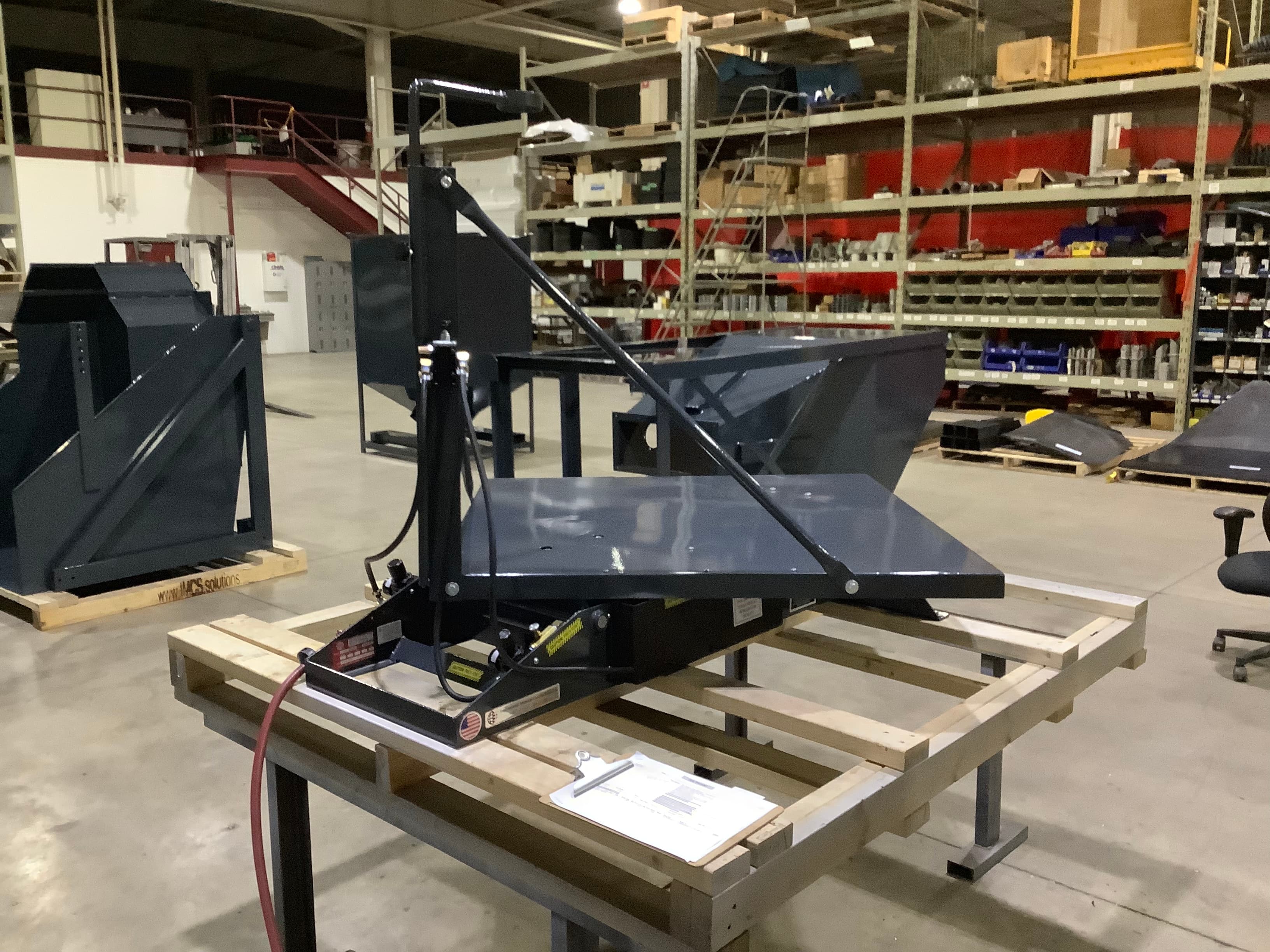

Unknown-22

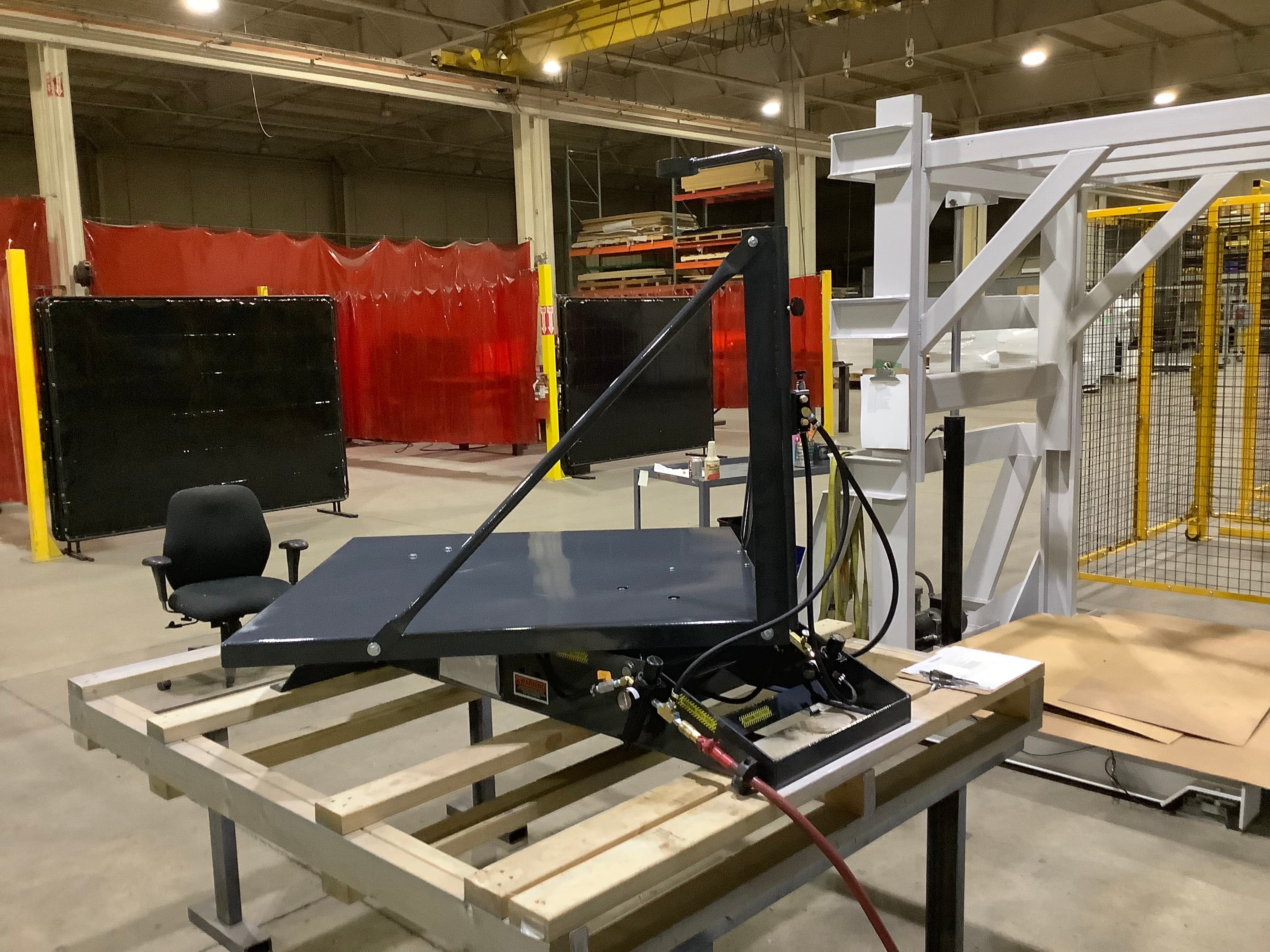

Unknown-23
Unknown-24
Unknown-25

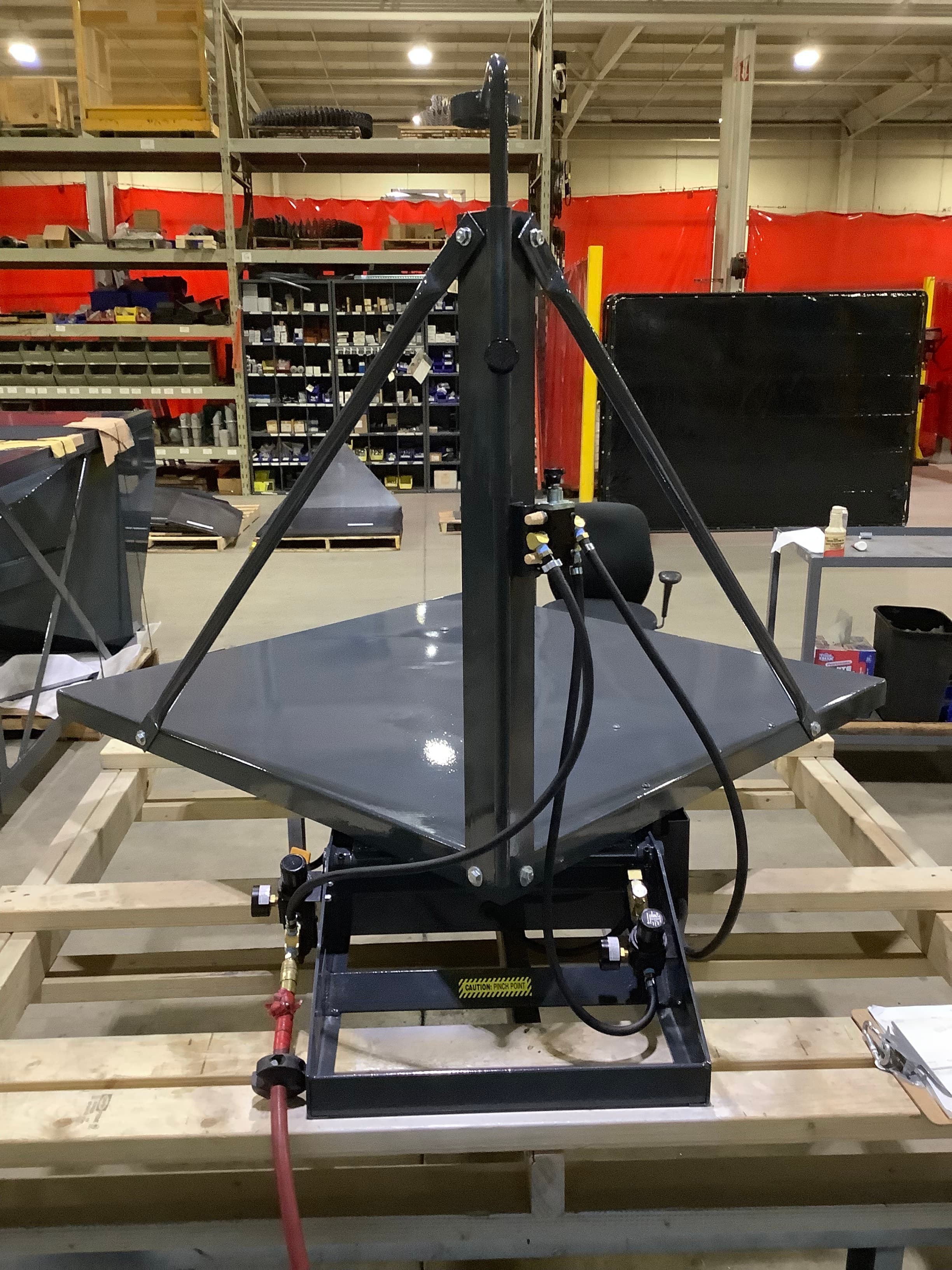

Unknown-26

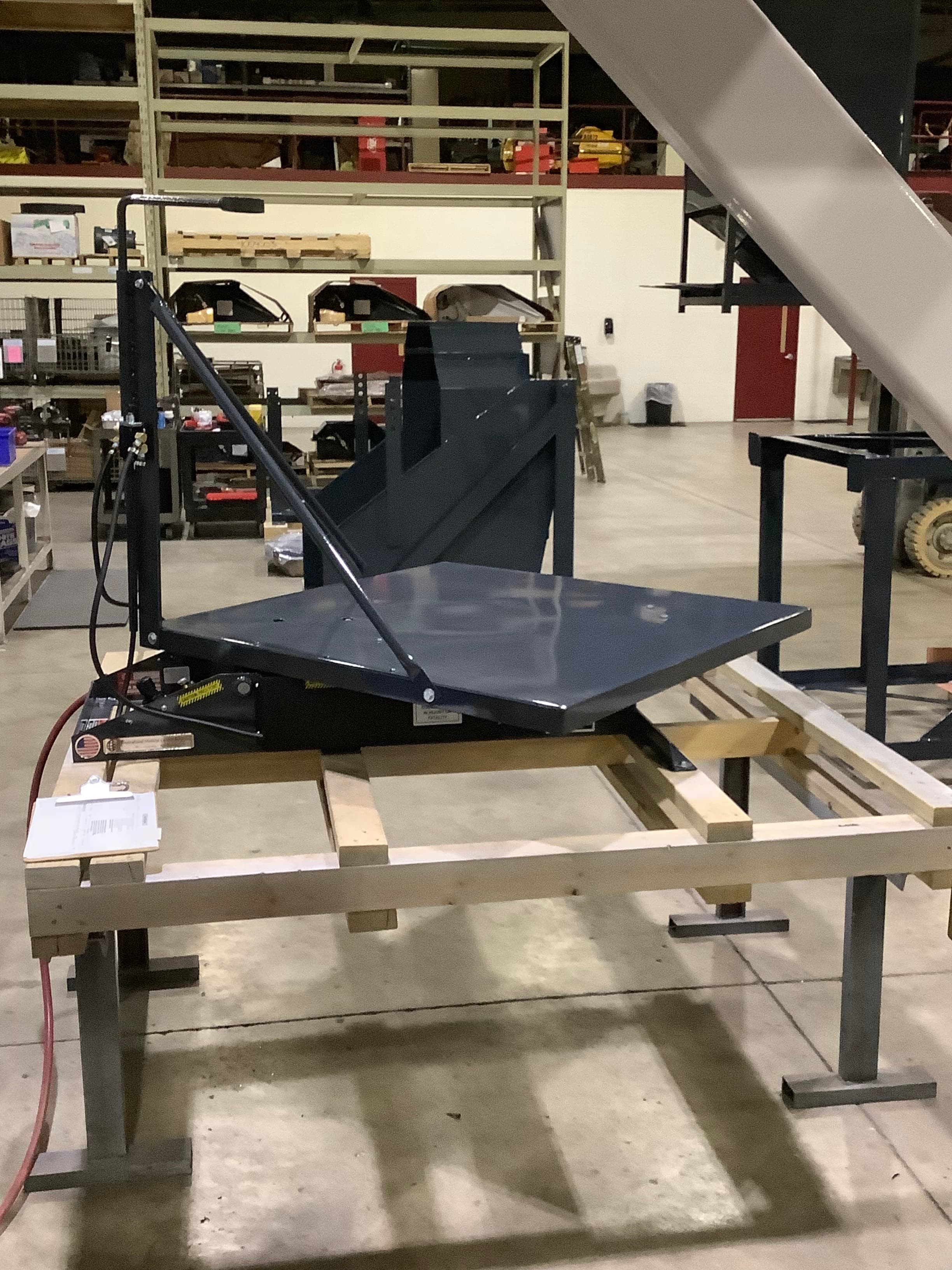

Unknown-27
Overstock3 Copy

Product Specifications

Detailed product information provides an accurate description of requirements, measurements, and functionality.

Model No.ControlTable SizeLoad CapacityTilt CapacityTilt AngleFootprintLoad HeightList Price
25-5000-000Hand44" x 44"2000 lbs1250 lbs52°62" x 68"9"$3,495.00
25-5000-001Foot44" x 44"2000 lbs1250 lbs52°62" x 68"9"$3,495.00
25-5006-000Hand44" x 44"2000 lbs1250 lbs52°80" x 63"9"$3,245.00
25-8001-000Hand44" x 44"4000 lbs3000 lbs52°N/A9"Call for Pricing
