Supermix

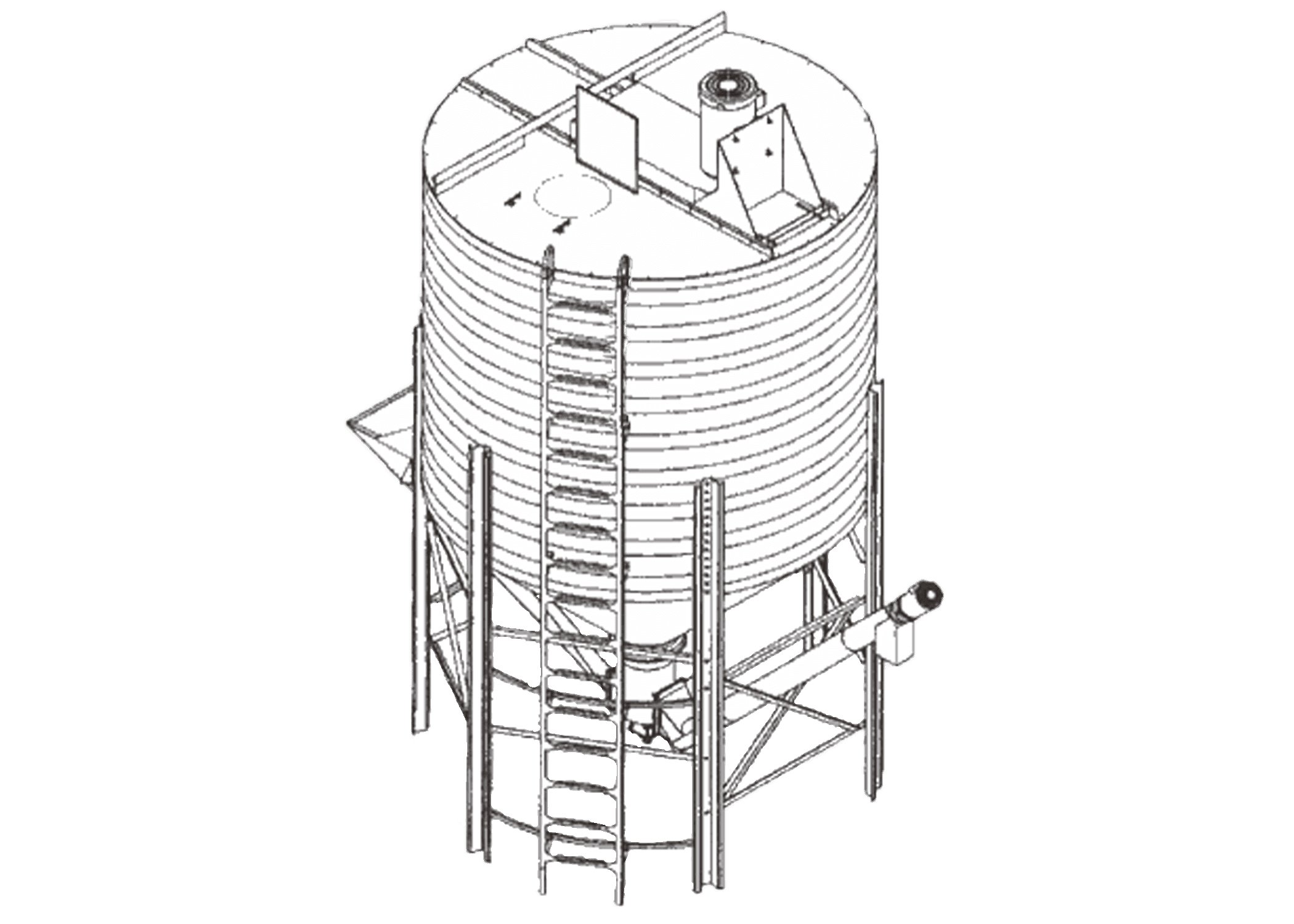

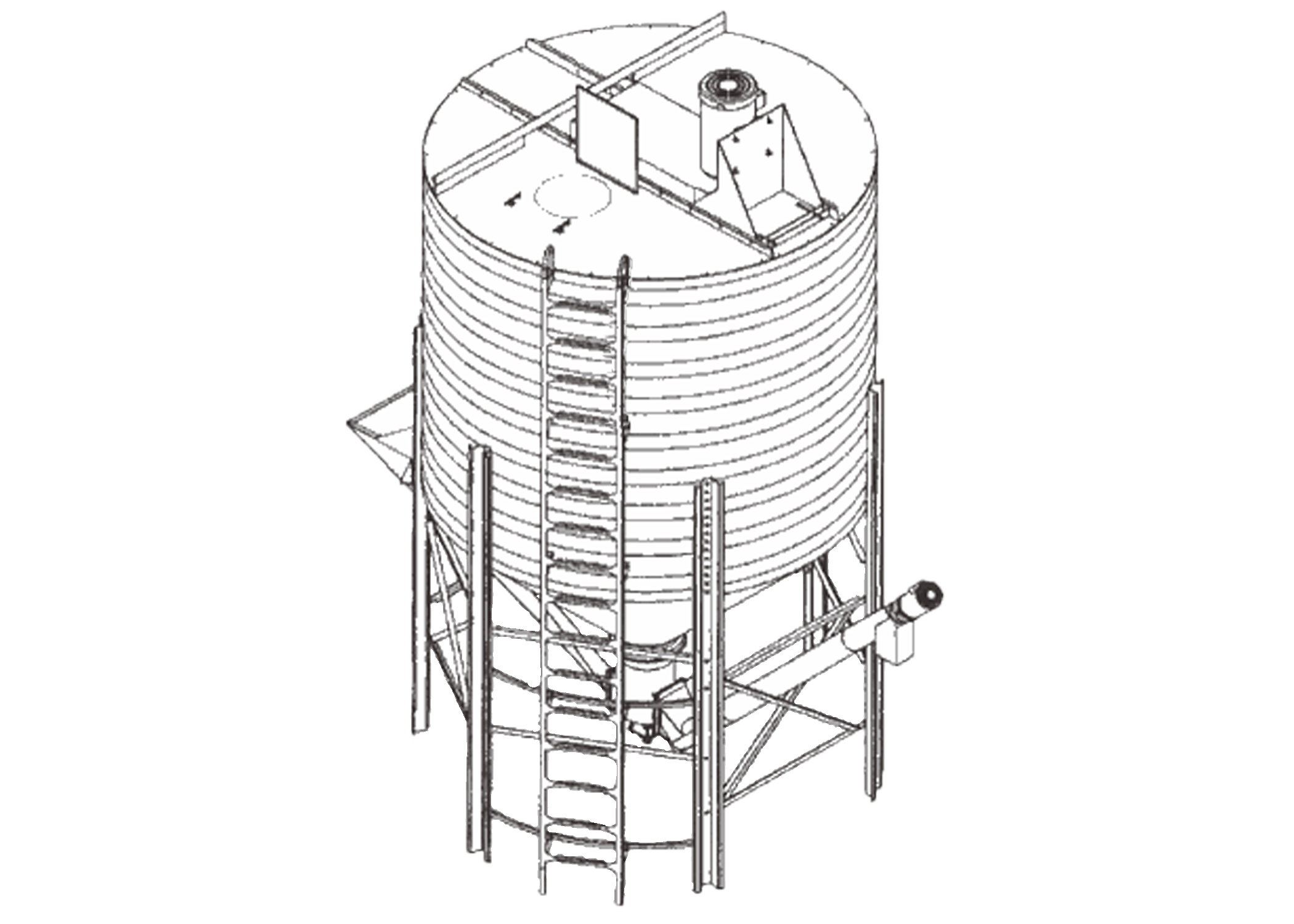

The IMCS Supermix is a high volume, low-cost batch mixer designed to give a homogeneous mix of most dry materials in a short mix time. The supermix can be charged by an auger, blower, vacuum system or bottom feed chute. The supermix can discharge by auger, vacuum, blower or gravity discharge into a container with the use of extended legs. The supermix can be constructed from aluminum, stainless steel, carbon steel or galvanized steel.

Standard Features

Heavy Gauge FDA Approved Galvanized Coated Steel Body, Plated and Painted Components, 6" - 9" - or 12" Heavy Duty Vertical Mixing Auger, Top Mounted Service Entry, Bottom Discharge with Slide Gate, Heavy Duty Industrial Bearing Top and Bottom, Heavy Duty TEFC Belt Drive Motors, Service Ladder, Non-Enclosed Service Ladder, On Site Installation by IMCS Crews (if required)

Safety Enclosures are available for all IMCS Equipment

Gallery

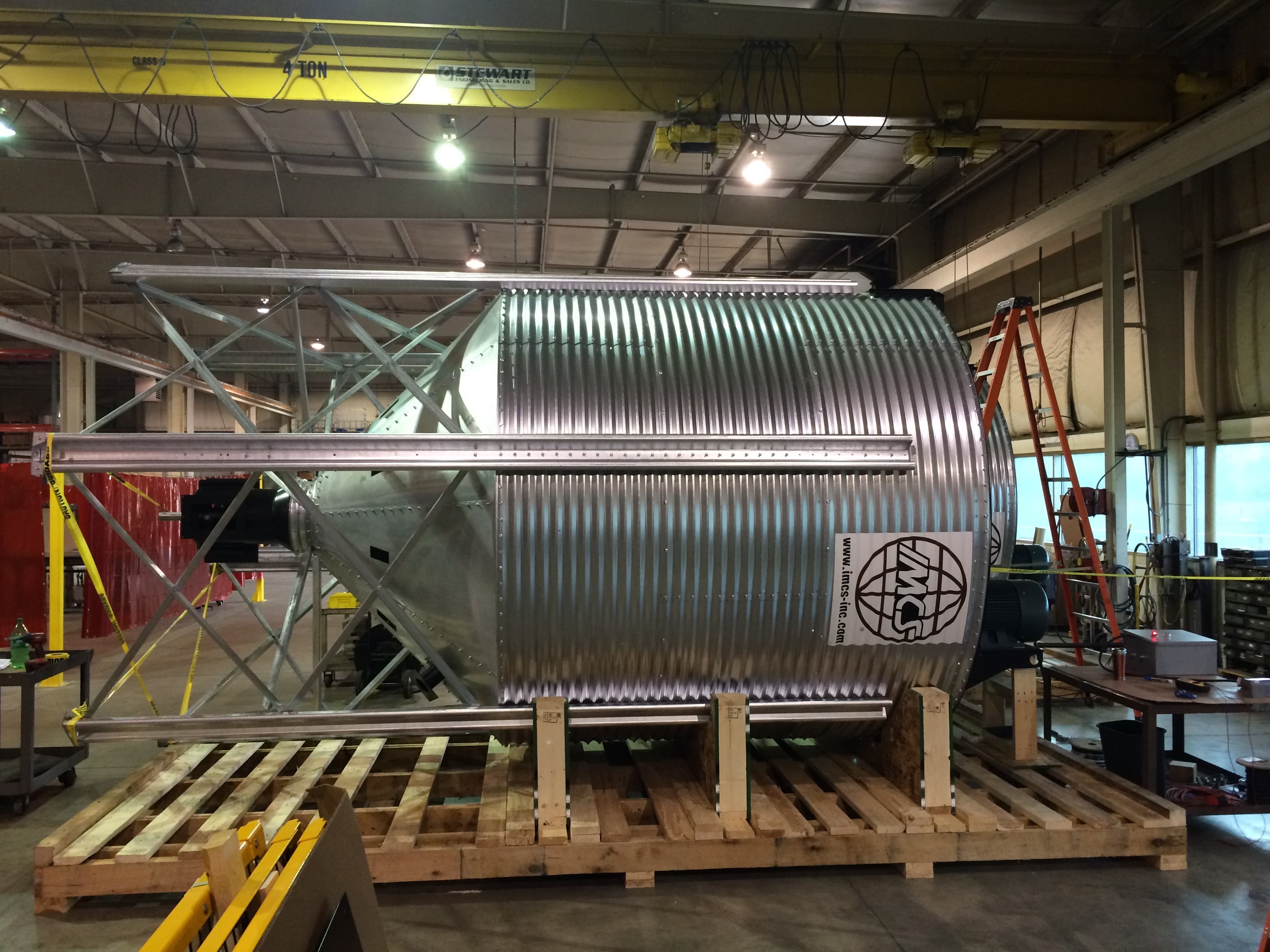

Img 5076

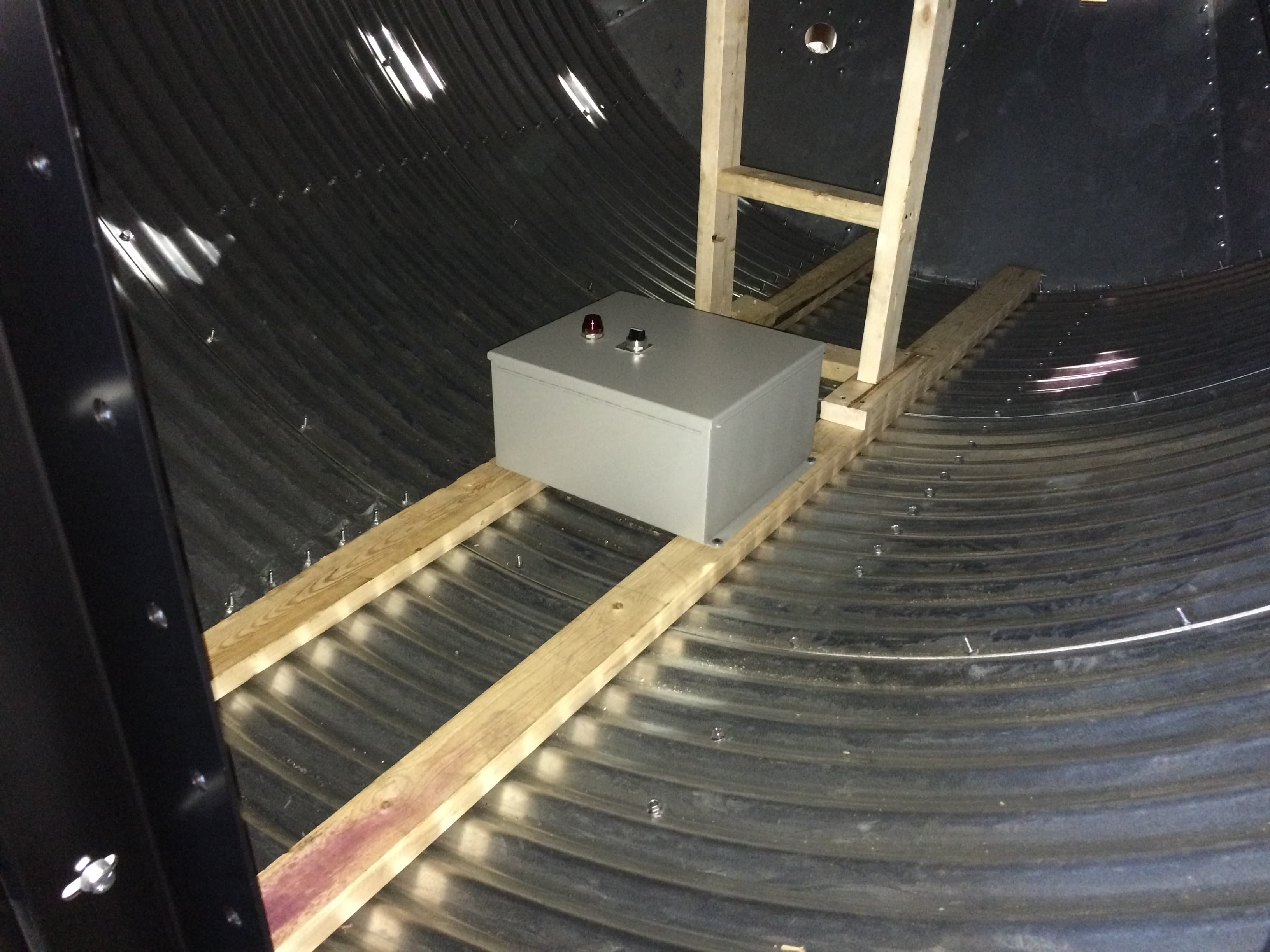

Img 5079

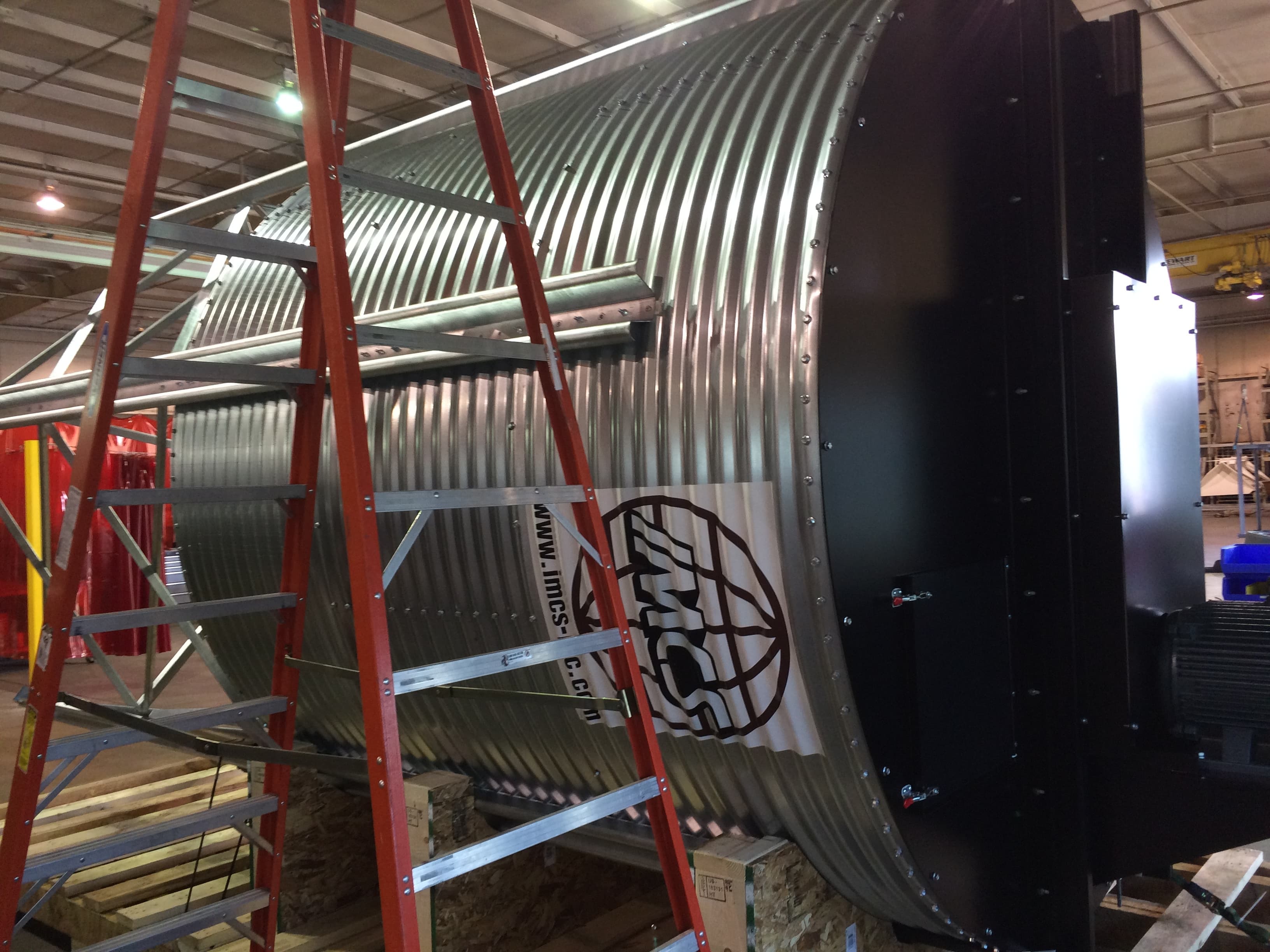

Img 5082

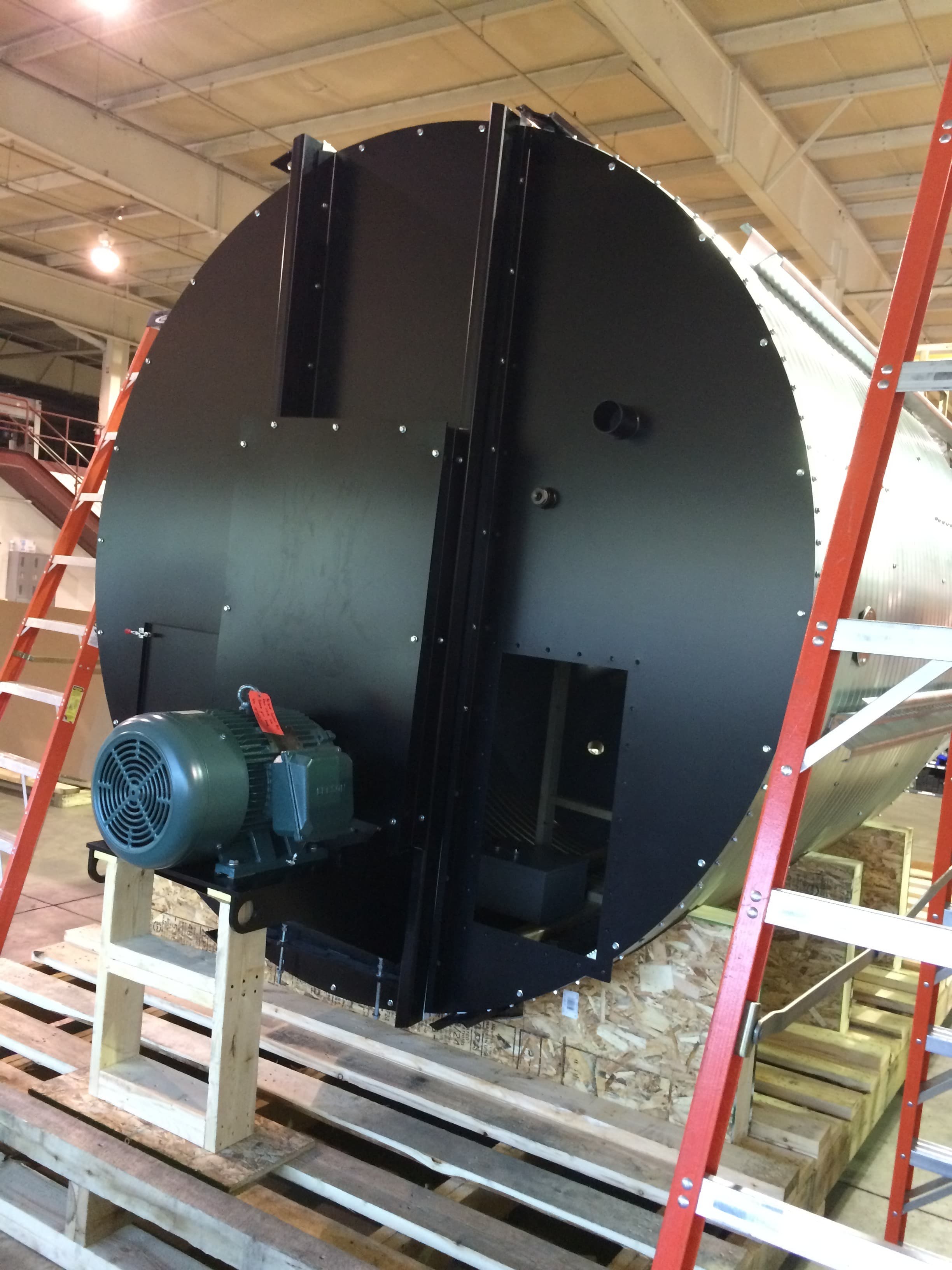

Img 5080

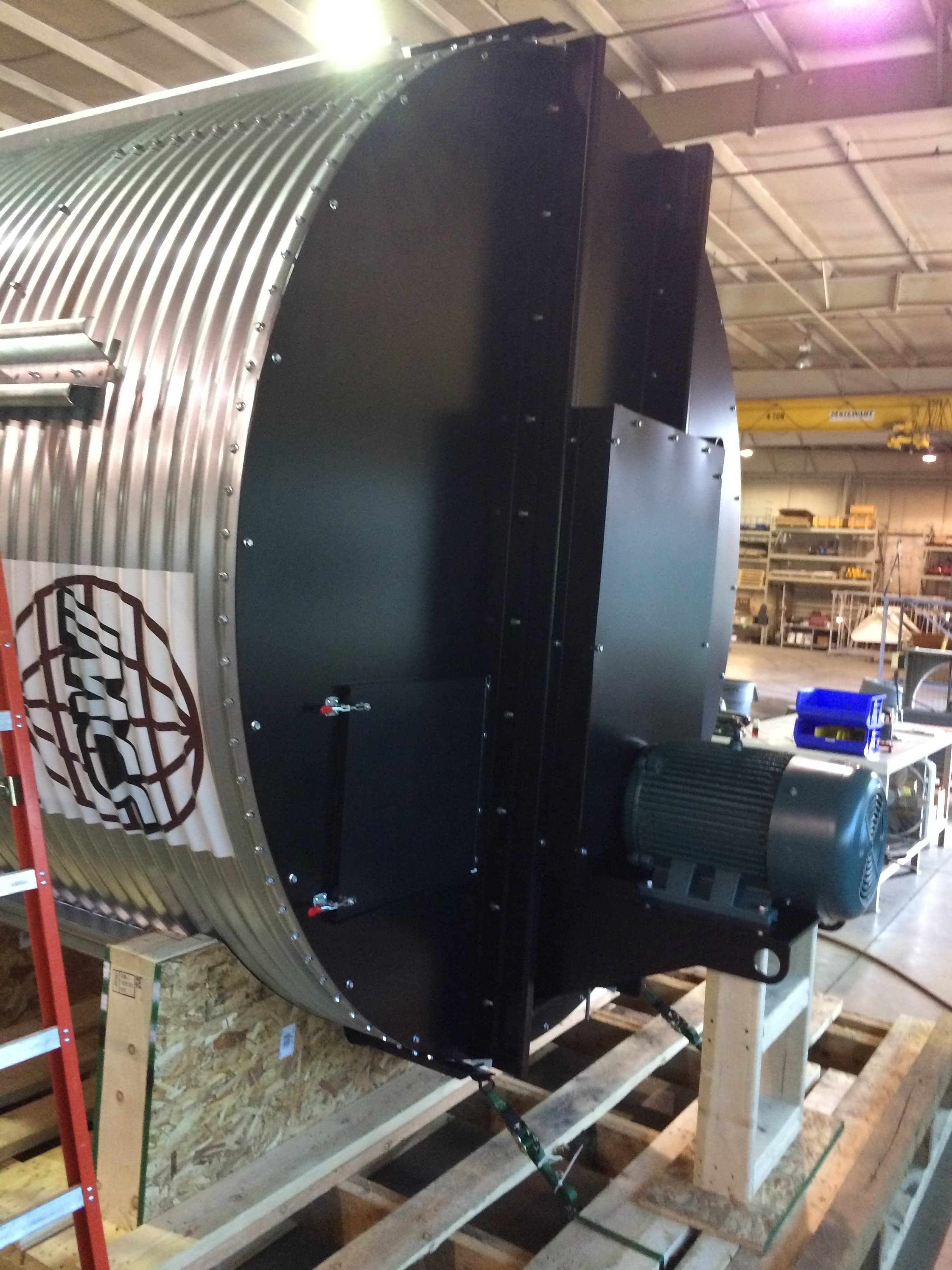

Img 5081
Img 5080 Copy

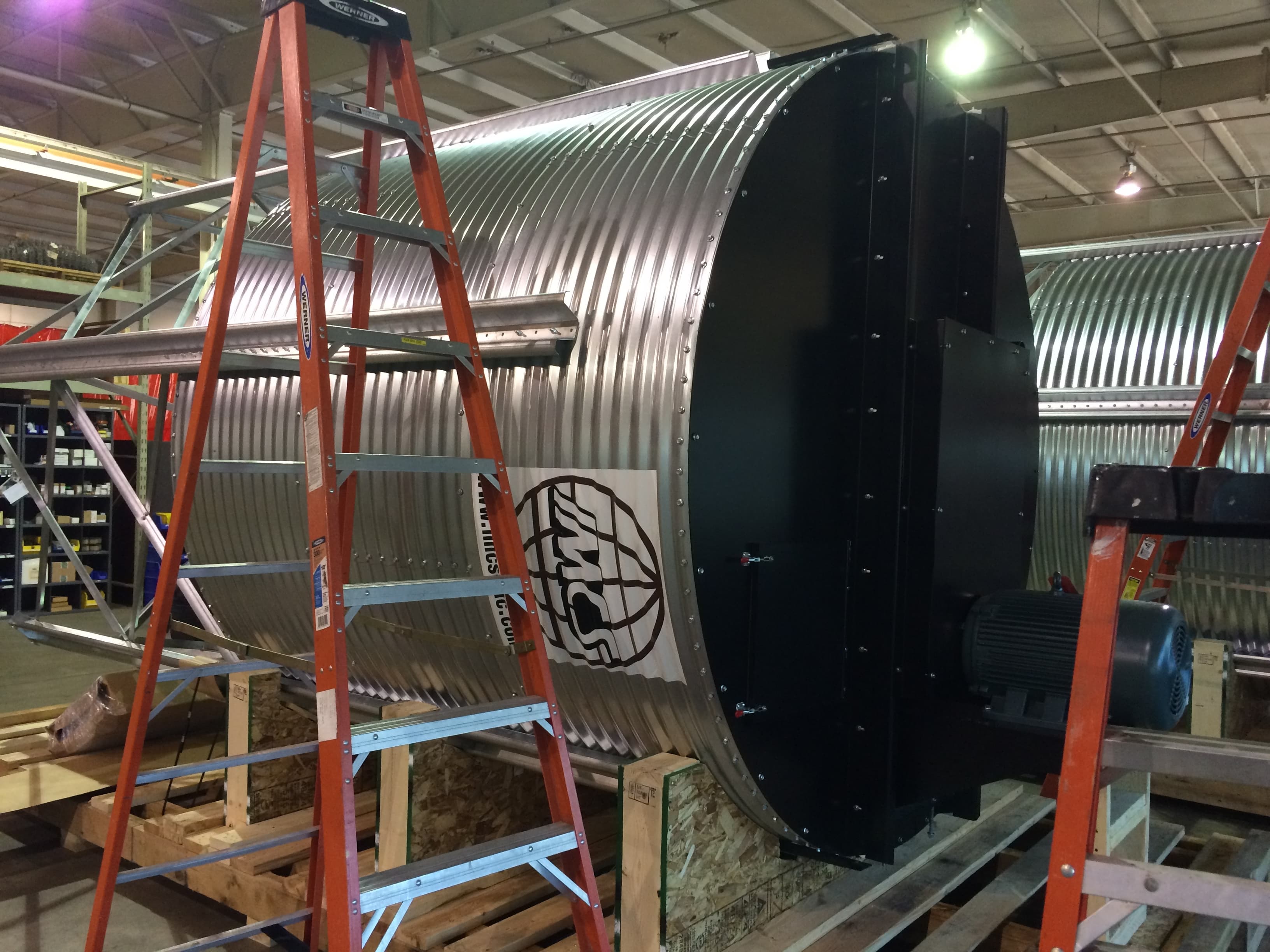

Img 5083

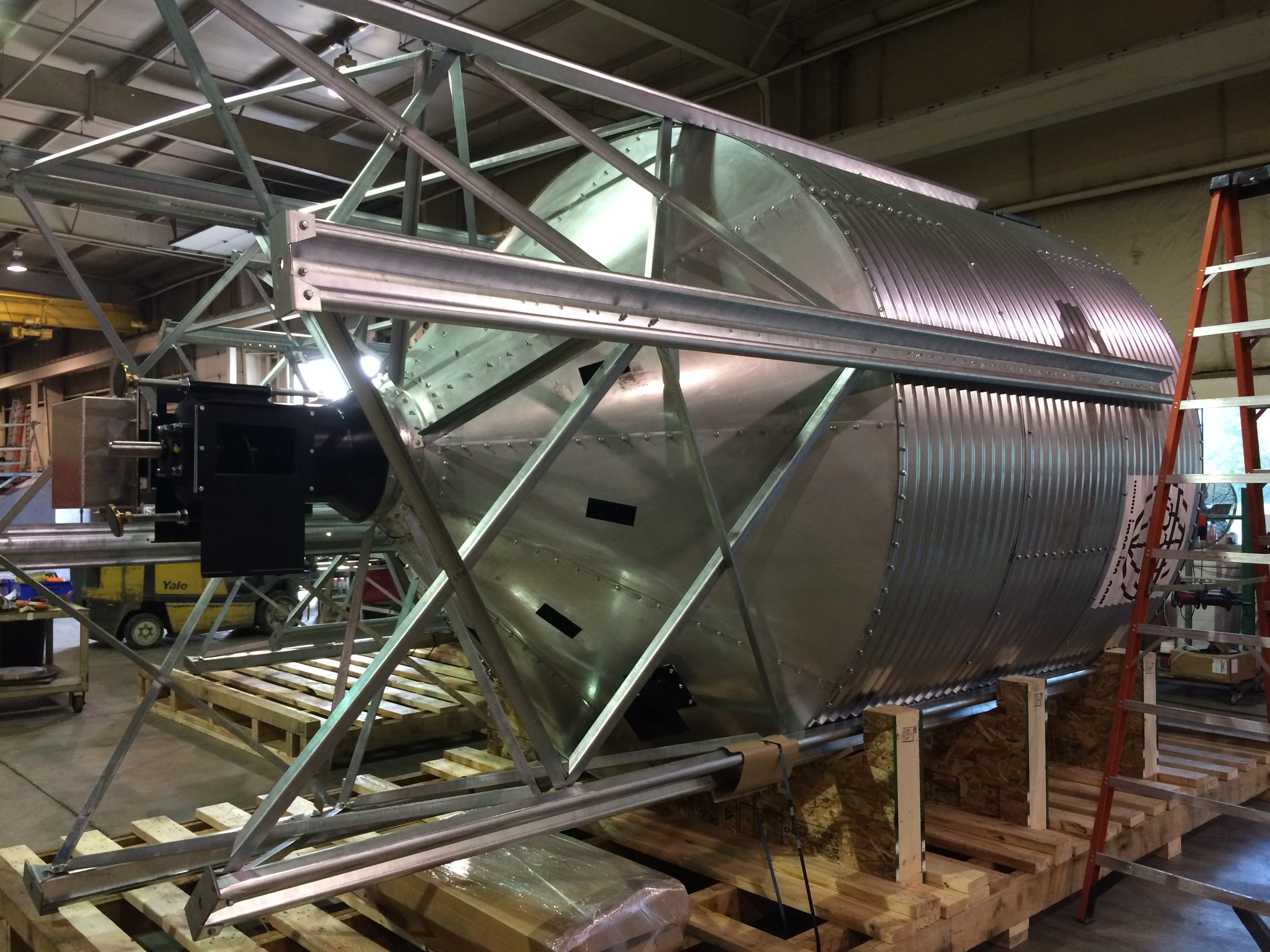

Img 5084

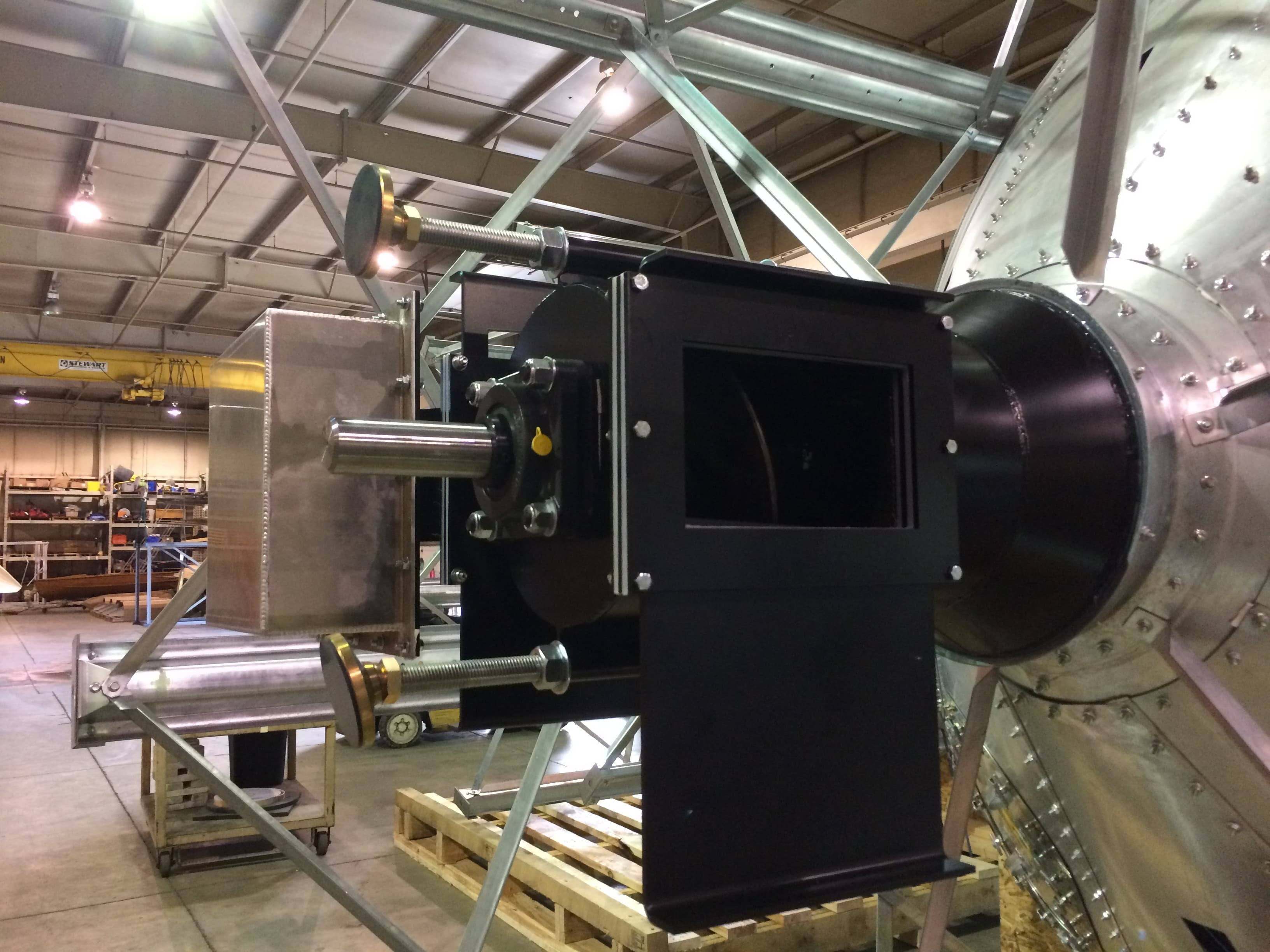

Img 5085

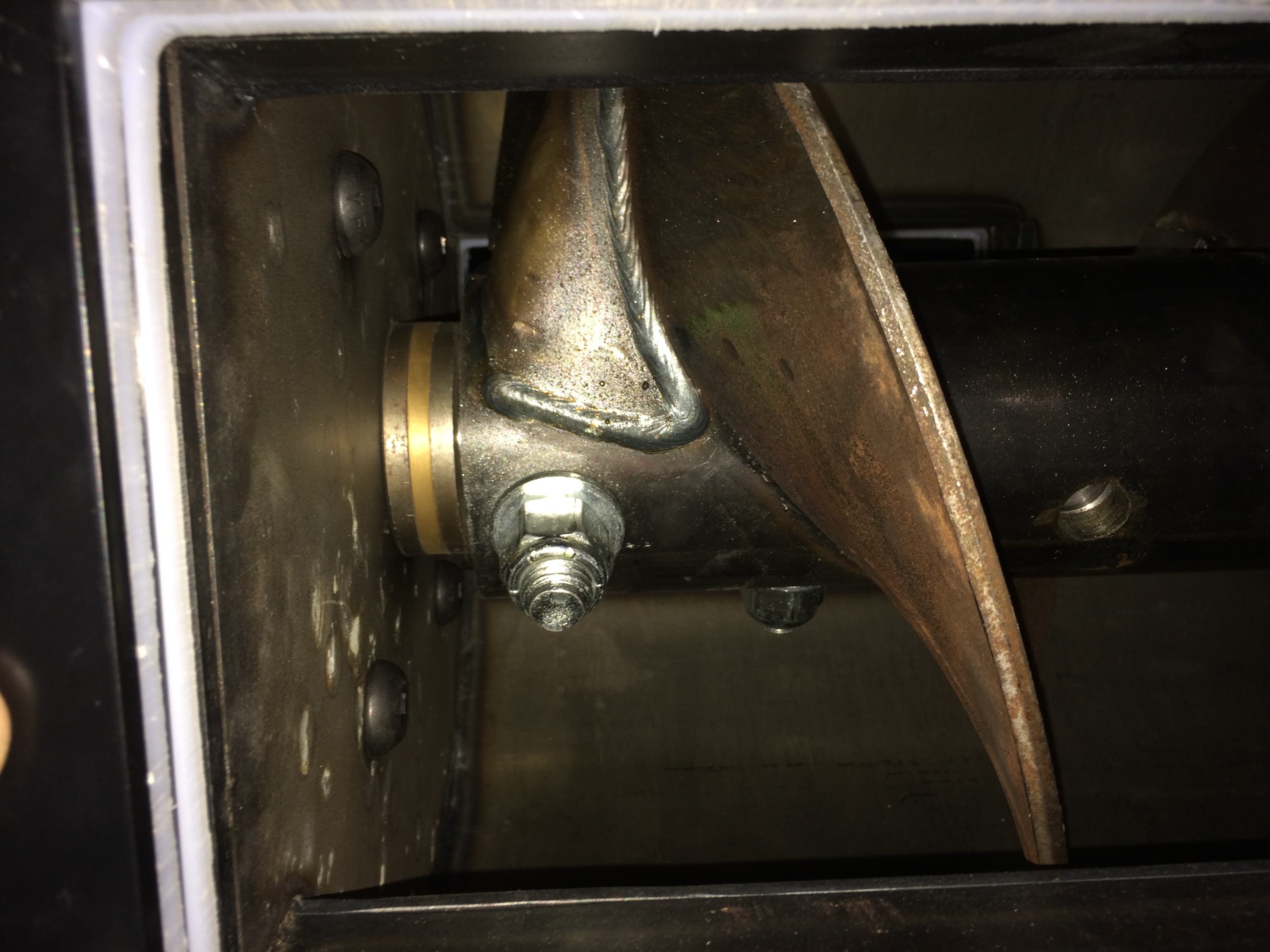

Img 5086

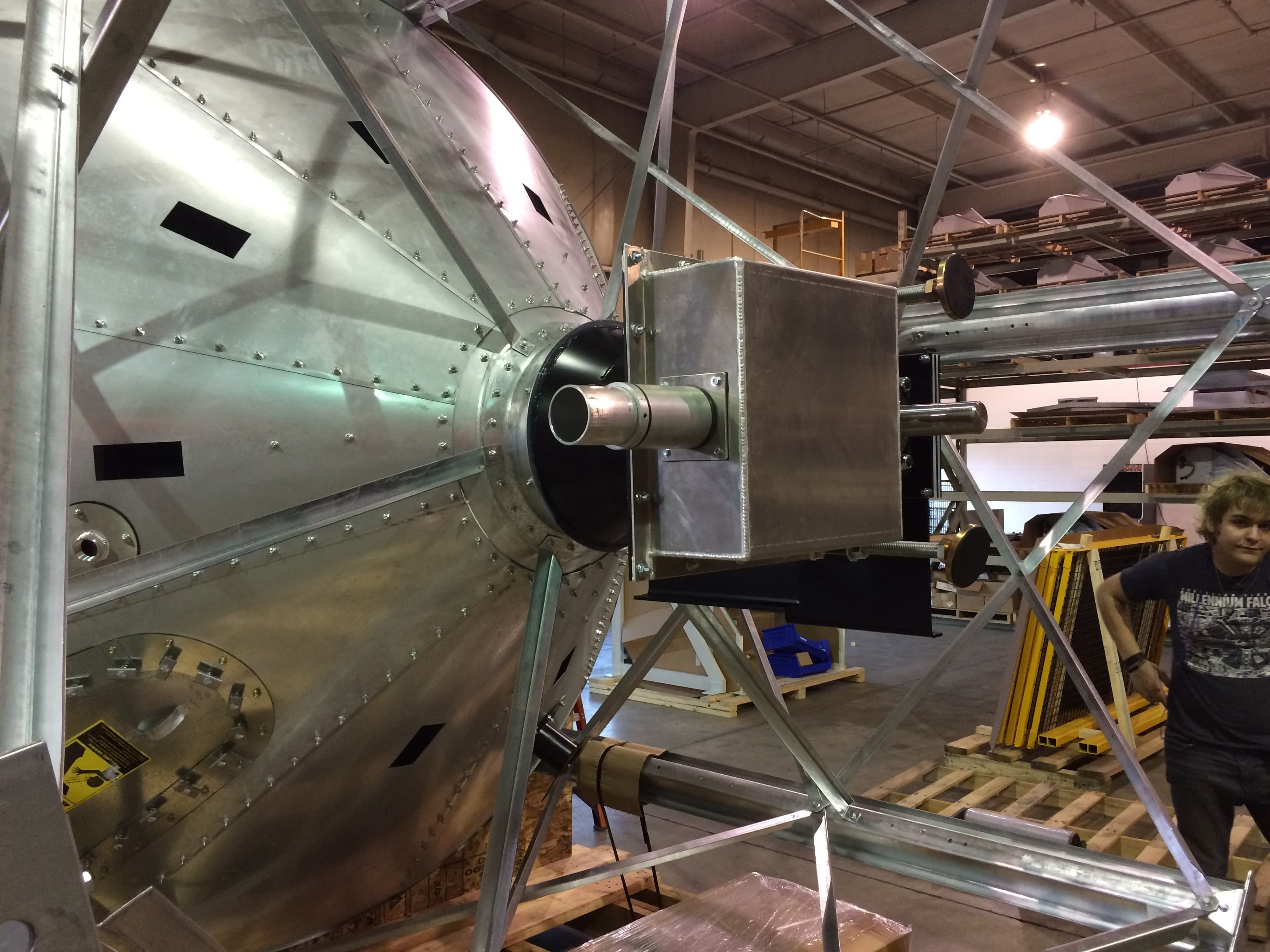

Img 5087

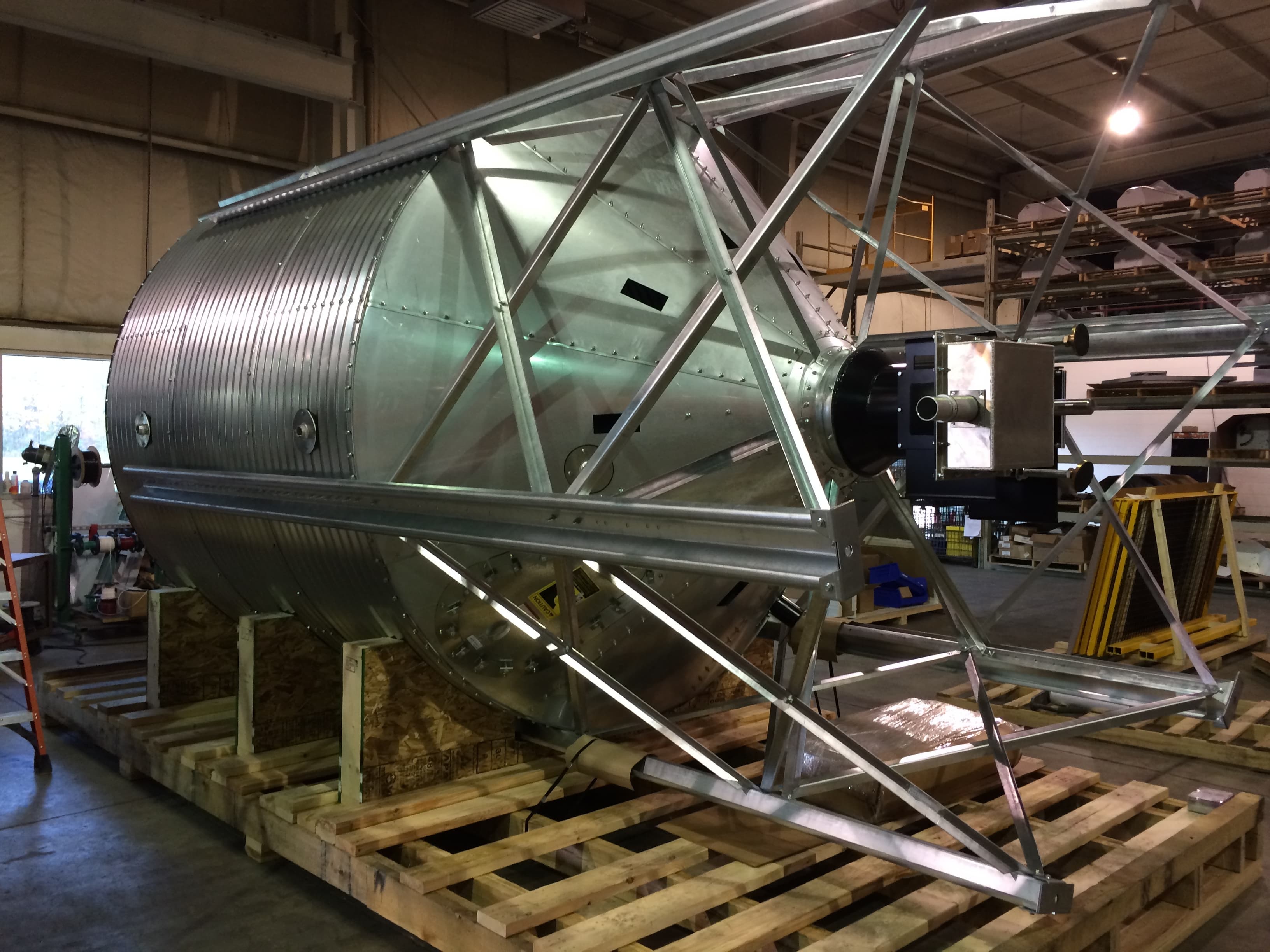

Img 5088

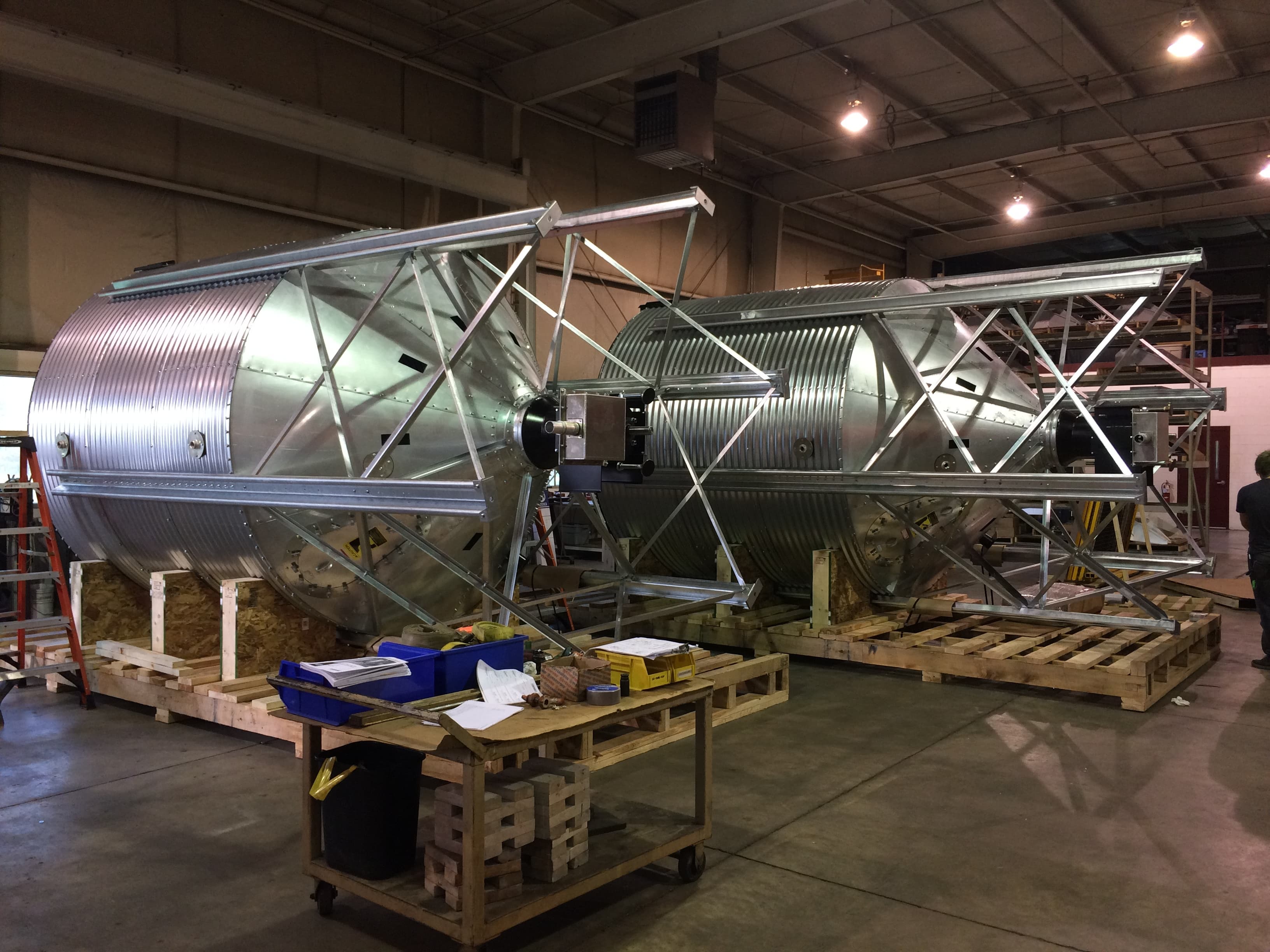

Img 5089

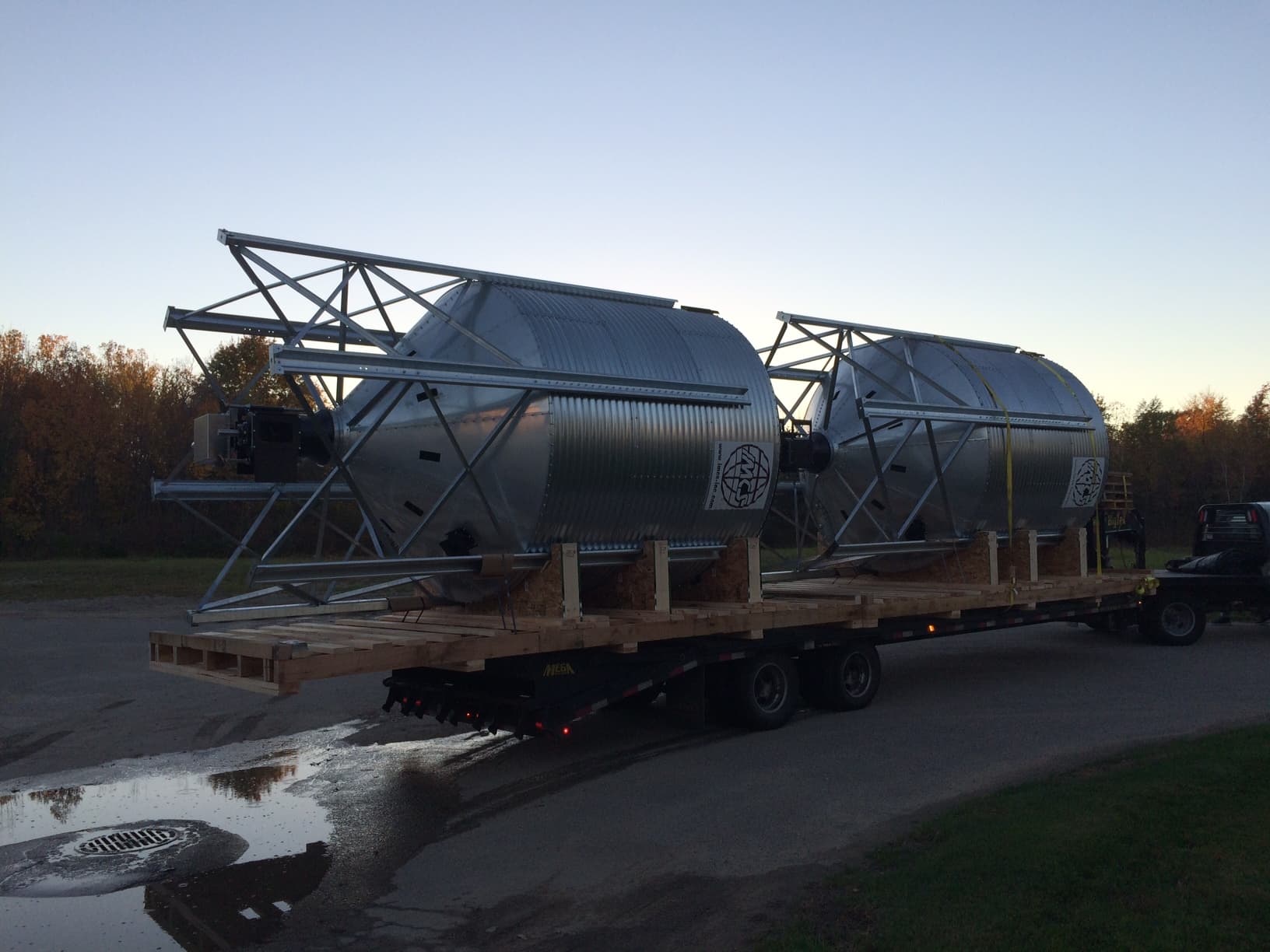

Img 5092

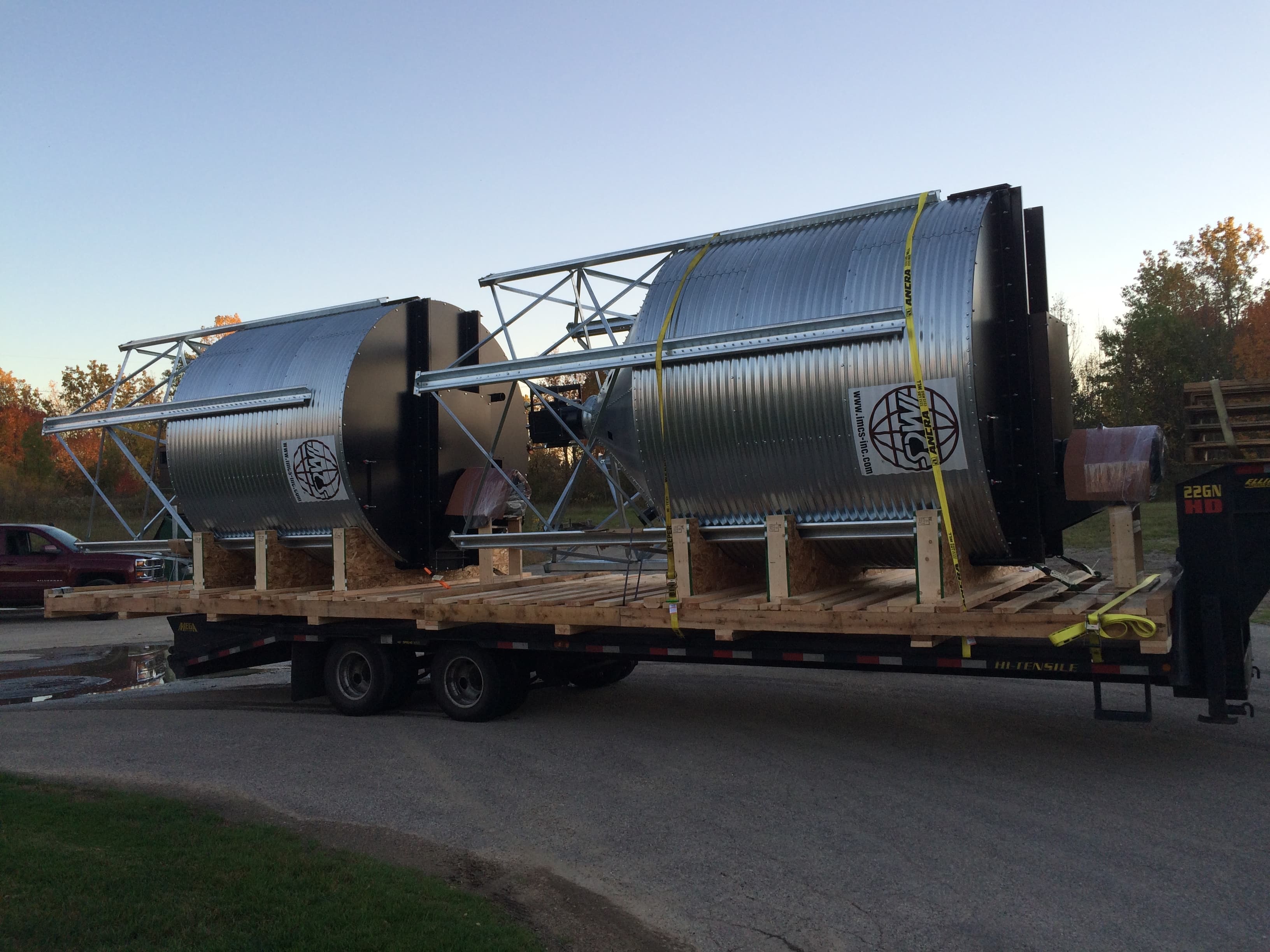

Img 5093

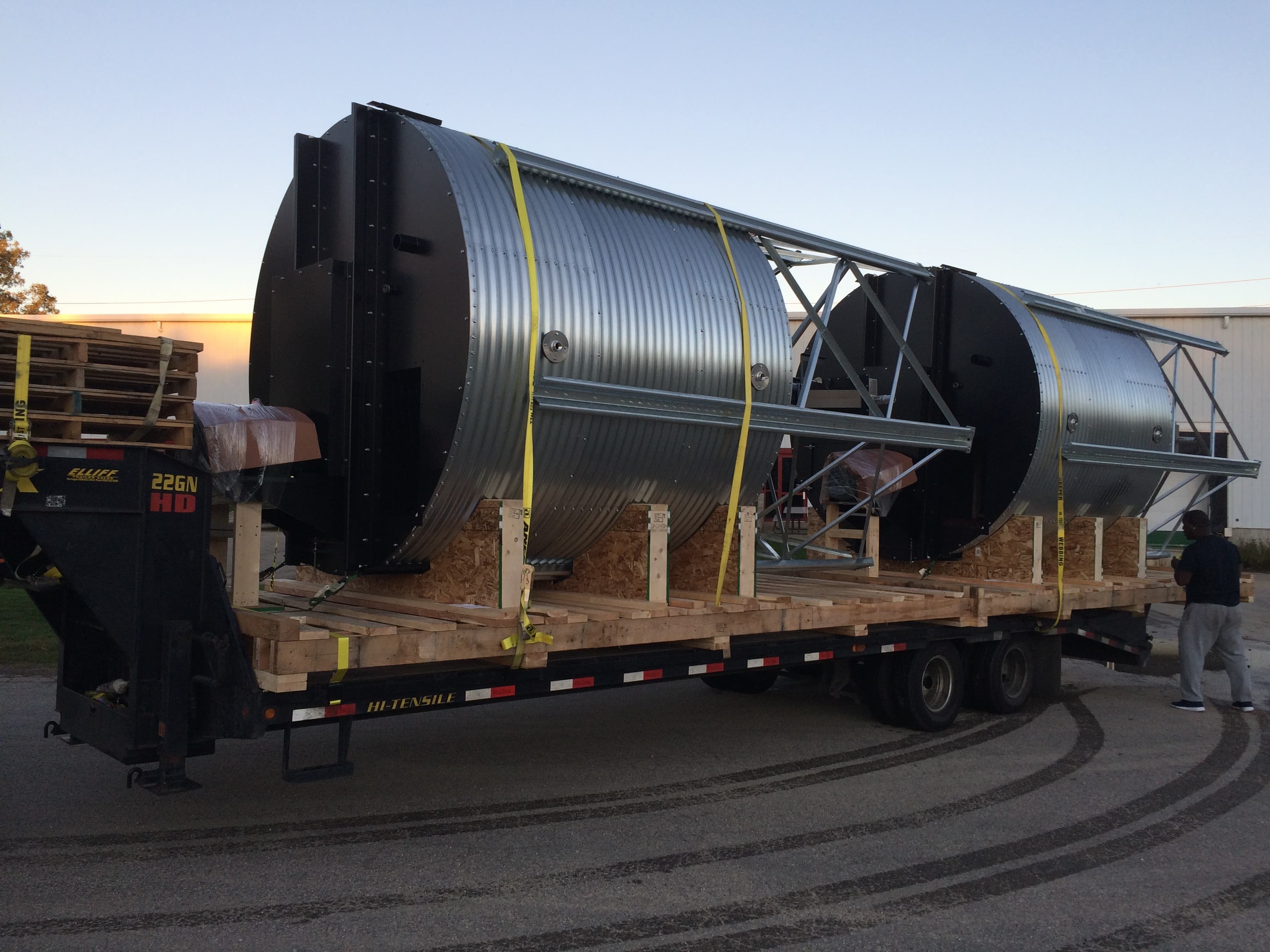

Img 5094

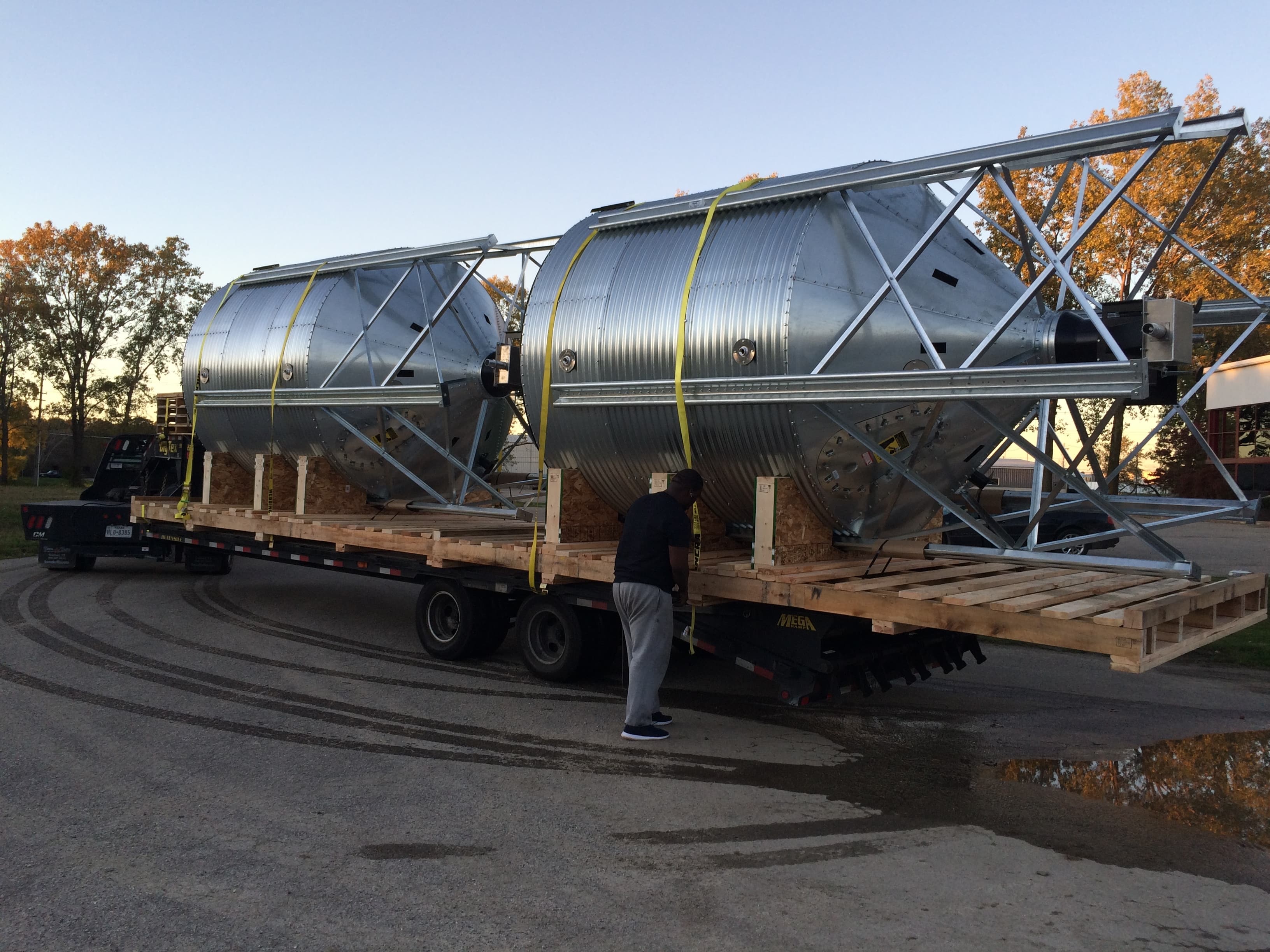

Img 5095

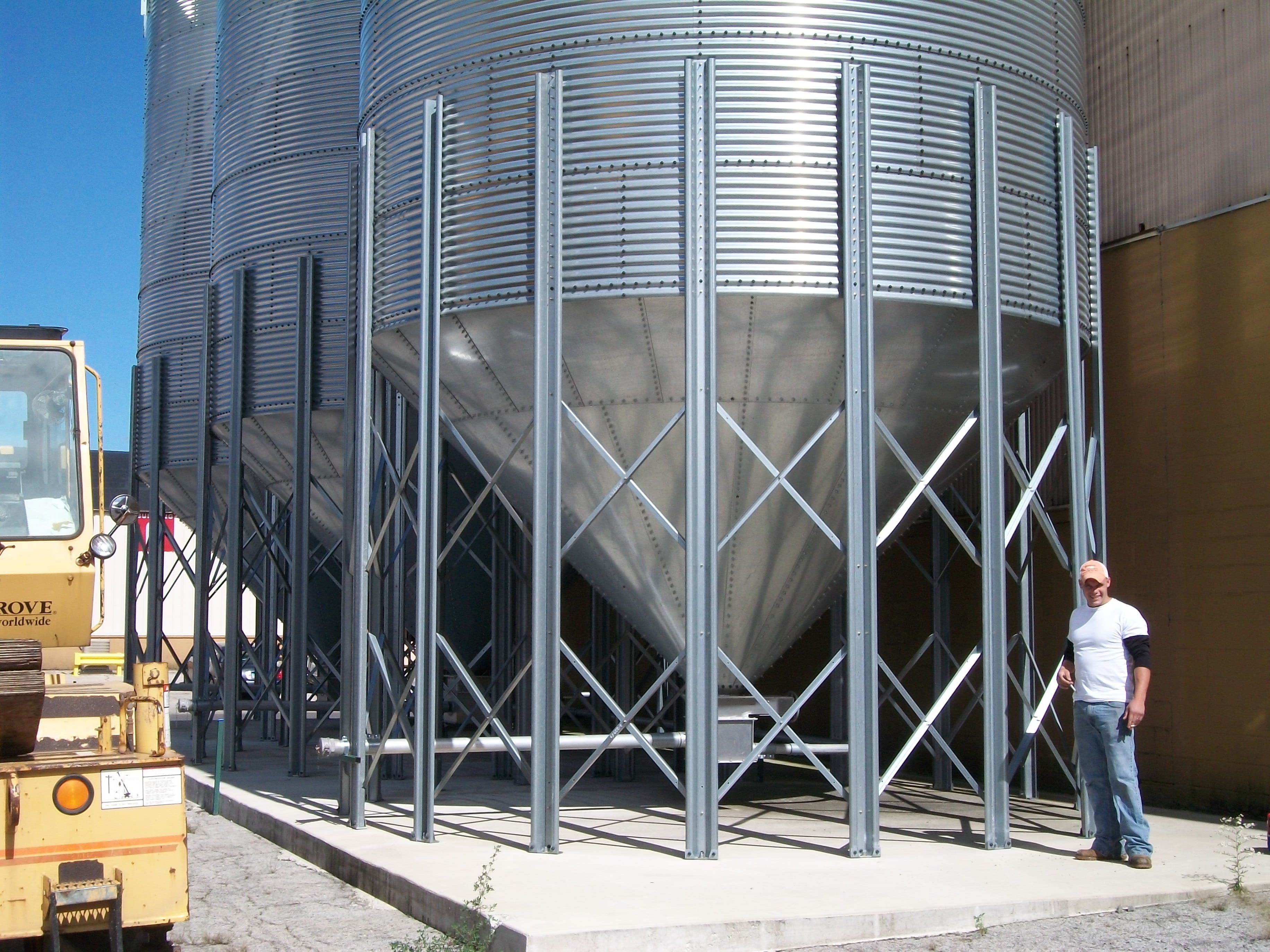

100 0210

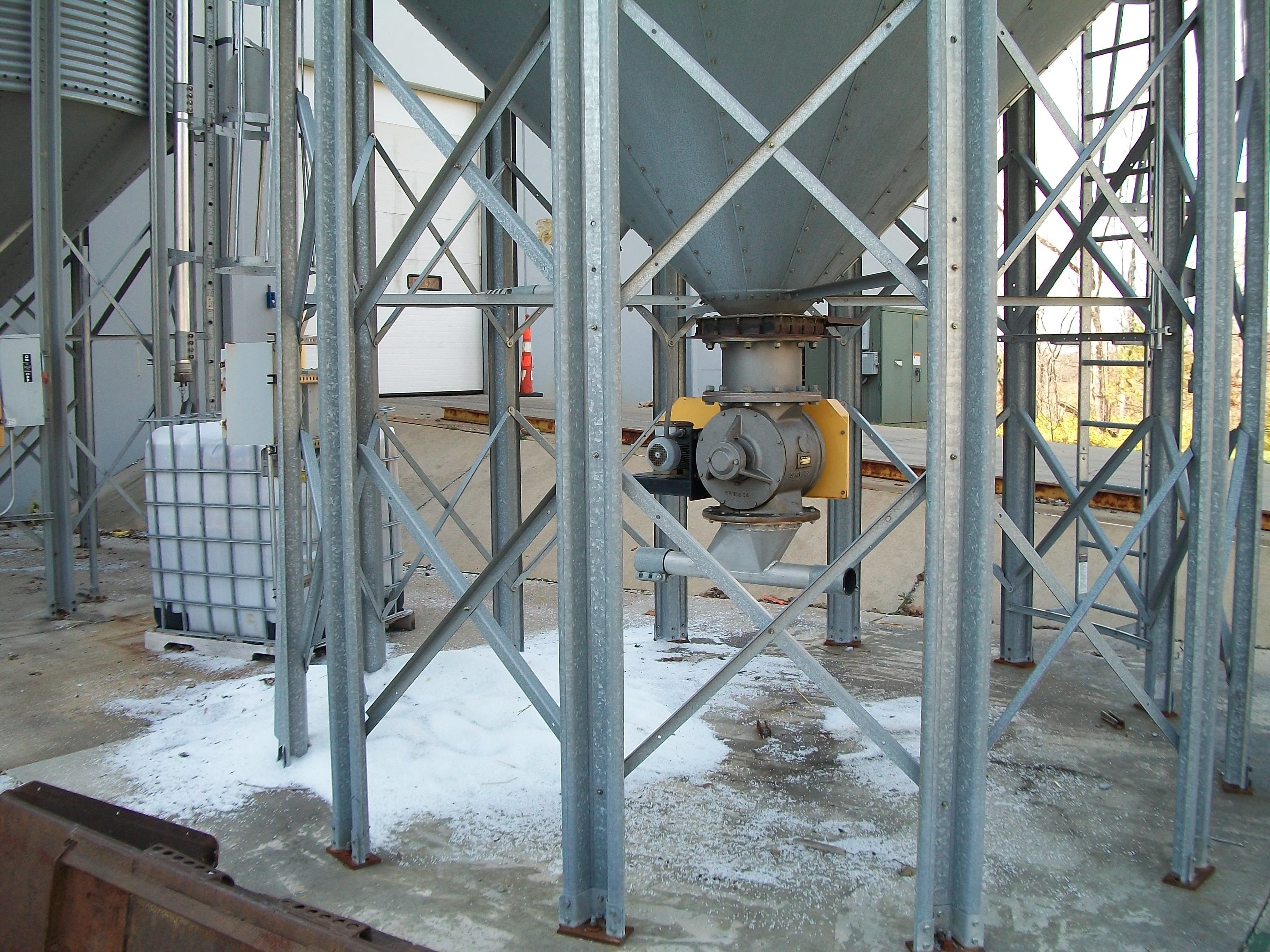

100 0233

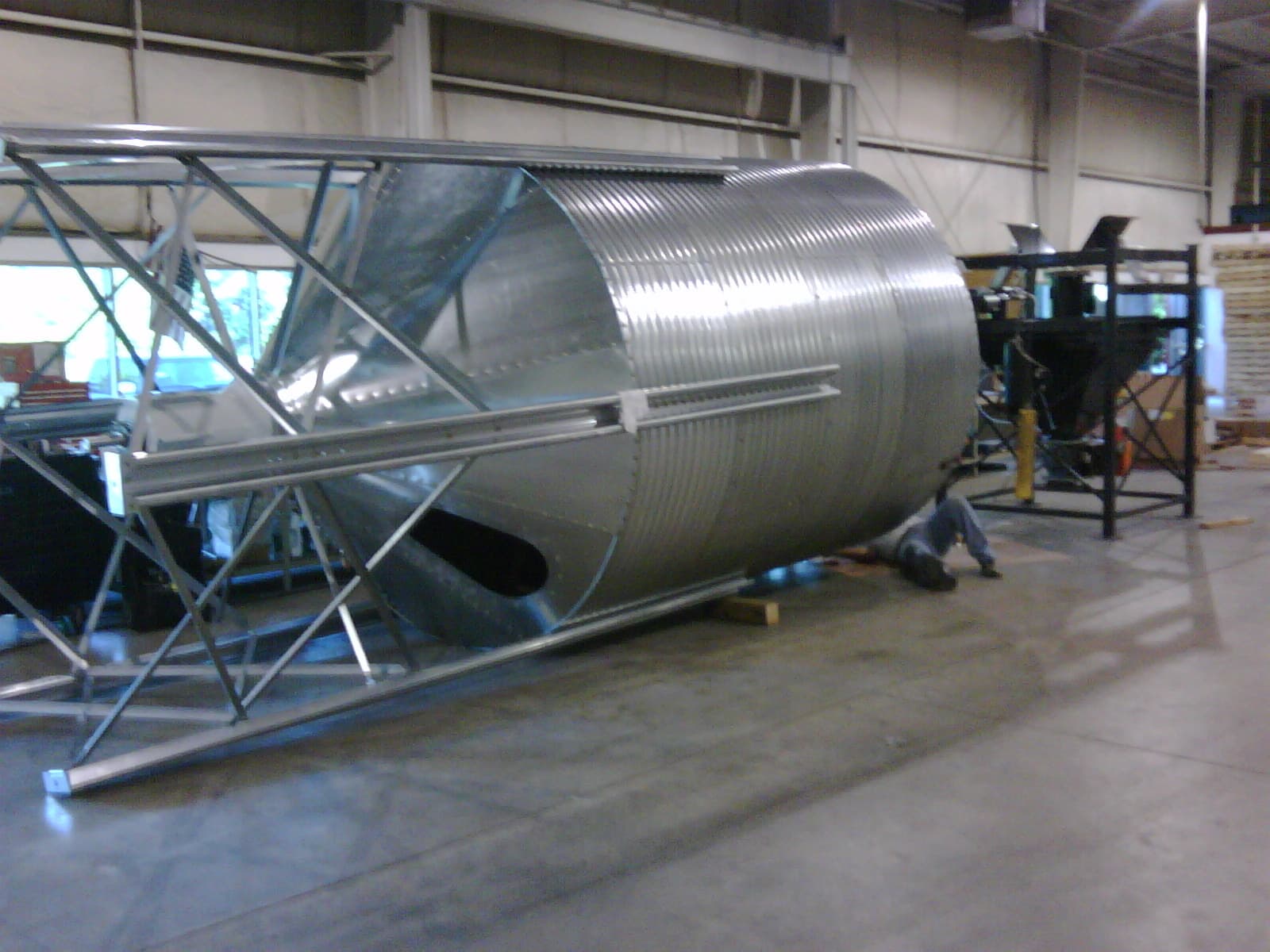

Img00006 20090902 1018 1

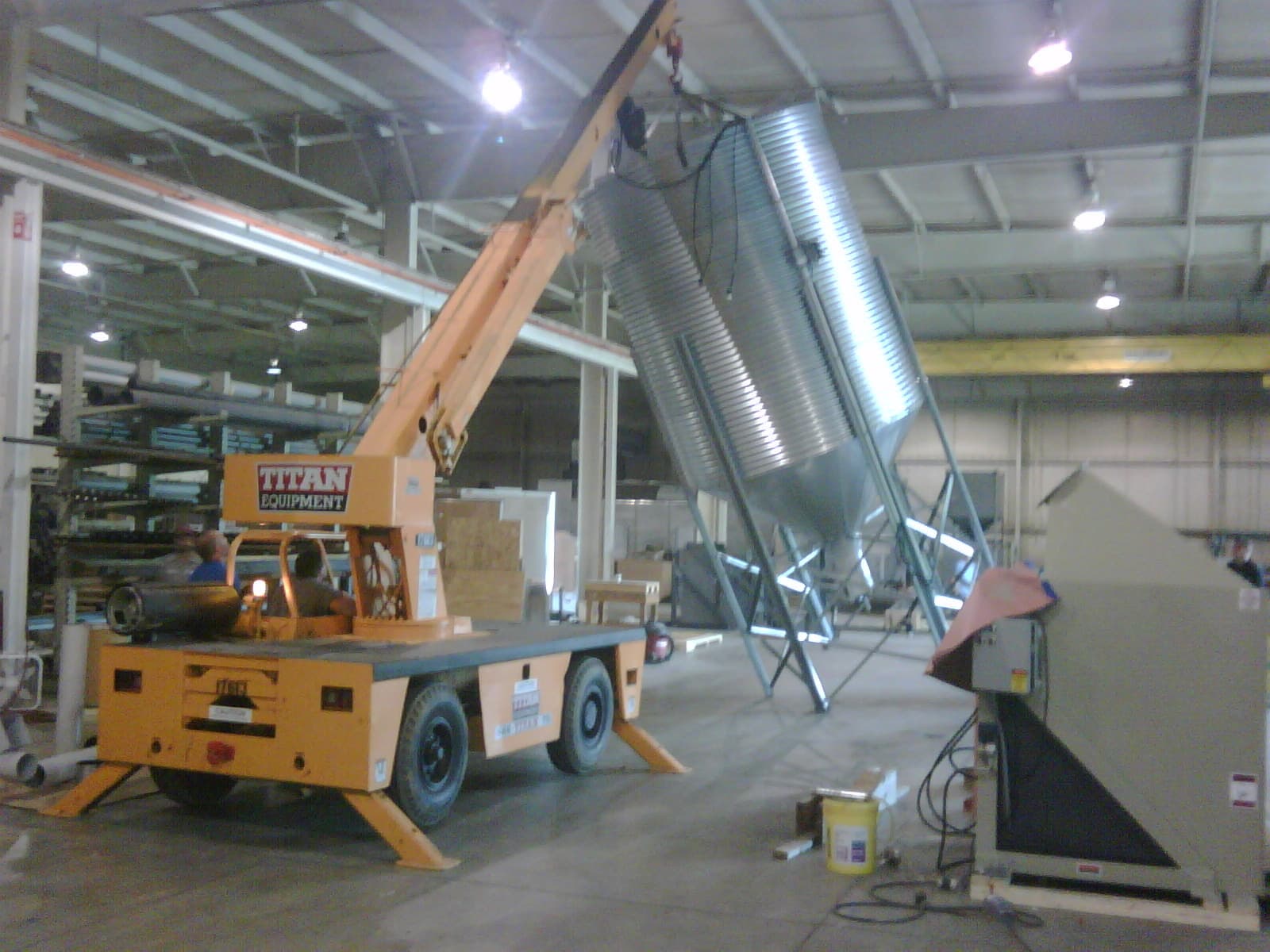

Img00016 20090908 1108

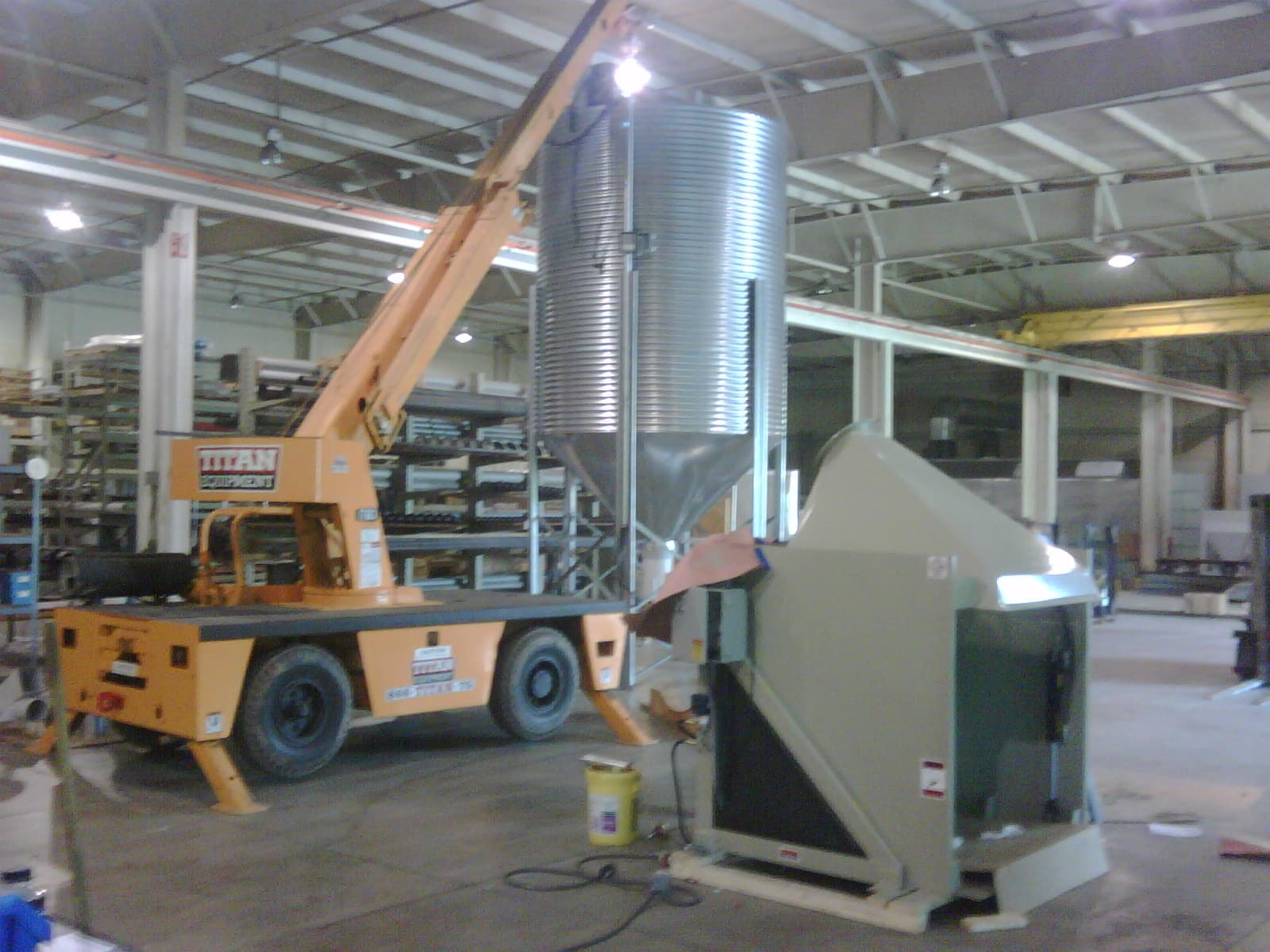

Img00018 20090908 1131

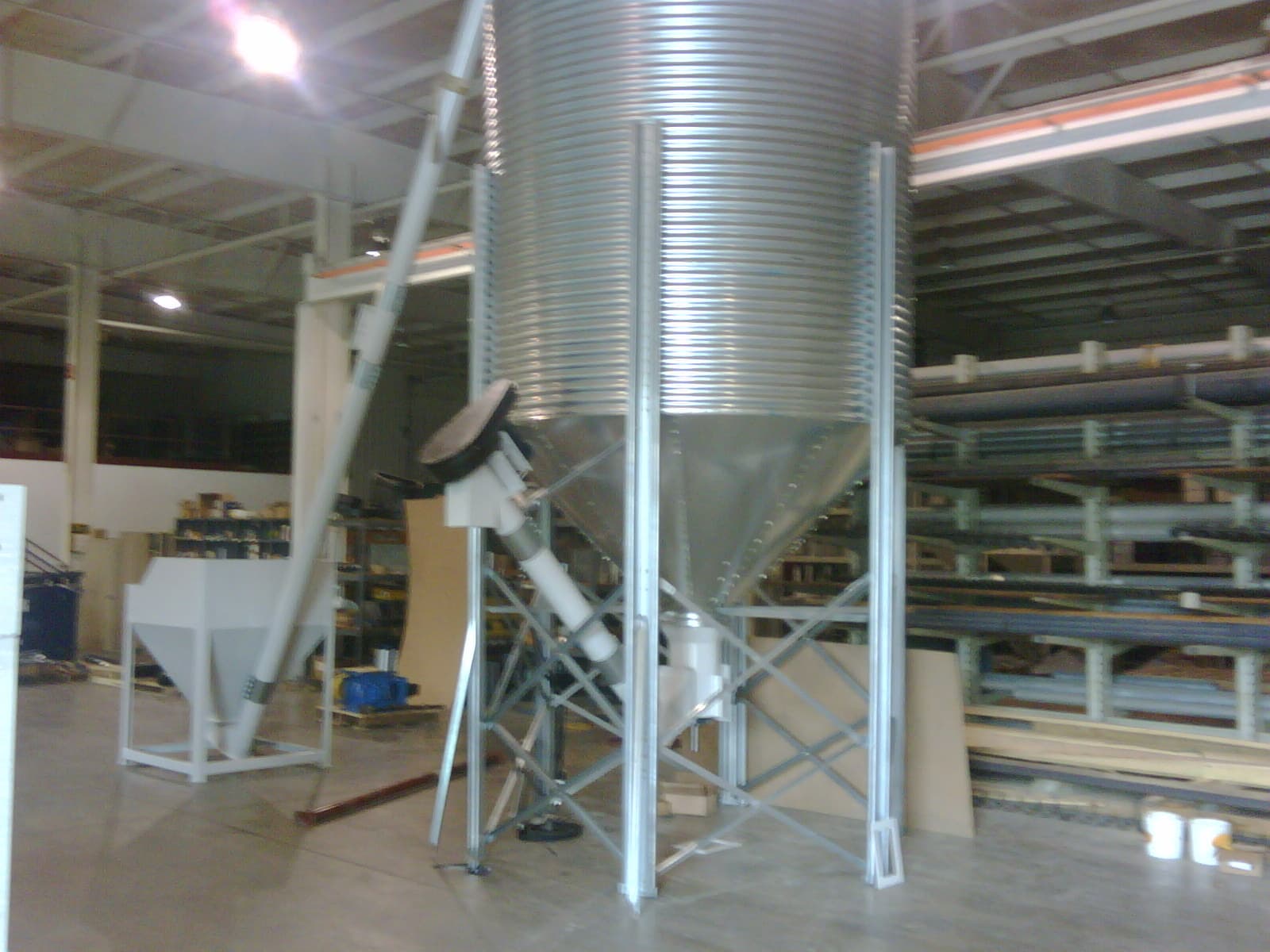

Img00026 20090909 1531

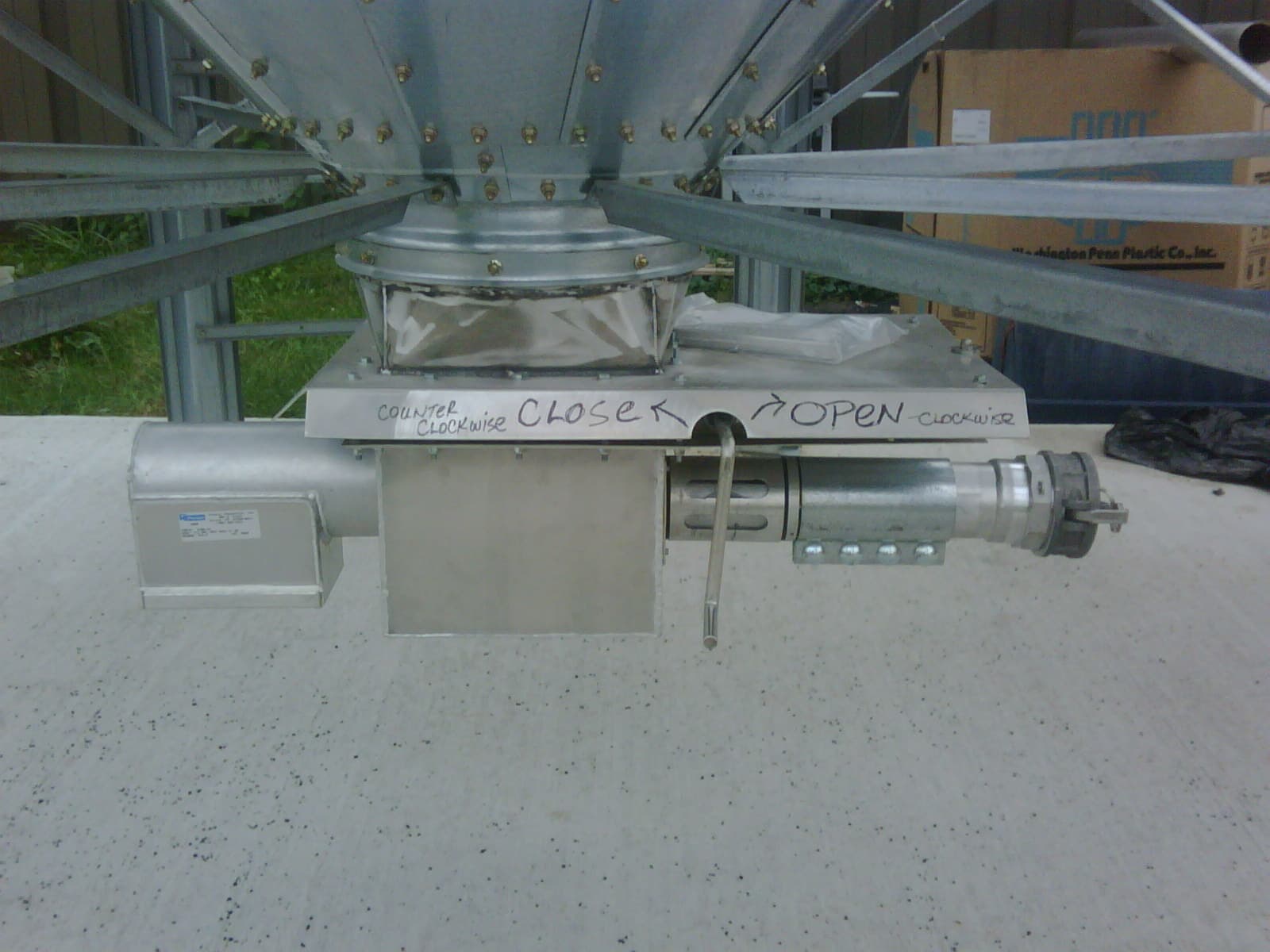

Img00099 20091013 1127

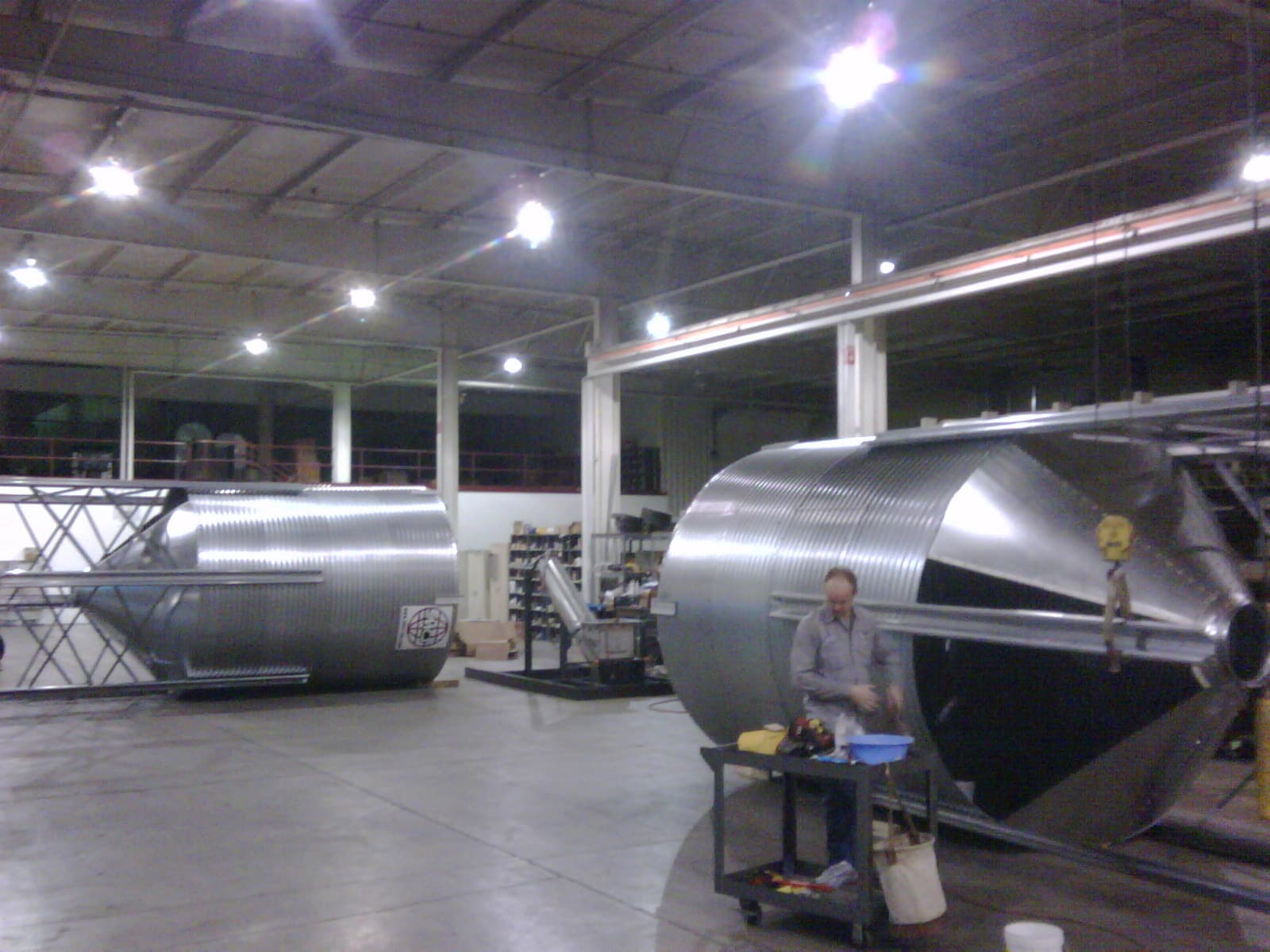

Img00259 20091130 0827

Product Specifications

Detailed product information provides an accurate description of requirements, measurements, and functionality.

Model No.Usable Cu. Ft.Capacity (lbs)Body DiameterHopper InclinePower RequirementsList Price
42-5000-0001083,80072"60°480V / 3 PHCall for Pricing
42-5001-0001826,37072"60°480V / 3 PHCall for Pricing
42-5002-0002588,96072"60°480V / 3 PHCall for Pricing
42-5007-00140214,070108"45°480V / 3 PHCall for Pricing
42-5007-00240214,070108"45°240V / 3 PHCall for Pricing
42-5008-00157219,600108"45°480V / 3 PHCall for Pricing
42-5008-00257219,600108"45°240V / 3 PHCall for Pricing
42-5009-00171519,600108"45°480V / 3 PHCall for Pricing
42-5009-00271525,025108"45°240V / 3 PHCall for Pricing
