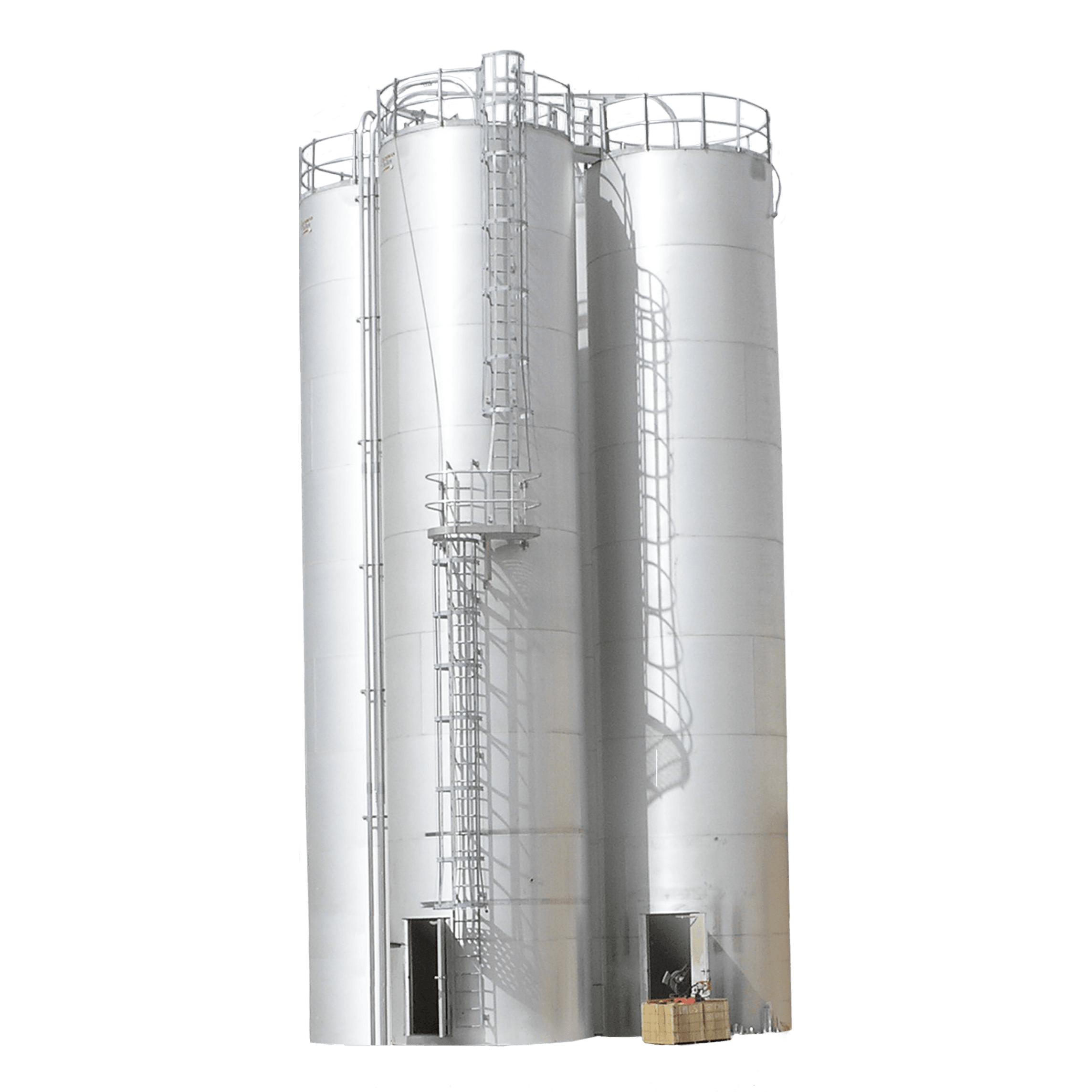

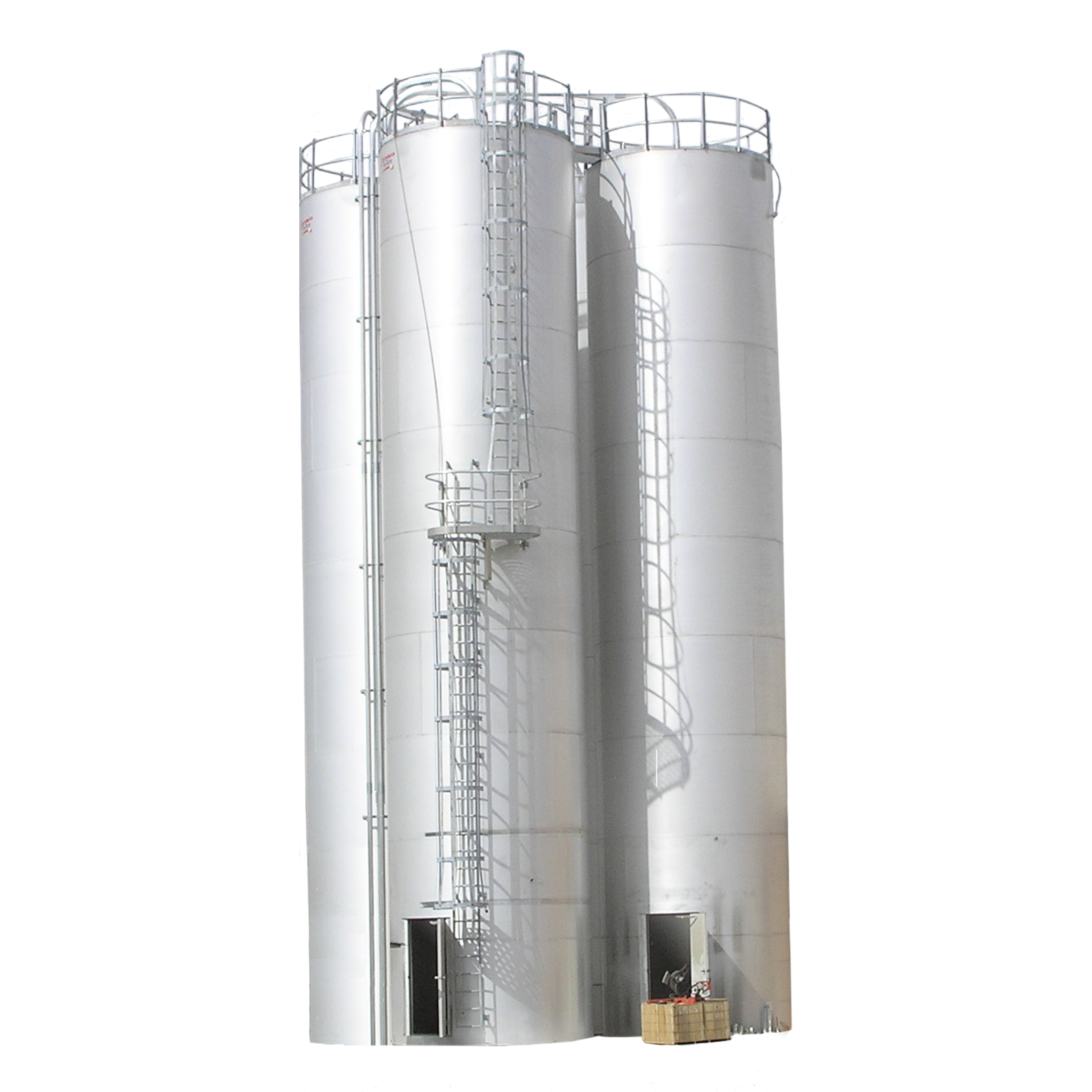

Welded Silos

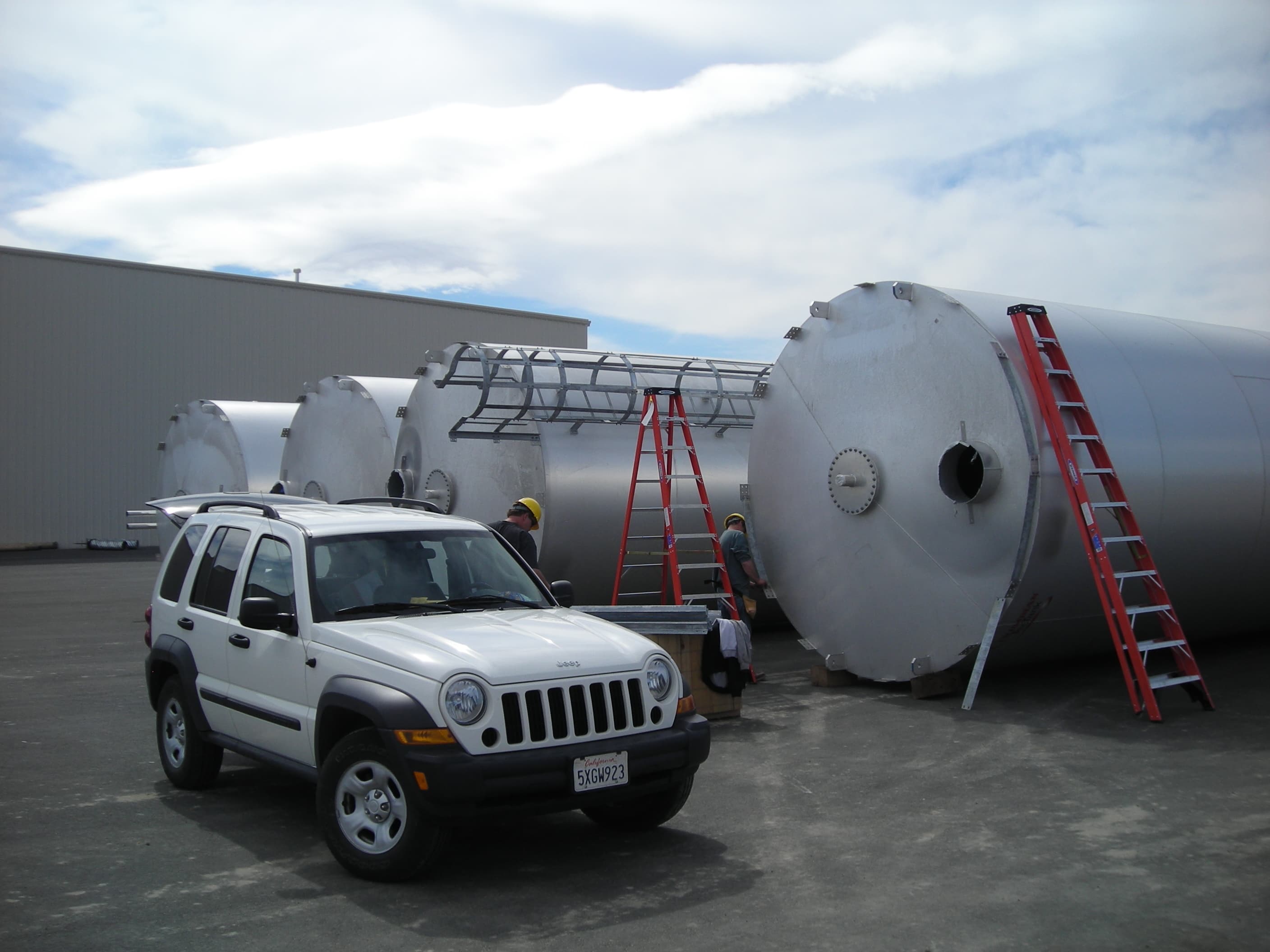

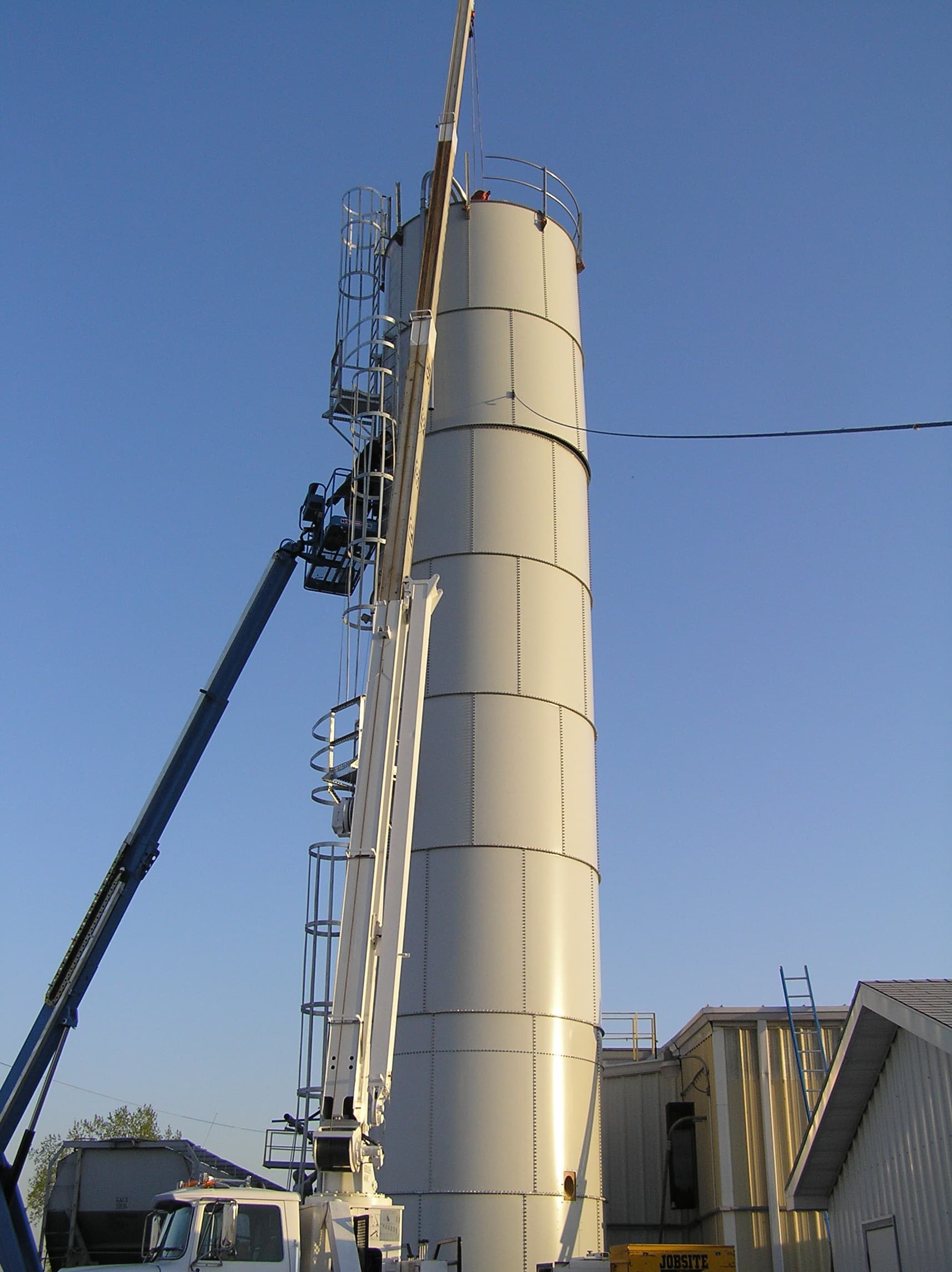

IMCS provides factory coated steel silos as well as galvanized steel, carbon steel, stainless steel or aluminum silo construction. Tanks are constructed, with 45 and 60-degree hopper bottoms. Standard one-piece construction is available up to 60' x 12' and can be fabricated in short periods of time. IMCS provides installation services including shipping, rigging, placement, leveling, anchoring and grouting.
Standard Features
Designed to Resist MASS FLOW Material Pattern, 10° Deck (25 PSF Deck Live Load), Seismic Zone 2A Per UBC 1997, 120 MPH Wind (Exposure C, I=1.0 Per ASCE 7-98), Design Pressure 14.0 OZ/IN^2 / Vacuum 1.0 OZ/IN^2, Center Fill / Center Discharge, Storage of Free Flowing Dry Product, Maximum Compacted Bulk Densities As Listed, 45° Hopper Clearance 2'10", 60° Hopper Clearance 2'6"
Safety Enclosures are available for all IMCS Equipment
Product Specifications
Detailed product information provides an accurate description of requirements, measurements, and functionality.
| Model No. | Diameter (ft) | Hopper Cone | Usable CF Cap. | O.A.H. | List Price |
|---|---|---|---|---|---|
| 40-4020-000 | 12 | 45° | 1732 | 24' | Call for Pricing |
| 40-4020-001 | 12 | 45° | 2393 | 30' | Call for Pricing |
| 40-4020-002 | 12 | 45° | 3054 | 36' | Call for Pricing |
| 40-4020-003 | 12 | 45° | 3714 | 42' | Call for Pricing |
| 40-4020-004 | 12 | 45° | 4735 | 48' | Call for Pricing |
| 40-4020-005 | 12 | 45° | 5035 | 54' | Call for Pricing |
| 40-4020-006 | 12 | 45° | 5696 | 60' | Call for Pricing |
| 40-4021-000 | 12 | 60° | 1485 | 24' | Call for Pricing |
| 40-4021-001 | 12 | 60° | 2146 | 30' | Call for Pricing |
| 40-4021-002 | 12 | 60° | 2807 | 36' | Call for Pricing |
| 40-4021-003 | 12 | 60° | 3467 | 42' | Call for Pricing |
| 40-4021-004 | 12 | 60° | 4128 | 48' | Call for Pricing |
| 40-4021-005 | 12 | 60° | 4788 | 54' | Call for Pricing |
| 40-4021-006 | 12 | 60° | 5449 | 60' | Call for Pricing |
